Transformers

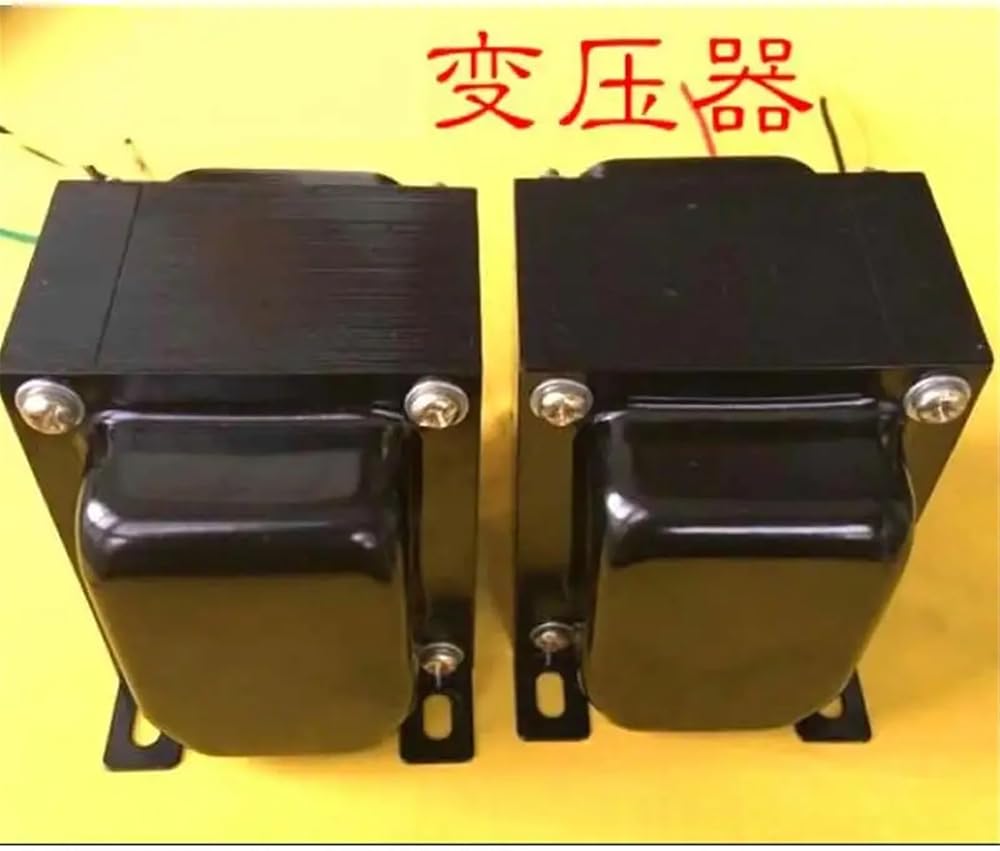

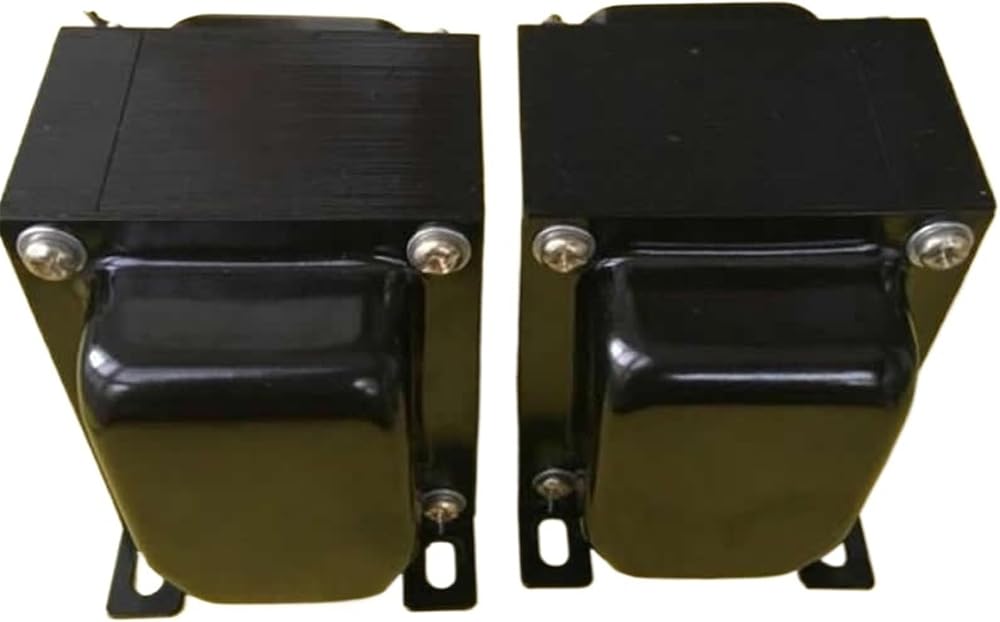

Transformer 20W3.5K amplifier single-ended output, the price of 1 piece
Iron core 76 pieces stack thickness 50
Primary impedance 3.5K(B-G-P)G super linear connection
DC resistance 238 ohms
Secondary 0--4---8 Euro
Inductance 26 H
Single 1.97 kg
Volume length 66mm width 96mm height 80mm
Mounting hole length 52 mm width 70mm
