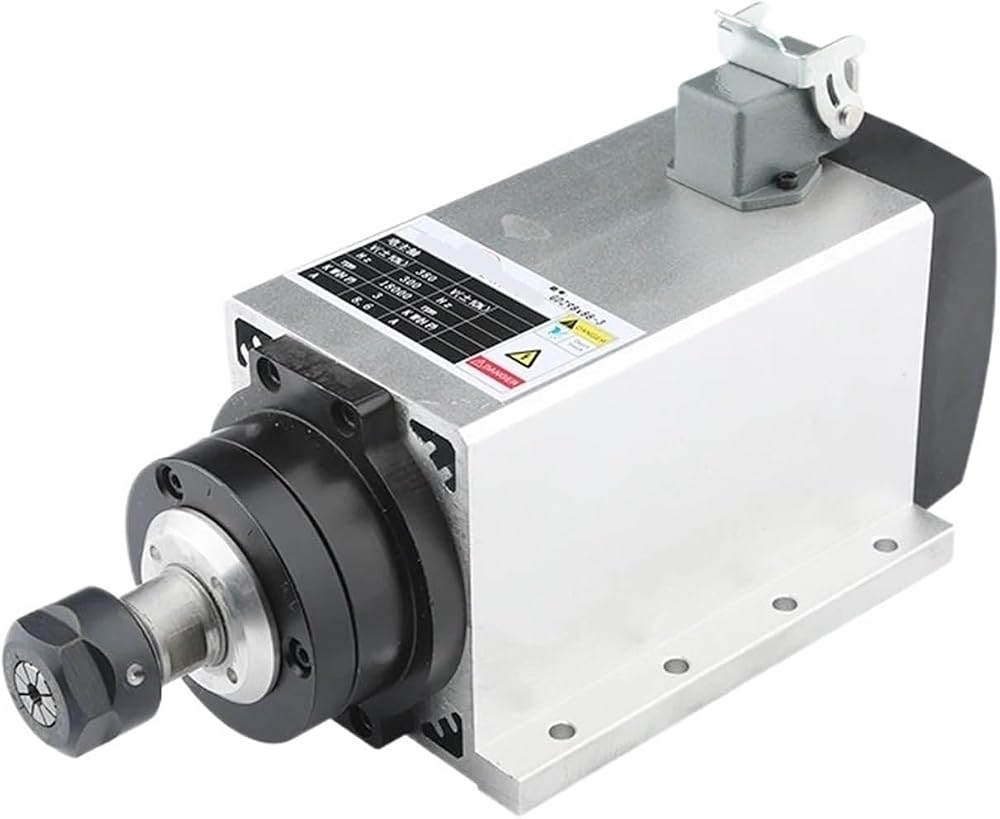

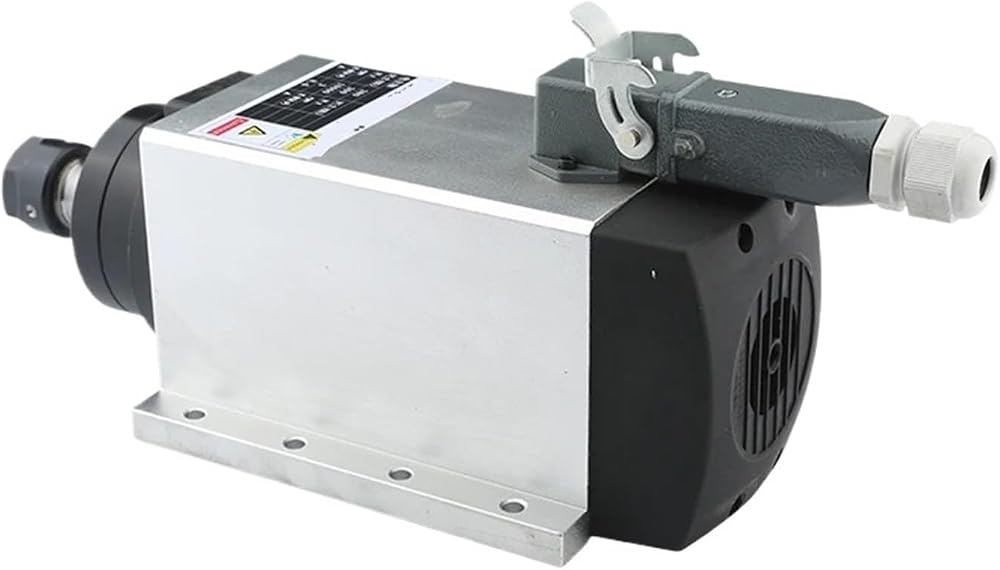

Slotting Cutter Arbors

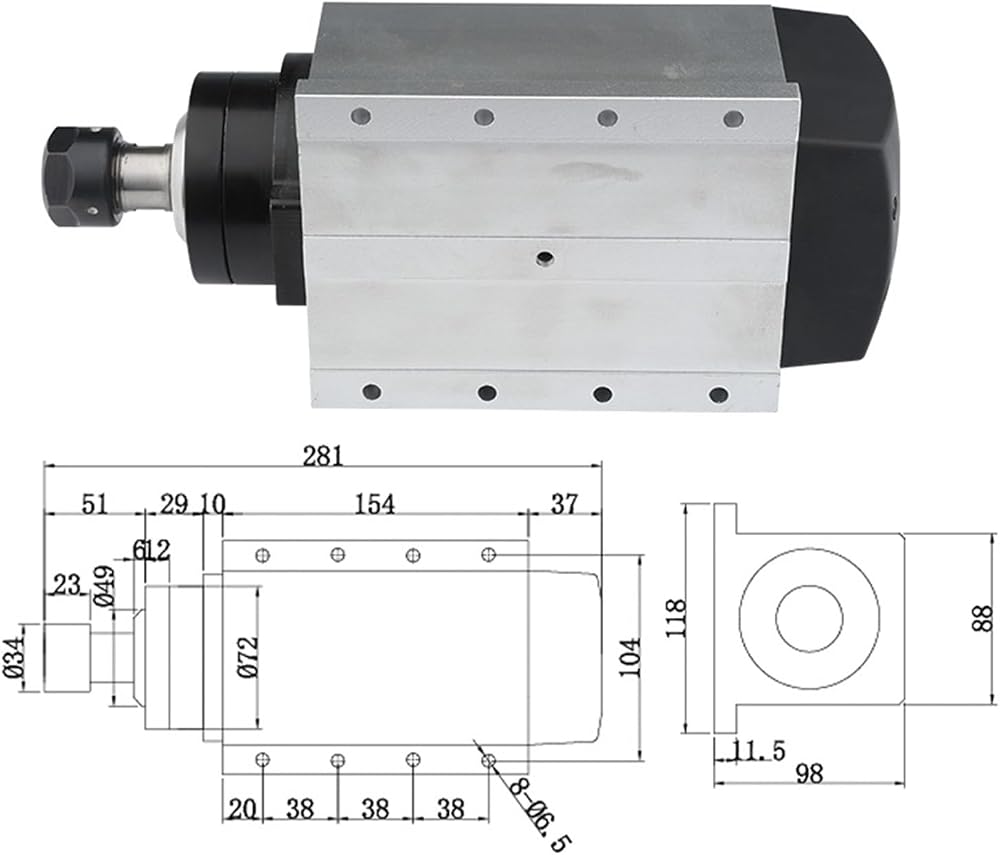

Dimensions: 281x118x98mm (including flange)
Speed regulation mode: three-phase output frequency converter, by changing the frequency of the frequency converter, the spindle speed can be changed.
Cooling method: air cooling

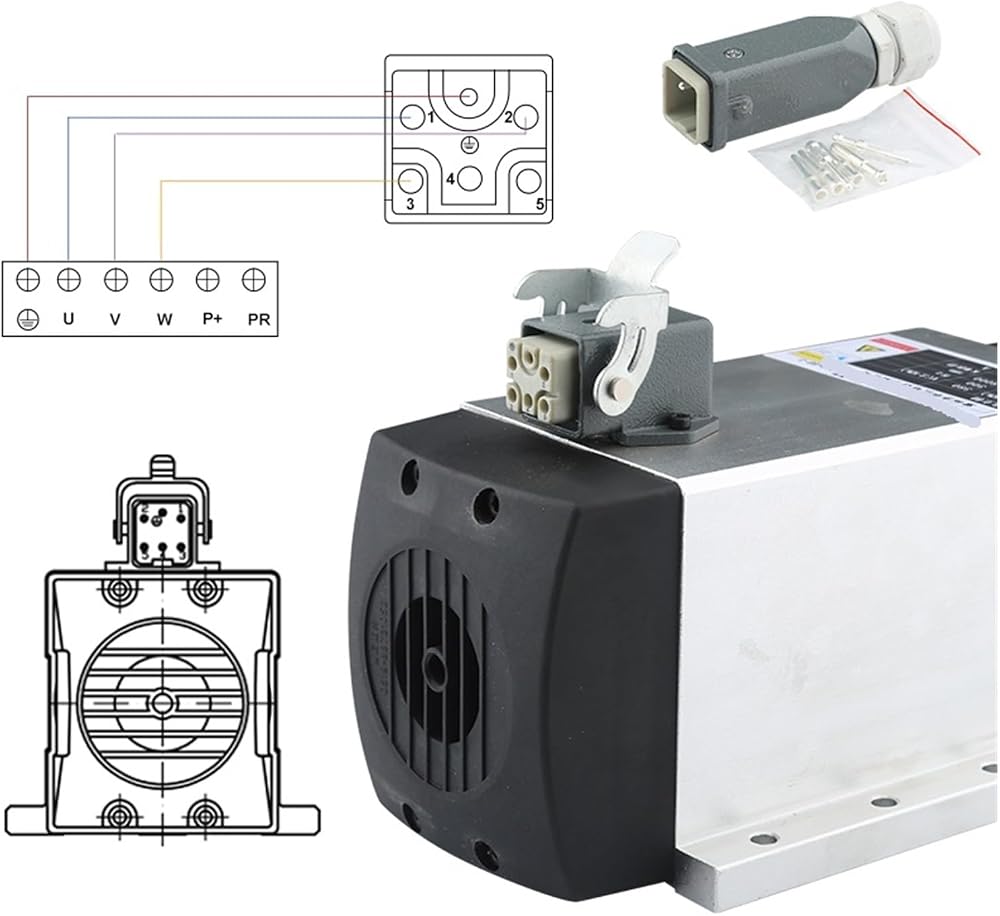

Power interface: 6-pin square aviation plug is optional. The aviation plug is marked with "1", "2", "3", "4", "5" and "GND". "1", "2", "3" are connected to the inverter (U, V, W), and "GND" is connected to the inverter ground.

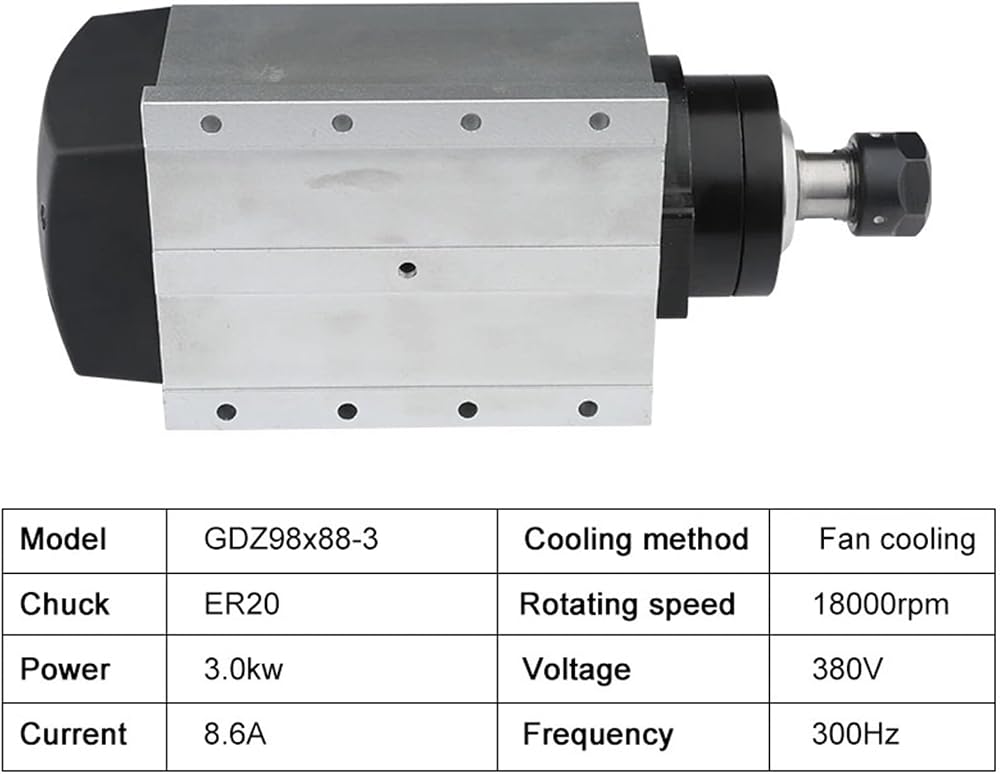

Power: 3.0kw
Voltage: 380V
Current: 8.6A
Frequency: 0-300Hz
Speed: 0-18000rpm
Runout: less than 0.01mm
4 fully sealed angular contact bearings
Chuck: ER20
