Specification:

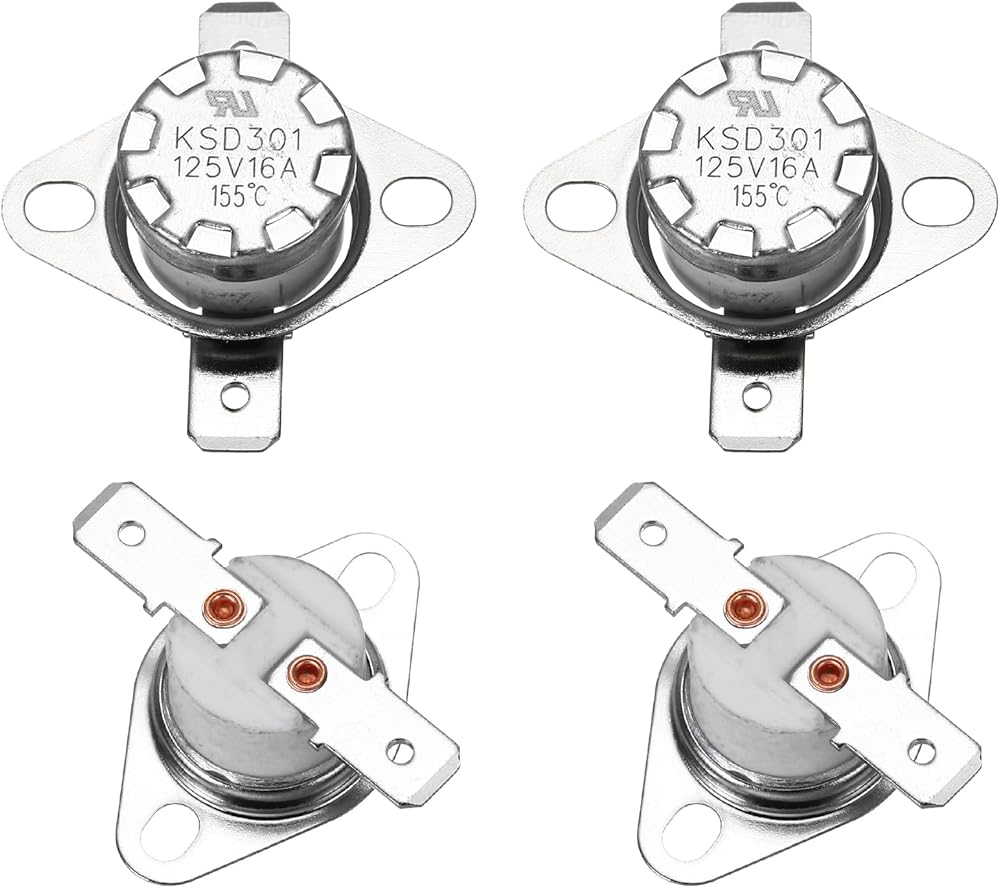

Product Name : Temperature Control Switch
Model: KSD301
Action Temperature: 155°C/311°F
Action Type: N.C (Normally Closed)
Rated Voltage/Current : 125V/16A
Pin Width : 6.3mm/0.25inch
Contact Life: More than 50,000 times (action times)
Electrical Strength: AC50Hz, 2000V/min no breakdown and arc phenomenon

Package Content :
2 Pcs x Temperature Control Switch

Description :
1.Normally Closed: The original state of temperature control switch contact is closed, and open when the temperature sensing exceeds the rated temperature.
2.Feature: Double metal chip, contact sensor, speed dynamic type, sensitive, reliable, safe, stable action temperature, long service life, no arc phenomenon.
3.Advantage: General purpose, automatic reset, low cost, large capacity, minute current thermostats.
4.Function: It is closed until the temperature reaches 130 Celsius degree, then the switch opens. Widely used for temperature control or protection for household electric appliances.
5.Application: Mainly used for microwave,oven,electric smoker,coffee maker,speed cook oven,heater,dryer,,gas furnace,bath vent heater,wall heater,motor electric heating water dispenser, water bottles, cabinet, coffee shell, electric iron, dryer, air conditioning, water heater, electronic cooker, heater, ,motor cleaner
