Isolation Transformers
Notes: The default power supply is DC24V .
Introduction

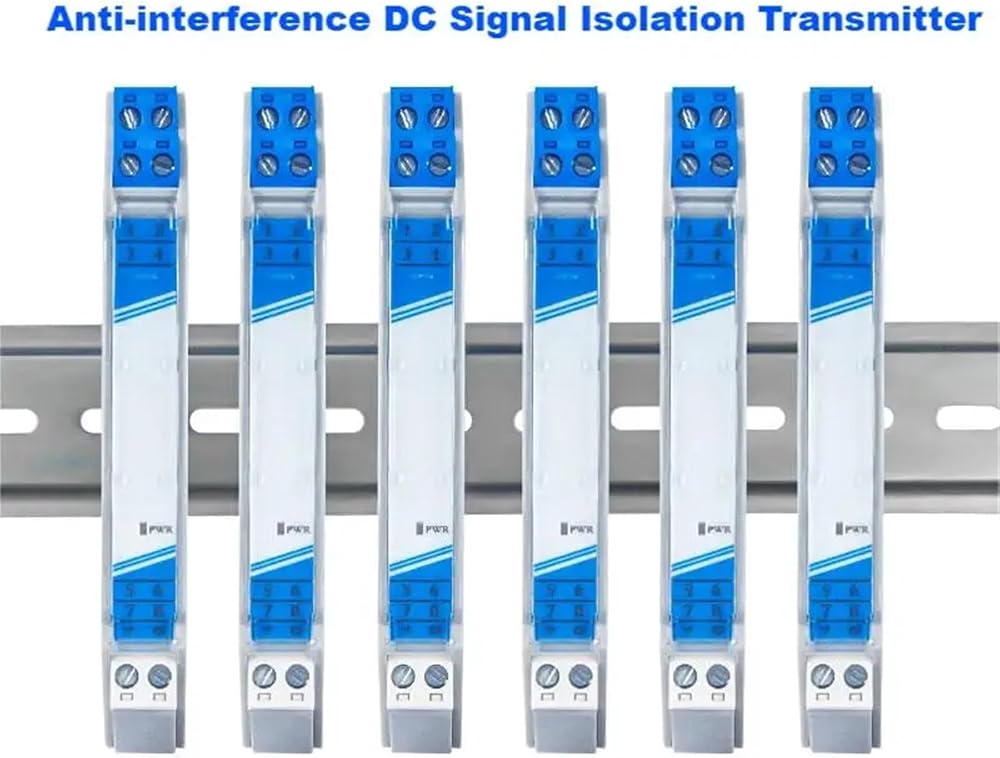

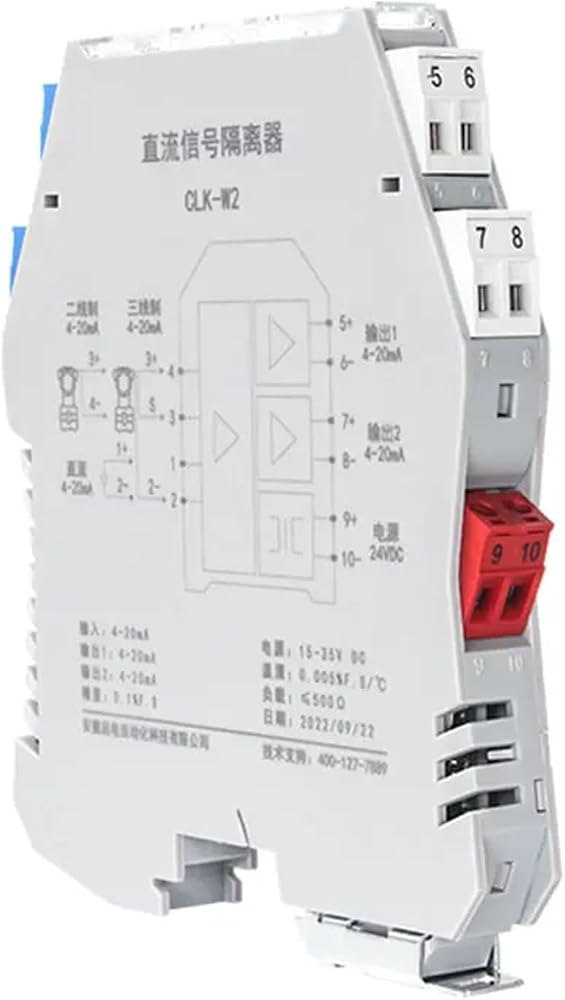

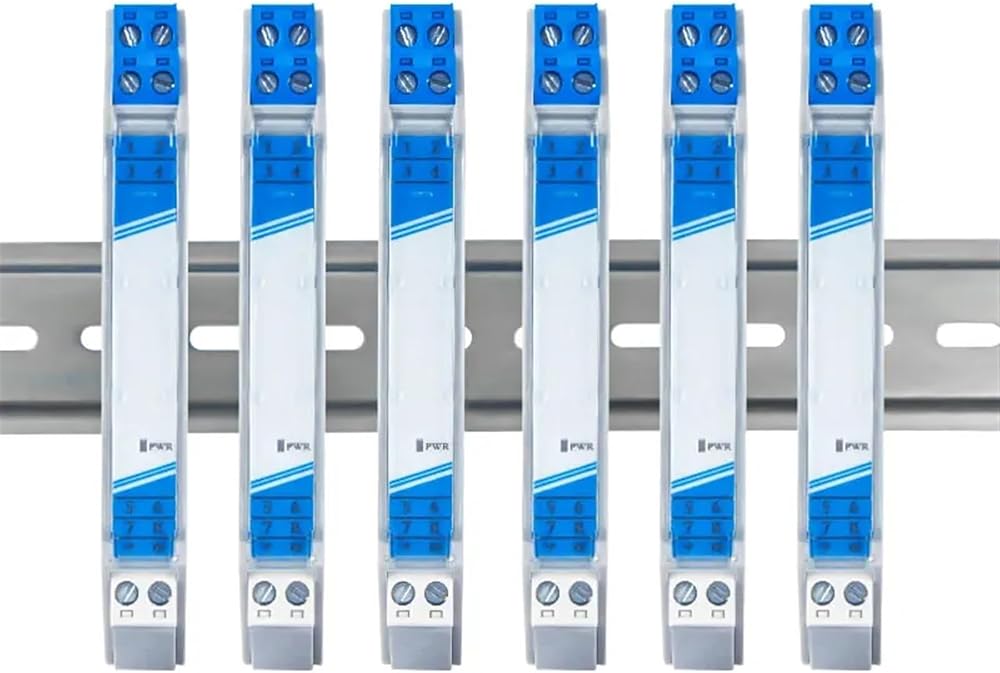

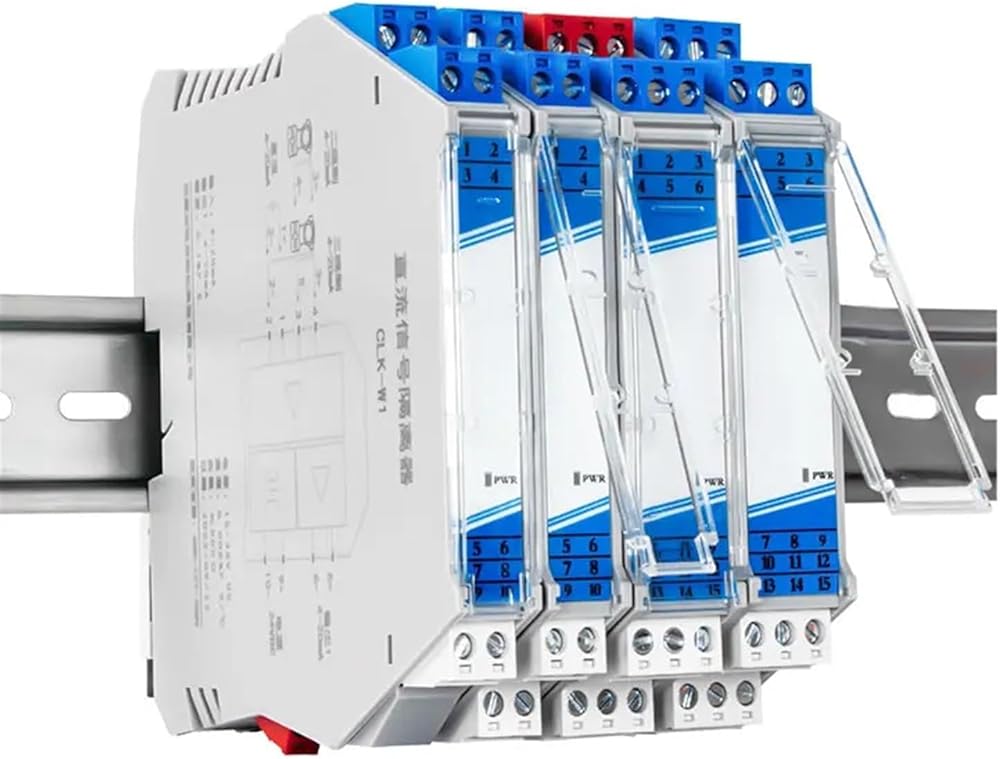

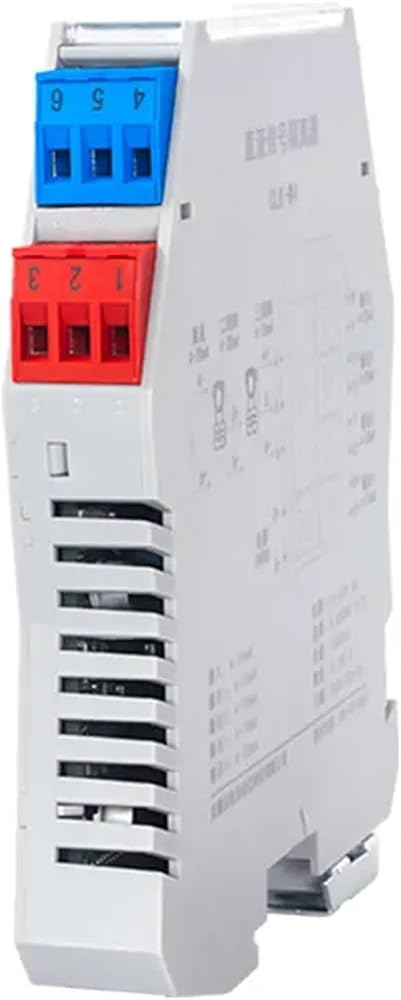

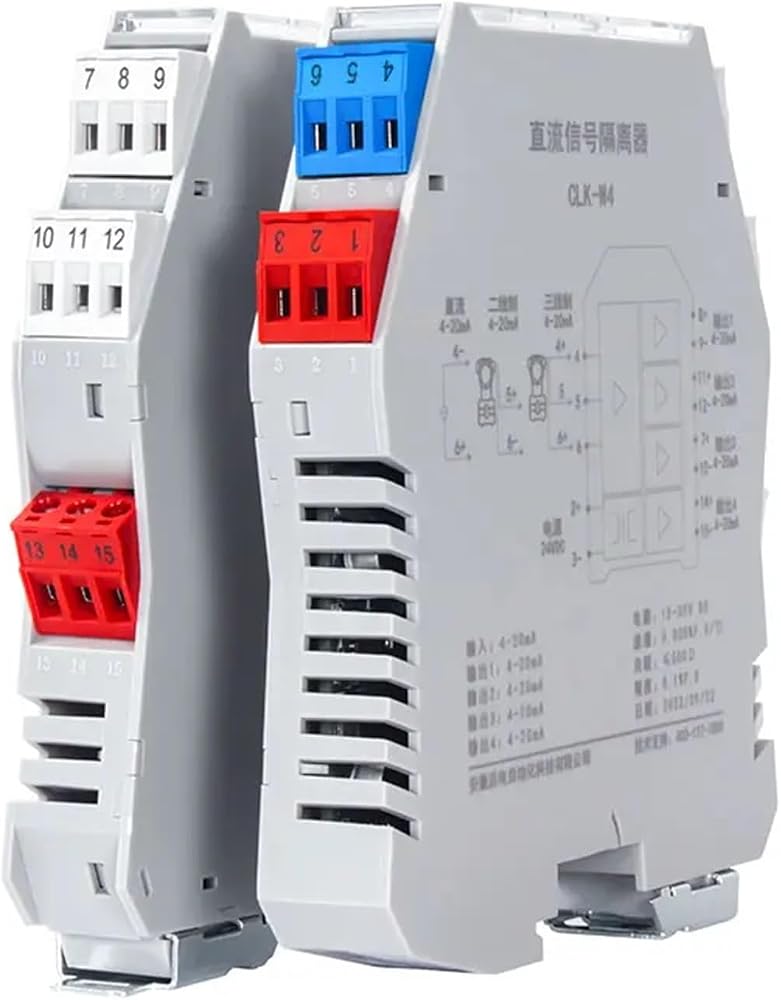

. GLK intelligent isolated distributor is a high performance distribution isolator. It can be used for isolation, transmission and distribution of output signals of two-wire and three-wire.
. Precisely isolates and distributes 4~20mA,0~10V standard signals and other non-standard signals.
. 3 terminals totally isolated, with good qualities of surge prevention,high accuracy, stronger anti-interference and stronger stability.
. Have the advantage of high precision,high linearity and strong anti-interference.Standard 35mm DIN rail independent
==========
Hign-concerned Chemical : None
Dimensions : 110*118.9*12.7mm
Operating Temperature : -20~+55 Celsius
Supply Voltage : DC24V
Accuracy Class : ;0.1%F.S.
Model Number : GLK
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Product name : Analog Signal Isolator
Channels : 1 in 1 out,1 in 2 out, 2 in 2 out
Input signal : 4-20mA, 1-5V,0-10V etc
Output signal : 4-20mA, 1-5V,0-10V etc
Installation : 35mm DIN rail
Linearity : 0.1%
Response time : 10ms
