Isolation Transformers
Notes: The default power supply is 24V.
Introduction

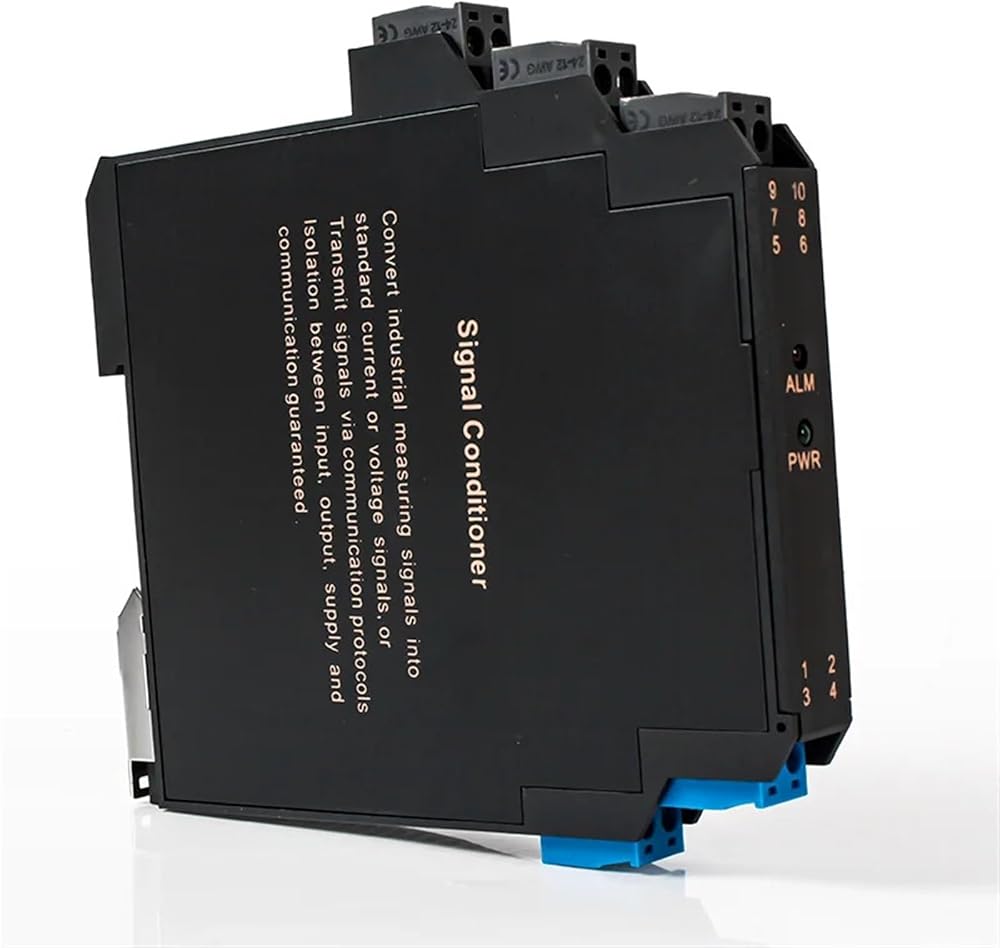

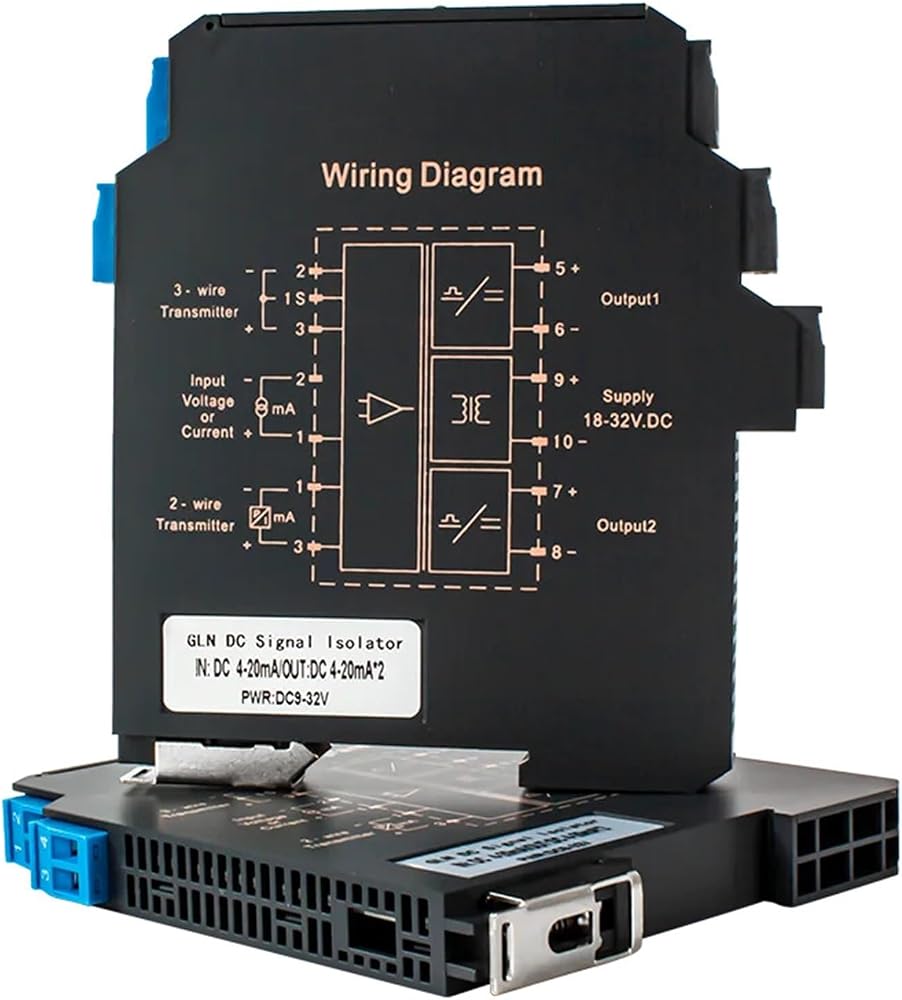

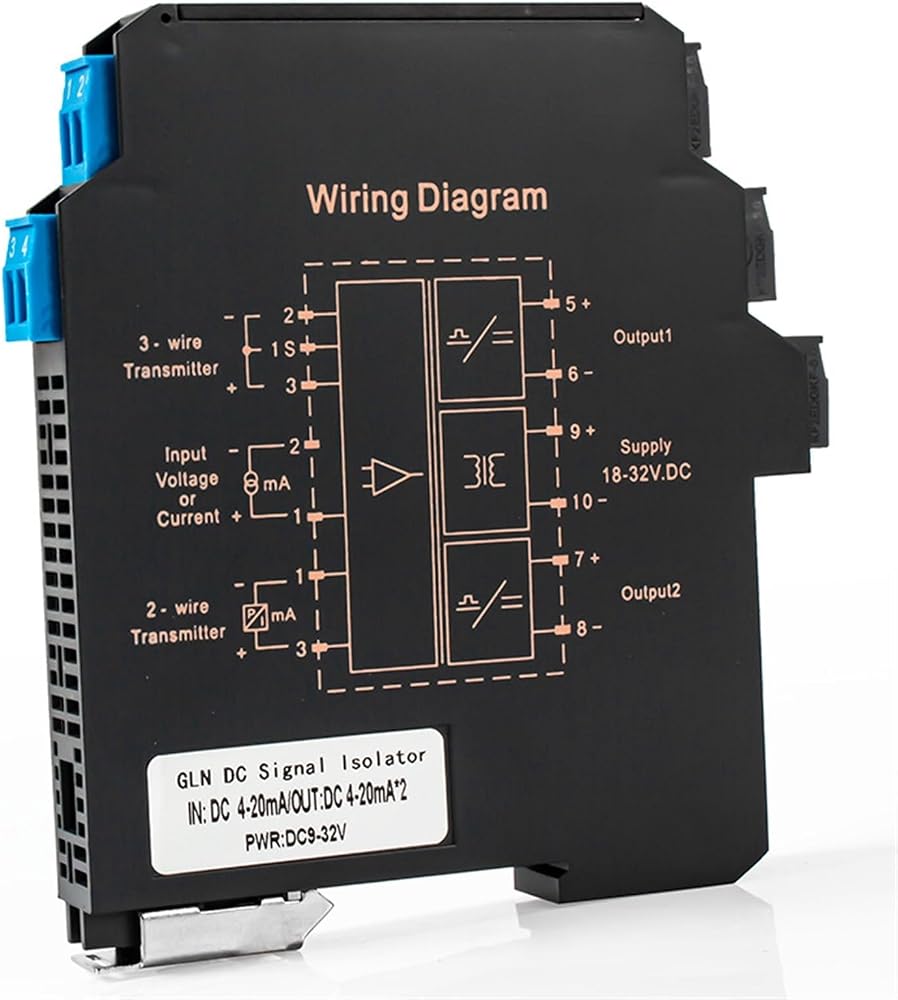

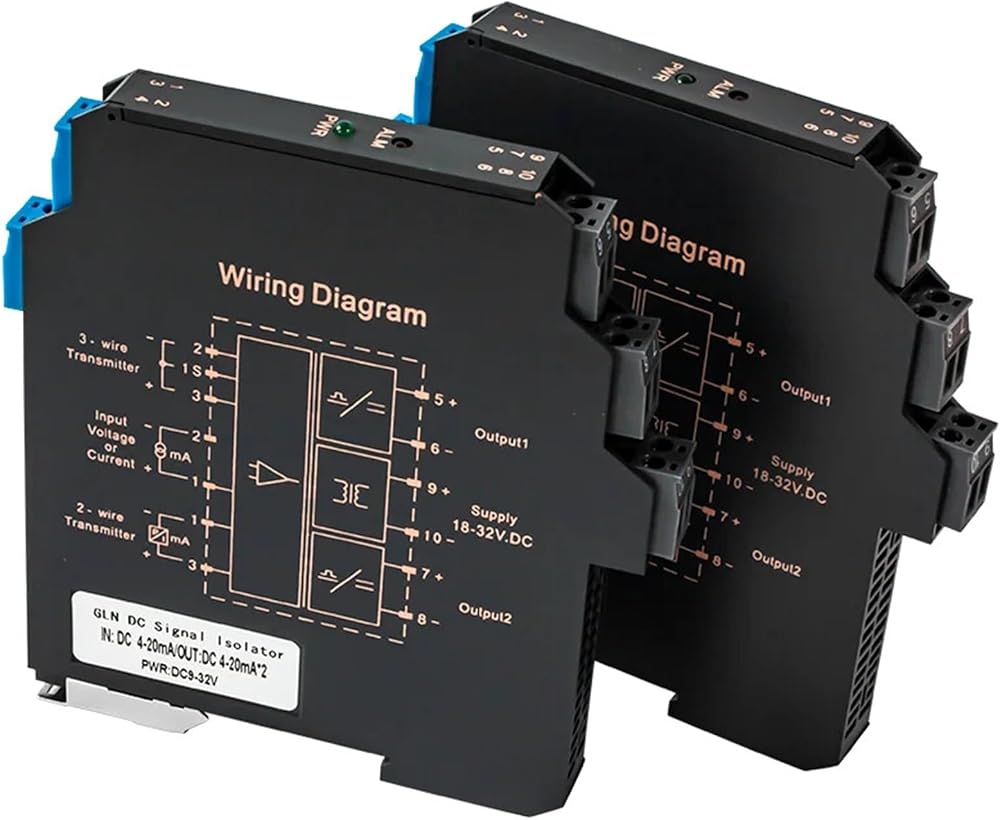

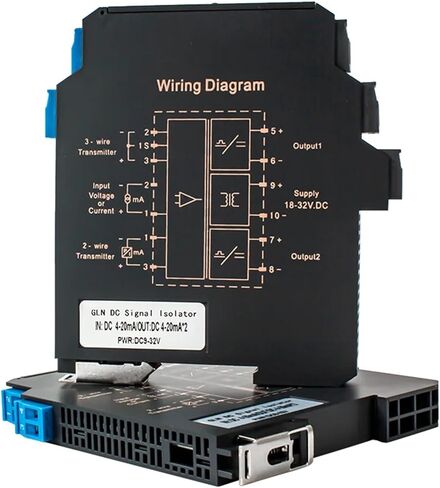

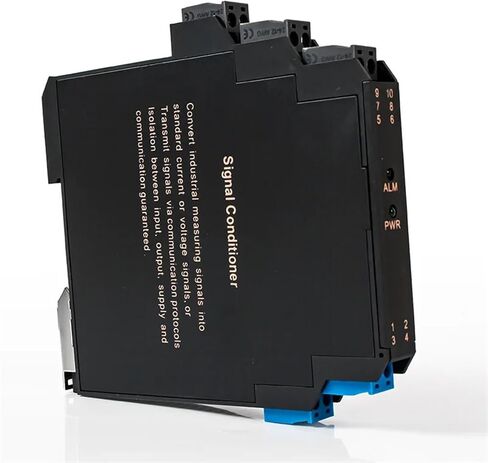

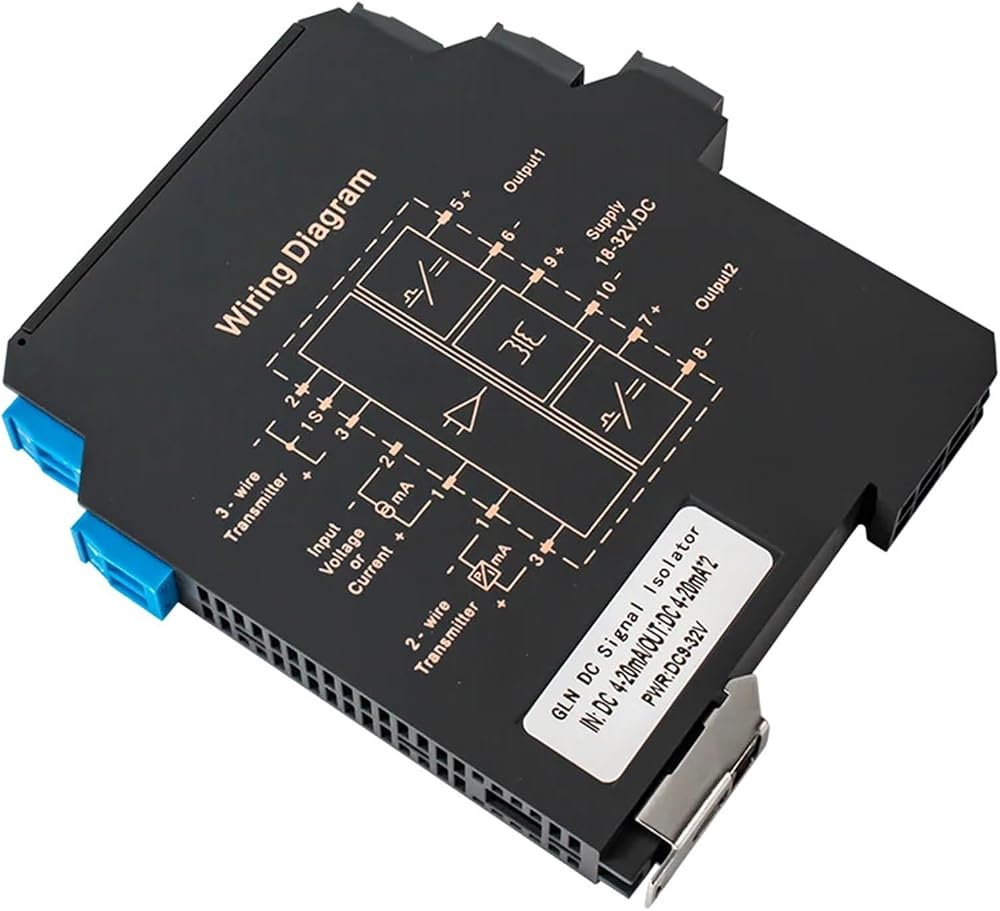

. The signal isolator provides isolated distribution power for the field transmitter, isolates the current or voltage signal by the transmitter and transmits the signal to the control room DSC etc.
.Input terminal is in common use for current ,2-wires and 3-wires. The input, output and power are isolated from each other by adopting highly efficient magnetoelectric isolation technology interiorly.
. This product has 2 types,1 in/1 out,1 in/2 out,input and output signal can be .
. Have the advantage of high precision,high linearity and strong anti-interference.Standard 35mm DIN rail independent
Product parameters
Input
Input Signal
4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;
Input Burden
Current model: 100
Voltage model: 300K
Overload Capacity
Support 2 times rating value(continuous); 10 times rating value(10s)
Output
Output Signal
4-20mA;0-20mA;0-10mA;0-5V;0-10V;1-5V;
Output Voltage
0-10VDC,0-5VDC;(Load resistance=Input voltage/10mADC)10k
Output Current
0-20mADC,4-20mADC;(Load resistance=10VDC/Output current)500
Output Ripple
0.5%RO
Other Parameters
Accuracy
;±0.1%F.S.
Respond Time
Power Consumption
1VA
Compressive Strength
AC2KVrms/min
Insulation Resistance
>100M( 500V)
Working Temperature & Humidity
Storage Temperature & Humidity
==========
Hign-concerned Chemical : None
Dimensions : 100*114.5*12.5mm
Operating Temperature : -20~+55 Celsius
Supply Voltage : DC24V
Accuracy Class : ;0.1%F.S.
Model Number : GLG
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Product name : Analog Signal Isolator
Channels : 1 in 1 out,1 in 2 out
Input signal : 4-20mA, 1-5V,0-1
