Isolation Transformers
Introduction
. This multi-functional transmitter, input voltage ranges is-2000V~2000V,input current range is-10A~10A.
.It can be used for standard signals, such as 4~20mA, 0~10V, 0~5V,-10V~10V,etc.
BUT, it also can be used for non-standard signals, such as 20~4mA, 10~0V, -10V~10V,etc.
.Standard 35mm DIN rail independent mounting. High precision, high linearity, low temperature drift. Full channel configuration, parameter .
.The input, output and power are isolated from each other, isolating the industrial voltage signal and converting it into standard current or voltage signal.
==========
Dimensions : 108*47*25.4mm
Operating Temperature : -20~+55 Celsius
Supply Voltage : DC24V
Accuracy Class : 0.1%F.S

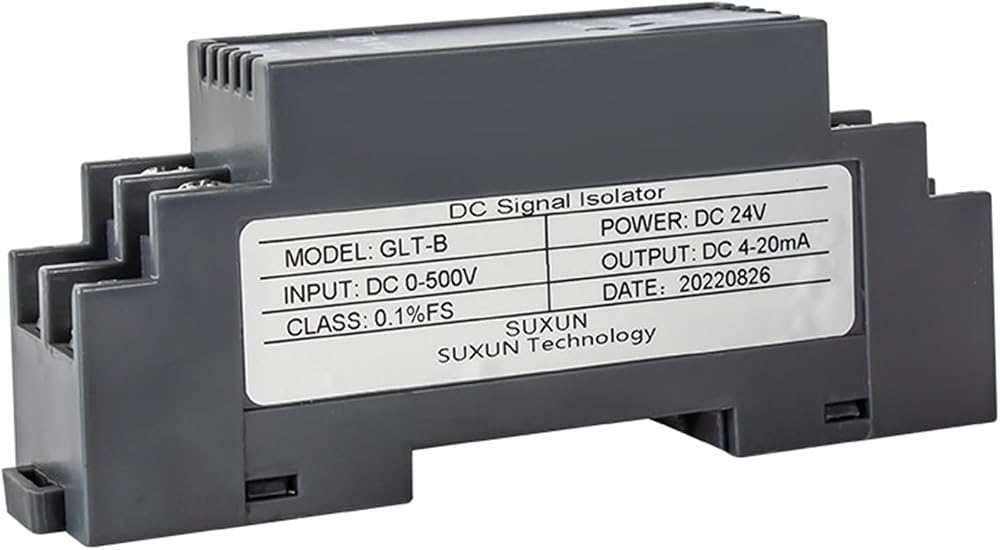

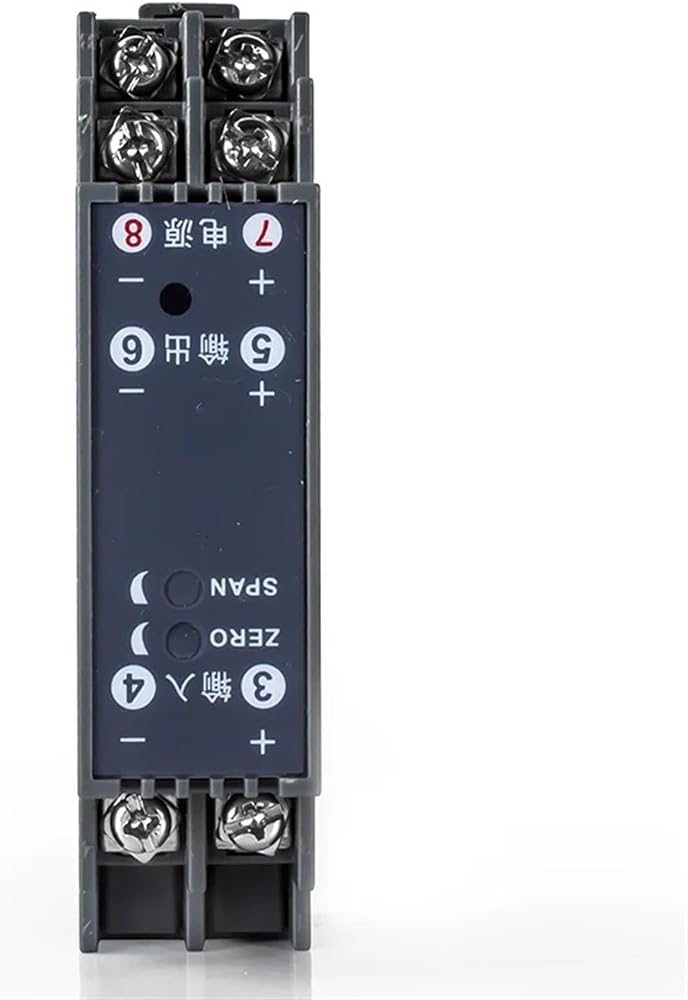

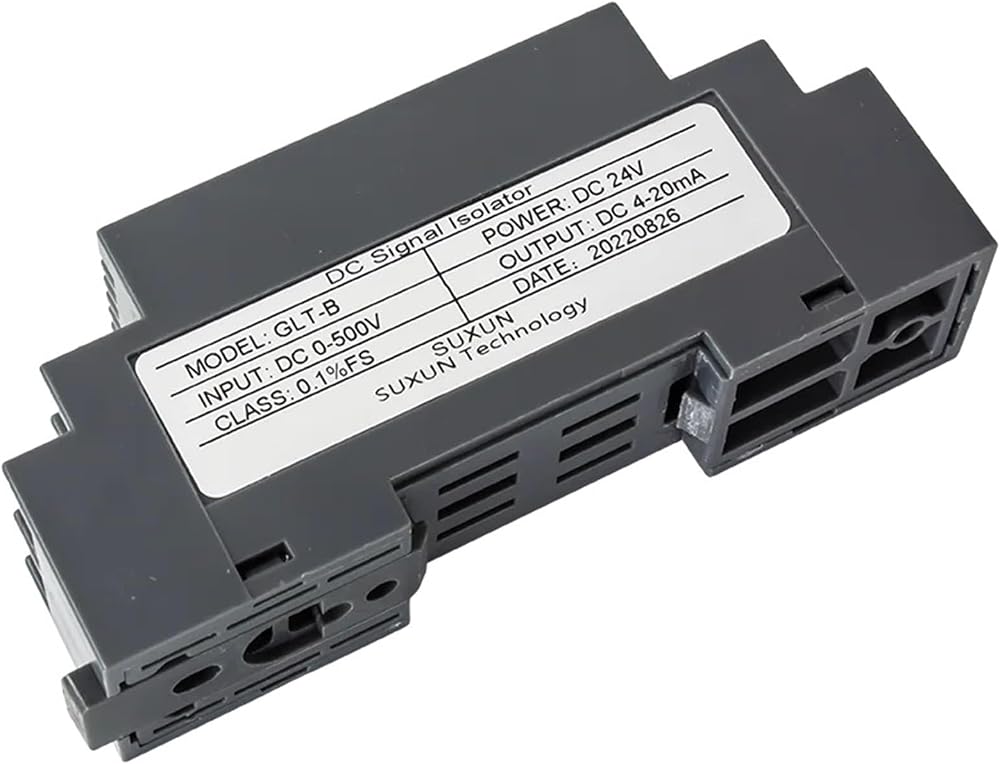

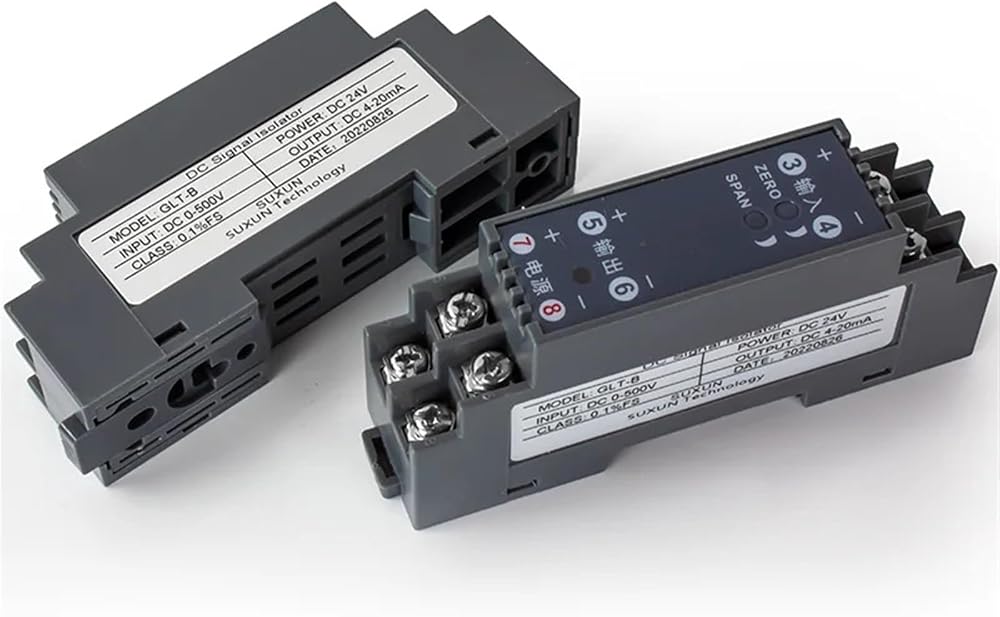

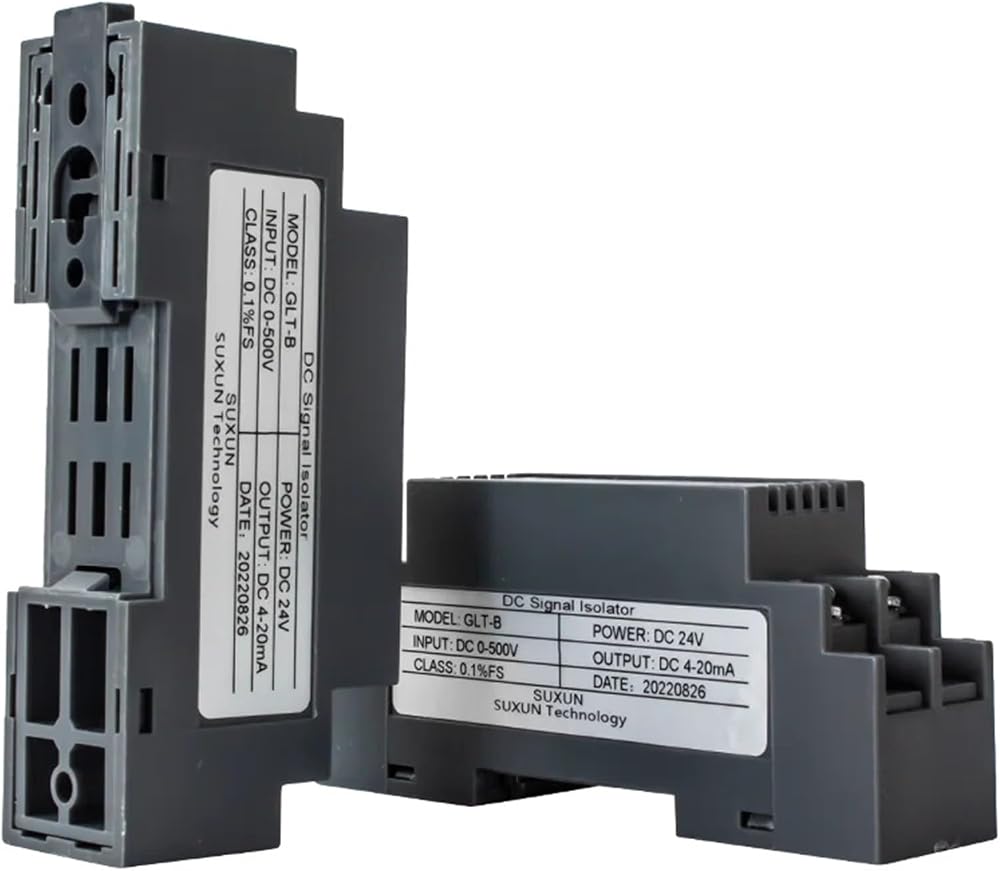

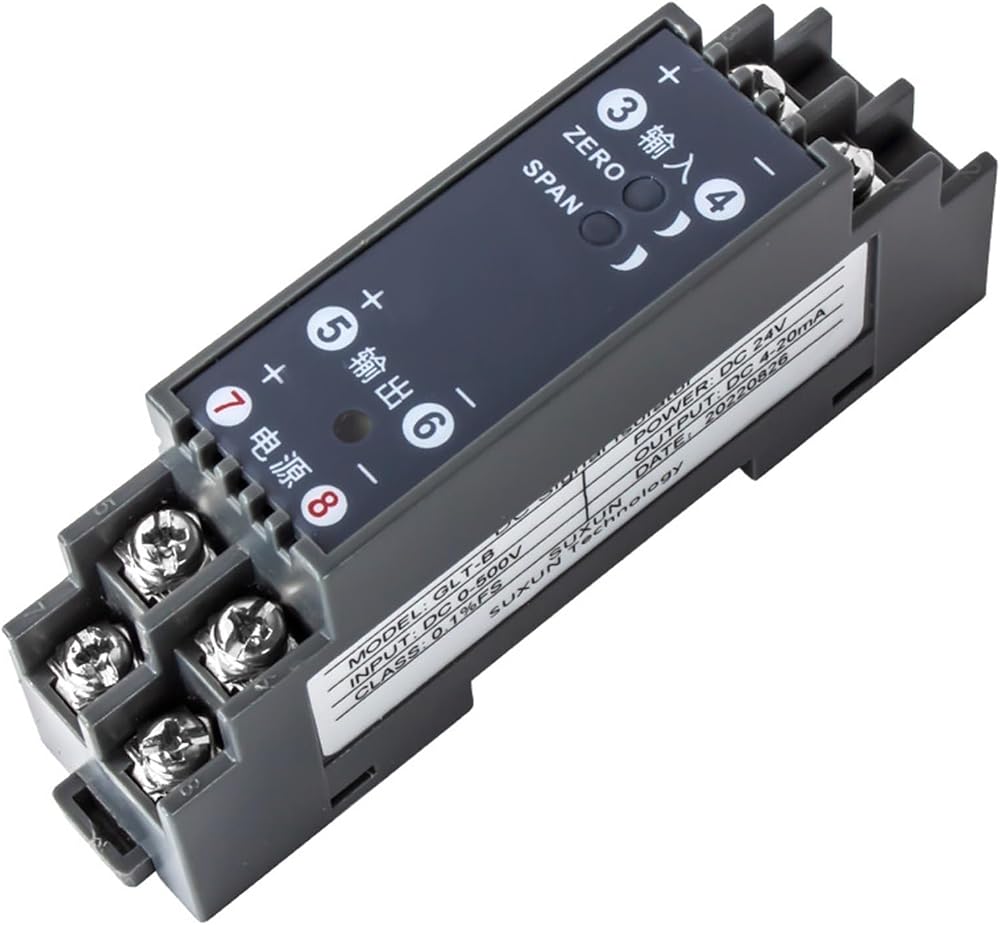

Model Number : GLT-B signal isolator
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Output signal : 4-20mA, 1-5V,0-10V etc
Installation : 35mm DIN rail
Response time : 10ms
Dimensions: : 108*47*25.4mm
Input signal: : 4-20mA, 0-5V,0-10V , ±2000V, ±10A
Product name: : GLT-B Signal Isolator
Accuracy Class: : 0.1%F.S
