Isolation Transformers
Introduction:
High accuracy
Highlinearity
Imported components, high integration, free from periodic calibration
Standard 35mm DIN Rail Installtion, strong versatility
Strong anti-interference
Parameters can be
FEATURES:
. 1 IN 1 OUT,1 IN 2 OUT,2 IN 2 OUT input and output signal can be .
.Input terminal is in common use for current ,2-wires and 3-wires. The input, output and power are isolated from each other by adopting highly efficient magnetoelectric isolation technology interiorly.
. This GLC signal isolator provides isolated distribution power for the field transmitter, isolates the current or voltage signal by the transmitter and transmits the signal to the control room DSC etc.
Certifications
==========
Hign-concerned Chemical : None
Dimensions : 122*96*18
Operating Temperature : 0.005%F.S./ (-20~+55)
Supply Voltage : DC24V
Accuracy Class : 0.1%F.S.
Model Number : GLC
Display Type : Analog Only
DIY Supplies : ELECTRICAL
Origin : Mainland
Certification : ,FCC,

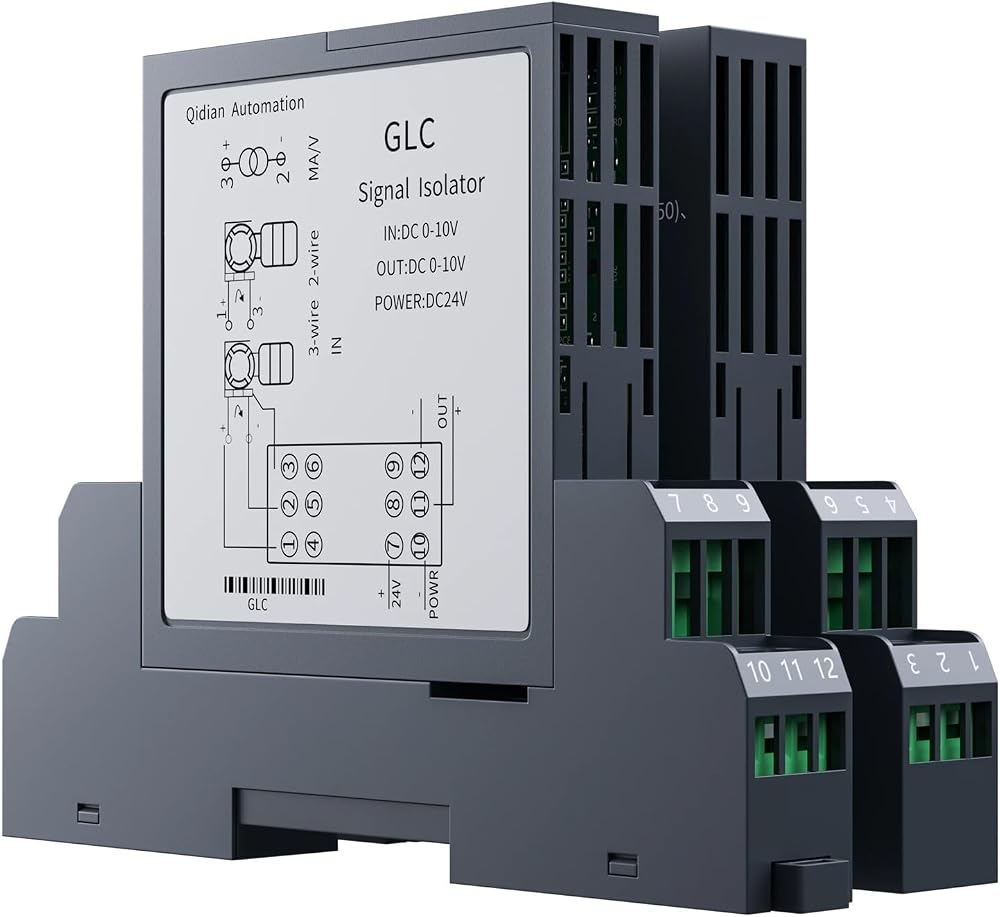

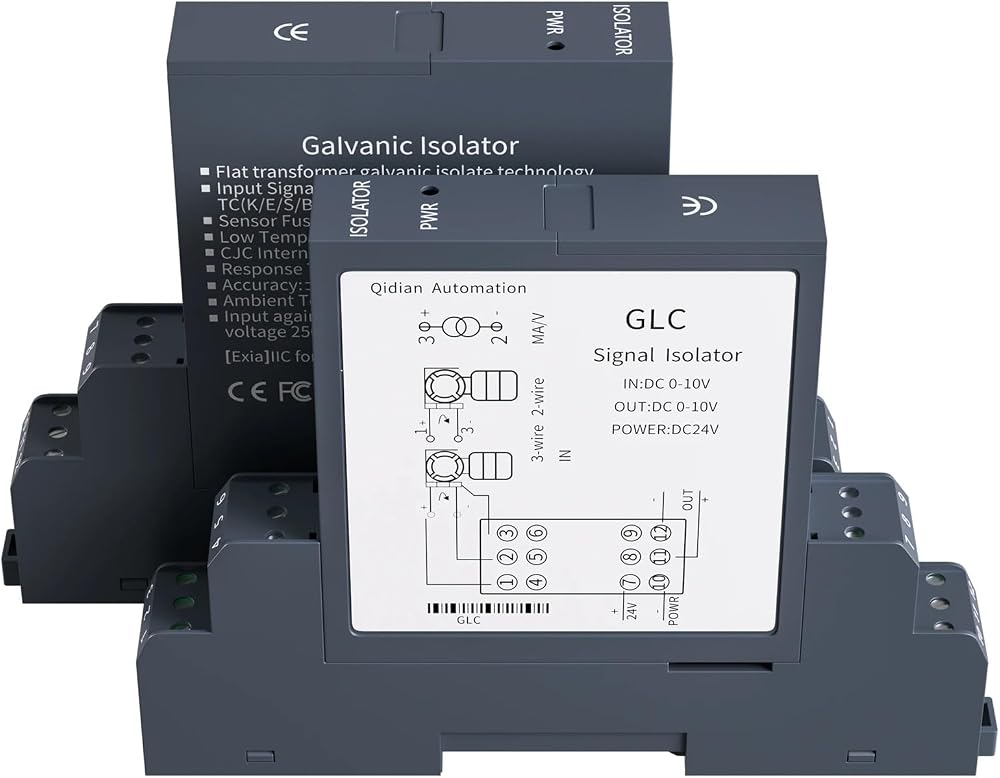

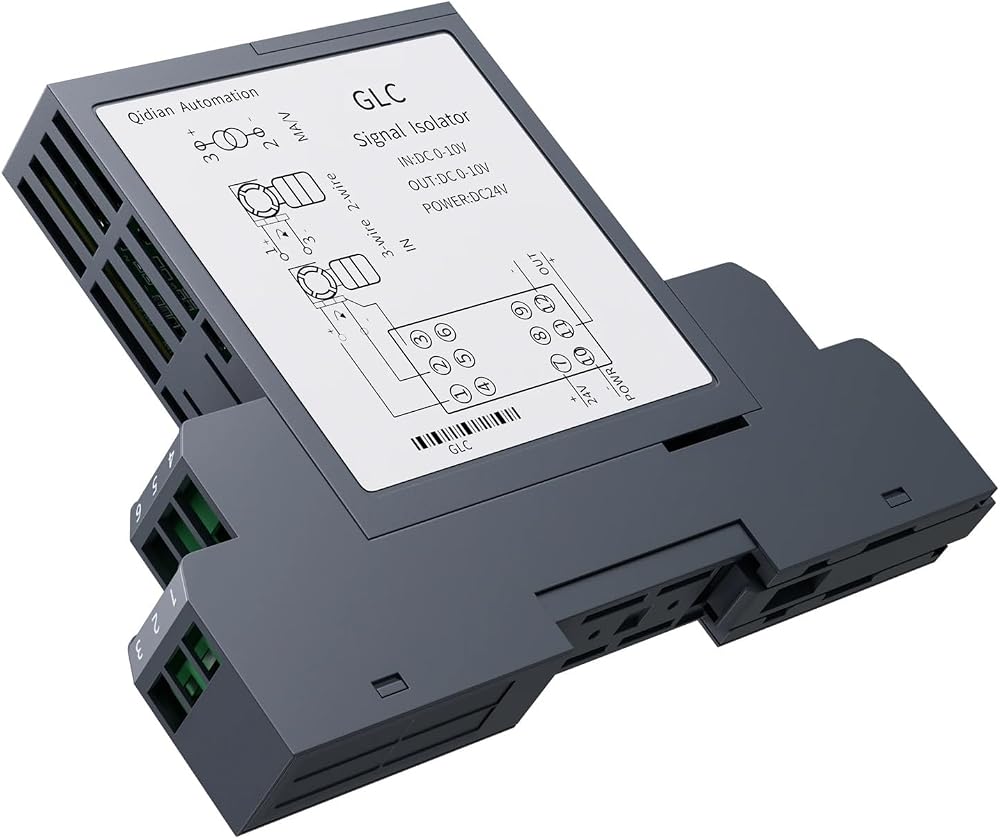

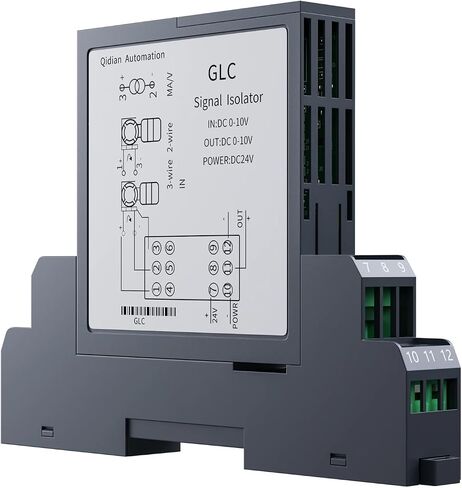

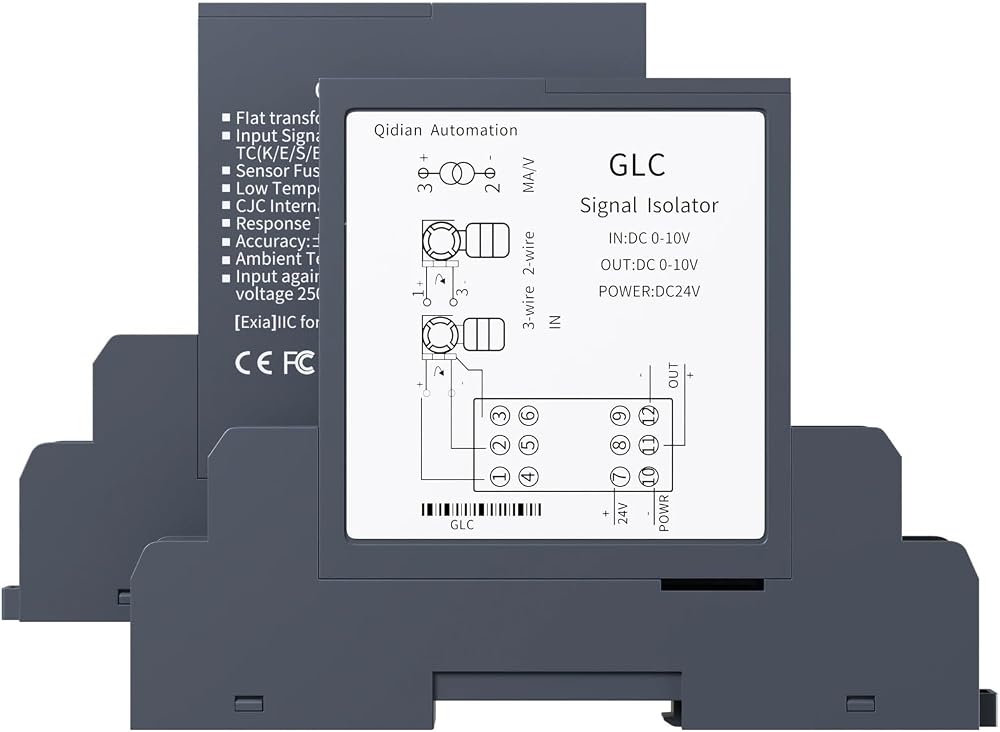

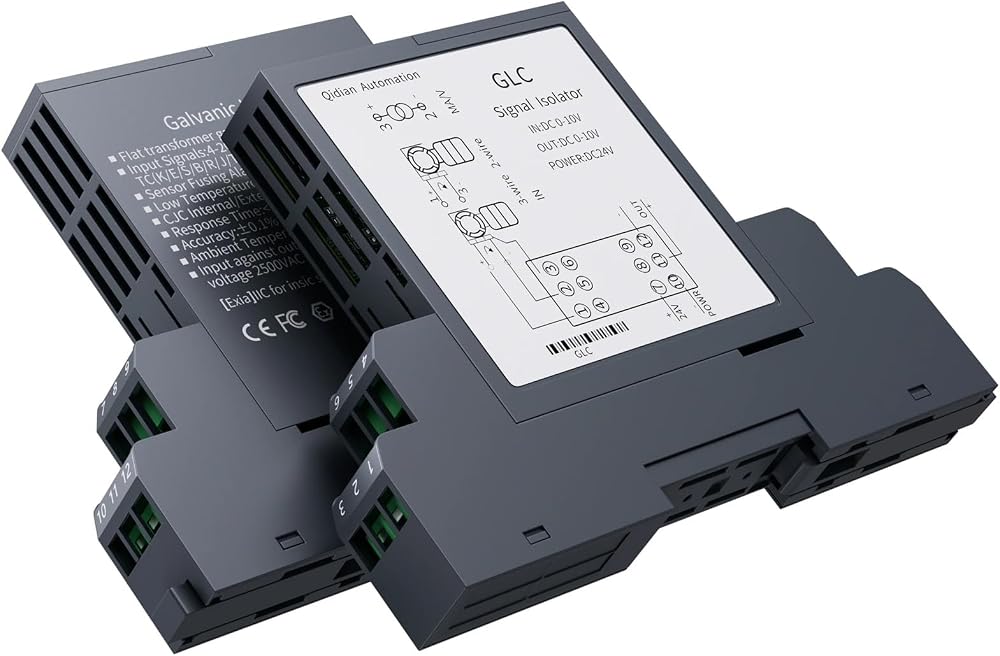

Product name: : GLC Signal Isolator
Input signal:: : 4-20mA,0-20mA,0-10mA,0-5V,0-10V,1-5V
Output signal: : 4-20mA;0-20mA;0-5V;0-10V,etc
Response speed : 10ms
Channel : 1 in 1 out / 1 in 2 out / 2 in 2 out
