Specification:

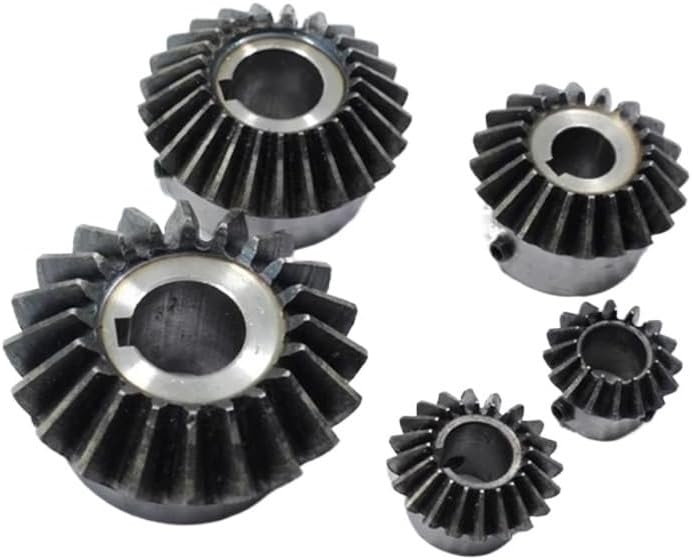

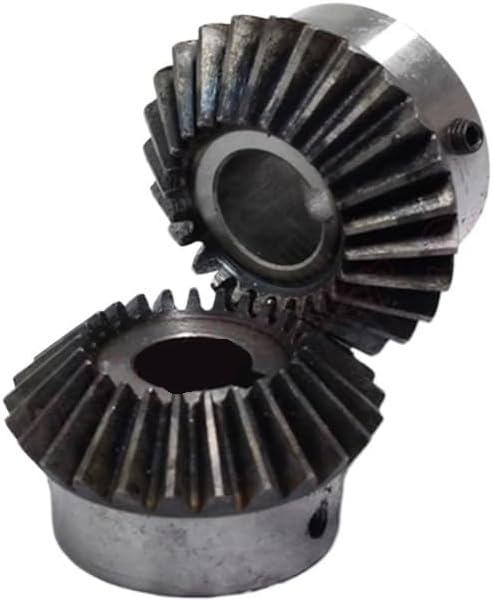

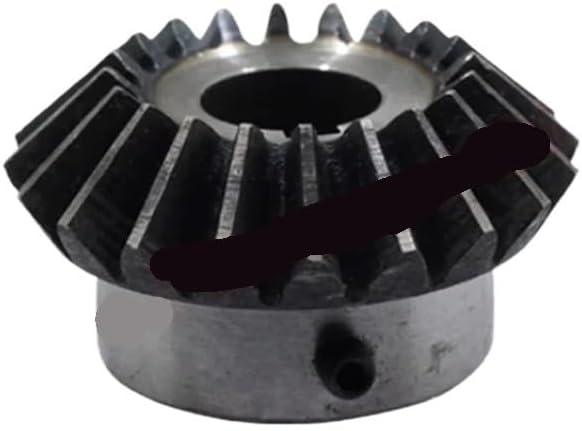

Name: 1:1 Bevel Gear 90 Degrees Meshing Angle
Model: 1.5 Module (1.5M)
Material: 45# Steel
Tooth Surface Treatment: High-frequency Quenching
Rotational Speed Ratio: 1:1
Tooth Angle: 90°
Teeth: 12 16 18 20 25 30 Teeth

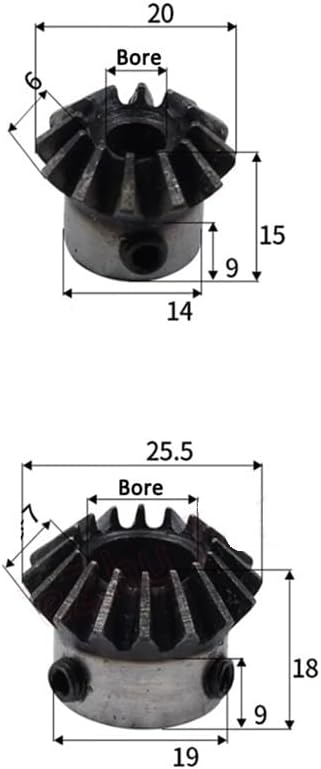

Round Bore: 6/8/10/12/14/15/16/20mm
Keyway Bore:
8mm (keyway 3mm)
10mm (keyway 4mm)
12mm (keyway 4mm)
14mm (keyway 5mm)
15mm (keyway 5mm)
16mm (keyway 5mm)
17mm (keyway 5mm)
18mm (keyway 6mm)
19mm (keyway 6mm)
20mm (keyway 6mm)
22mm (keyway 6mm)
24mm (keyway 8mm)
25mm (keyway 8mm)
Shaft Hole: Machining Completed
Model Number : 1.5 Module
Tooth Profile : Bevel Gear
Material : Carbon Steel
Shape : Bevel
