Speed regulation method: Through the three-phase output inverter, adjust the frequency of the inverter to change the spindle speed.
Cooling method: air cooling

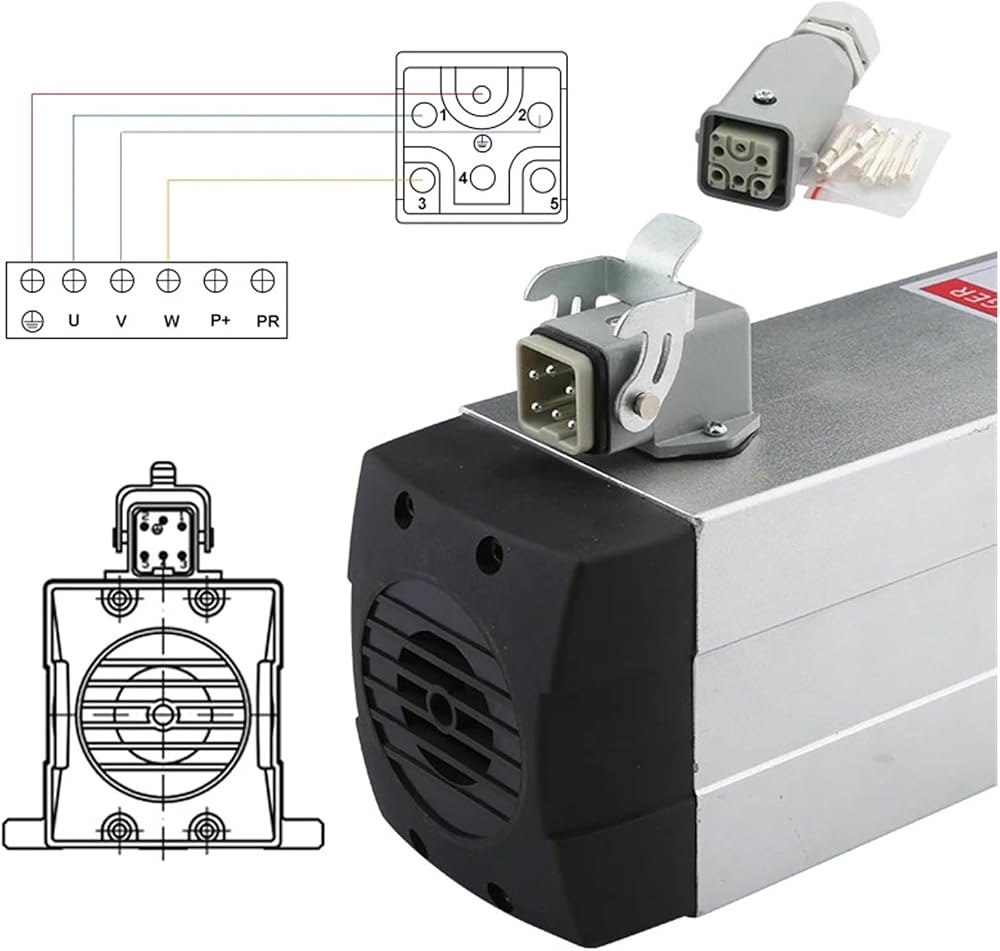

Power interface: Waterproof aviation plug is optional. Aviation plugs marked with "1", "2", "3", and "4". "1", "2", and "3" are connected to the inverter (U, V, W) respectively, and 4 are connected to the ground terminal of the inverter.

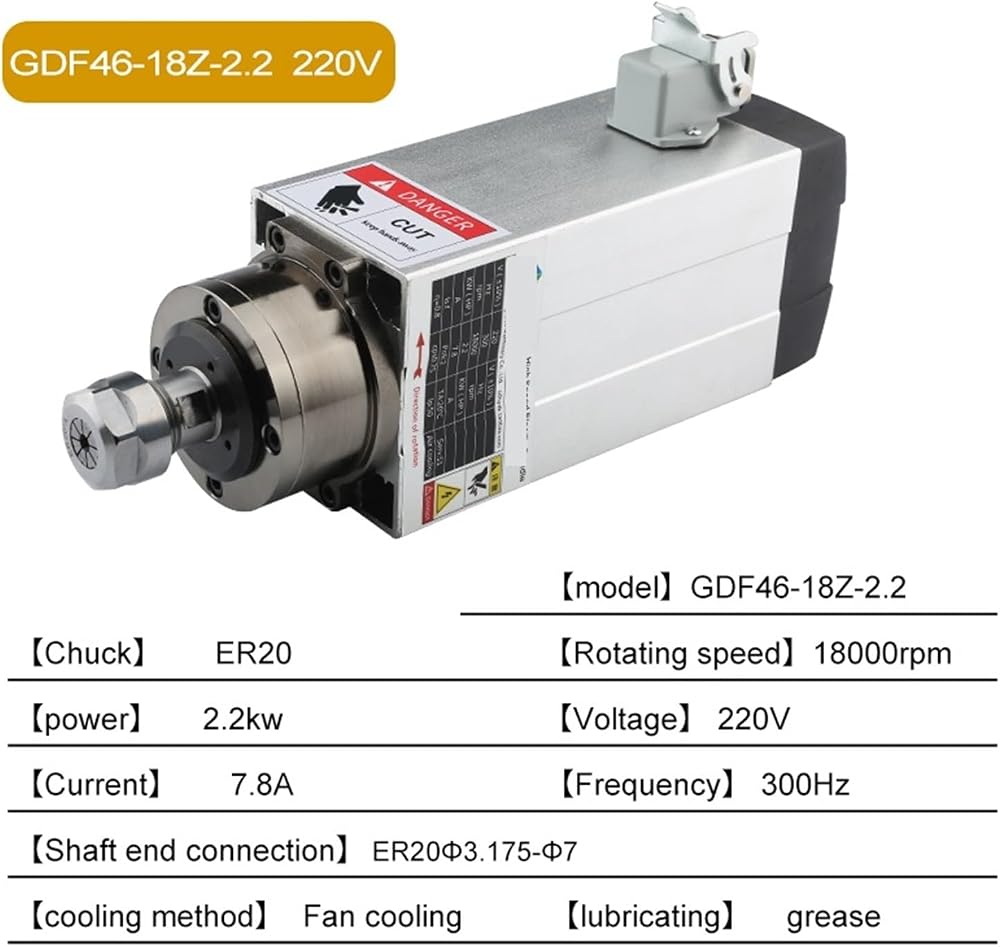

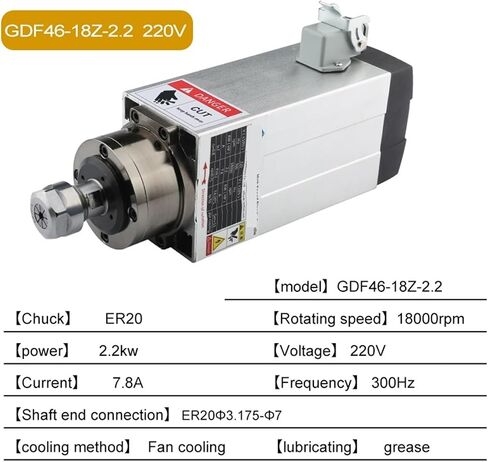

Power: 2.2 kW (1 hp = 0.735 watts)
Current: 7.8A
Frequency: 300Hz
Speed: 18000rpm
Runout: less than 0.01mm
Bearing type: 2x7007C P4 DB and 2x7 002C P4 DB (4 ceramic ball bearings)
Chuck: ER20
Clamping tool diameter: 1mm, 2mm, 3mm, 3.175mm (1/8), 4mm, 5mm, 6mm, 6.35mm (1/4), 7mm, 8mm, 9mm, 10mm, 11mm, 12mm, 12.7mm (1/2), 13mm, 14mm, 15mm, 16mm
