Slotting Cutter Arbors

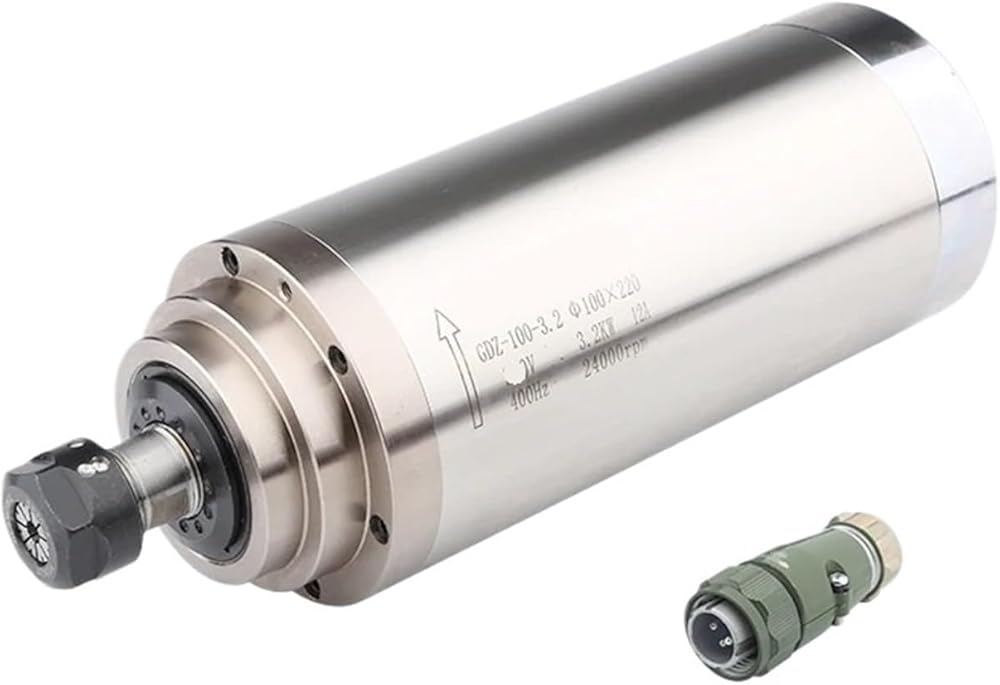

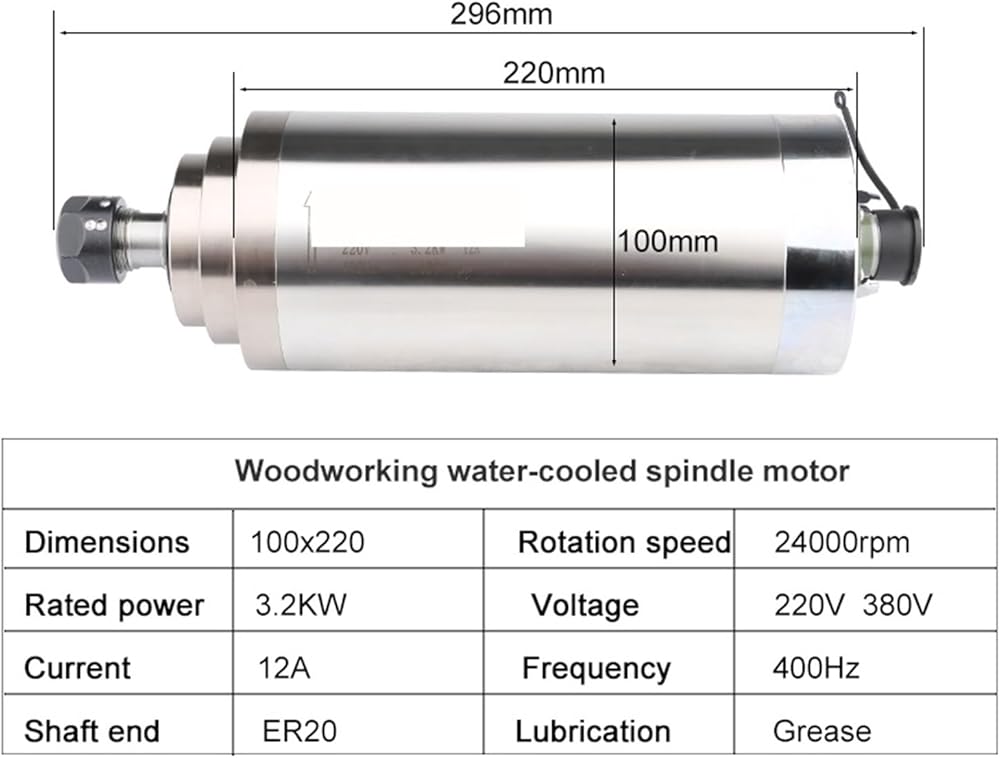

Middle body diameter: 100*220mm
Speed regulation method: Through the three-phase output inverter, adjust the frequency of the inverter to change the spindle speed.
Cooling method: water cooling

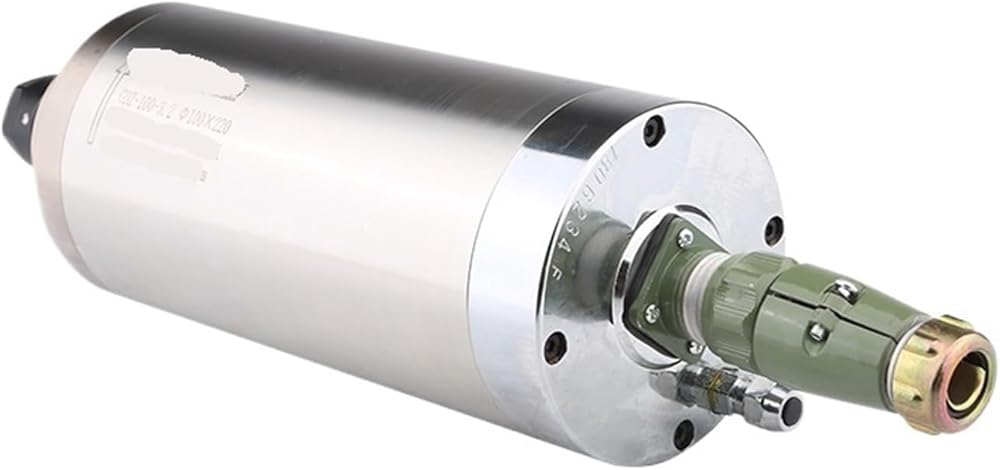

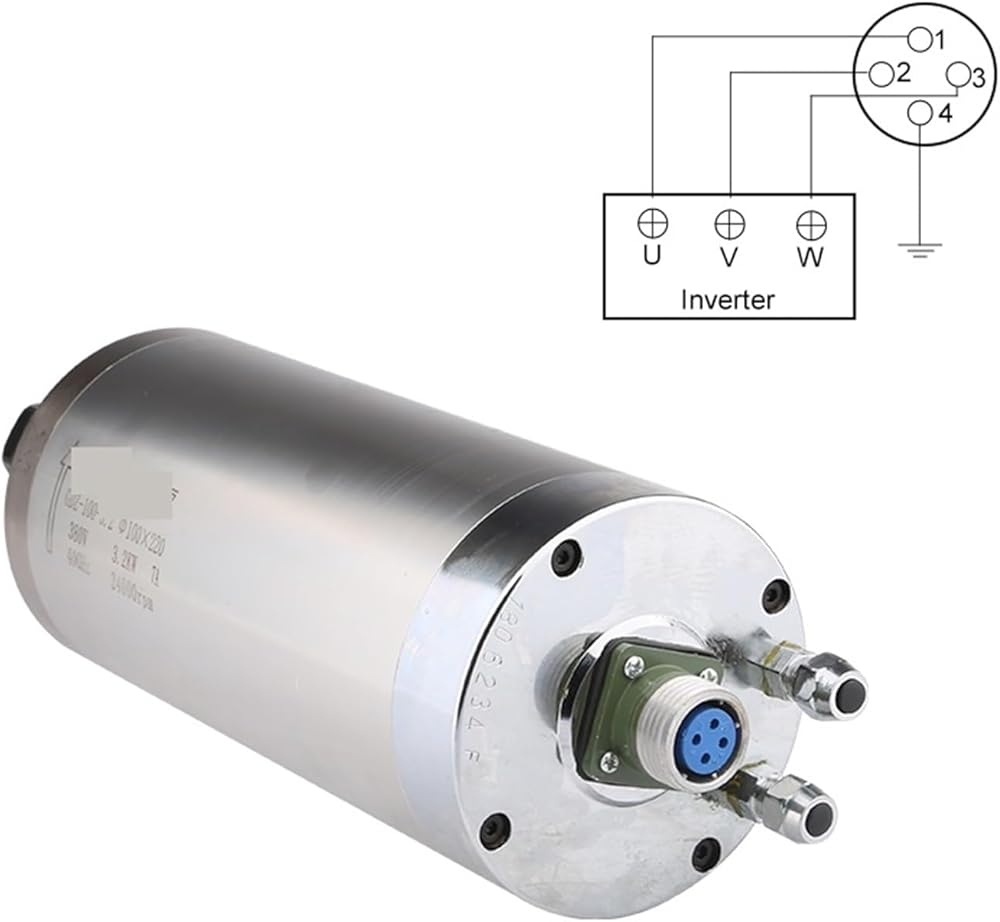

Power interface: YH20-4-pin waterproof aviation plug is optional. Aviation plugs marked with "1", "2", "3", and "4". "1", "2", and "3" are connected to the inverter (U, V, W), and 4 is connected to the inverter ground wire.
Power: 3.2kw
Voltage: 220V 380V
Current: 12A/7A
Frequency: 400Hz
Speed: 24000rpm
Runout: less than 0.01mm
Number of phases: 3
Chuck: ER20
Grease lubrication
