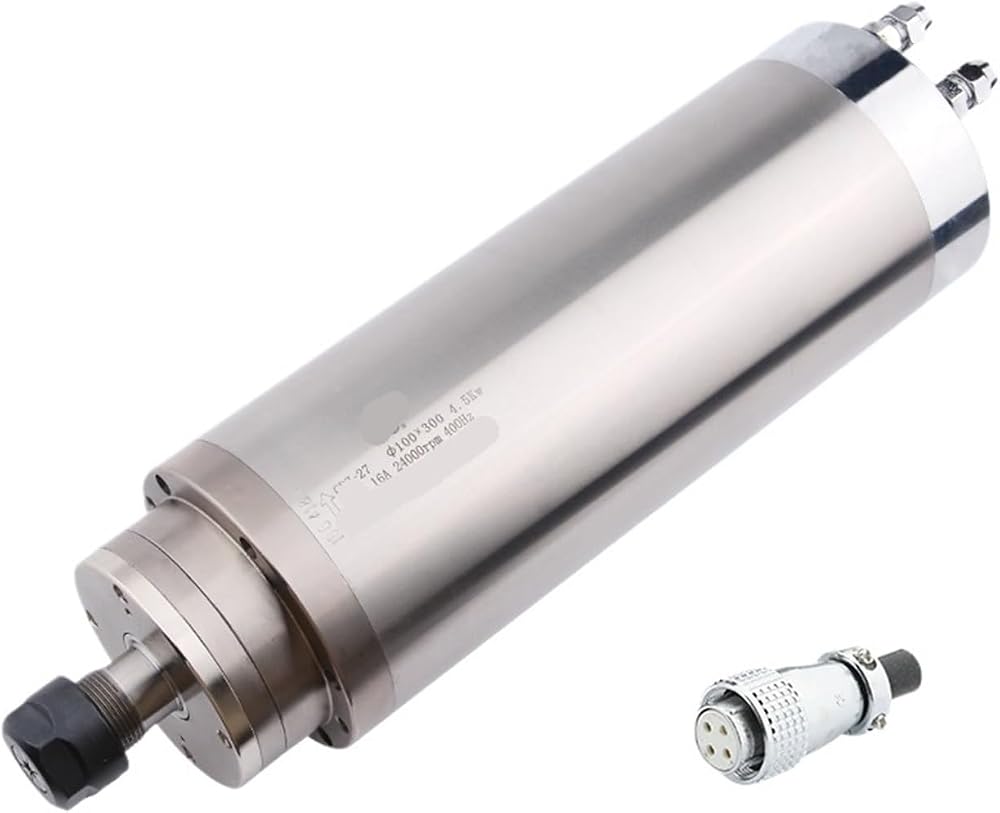

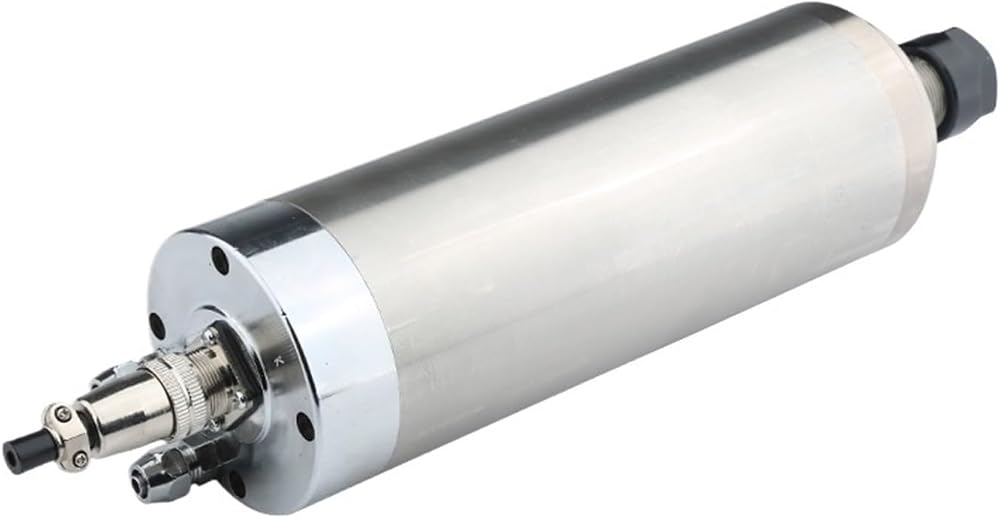

Slotting Cutter Arbors

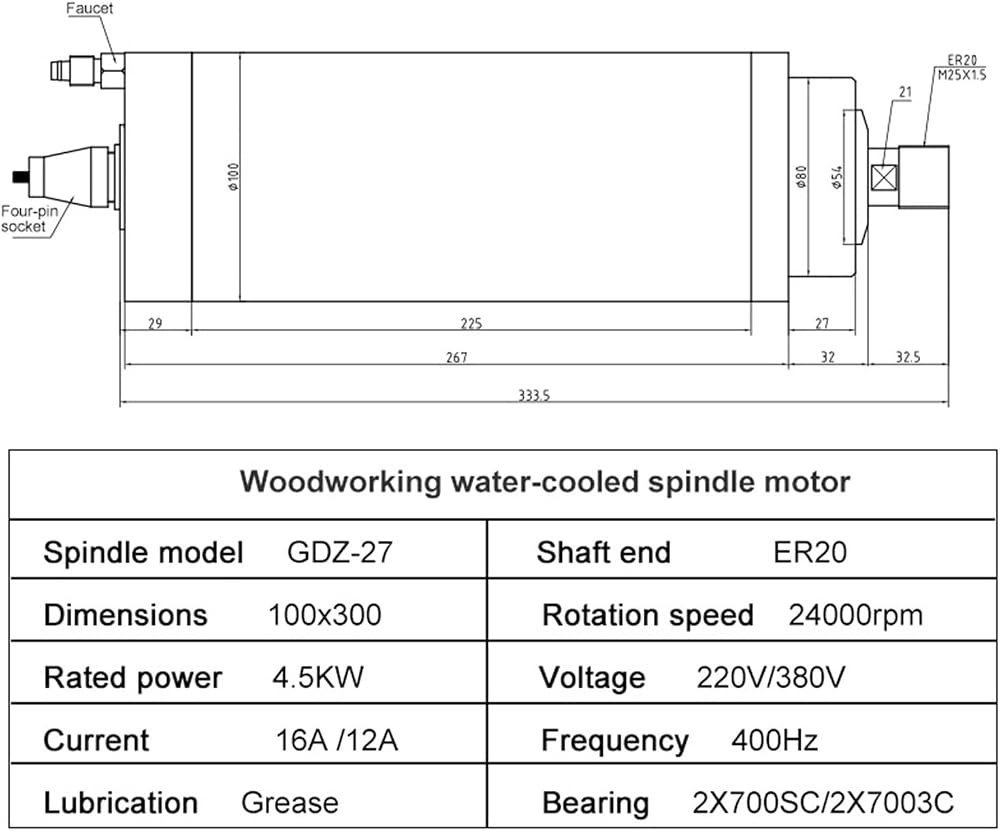

Size: 100x300mm (center diameter: 100mm x length: 300mm)
Speed regulation method: Use a three-phase output inverter to adjust the frequency of the inverter to change the spindle speed.
Cooling method: water cooling

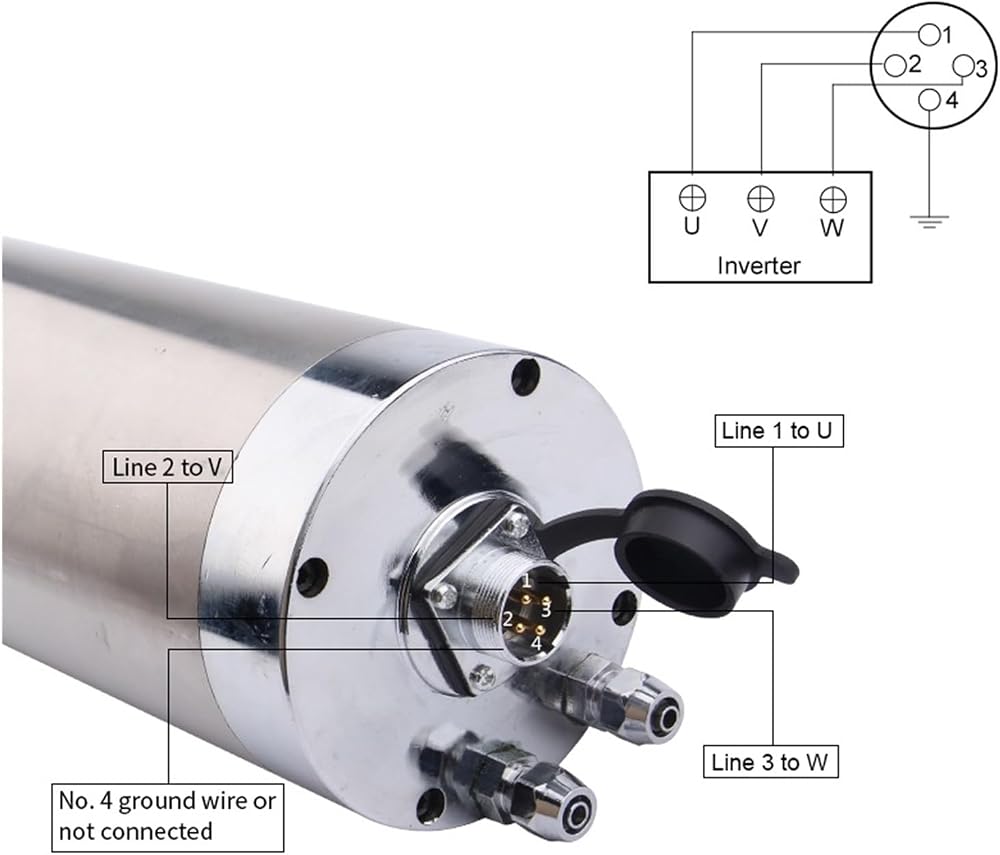

Power interface: An optional H20-4-pin waterproof aviation plug is available. Connect the aviation plugs marked "1," "2," "3," and "4." Connect "1," "2," and "3" to the inverter (U, V, W), and connect "4" to the inverter ground.
Power: 4.5kw
Voltage: 220V 380V
Current: 12A/16A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter (mm): 100
4 fully sealed angular contact bearings
Chuck: ER20
Grease lubrication
