مميزات خاصة

Sealed Structure: the signal converter for thermocouple adopts an resin sealed casing, making it suitable for harsh environments with strong vibrations. this temperature module for industrial use enhances operational stability and ensures protection from thermal overload and external contaminants.
Stable Signal Output: the industrial transmitter with 4-20ma output provides steady, long-distance signal transmission with minimal interference. this sealed sensor for harsh environments directly converts sensor signals into 4-20ma or 0-10ma outputs, improving consistency and reducing conversion costs.
High Precision Performance: the signal converter for thermocouple offers accurate temperature measurement with low power consumption and a wide ambient temperature range. this 4-20ma converter for long distance transmission maintains reliable, linear signal performance in fluctuating conditions.
Adjustable Range Function: the temperature module part for testing device supports adjustable range settings and features a cold-end compensation function for precise thermocouple readings. this temperature module for industrial use ensures linear accuracy across diverse industrial applications.
Versatile Application Use: the industrial transmitter with 4-20ma output can be integrated into field installations alongside thermocouples and thermal resistances. this temperature module part for testing device also fits directly into testing equipment as a functional component for system upgrades or replacements.

وصف

Product Description:

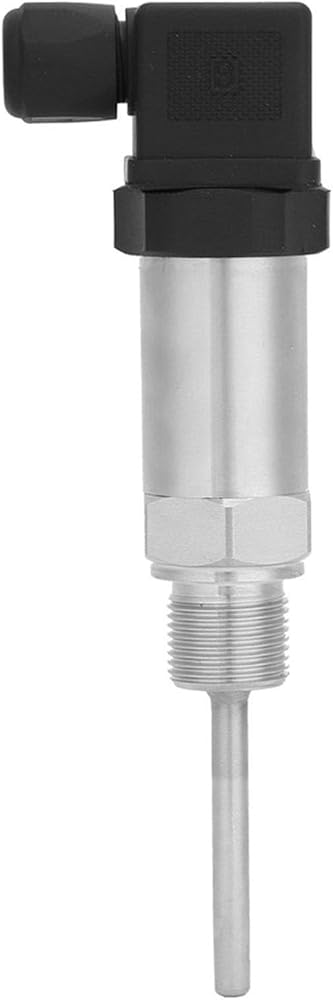

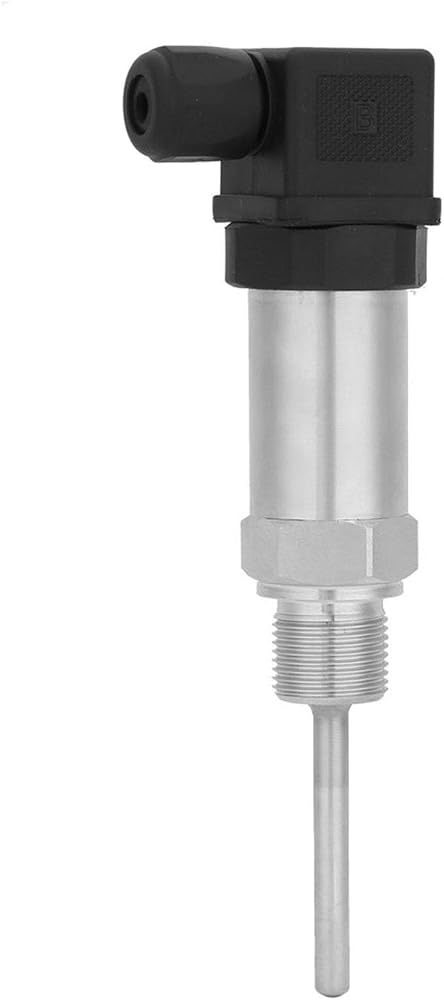

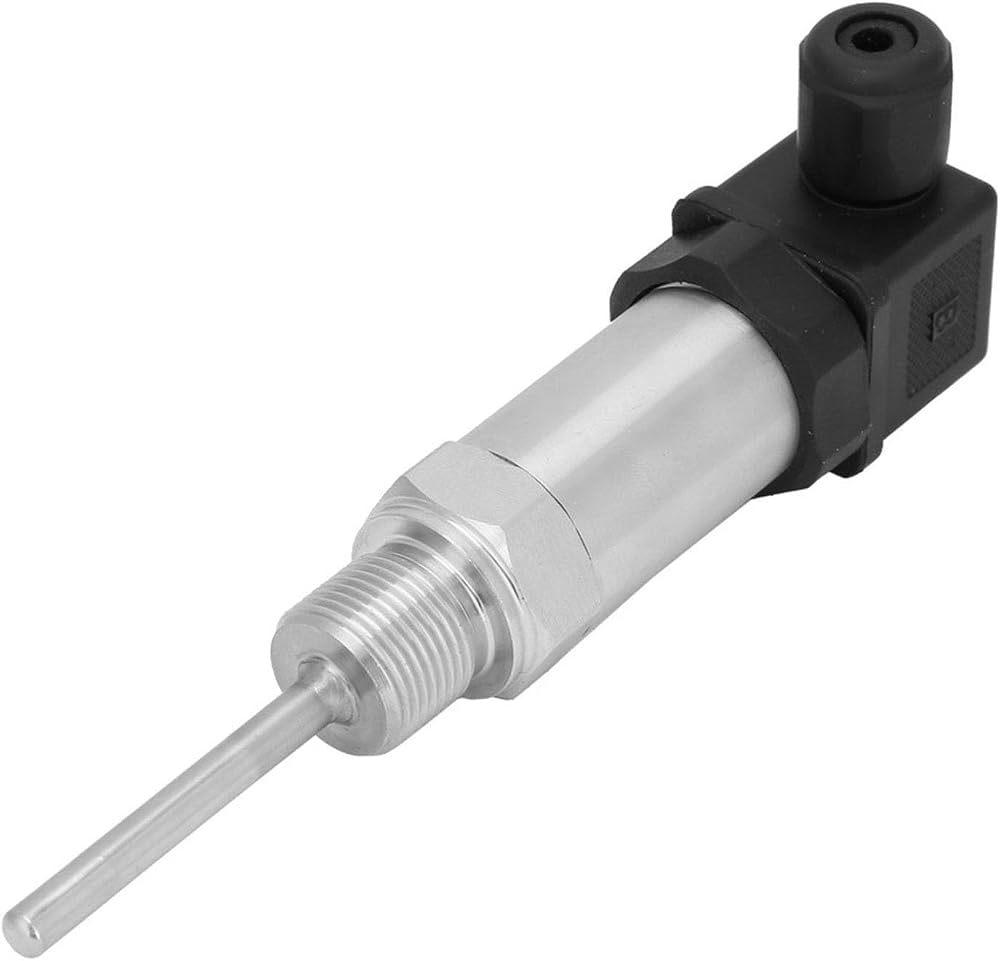

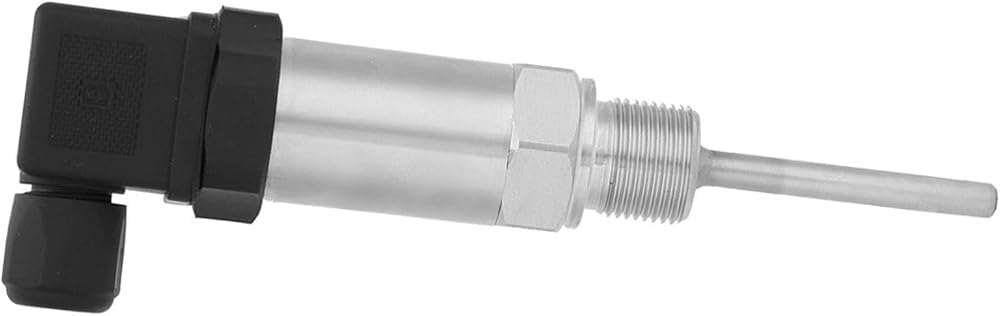

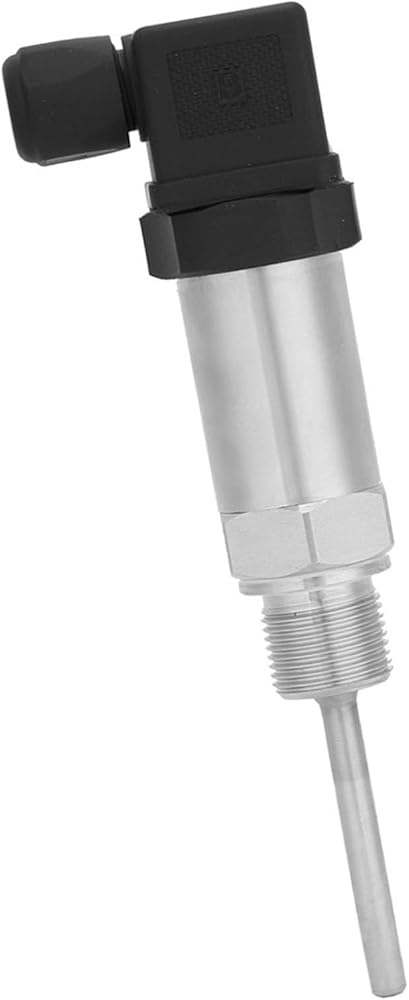

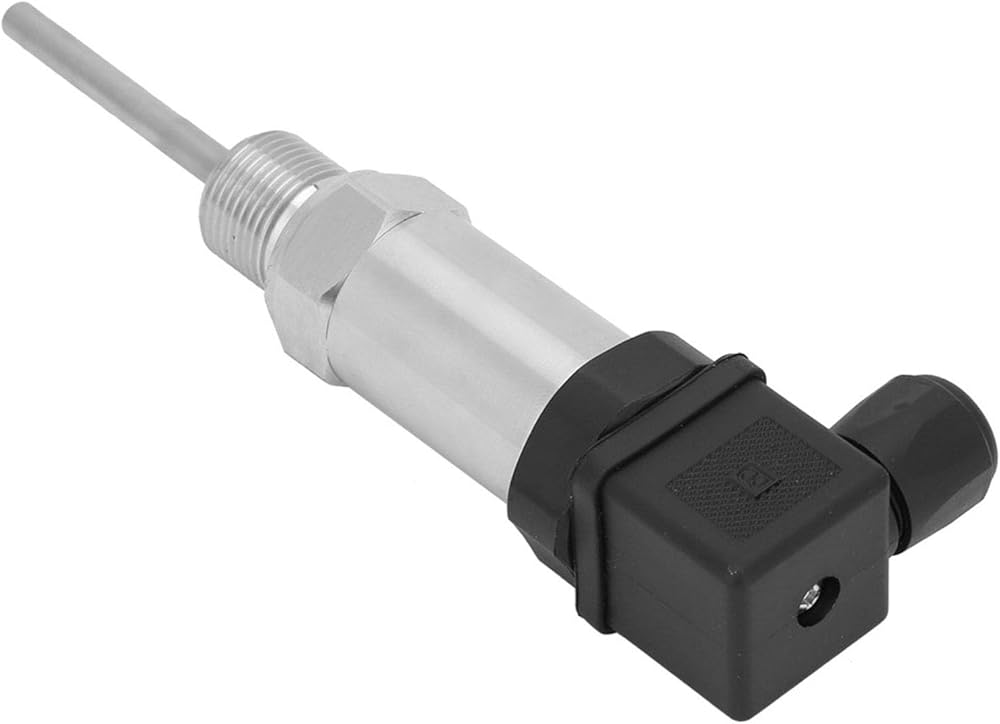

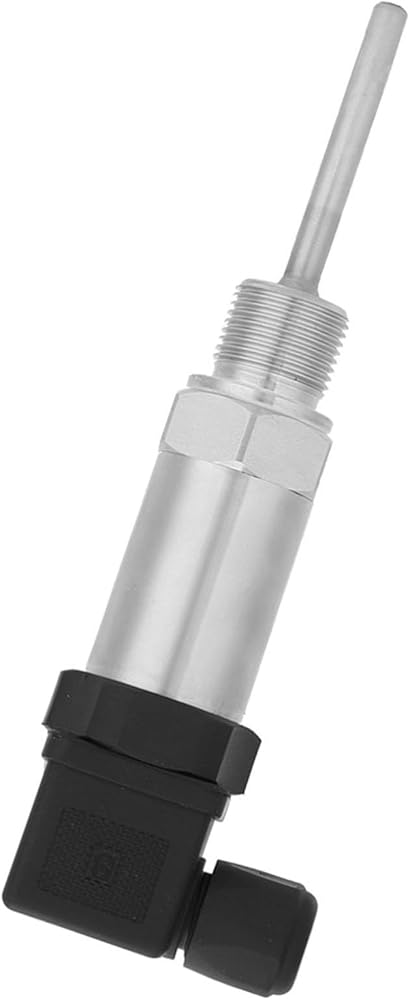

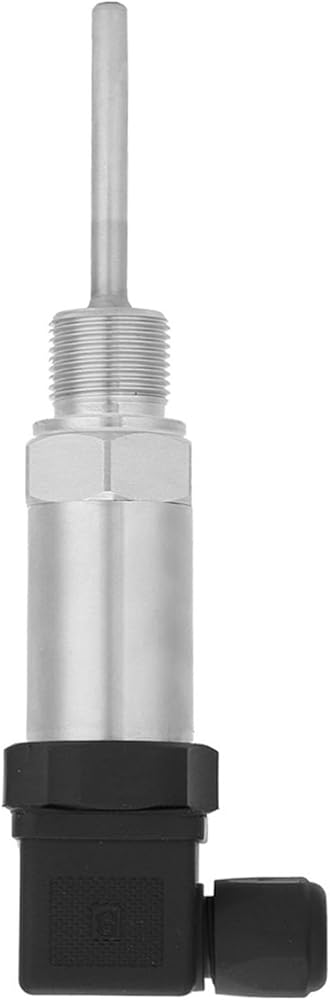

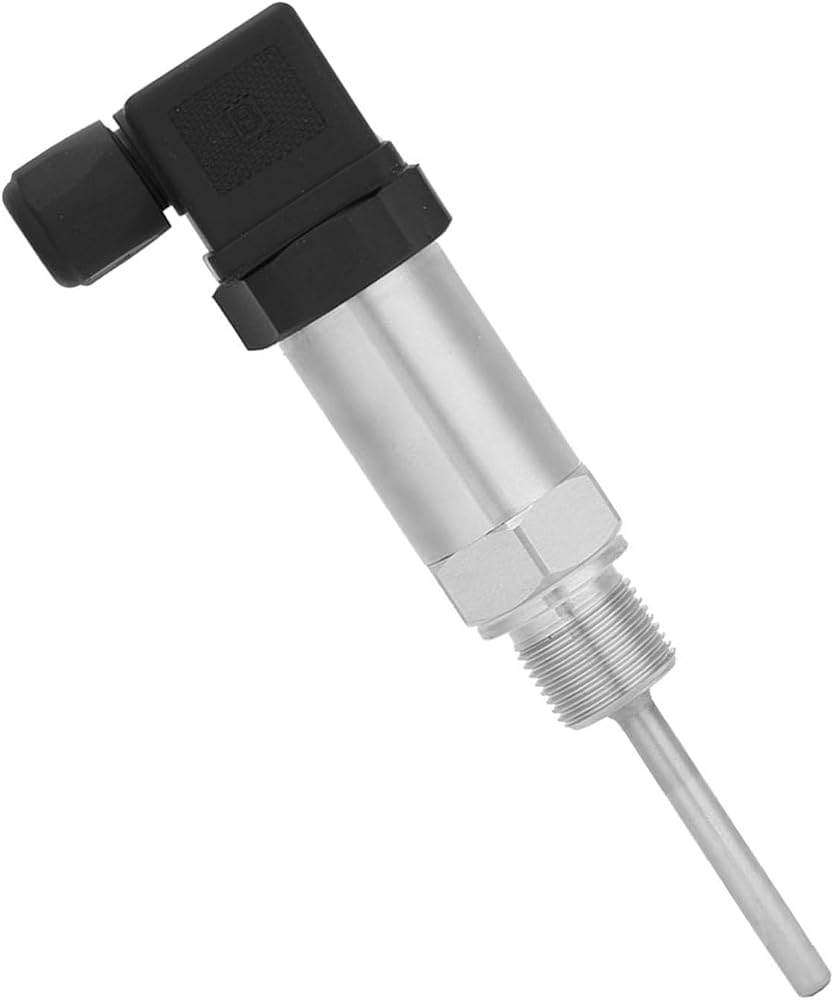

this temperature sensor is engineered for precision and long-distance signal transmission in demanding industrial environments. featuring an sealed body and direct 4-20ma output, this temperature transducer improves signal stability, reduces interference, and integrates easily into thermocouple systems or test equipment.

Specification:
Input: thermal resistance ALS-XQWD-1MF, Cu50, Cu100(two-wire/three-wire/four-wire)
Thermocouple K, E, S, B, T, J, N(two-wire)
Intelligent input signal and range can be set by PC or hand controller.
Output: the output of 4~20mA dc signal within the range can be linear with the output resistance signal of the thermal resistance thermometer and the input temperature signal of the thermal resistance thermometer; Linear with the input millivolt signal of the thermocouple or with the input temperature signal of the thermocouple thermometer.
Basic error:±0.2%,±0.5%
Transmission mode: two-wire system/three-wire system/four-wire system
The working power supply voltage of the transmitter :24V.
Load: the final load resistance is calculated according to the following formula
RL(Max)=50X(vmm-12), that is, the load resistance at 24V can also be selected in the range of 0-6000) rated load 250 days.
Note: the adjustable range transmitter, the zero point and full degree need to be adjusted repeatedly when changing the range: the electric couple transmitter must be preheated for 30 minutes before debugging.
Environmental temperature affect0.05%1°C
Normal working environment
A, environmental temperature:-25~80℃
B. Relative humidity: 5%-95%
C, mechanical transfer55Hz amplitude
Weight: 160 g / 5.6 oz(approx.)

Package list:
1 x Temperature Transducer
1 x manual
