مميزات خاصة

【Pressing wheel】Special stainless steel pressing wheel, strong pressing force, can weld 1mm to 3mm thick film

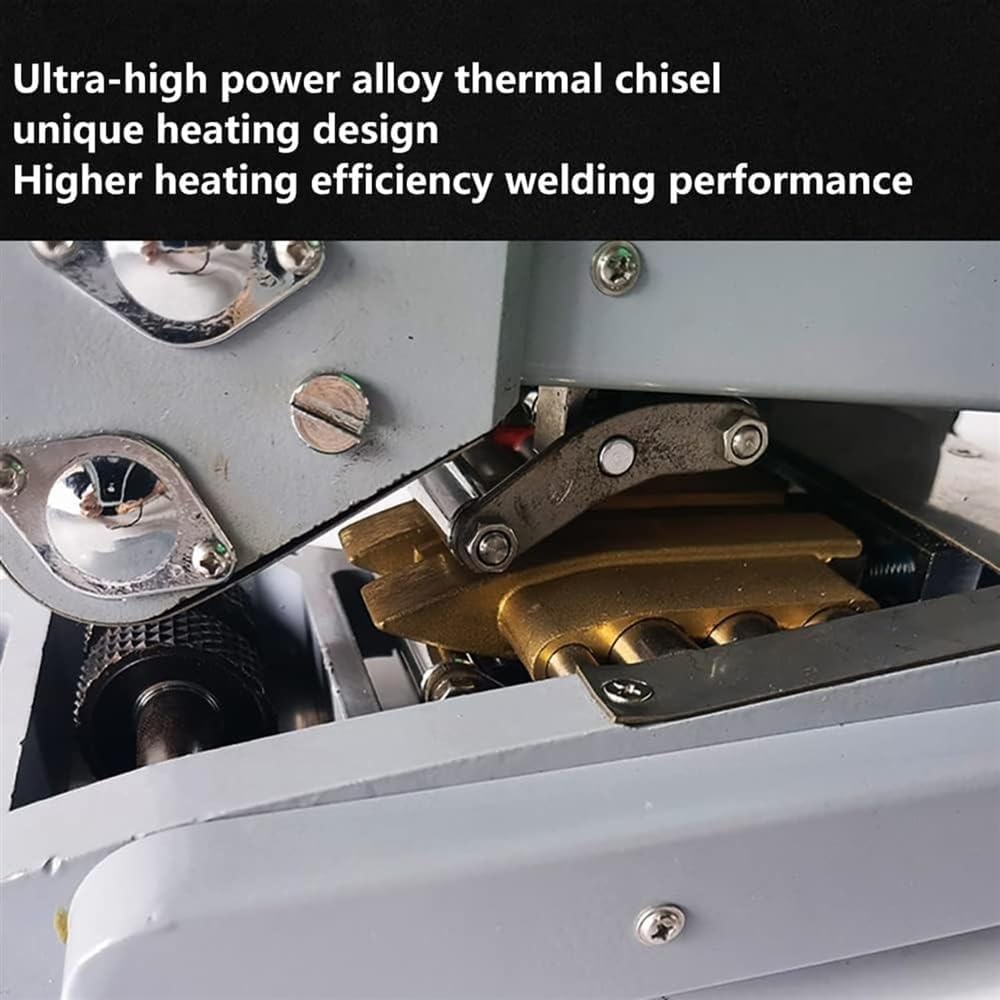

【Heating System】Powerful brass heating wedge with 14mm x 2 weld and 16mm internal cavity for testing weld quality. Welding efficiency increased by 30%.

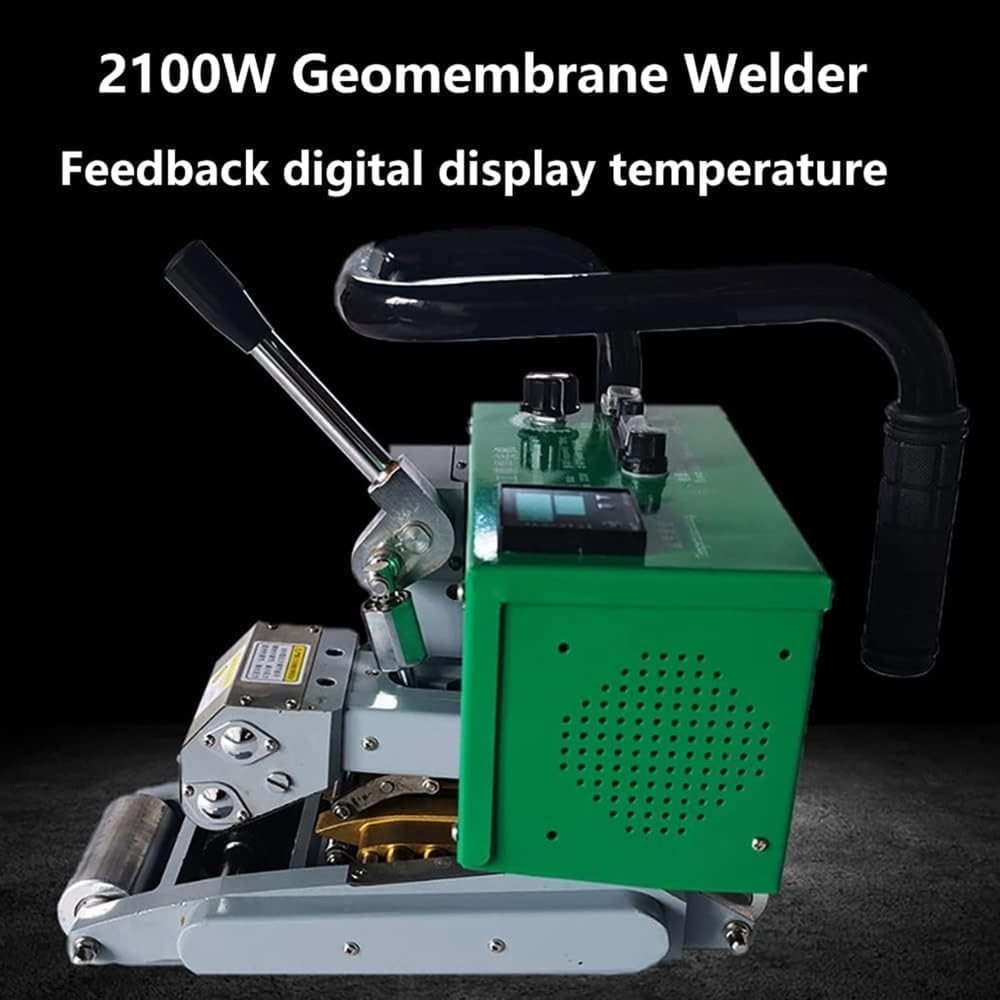

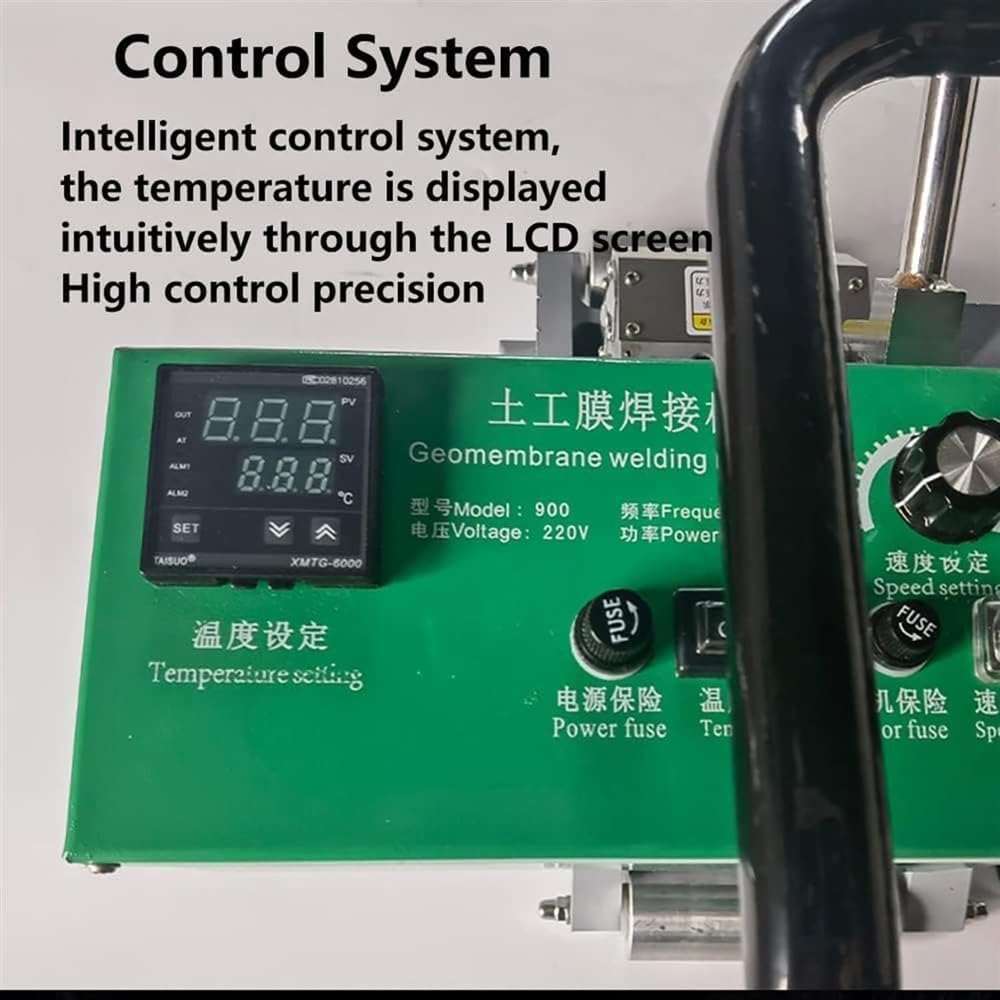

【Digital Control System】Simple and intuitive operation, closed-loop control of heating temperature, on-site display of working voltage, and real-time monitoring of working parameters.

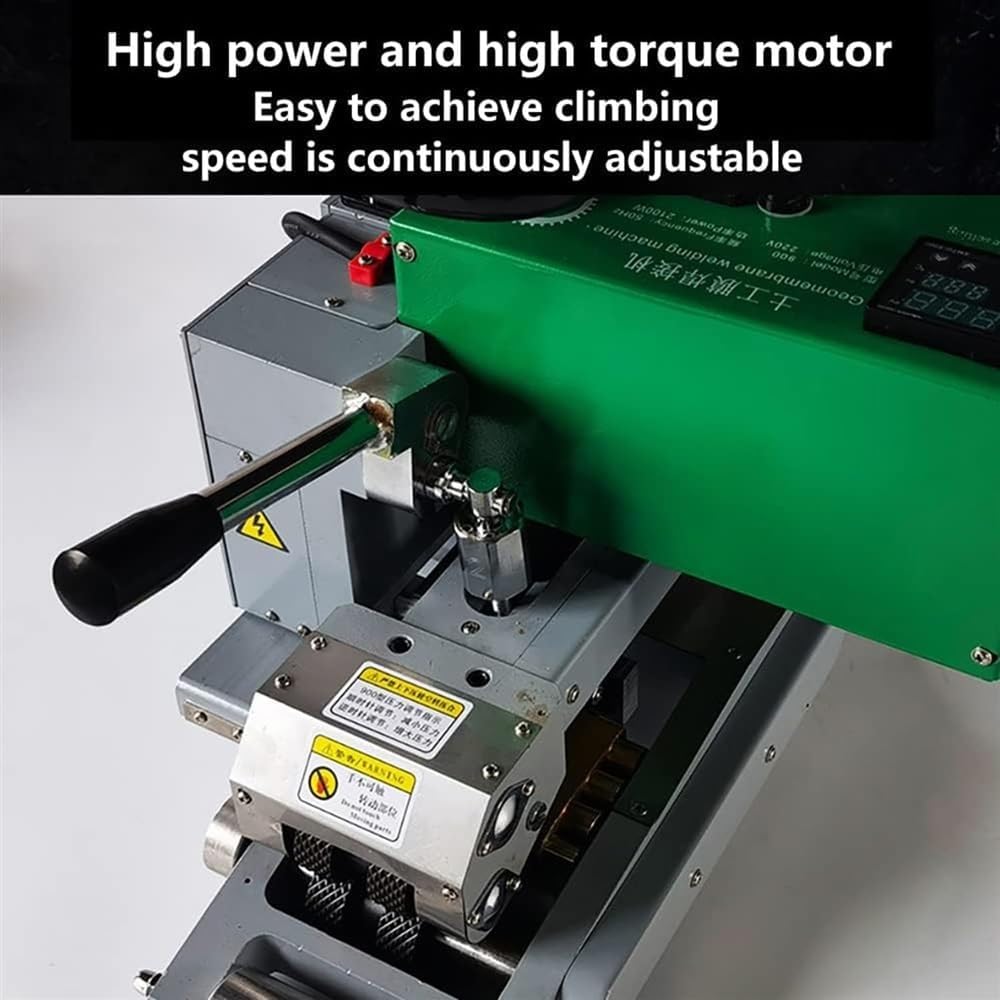

【High-torque transmission system】The high-torque motor is equipped with two sets of sophisticated transmission mechanisms, which can easily cope with large slopes and relatively harsh construction environments.
【Pressure adjustment system】According to the thickness of the material, it is convenient to select the appropriate pressure; T-arm head design ensures balanced pressure and uniform weld seam

وصف

Our geomembrane welding machine can weld 1.0mm to 3.0mm thick hot melt materials, such as HDPE, LDPE, PVC, EVA, ECB, PP, etc.
application:

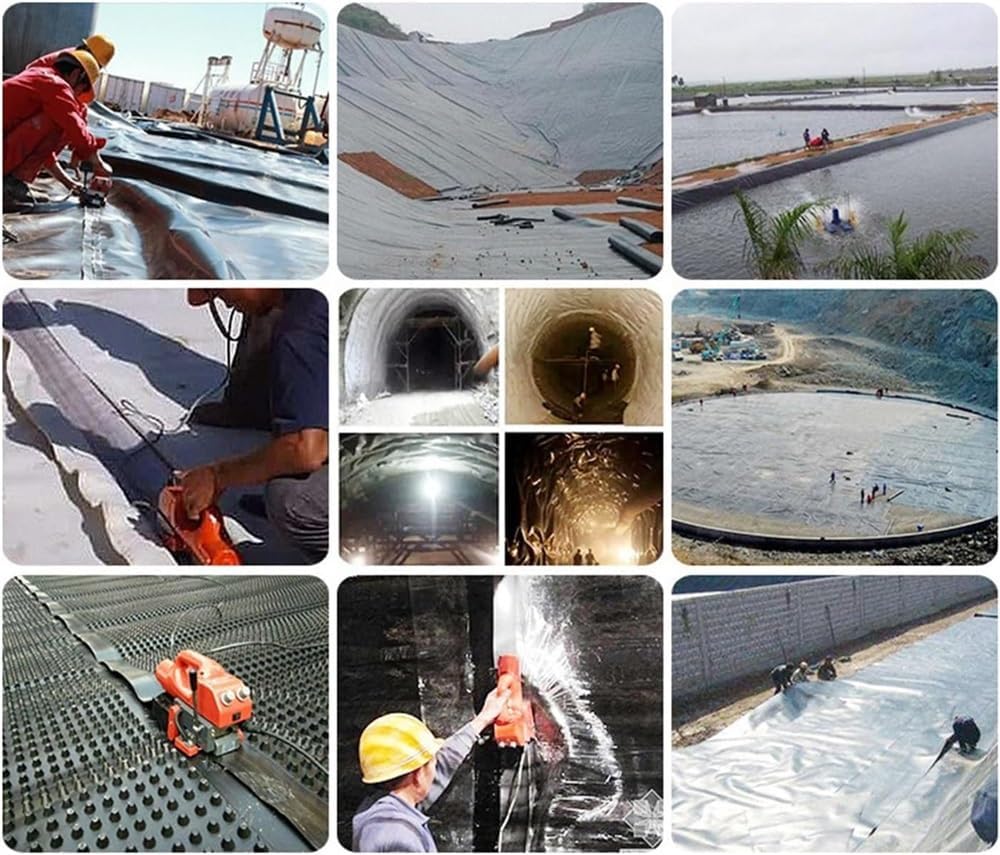

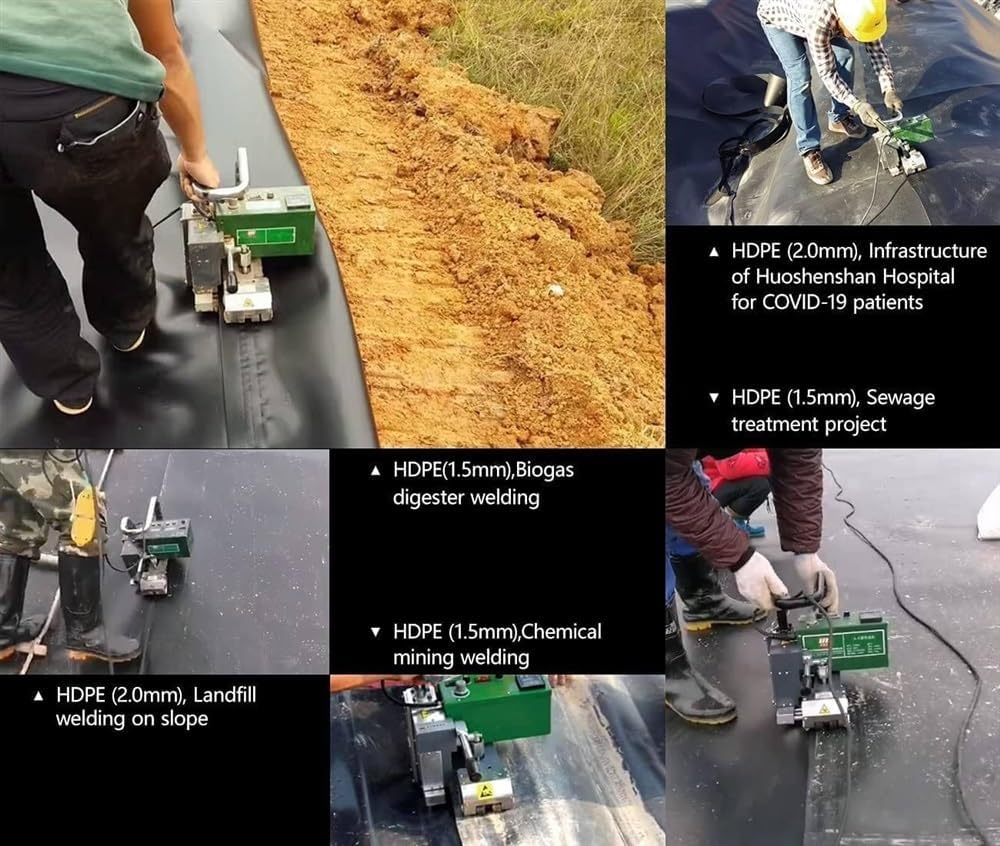

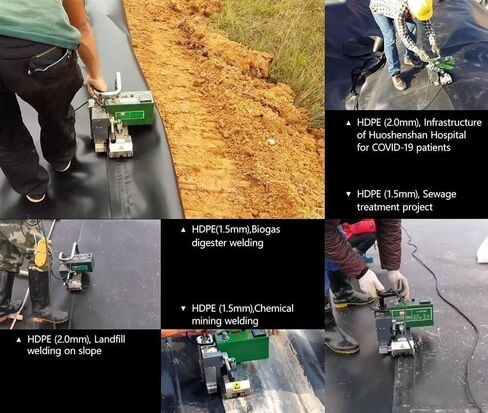

Water conservancy, aquaculture, landfill, chemical mining, sewage treatment, roof construction and other waterproof projects.
feature:
1. Advanced intelligent digital temperature control system
2. High-performance high-torque motor combined with double-precision drive movement
3. Advanced "T" arm design and pressure regulating structure
4. Special stainless steel pinch wheel, strong pinch force
5. Metal Hot Wedge

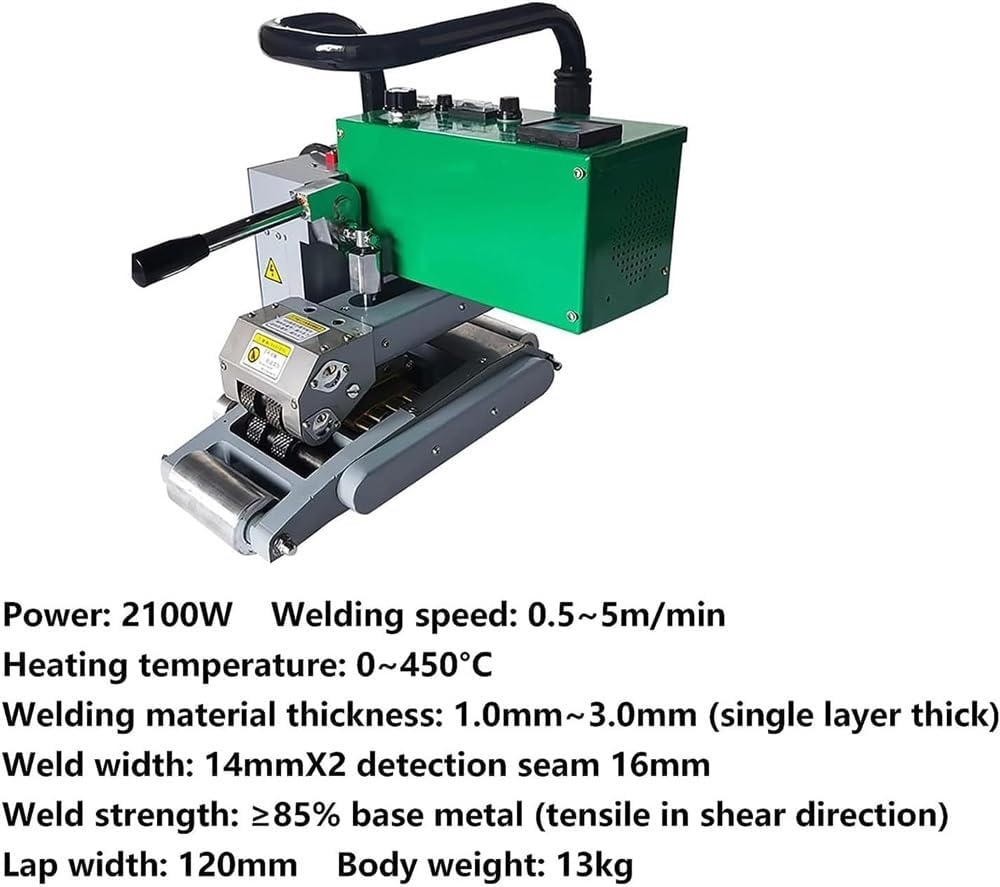

Technical Parameters:
Power: 2100W
Welding speed: 0.5-5m/min
Heating temperature: 0-450°C
Welding material thickness: 1.0mm-3.0mm (single layer)
Weld width: 14mm×2, internal gap: 16mm, joint strength 85% of base metal, lap width: 12cm, net weight: 12kg br/> insulation class: II

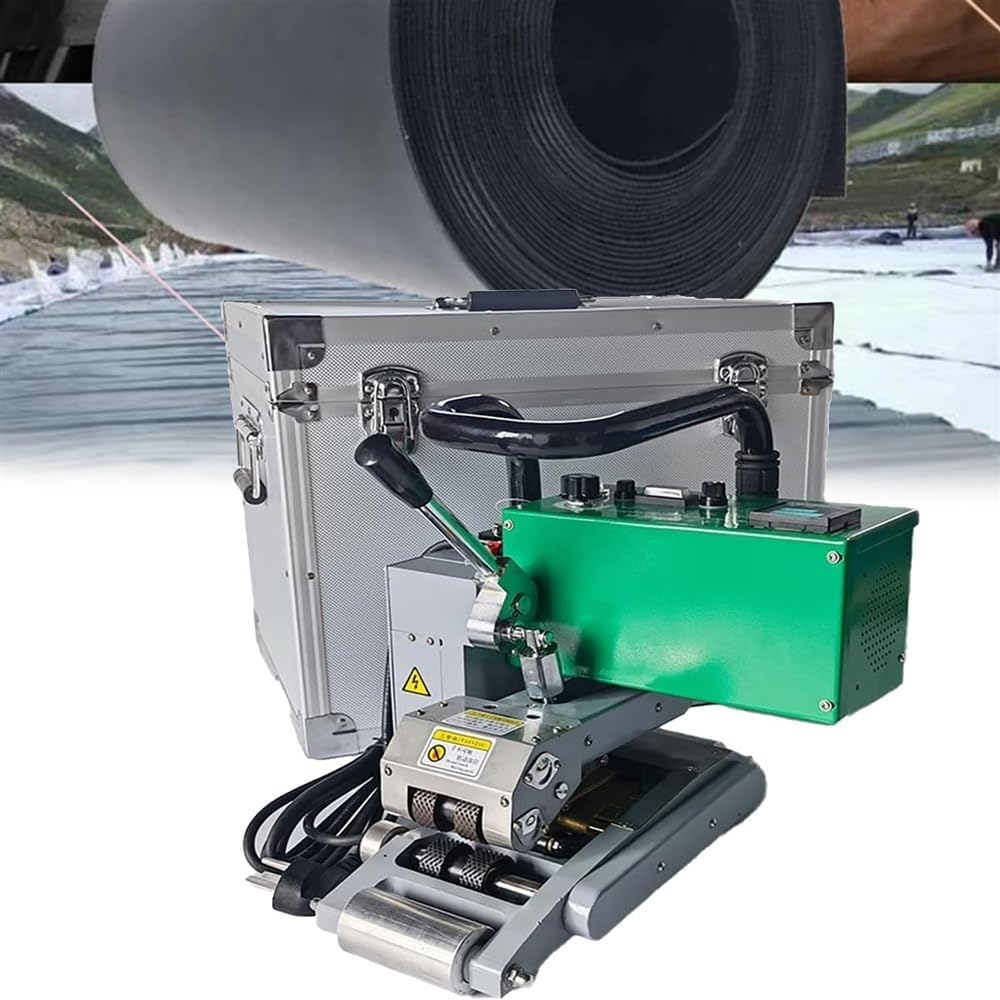

packing list:
1 x Geomembrane welding unit
1 handbag
