1. Suitable for a variety of , and the diameter is 20mm ~ 30mm, thickness is 1.7mm ~ 2.4mm

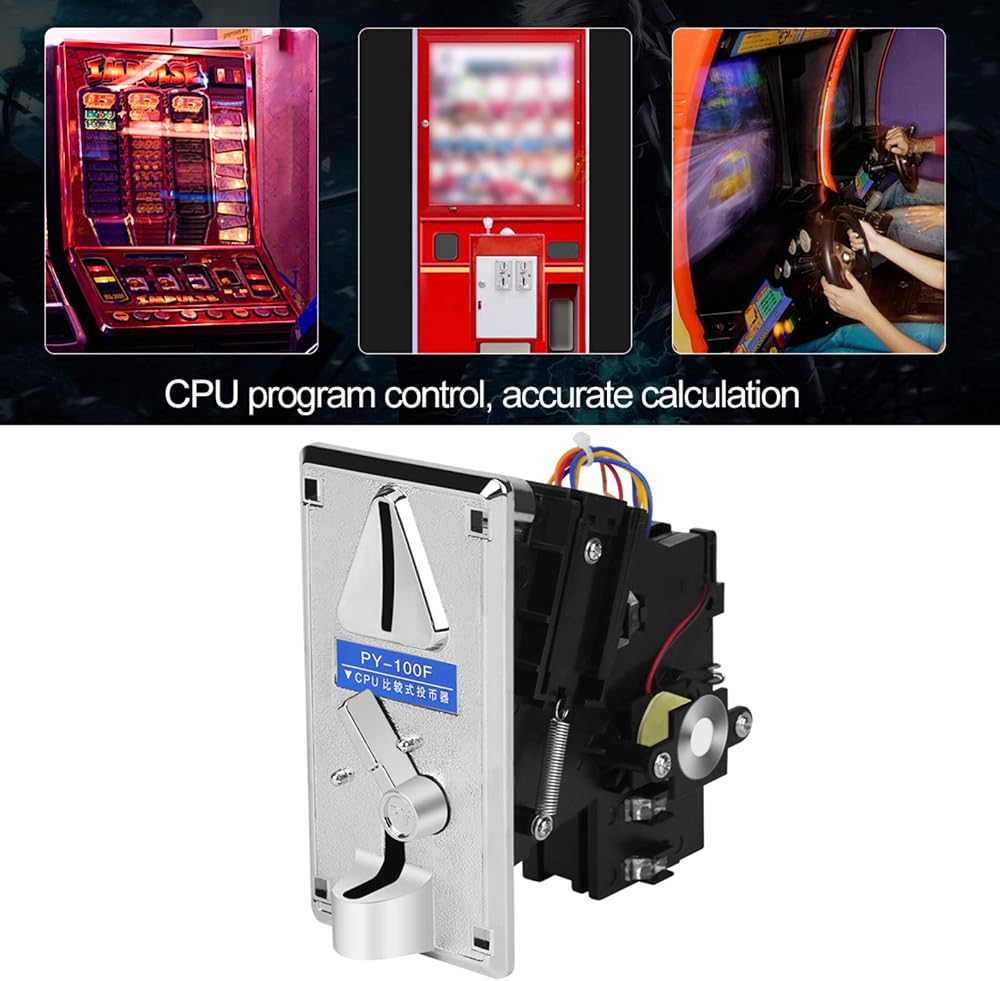

2. Controlled by CPU program, with high accuracy of scoring
3. Equipped unique electromagnetic interference prevention program
4. Design with accurate grade / normal grade, more smoothly to insert
5. Made of plastic and metal, sturdy and in use

Spec:
Features:
Suitable for a variety of , and the diameter is 20mm ~ 30mm, thickness is 1.7mm ~ 2.4mm.
Controlled by CPU program, with high accuracy of scoring.
Equipped unique electromagnetic interference prevention program.
Design with accurate grade / normal grade, more smoothly to insert .
Made of plastic and metal, sturdy and in use.
Can be used in game machine.
Specifications:

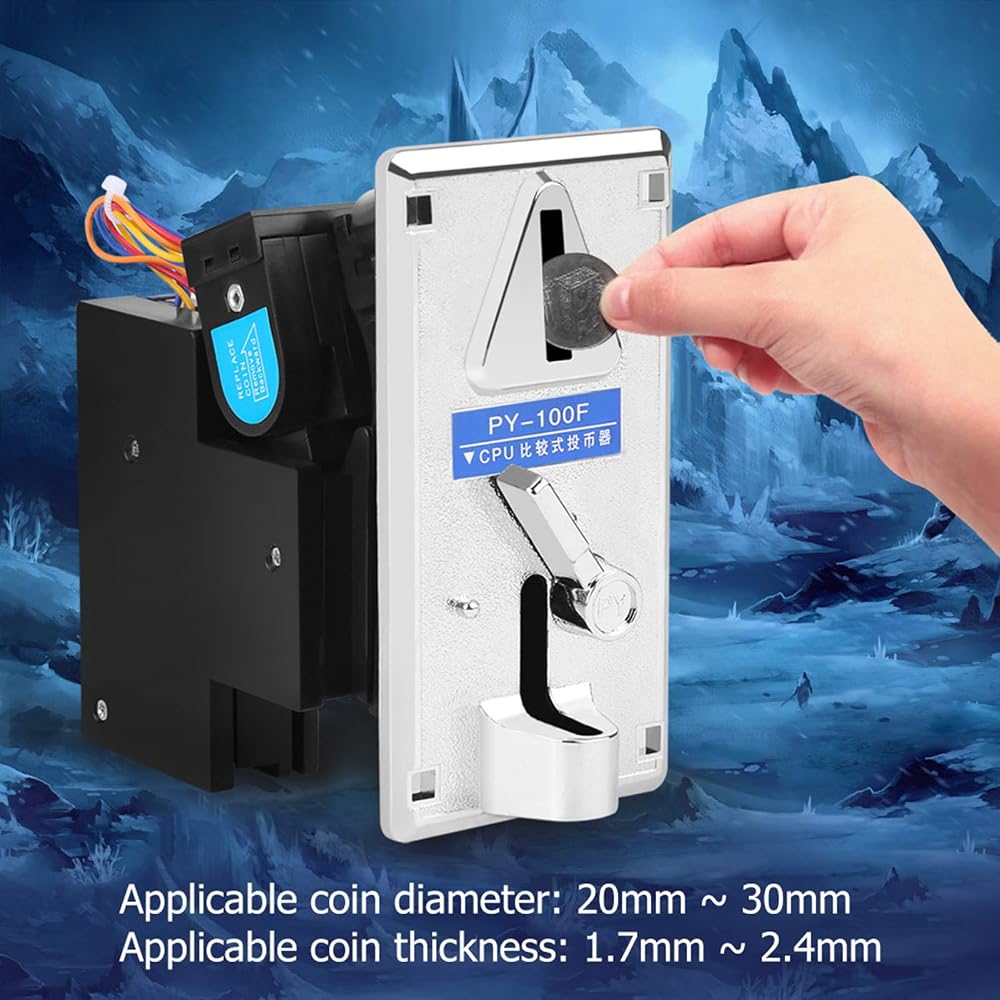

Application diameter: 20mm ~ 30mm
Application thickness: 1.7mm ~ 2.4mm
Material: plastic, metal
Work voltage: DC12V±20%
Work temperature: -15 ~ 75 ℃

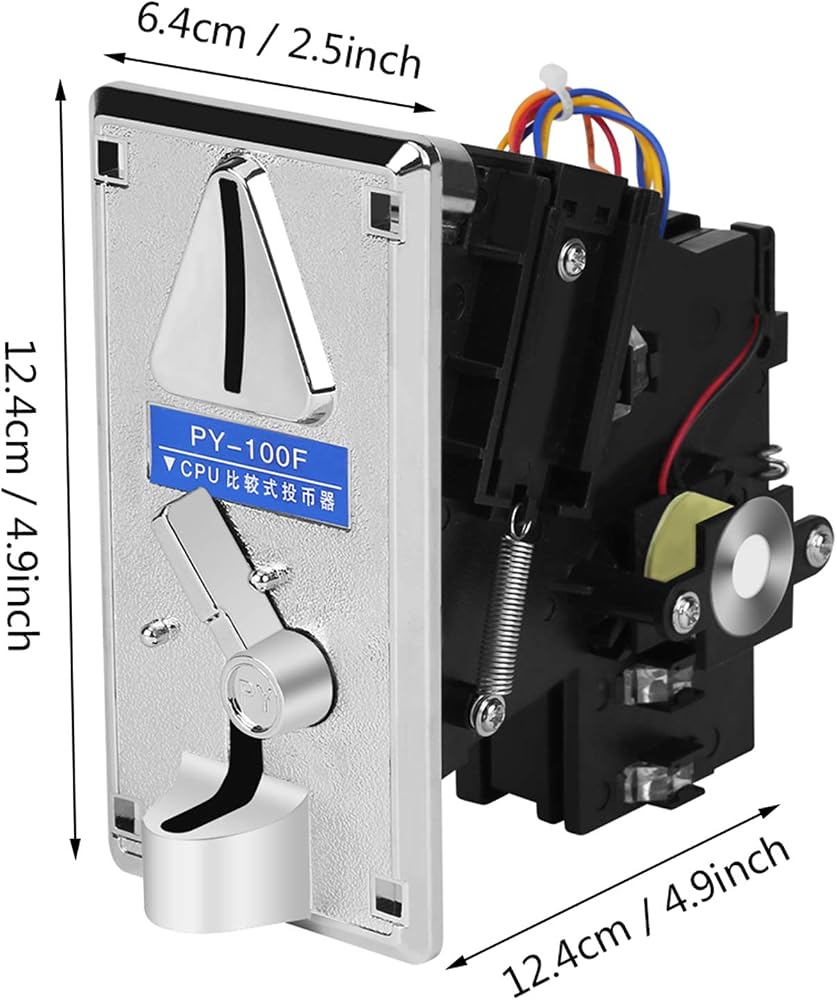

Size:Approx. 124 x 124 x 64mm/4.9 x 4.9 x2.5inch
Weight: 265g
Instructions:
1. Please remove the plastic in the slot and replace the to be used.
2. For One yuan RMB , please transfer to RMB special file (SW3)
3. With the need of circuit board, select N.O (often open) and N.C (often closed) switching,
4. Select the CDIN signal length and speed three stage switch (SW2).
5. The sensitivity adjustment of the selection of VR knobs, clockwise +, the selector is looser; counterclockwise -, the selector is stricter.

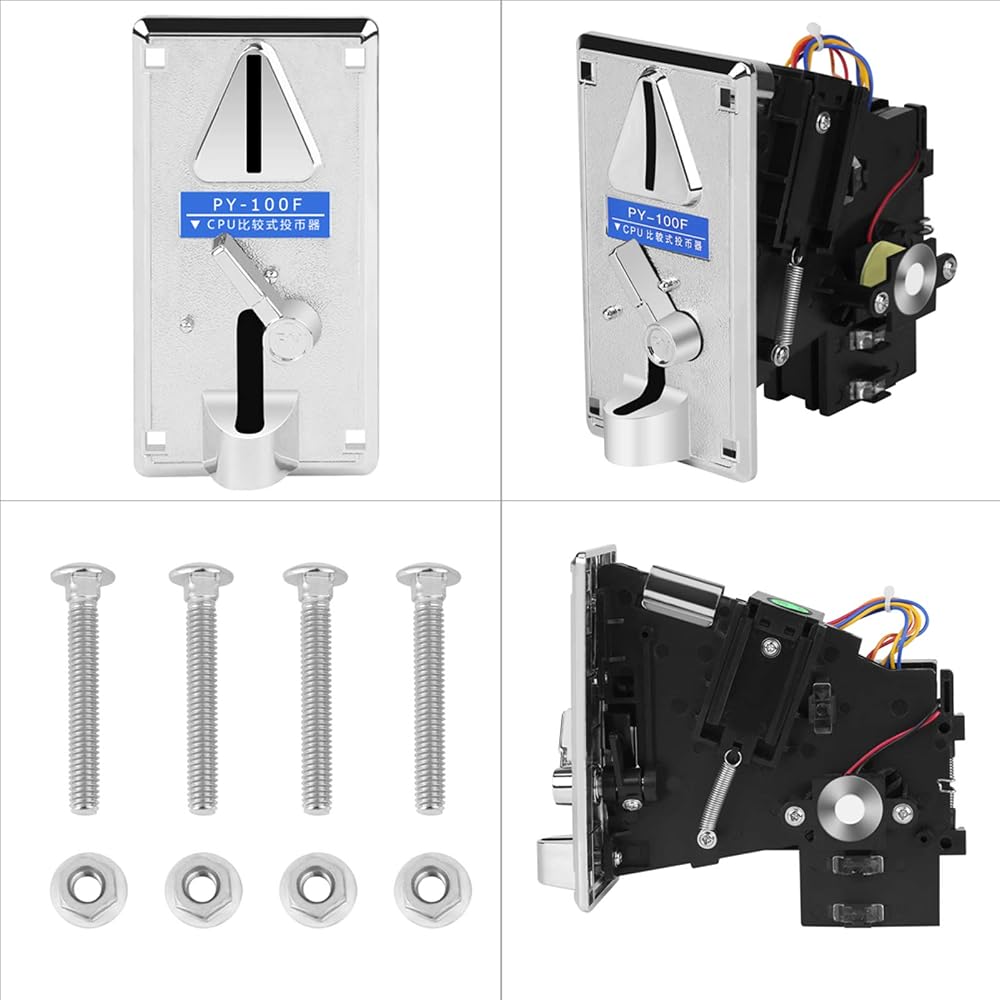

Package Included:
1 x CPU Selector
4 x Screw Bolt
4 x Nut

Note:

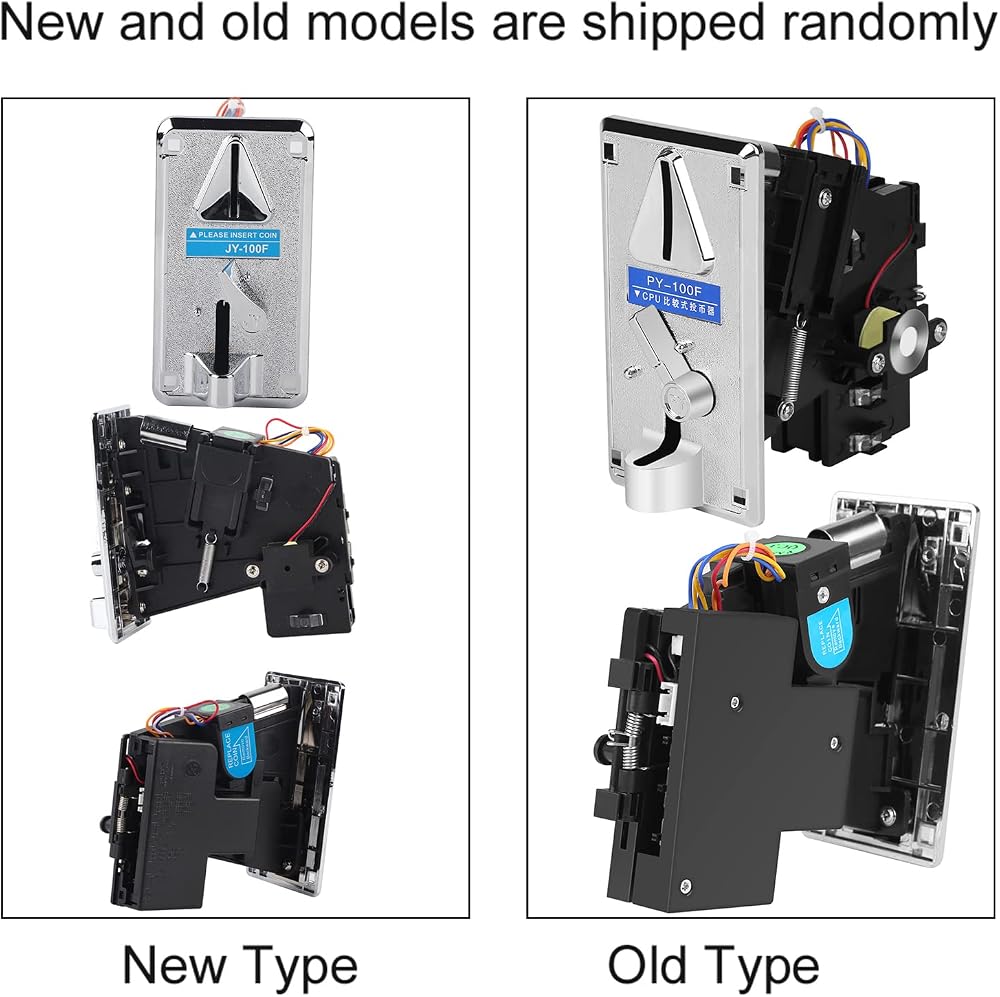

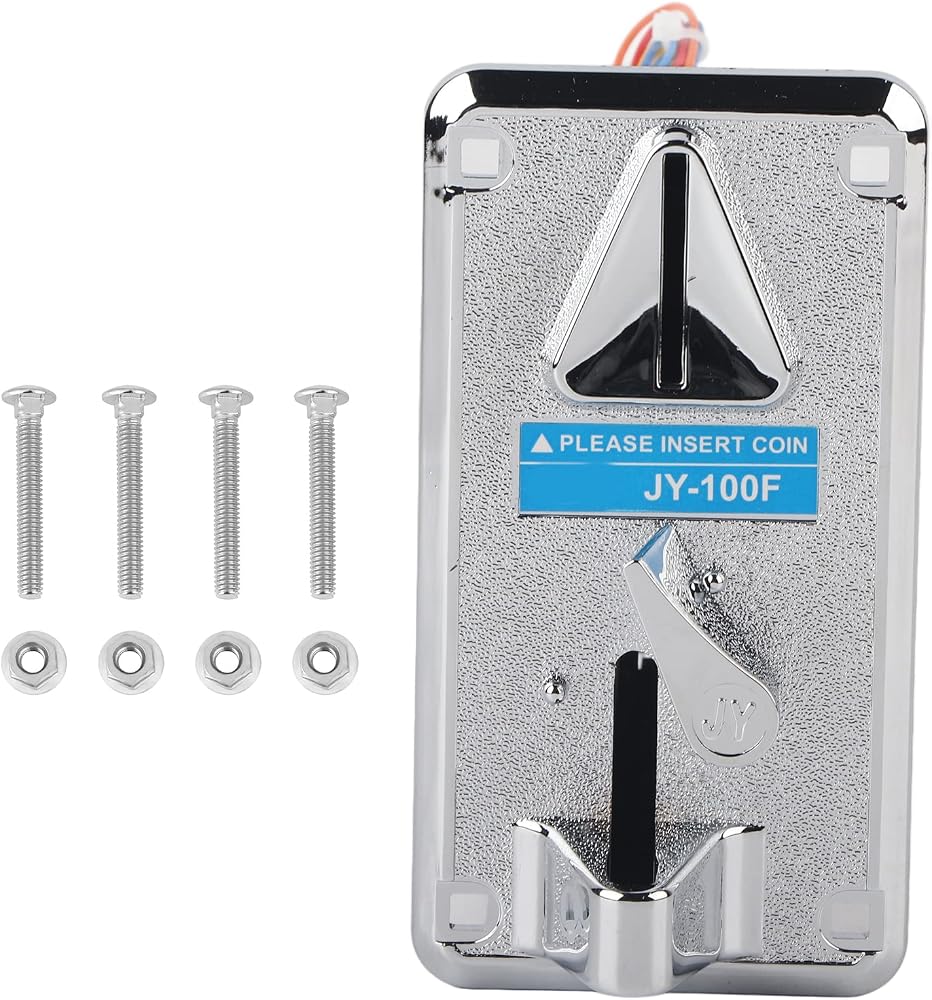

Please note that the new type and old type of this product will be sent randomly and make sure you will not mind before ordering.
