Slotting Cutter Arbors

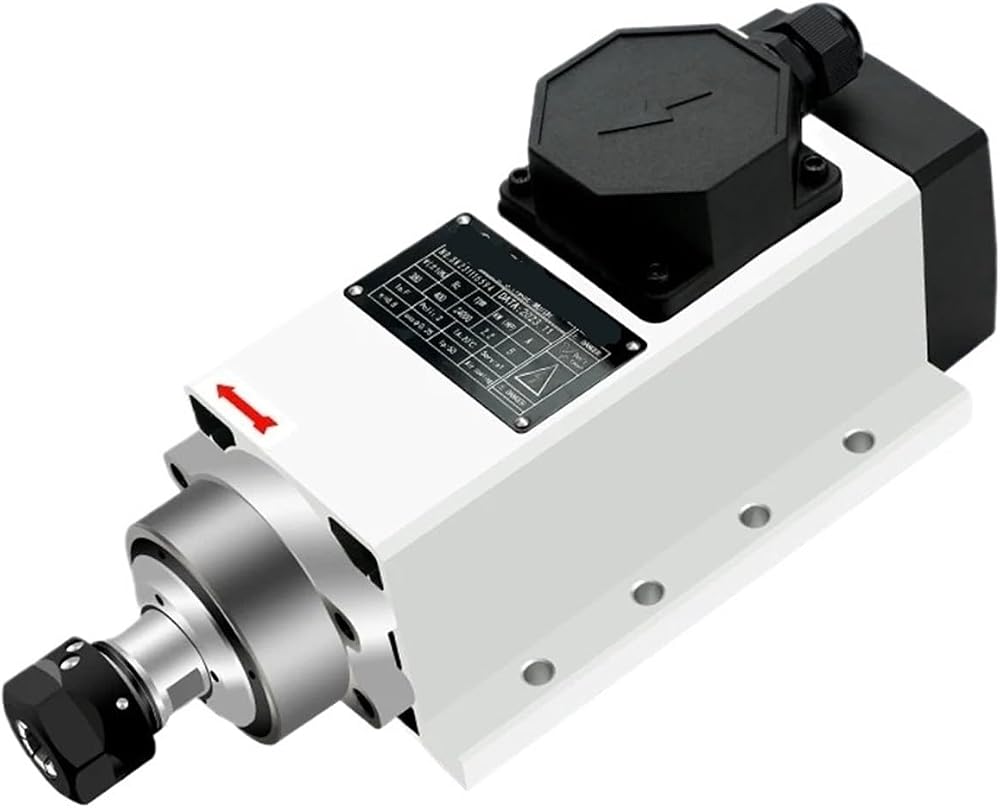

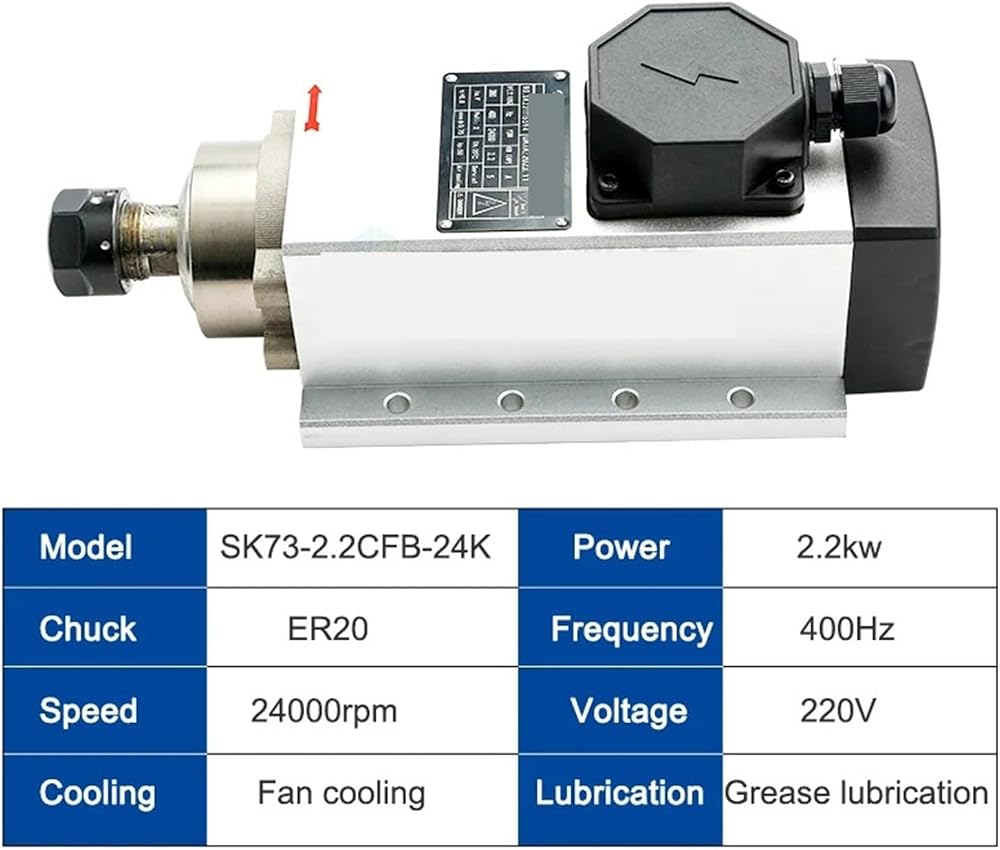

Model: SK73-2.2CFB-24K
Speed regulation mode: Change the spindle speed through the output of the three-phase inverter and adjust the inverter frequency.
Cooling method: air cooling

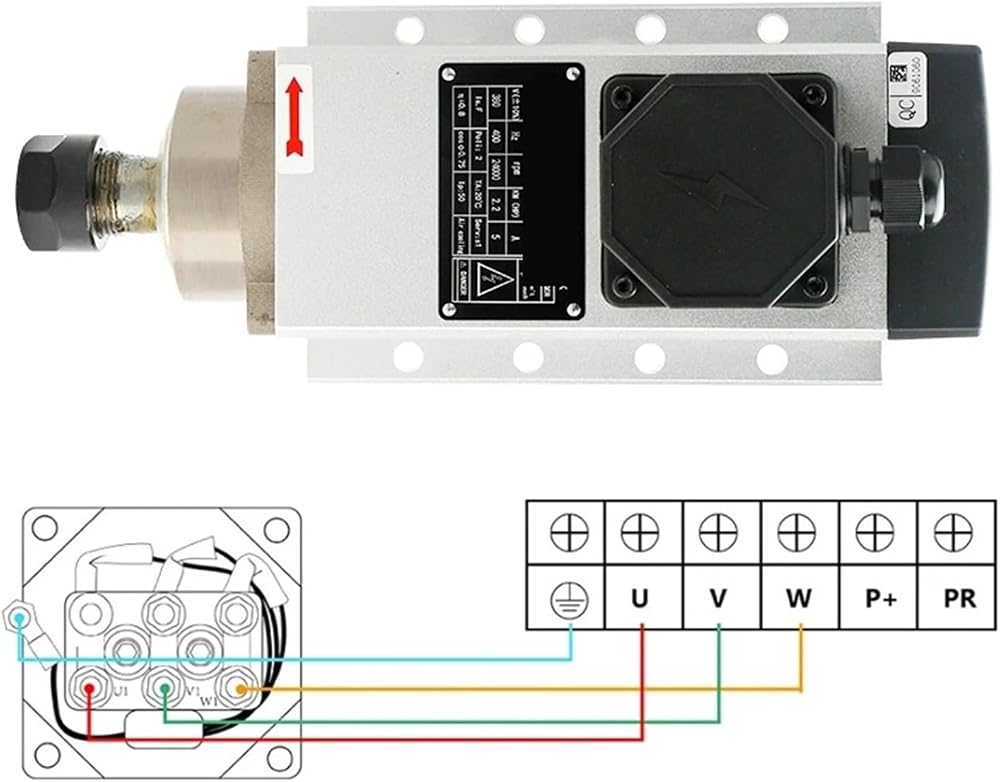

Power interface: Black junction box, marked with "1", "2", "3", "4", "5", "GND", etc. "1", "2", "3" are connected to the inverter U, V, W respectively, and "GND" is connected to the inverter.
Power: 2.2kw (1HP=0.735w)
Voltage: 380V 220V
Current: 5.0A
Frequency: 400 Hz
Speed: 24,000 rpm
Jump distance: less than 0.01mm
Bearing type: P4 (4 ball bearings)
Chuck: ER20
Grease lubrication
