Slotting Cutter Arbors

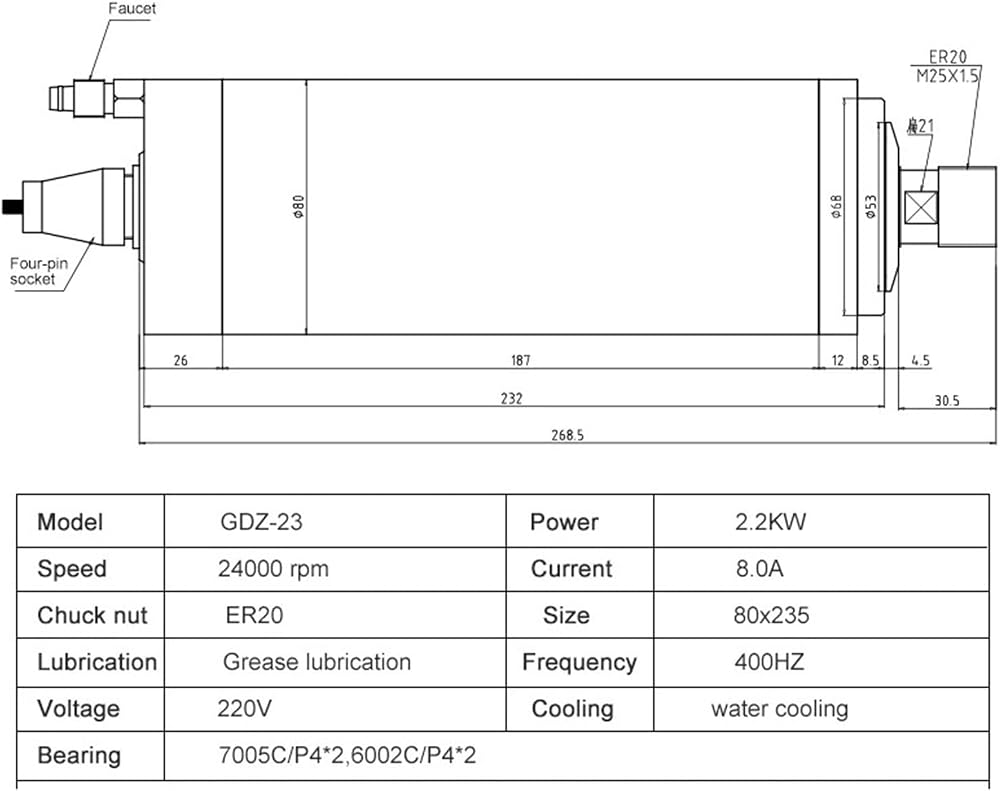

Middle body diameter: 80*235mm
Speed regulation method: Change the spindle speed through the three-phase output inverter and adjust the frequency of the inverter.
Cooling method: water cooling

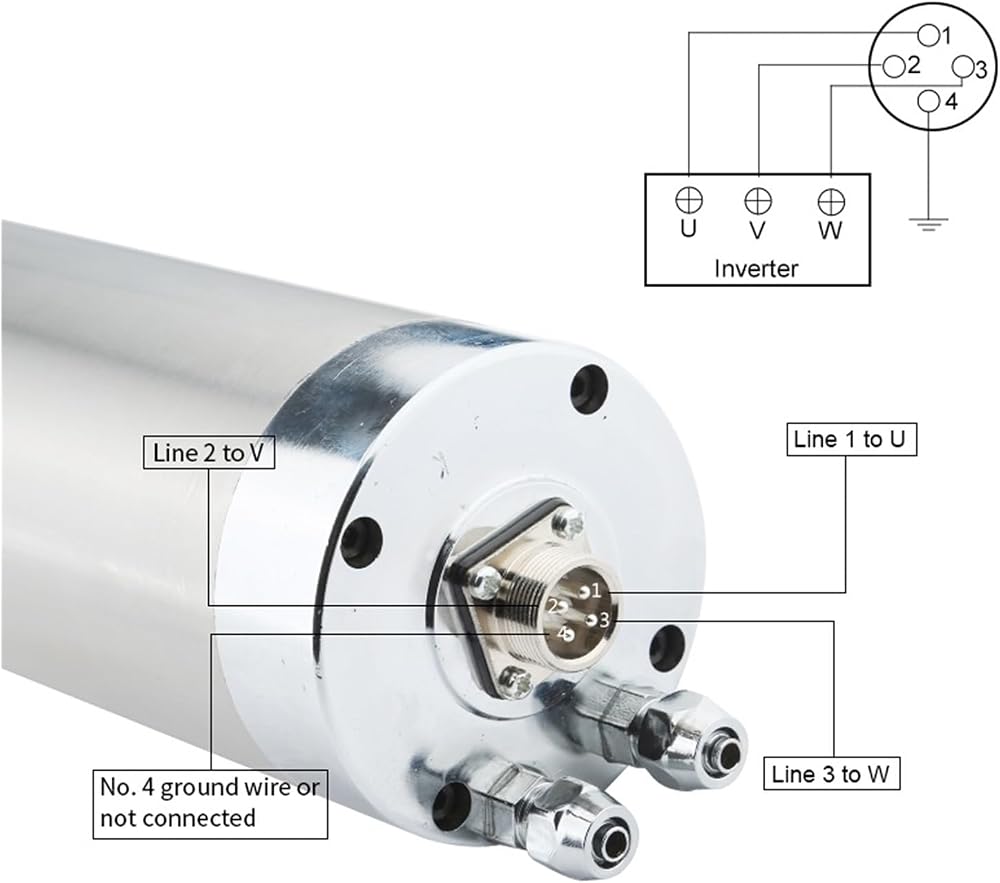

Power interface: Optional YX20-4-pin waterproof aviation plug. The aviation plugs marked "1", "2", "3", and "4" are connected to the inverter (U, V, W) respectively. The four plugs connected to the inverter ground the device.
Power: 2.2kw
Voltage: 220V 380V
Current: 8.0A
Frequency: 400Hz
Speed: 24000rpm
Runout: less than 0.01mm
Bearing type: 7005C/P4*2, 6002C/P4*2
4 ball bearings
Number of phases: 3
Chuck: ER20
Water-cooled ER20 chuck
Grease lubrication
