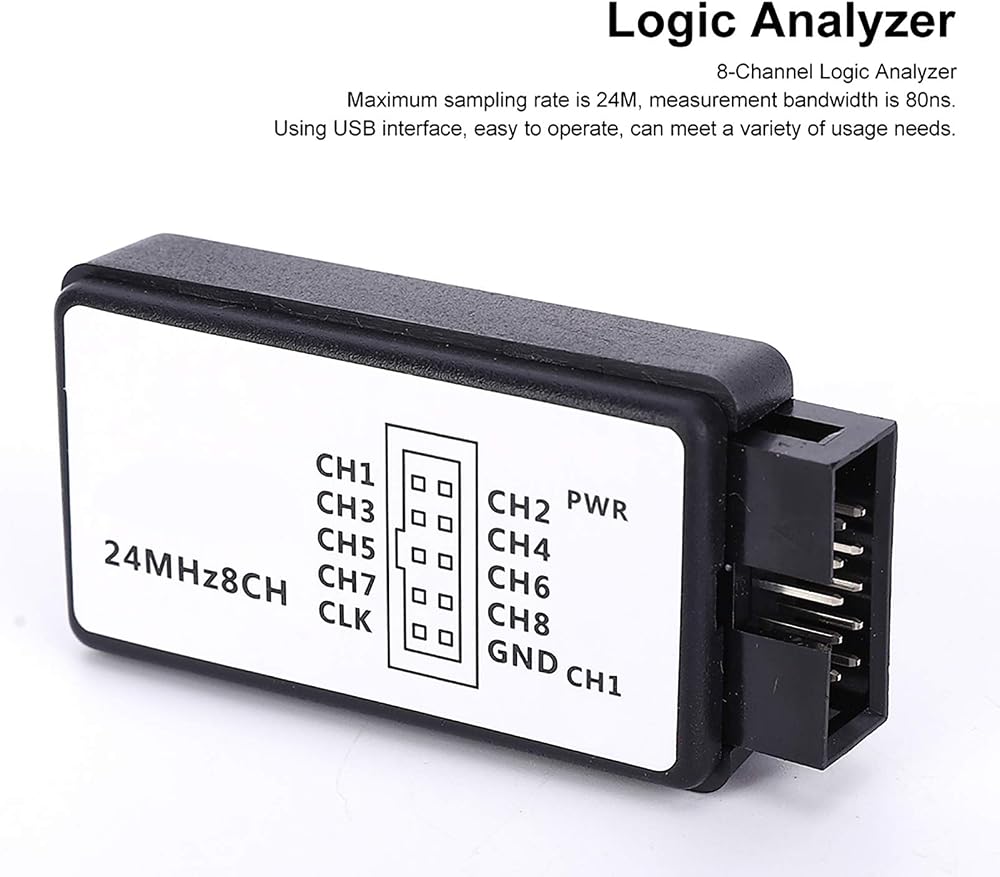

1. Logical analyzer 8 channels with a maximum sampling rate of 24m and a measuring band of 80NS.
2. Using the USB interface, the installation and use method is simple, the operation is practical and can meet a variety of use needs.
3. The mini logic analyzer, made of materials, has good sustainability and stability.
4. Small size, widely used in automotive electronics, communications, energy, computers and other industries.
5. Professional manufacturing, Durability-Optimized, can provide practical, intuitive and powerful analysis functions.

Specification:
State: Nine
Article type: Logic analyzer
Material: ABS
Weight: approx. 43g / 1.5oz
Product number La1002
Measurement input parameters Number of channels 8
Maximum sampling rate 24m to
5MHz measurement bandwidth
Minimum captive pulse width 80NS
Maximum sampling depth 10g /channel
0V - +5V input voltage range
Equivalent input impedance 12kΩ, 12PF
Threshold voltage ≤s1.0v low level, ≥22.0v high level
PWM output parameters Number of channels not
Output frequency range no
Cycle adjustment step no
Impulse adjustment step
The output voltage no
Output impedance no
USB2.0/3.0
Support -PART 50MA
maximum work current 80MA
IT software management supported for UART/RS-232/485, for I2C, for SPI, for CAN, for DMX512, for CEC, for 12S/PCM, for JTAG, for Lin, for for Midi, for Modbus, 1-Wirepour Uni/O, for SDIDI, for SMBUS, for SWD, USB1.1, for and PS/2 keyboard. For infrared, parallel port
Support for the management of the operating system for XP (32 bit), for Vista/7 (32 bit/64 bit), for the operating system, for
Product size approx. 56x27x14mm / 2.2x1.1x0.6in

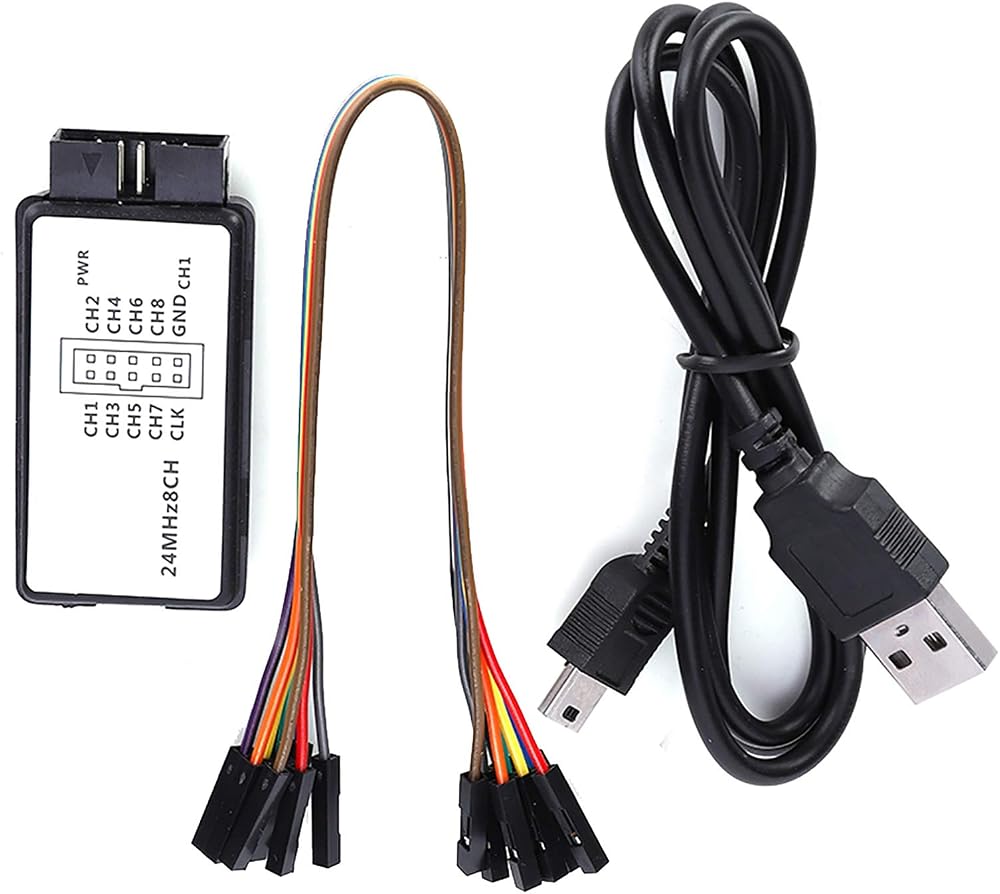

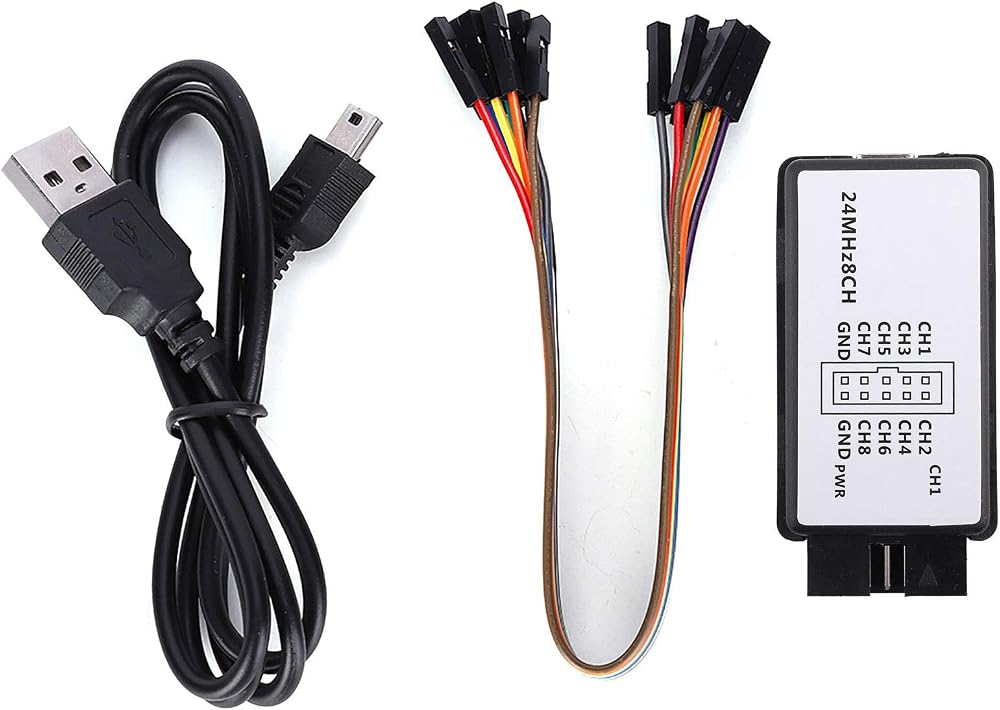

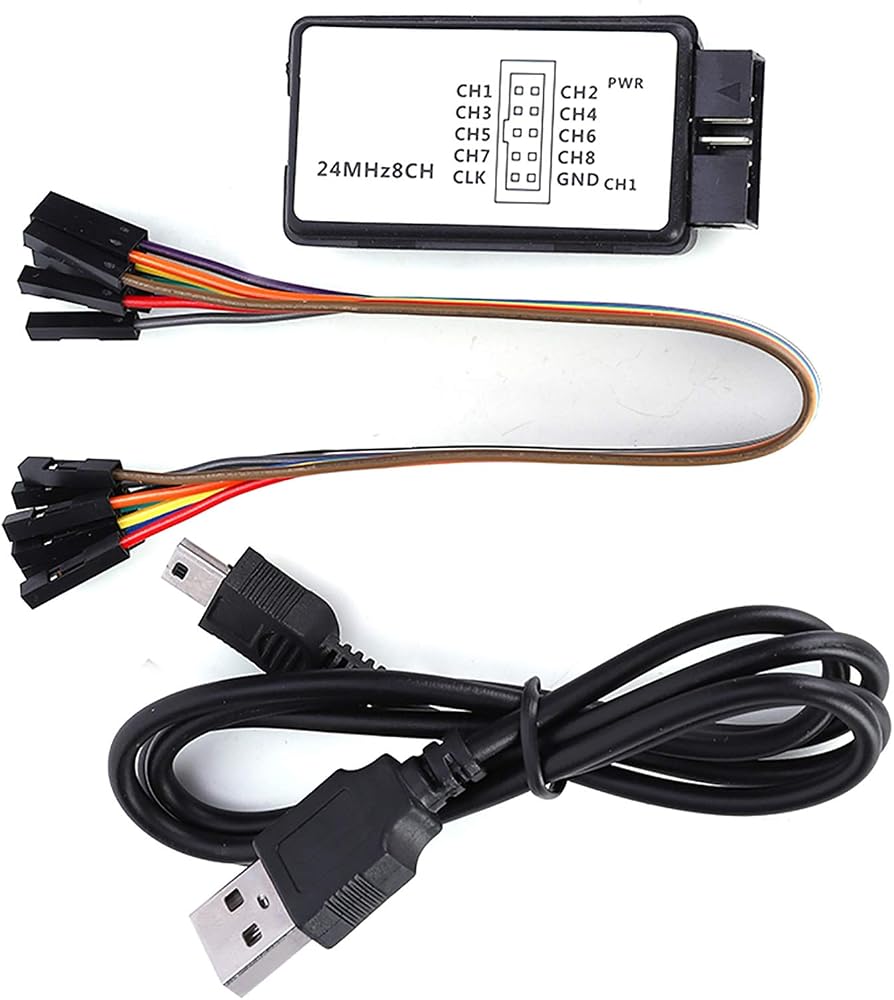

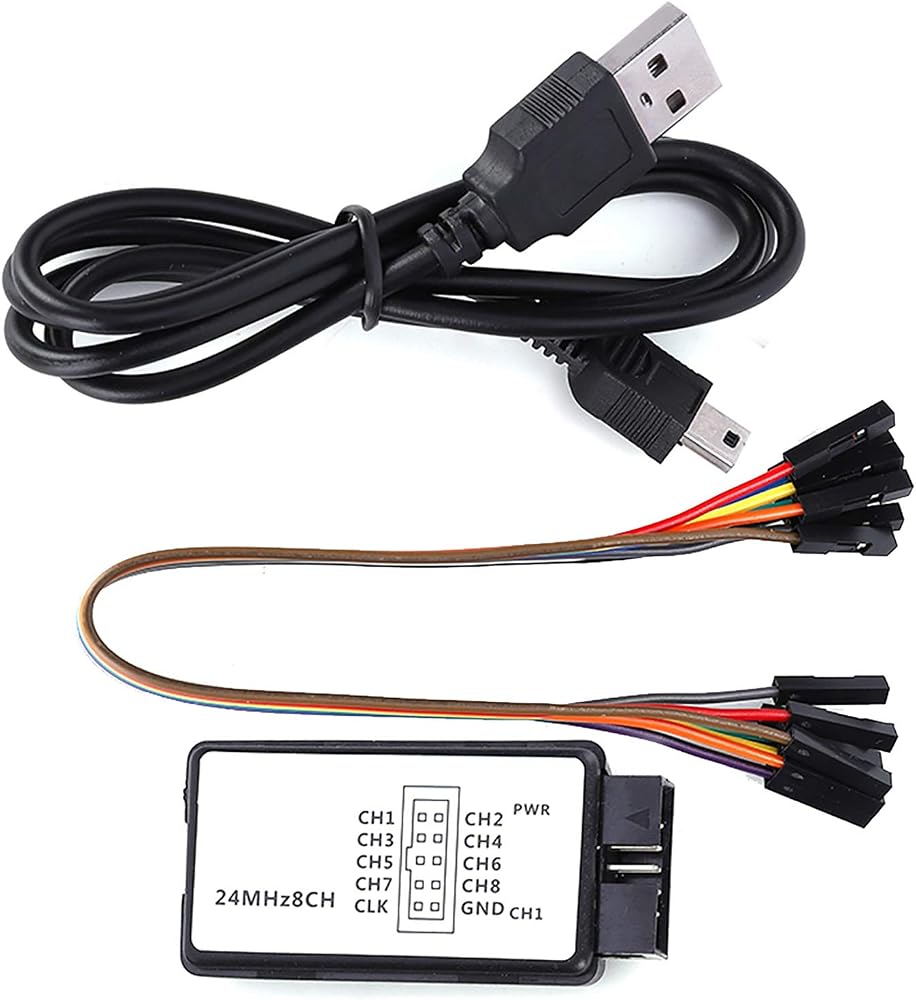

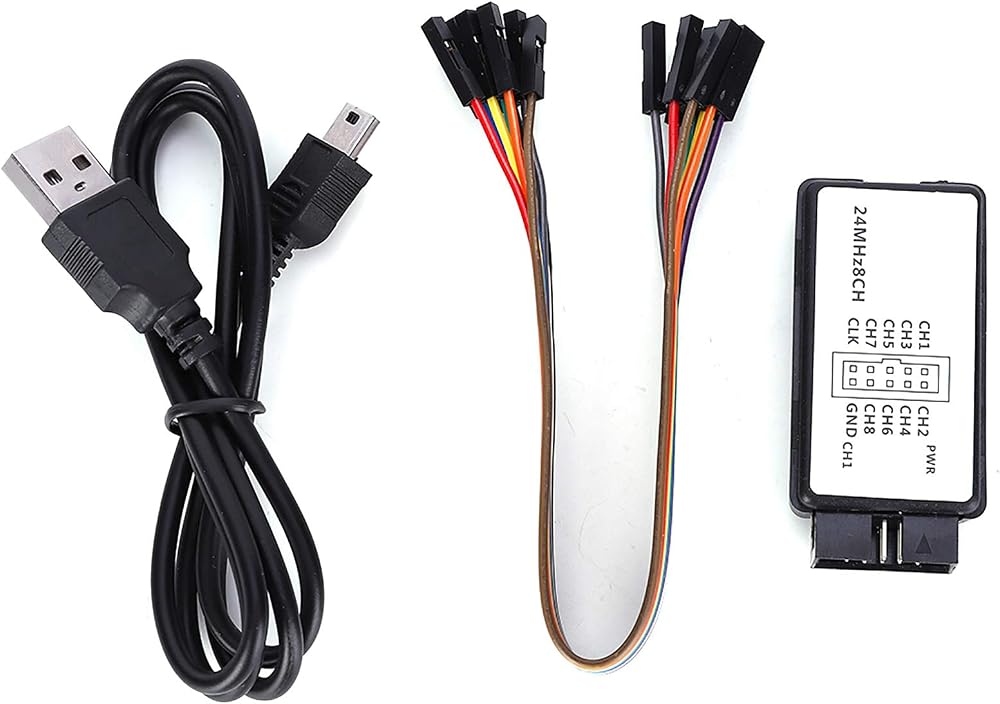

List of packages:
1 x Logic analyzer

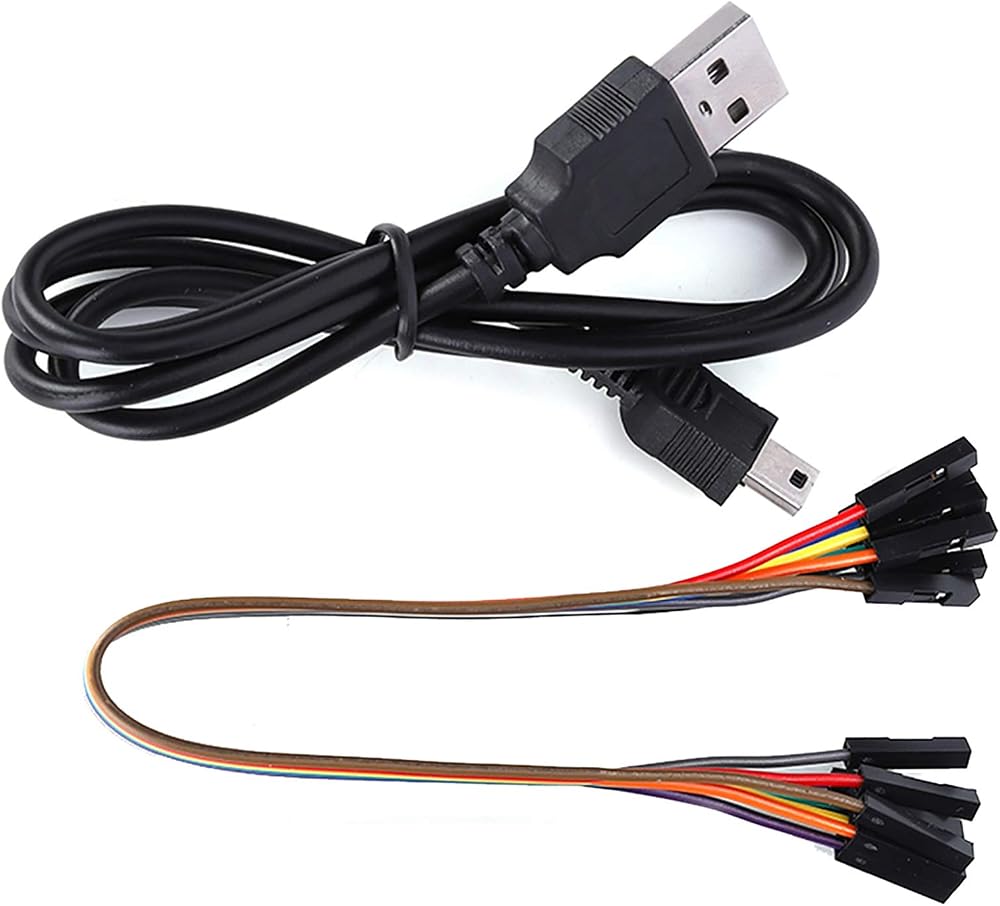

1 x USB cable
1 x Connection cable

Note:
1. Allow an error from 0 to 1 inch due to manual measurement. Thank you for
