مميزات خاصة

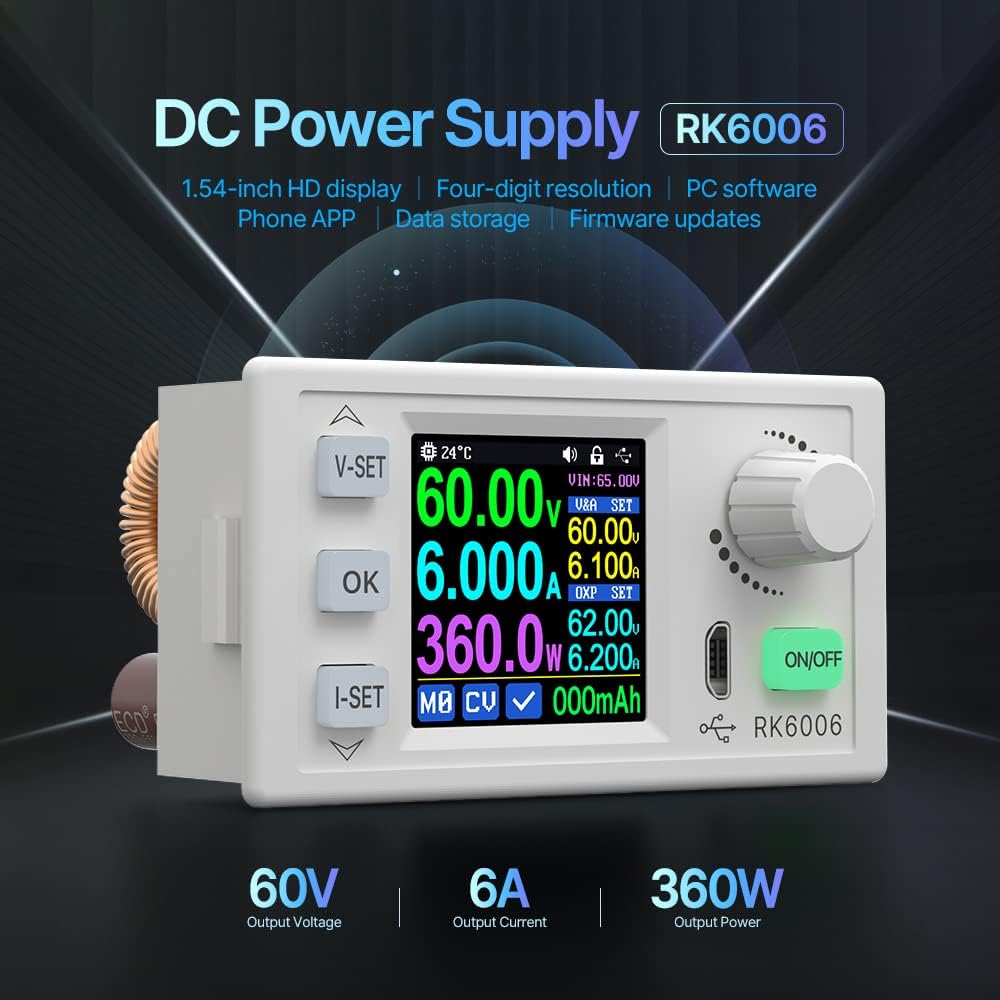

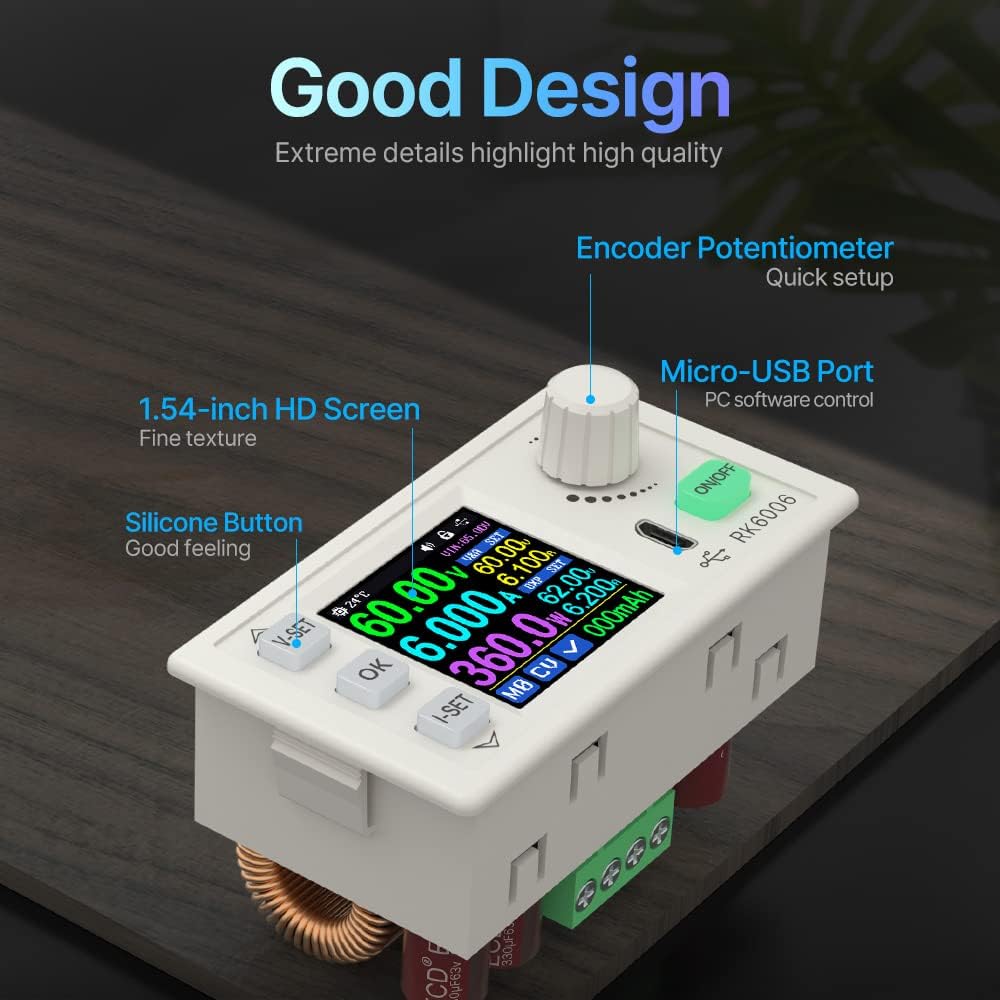

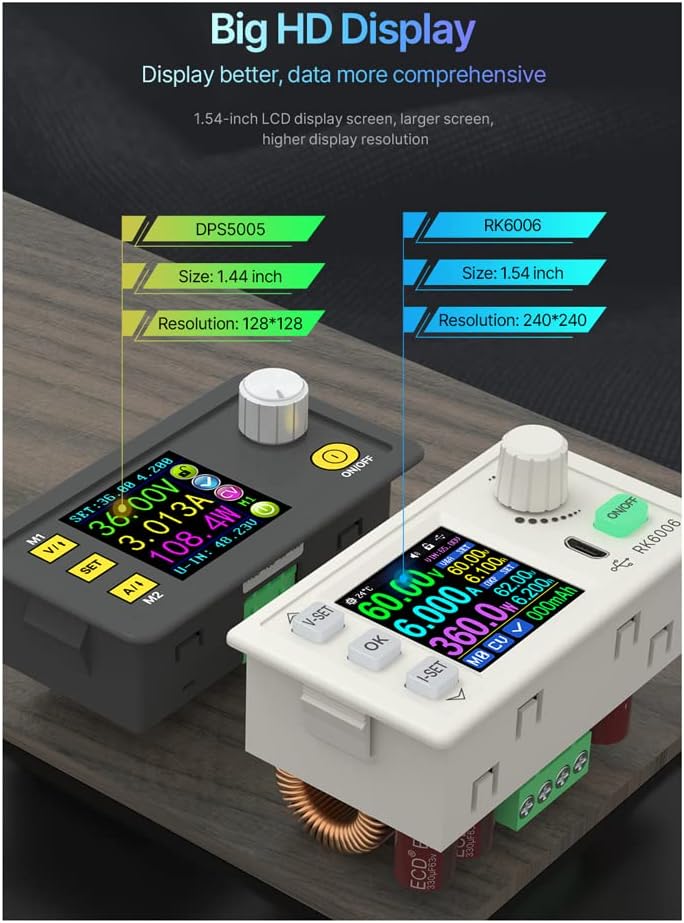

【LCD Display】: 1.54inch LCD screen with 240*240 display resolution, 0-5 brightness adjustable, clearer and more intuitive. 360 degree screen rotation design, to meet any angle to read test data.
【Wide Measuremtn s】: With wider voltage and current measuring s, 0-60.00V output voltage, 0-6.000A output current, 360W output power, four high-precise digital displays, more accurate measurement, wider measuring s.
【Two Model Optional】: You can choose between RK6006 and RK6008-BT according to your needs. RK6006 supports USB communication, and RK6006-BT supports USB + BT communication, it supports mainstream models of mobilephone BT online control (automatic locking of keys during communication).
【USB PC Communication】: Support PC upper computers control, USB interface, you can monitor and set the power supplying on the computers, friendly interface, powerful, more convenient control (only support Win7-Win10 system).
【Mobilephone APP BT Communication (RK6006-BT Only)】: Support mobilephone APP connection control. With mobilephone APP data storage function, support 10.0-16.0 iOS system and 5.0~12.0 Android system.

وصف

Specifications:
Name: Stabilized Power Source
Material: plastics
Model: RK6006, RK6006-BT (optional)
Display screen: 1.54 inch color LCD display
Screen brightness setting: 0-5 adjustable, total 6 levels
Input voltage s: 12-68.00V
Output voltage s: 0-60.00V
Output current s: 0-6.000A
Output power s: 0-360W
Input voltage measurement resolution: 0.01V
Output voltage setting and measuring resolution: 0.01V
Output current setting and measuring resolution: 0.001A
Input voltage measurement accuracy: ±(1%+5 words)
Output voltage setting and measuring accuracy: ±(0.3%+3 words)
Output current setting and measurement accuracy: ±(0.5%+5 words)
Output s typical value: 100mV VPP
Operating temperature s: -10℃ to 40℃
External temperature sensor measurement s -10℃ to 100℃/0°F-200°F
External temperature sensor measurement error: ±3℃/±6°F
Cooling fan on: output current > 4A or system temperature > 45℃
Cooling fan on and then off: output current Over-temperature ions: system temperature >90℃
Item size: 79 * 43 * 55mm / 3.11 * 1.69 * 2.17in
Item weight: 147g / 5.19ounce
Package size: 134 * 68 * 65mm / 5.28 * 2.68 * 2.56in
Package weight: 200g / 7.05ounce

Packing List (RK6006):
1 * Stabilized Power Source
1 * 10A Fuse

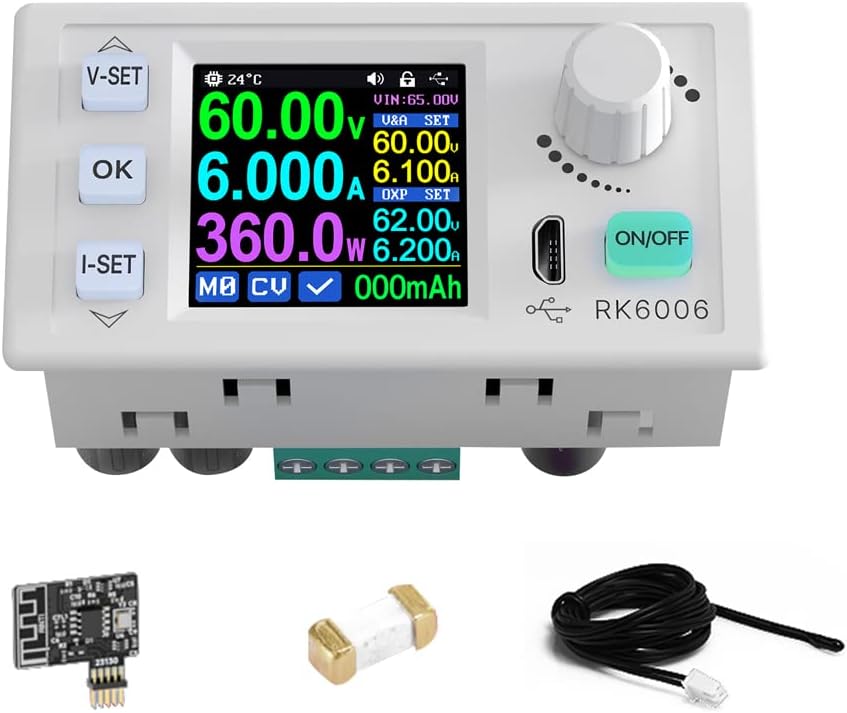

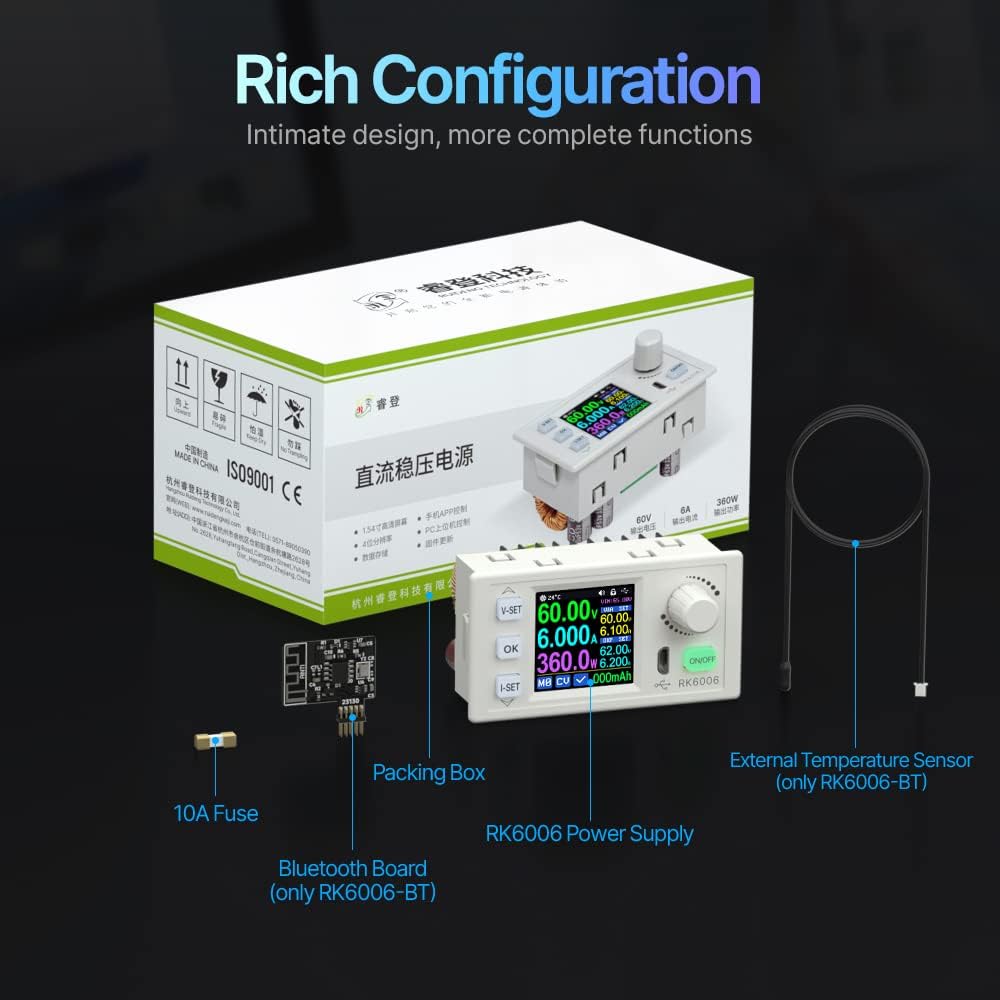

Packing List (RK6006-BT):
1 * Stabilized Power Source
1 * BT Communication Board
1 * Temperature Control Cable
1 * 10A Fuse
