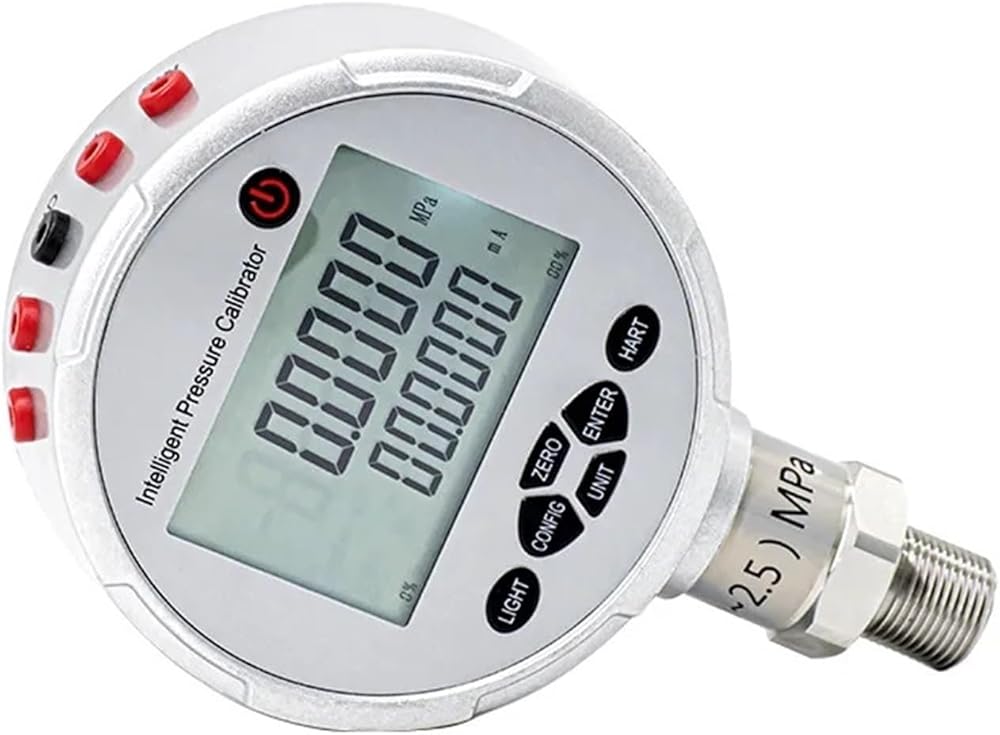

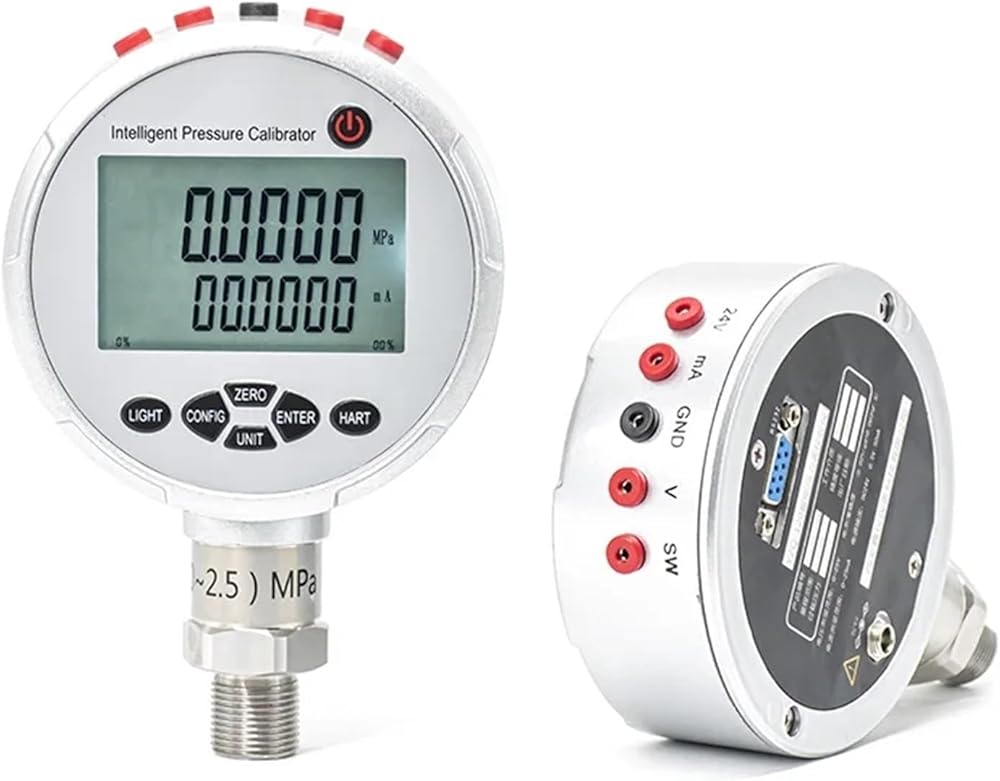

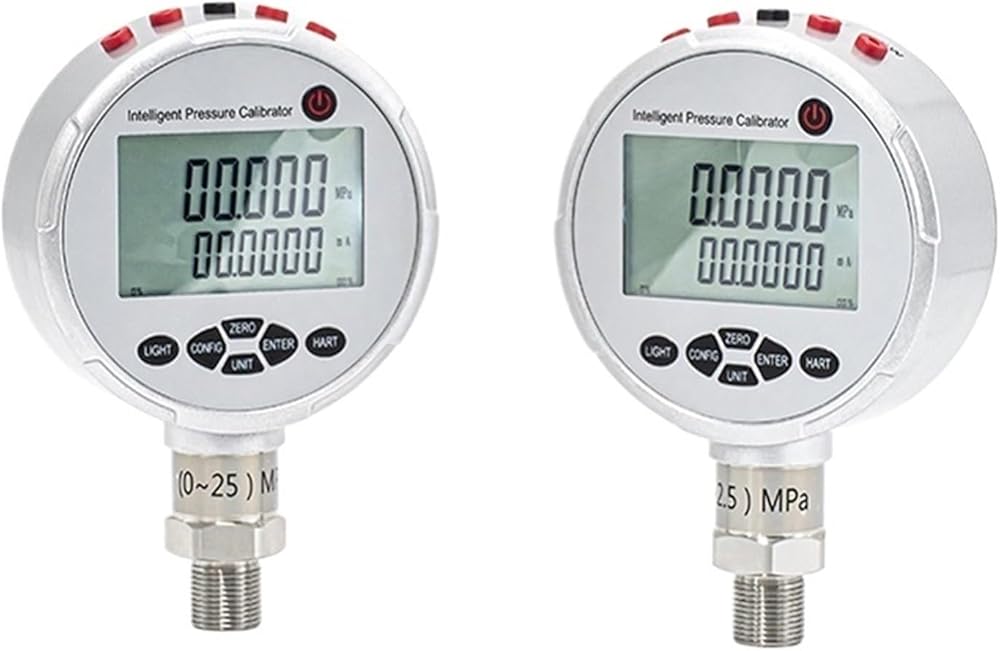

ompression Gauges
Product Description
New-type products (HART agreement can be brought), Double-row liquid crystal display with backlight, There are nine pressure units can be switched according to the actual needs of users, with DC24V output function, Connect with various stressors and very suitable for field and laboratory use.
Product Feature:
Built-in manual operator function, The HART intelligent pressure transmitter can be calibrated.(optional)

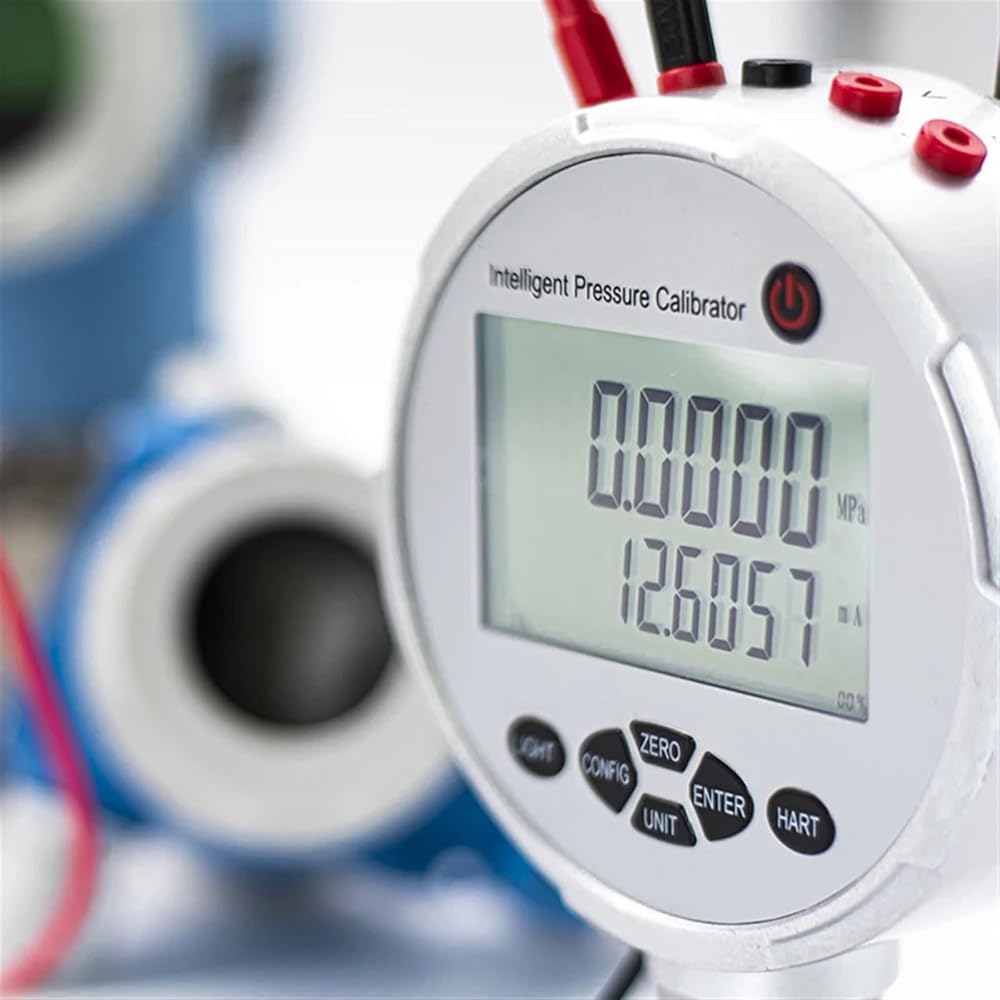

Double-row liquid crystal display with backlight.
mmH2O,mmHg,psi,kPa,MPa,Pa,mbar,bar,kgf/cm2, switch between nine pressure units.
With DC24V output function.
With current, voltage measurement.
Measuring with switching volume.
With communication interface.(optional)
Main Application:

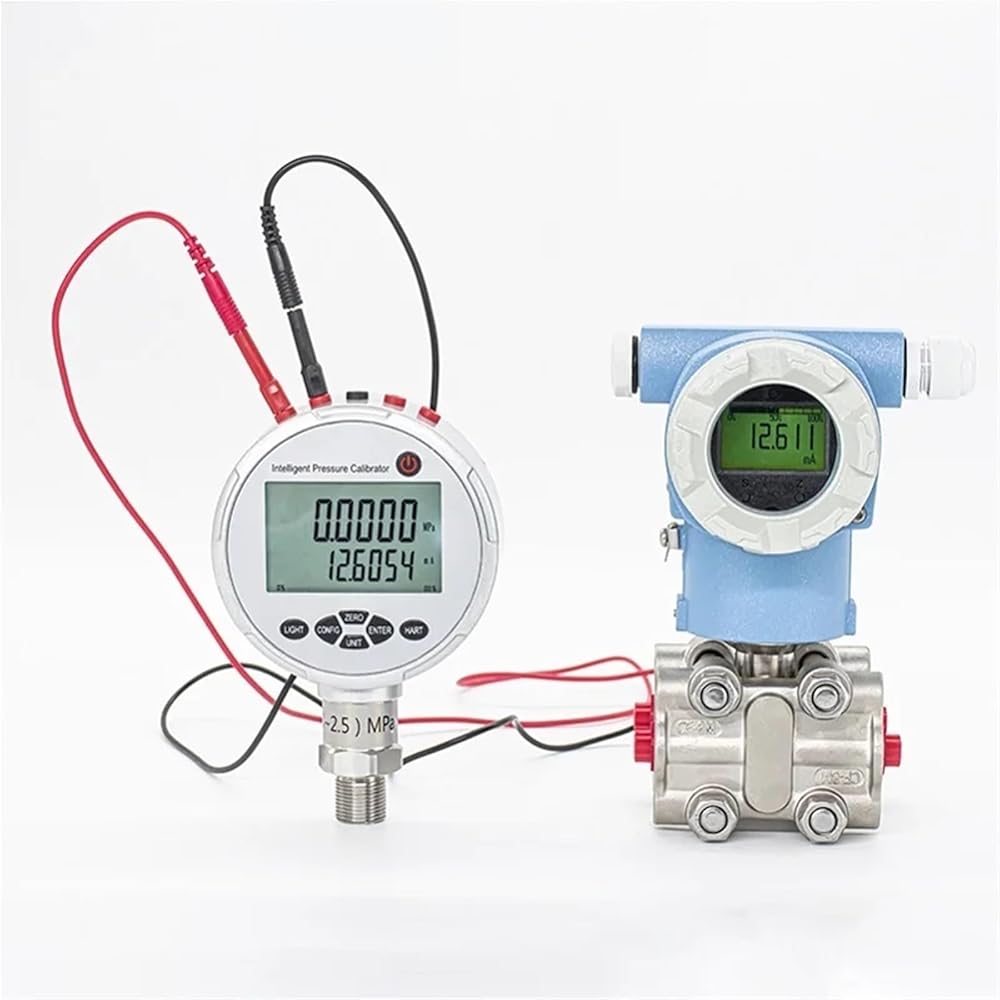

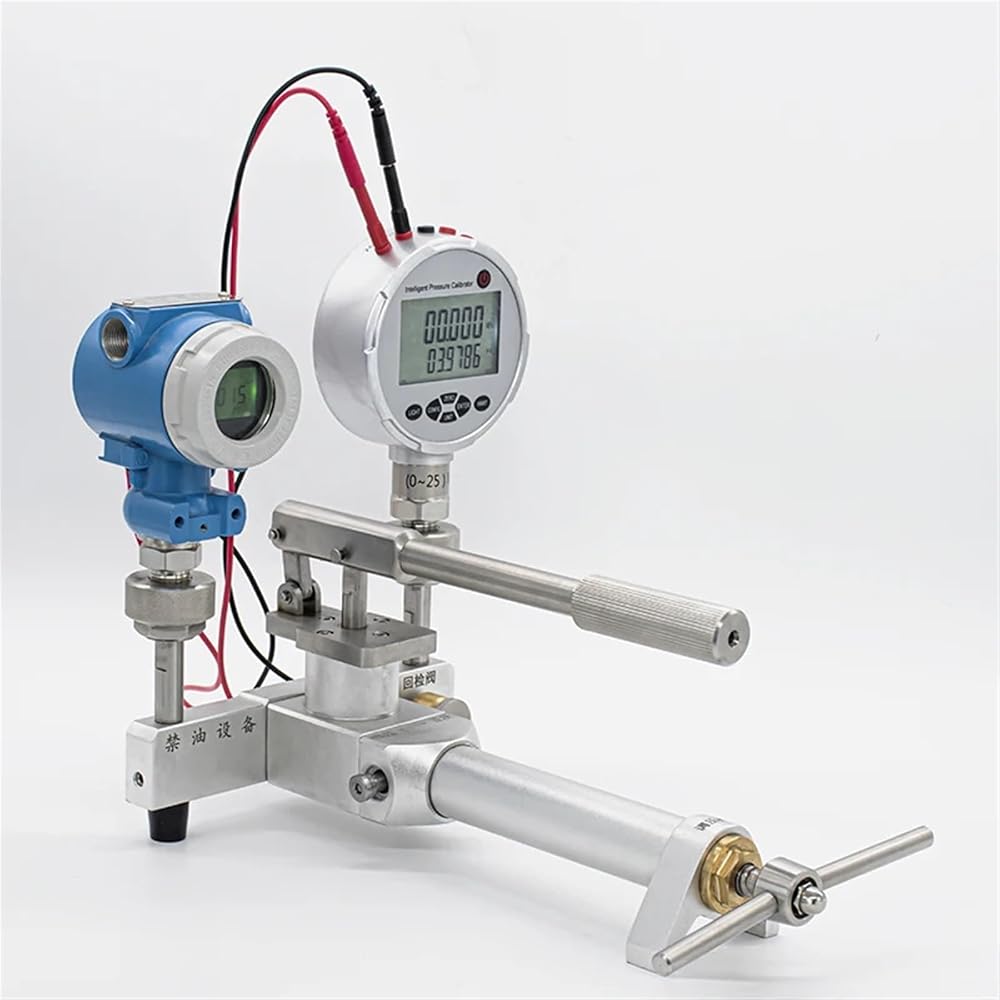

Calibrate pressure (differential pressure) transmitter
Calibrate pressure switch
Verify the precision pressure gauge, General pressure gauge.
Technical Parameters
Name

Model Number
YZQ-120
Measurement Range
(-0.1 ~ 160)MPa
Display Accuracy
±0.02%F.S ±0.05%F.S
Temperature fluctuation
±0.1(15,20,30)
measured value
Current, voltage, switching volume

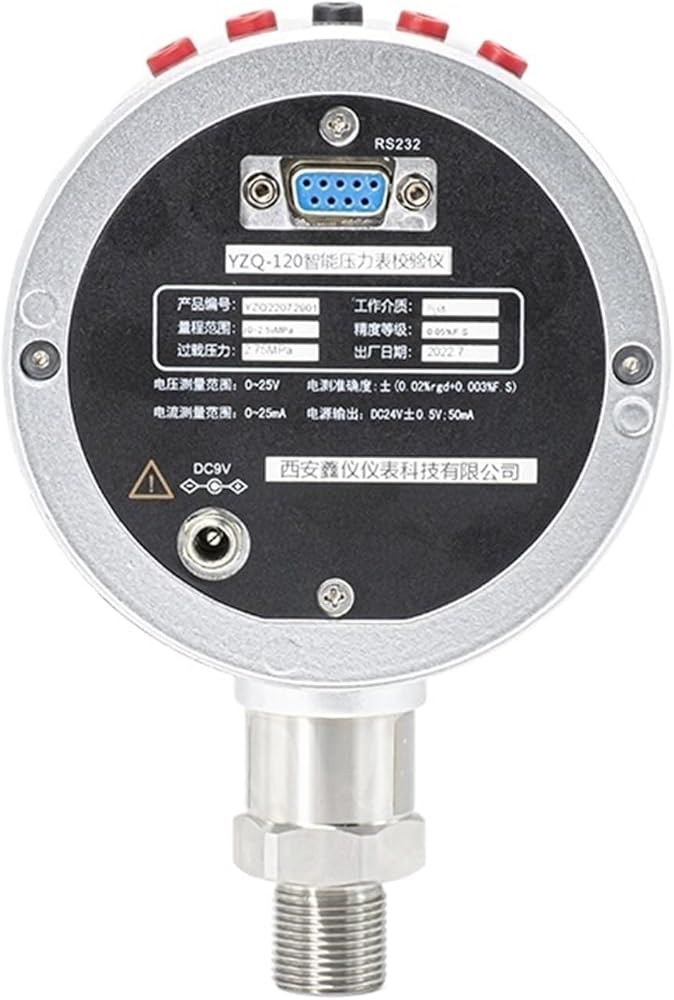

Communication interface
Three core special
storage capacity
Total 30 files(50 records/files)
Working hours
60 hours
Display screen
Double row display
Communication function
HART (optional)
Pressure units
mmH2O,mmHg,psi,kPa,MPa,Pa,mbar,bar,kgf/c
==========
Model Number : YZQ-120
Max Measuring Range : 200 PSI & Above
Display Type : DIGITAL
Dial Diameter : 2 - 3.9 Inches
Pressure Range : -0.1~0~70MPa
Accuracy : 0.05%, 0.02%
Thread : M20x1.5
Dial size : 100mm
