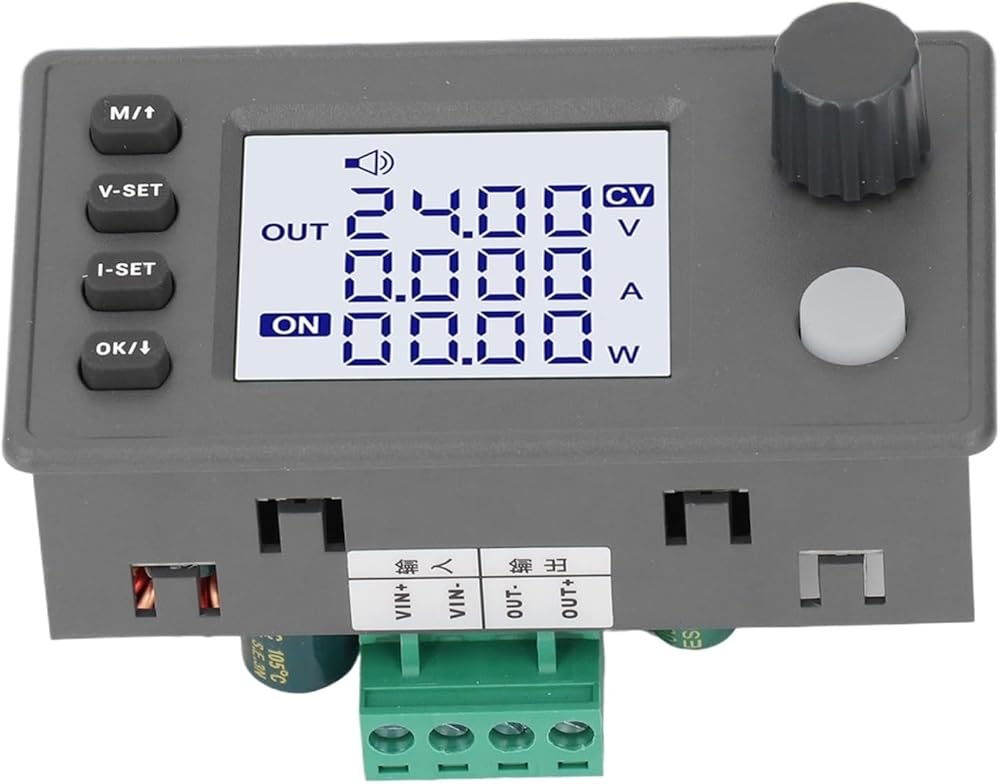

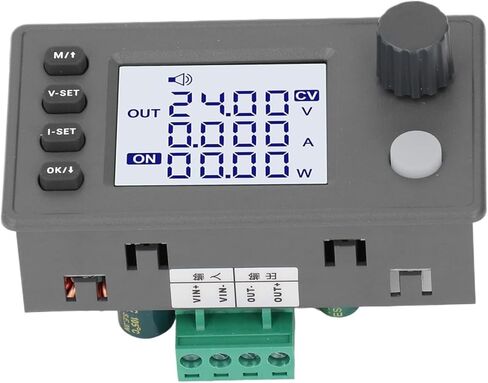

Step Up Down Power Supply DC636V to DC0.536V 5A 90W Step Up Down Board Module with 1.8in Screen
Feature:

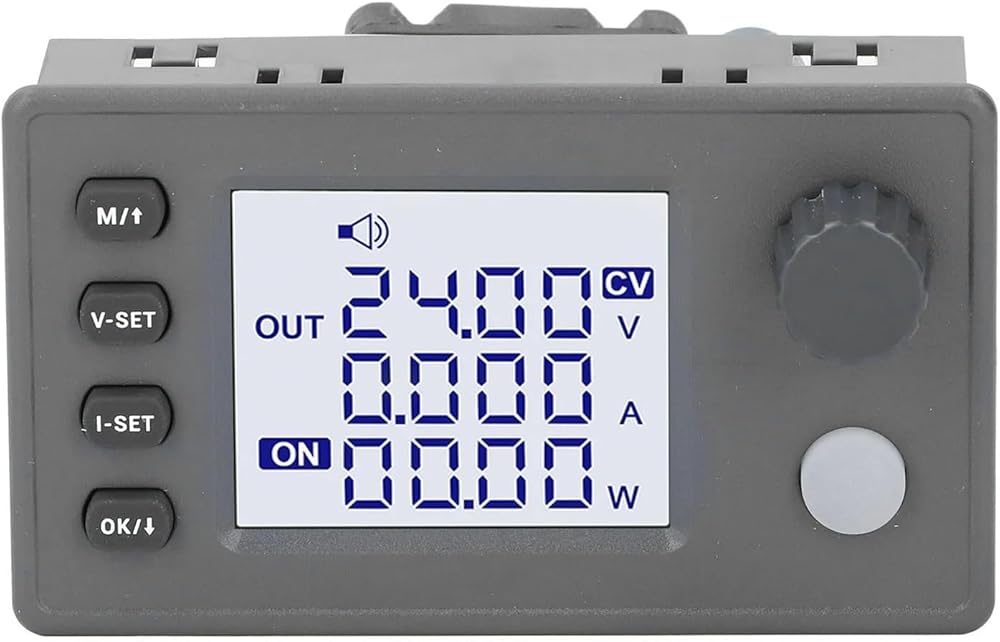

1. 1.8 Inch Display: This adjustable power supply regulator module features a 1.8 inch display screen which has excellent contact and a long lasting display.
2. Good Heat Dissipation: This voltage regulator module power supply adopts thickened heat sink, contains an external fan port to extend the fan, and the upper and lower boards are connected more reliably and stably.
3. Multiple Guards: This boost converter has multiple protections, such as anti reverse connection, anti backup, under voltage guard, over voltage guard, over current guard, over temperature guard, over power guard, over time guard, over capacity guard, and over energy guard.
4. Independent Silicone Keypad: This step up down board module uses independent silicone keypad to set voltage or current, with one key to enter and one key to exit, fast and concise, refusing to be cumbersome.
5. Wide Application: This step up down power supply has a wide range of applications and can be used for electronic equipment testing and calibration, electronics manufacturing, industrial automation control, communication equipment and servers.Specification:
Item Type: Step Up Down Power Supply
Model: ZK-SK90
Material: ABS, Silicone, Aluminum Alloy
Output Current: 0-5A
Output Power: 90W
Current Resolution: 0.001A
Data Group Storage: 11 Groups
Screen Size: 1.8 Inch Upgraded Display, 36 x 29mm Visual Range
Conversion Efficiency: Approx. 88%
Buzzer: Yes
Soft Start: Yes
Guard Mechanism:
Input Anti Reverse Connection: Yes
Output Anti Backflow: Yes
Output Over Current Guard (OCP): 0.001-5.2A Adjustable, Default 5.2A
Output Over Power Guard (OPP): 0.01-91W Adjustable, Default 91W
Over Temperature Guard (OTP): 30-99 Adjustable, Default 90
Timeout Guard (OHP): 1 Minute-99 Hours 59 Minutes, Default Off
Over Capacity Guard (OAH): 0.001-9999Ah, Default Off
Over Energy Guard (OPH): 0.001-4000KWh, Default Off
How to Use:
Usedinaccordancewiththeintroduction.Package List:
1 xStep Up Down Power Supply
==========
Hign-concerned Chemical : None
Type : inverter
