Isolation

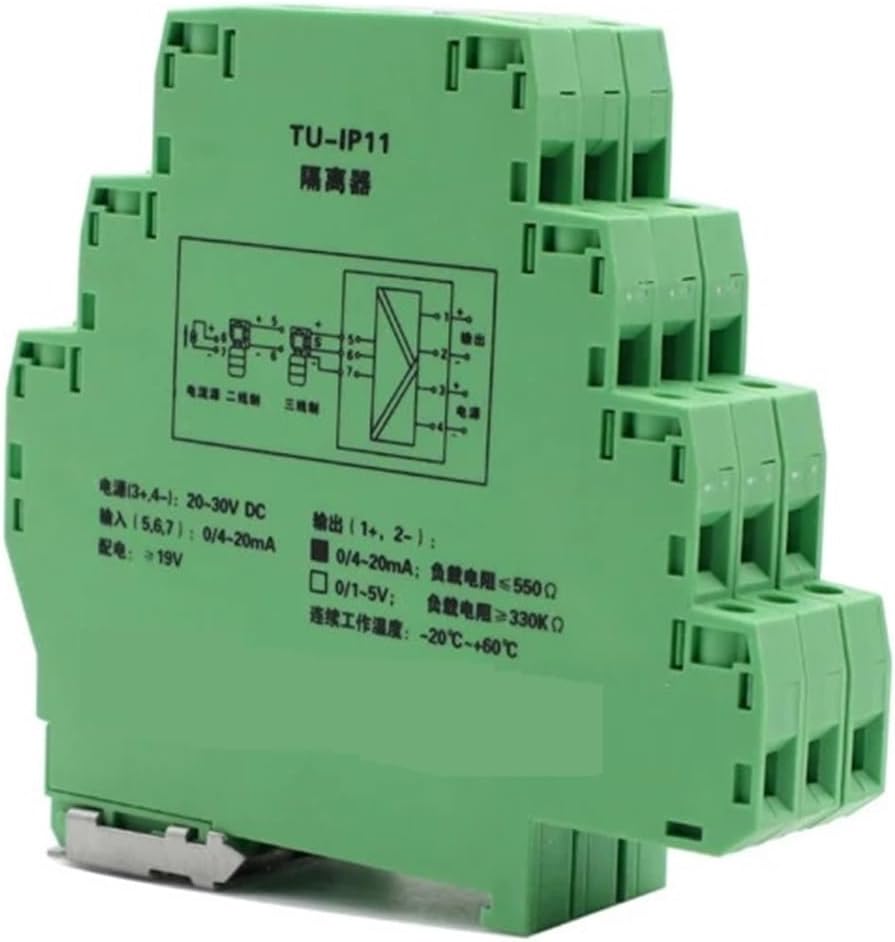

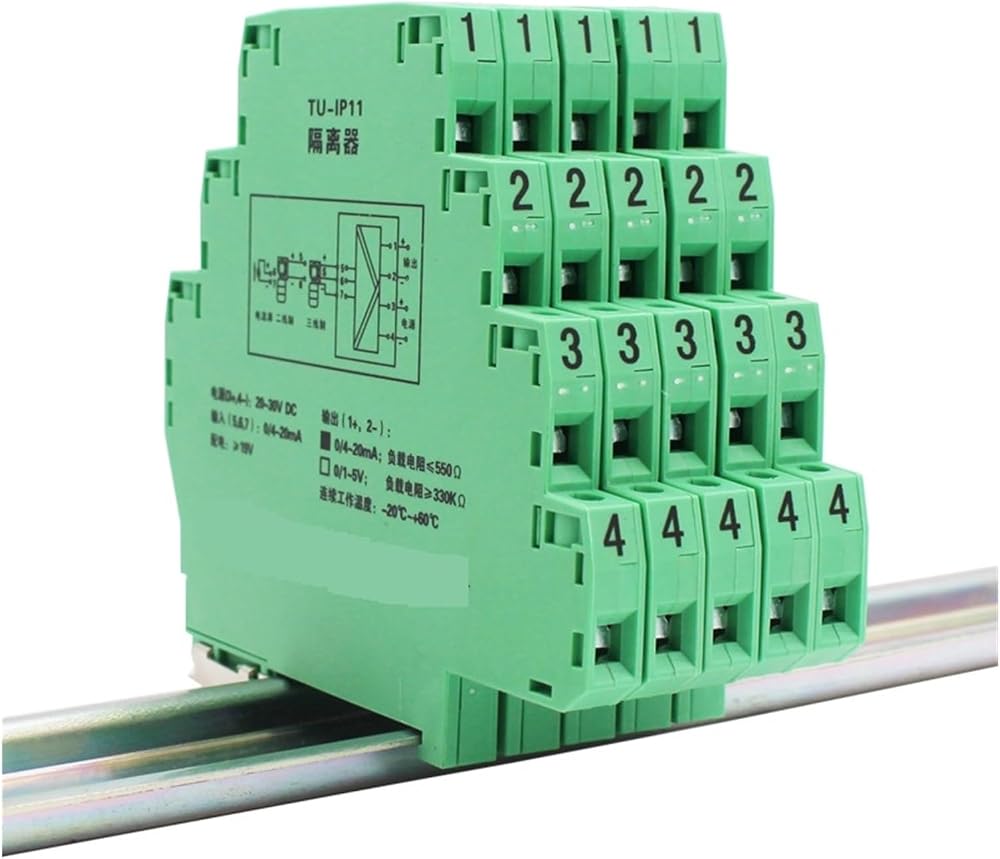

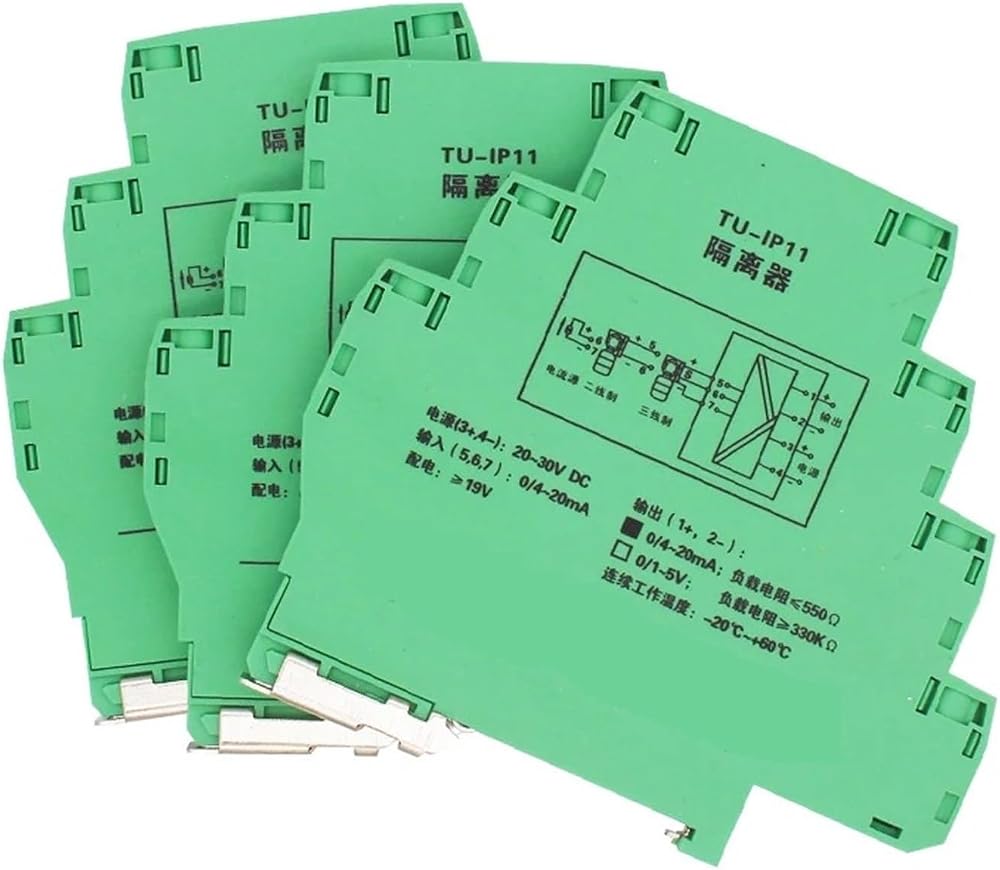

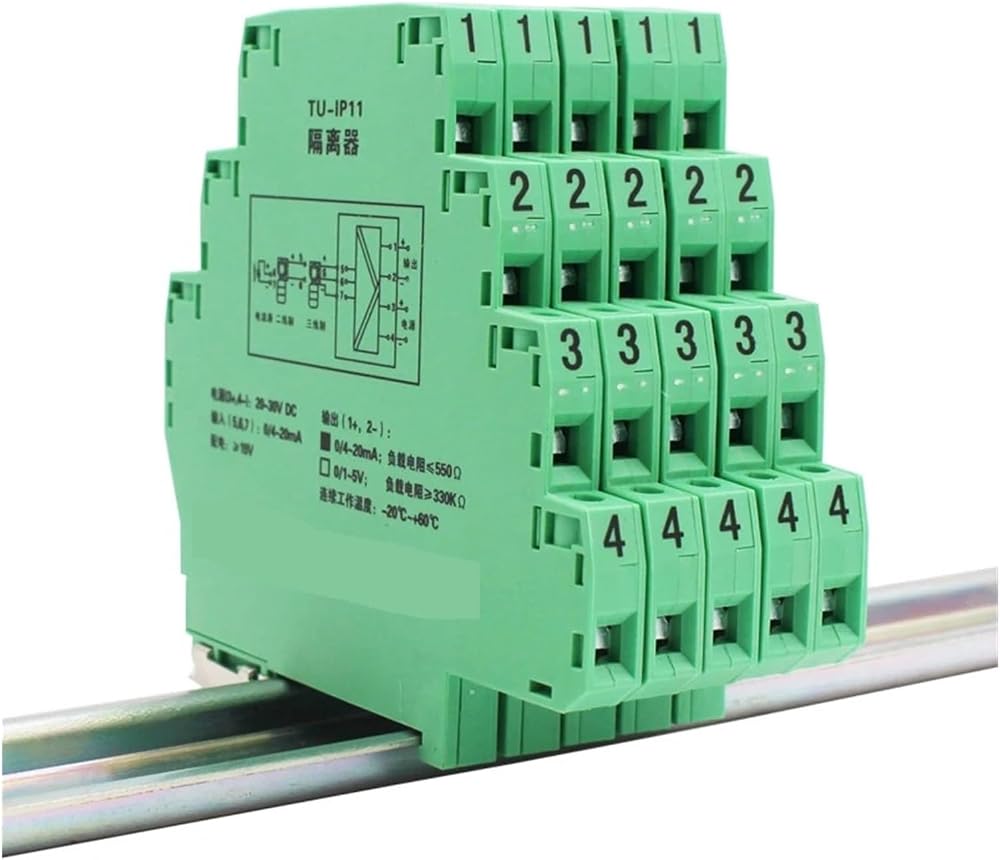

1 in 1 out signal isolator ultra-thin thickness three-terminal isolation analog signal isolator
Input signal: 4-20mA; 0-20mA
Maximum input current: 35mA
Power distribution voltage: 19VDC
Output
Output signal: 4-20mA; 0-20mA; 0-5V; 1-5V
Maximum input current: 35mA
Output load resistance: RL550 (output current signal),
RL330K (output voltage signal)
Channel: 1 in 1 out (TU-IP1XX)
Power supply: DC24V, voltage range: DC15-36V
Current consumption: 60mA (1IN 1OUT, 24V power supply, 20mA output)
Basic accuracy: ±0.1%FS
Temperature drift: ±0.05%FS/(-20～+55)
Response time: 0.5mS
Dielectric strength: 1500V AC/4min (between input, output and power supply)
Insulation resistance: 1000MΩ (between input, output, power supply and housing)
Working temperature range: -20~+55 (no condensation, no freezing)
Electromagnetic compatibility: Comply with GB/T 18268.1 (IEC61326-1)
Applicable field equipment: two-wire and three-wire transmitters, current sources
Working temperature: DC24V, voltage range: DC15-36V
Accuracy level: ±0.1%FS
Model:TU-IPXXX
