Dosing Pumps
Specifications:

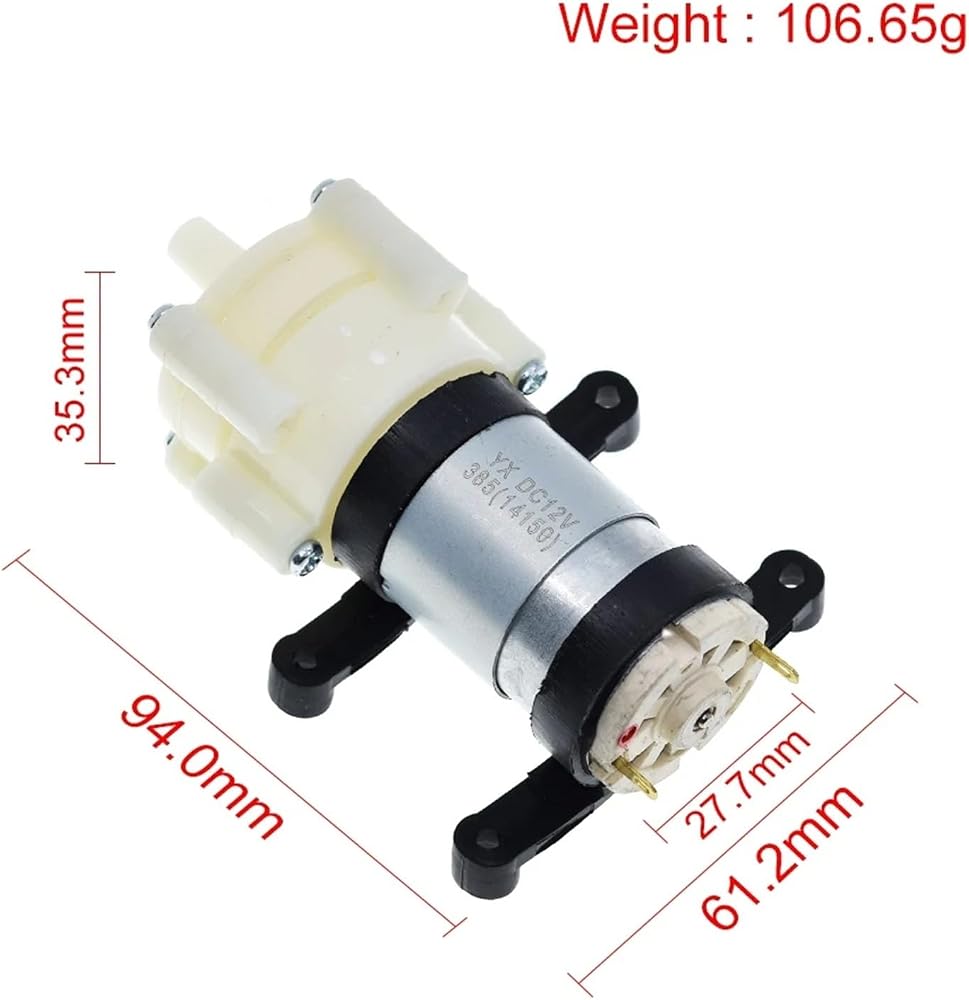

Pump size: 90mm*40mm*35mm
Outlet diameter: inner diameter 6 mm, outer diameter 8.5 mm
Working voltage: DC12V, working current: 0.5-0.7A (power must reach above 6W)
Flow rate: 1.5-2L/Min (left and right), suction lift: 2 meters
Head: 3 meters vertically
Life: up to 2500H, water temperature: up to 80°C
Storage environment: -10° to +50°, normal humidity, no immersion or splashing in water.
Note:
Regarding 6V power supply, the standard for this is that the power reaches 6W, that is, the current is more than 1A.
Use Environment and Precautions:
1. The water pump is generally suitable for tea stoves and water pump products;
2. It is not suitable for working for a long time, and the pump will be damaged if the lift and suction are too high;
3. The water pump is not suitable for use: it is used when the water inlet pressure is large or the water outlet resistance is large. It is not a booster pump and cannot withstand pressure;
4. The inlet and outlet of the water pump are suitable for the use of silica gel pipes. PVC pipes or corrosive liquid bonding are not allowed;
5. The whole cannot be in contact with water (steam, damp places, etc.);
6. Liquid requirements: ordinary clean water (no impurities, viscous or corrosive liquids).
Package Included:
Pump *1
