Isolation
1. Power supply 12-24V, anti-reverse connection and anti-overvoltage, two independent input and output.
2. High precision, accuracy up to 0.2%.
3. Connect one end of the NTC wiring to GND and the other end to any end of NTC1-NTC2.
4. Default calculation formula (default): 0-100℃ to 0-10V
For example, at 45.5°C, the output is 4.55V
5. This is only supported for non-isolated transmitters, not isolated transmitters.
Short circuit on the circuit board B1--NTC 100K B3950 short circuit B2--NTC 10K B3950 short circuit B3--NTC 10K B3435
Circuit Board
Short B1-NTC 100K B3950 (default measurement range: 0~100) (customized: -20~300)
Short B2-NTC 10K B3950 (Default measurement range: 0 to 100) (Customized: -50~120)
Short B3-NTC 100K B3435 (Default measurement range: 0 to 100) (Customized: -40~110)
No isolation function: The default parameters are measurement range 0-100 degrees, output 0-10V,

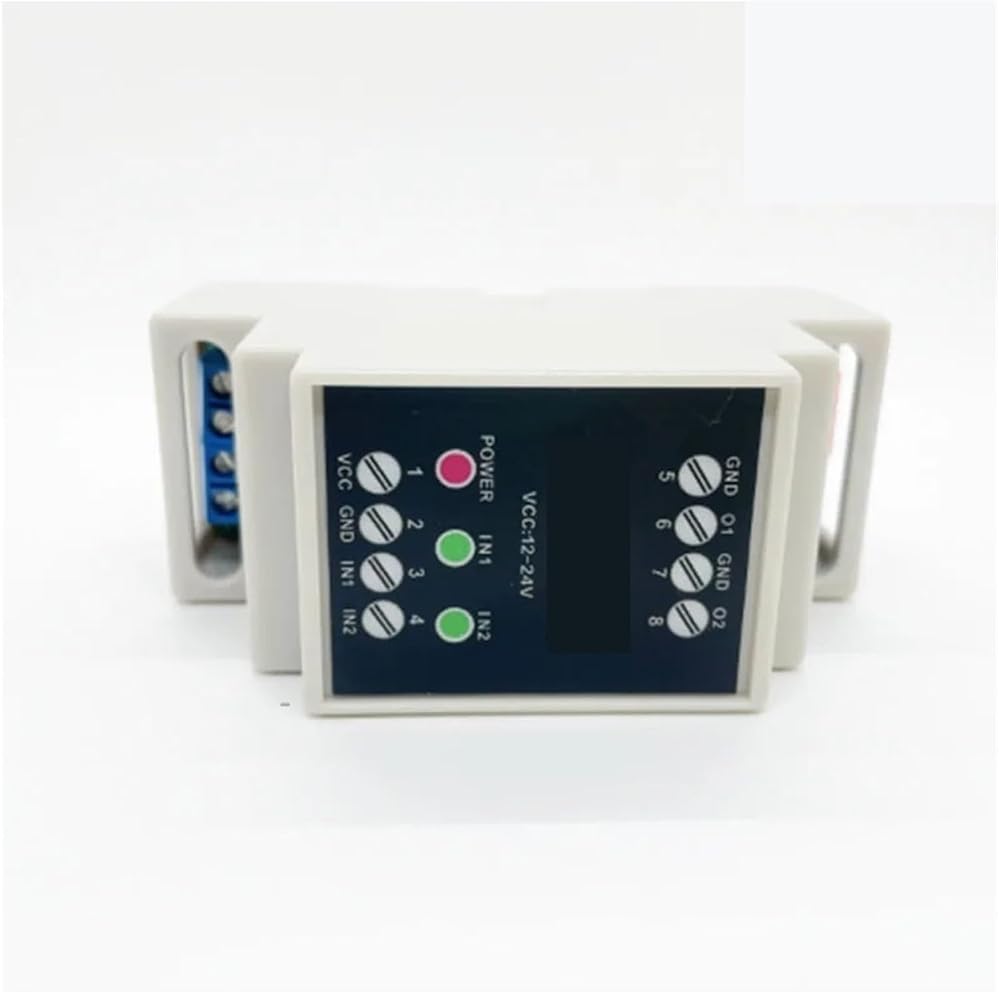

Wiring Instructions
Power supply voltage: 12~24VDC
GND: power ground/NTC terminal
NTC1/ NTC1: NTC side
OUT1/ OUT1: Voltage output

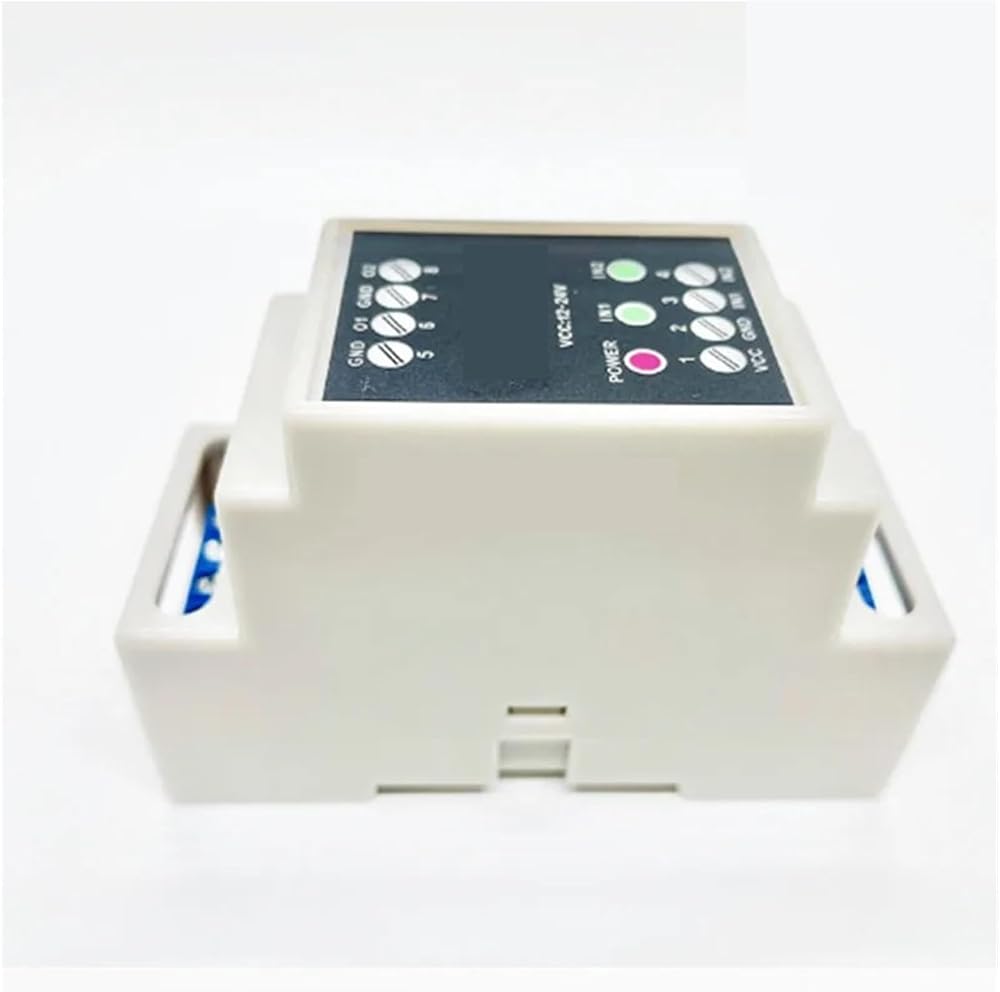

Multi-channel thermistor NTC to voltage and current module 0-5V/0-10V/4-20MA temperature isolation transmitter
