Special Features

[Accurate Measurements] Can test very low resistance, accurate measurement of conductors and heating elements.

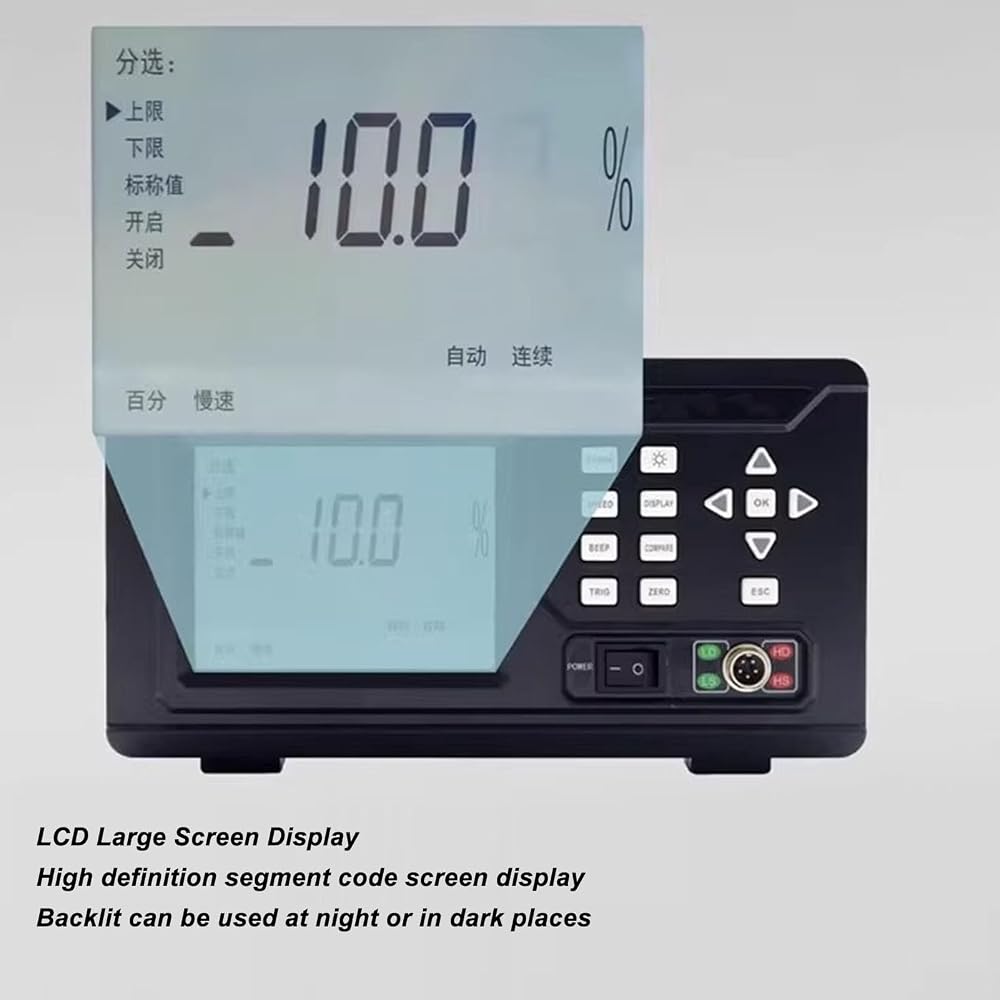

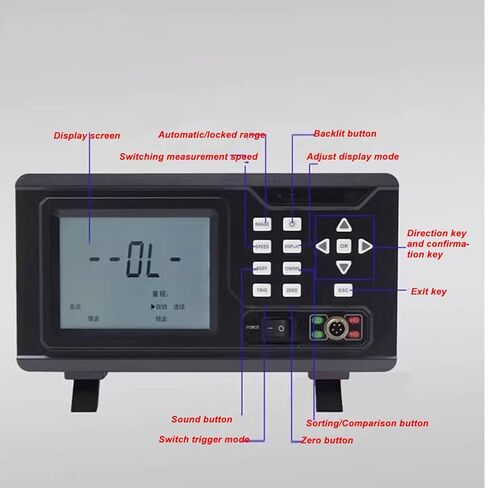

[Lcd Display with Backlight] Clear writing on a large screen with backlight for night or dark use.
[Rapid Testing Function] Supports testing 15 times per second with sorting and comparison features.
[Options for Test Speed] Choose between slow (8 times/s) and fast (15 times/s) for efficient measurements.
[Reliable Resistance Measurements] Four wire test configuration eliminates leg wire resistance for accurate results.

Description

Spec:

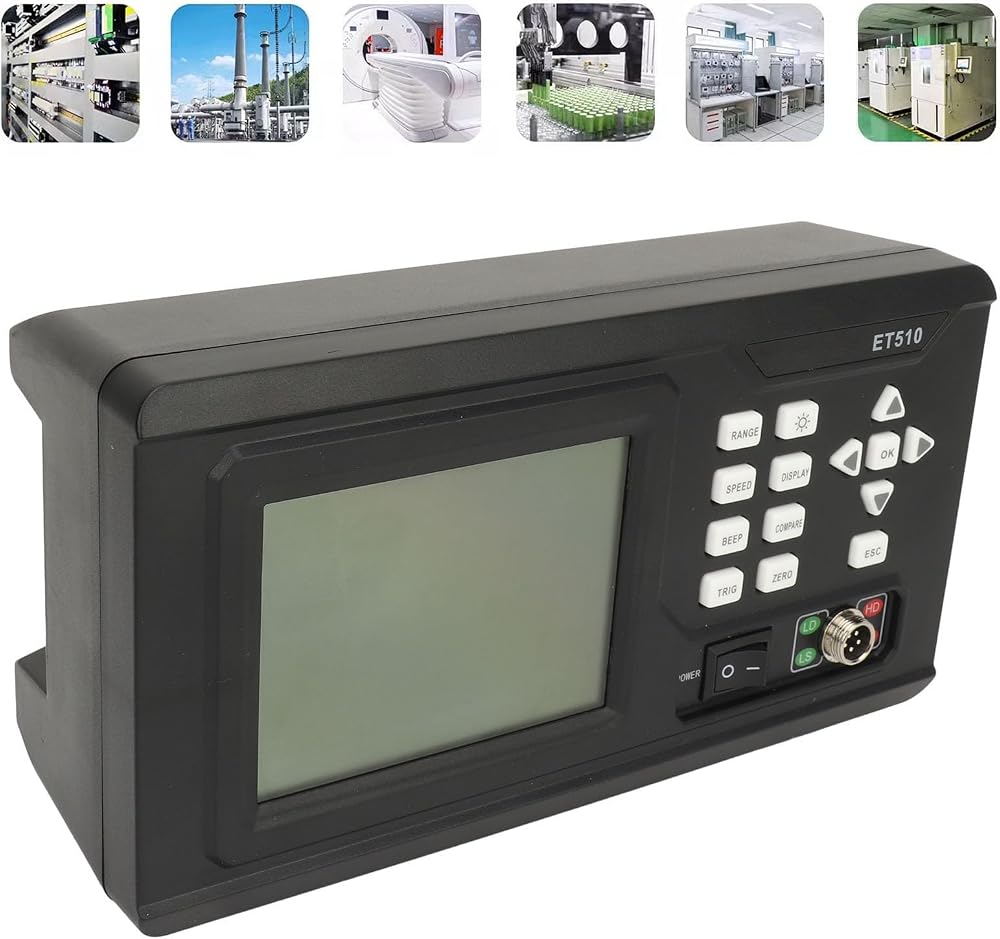

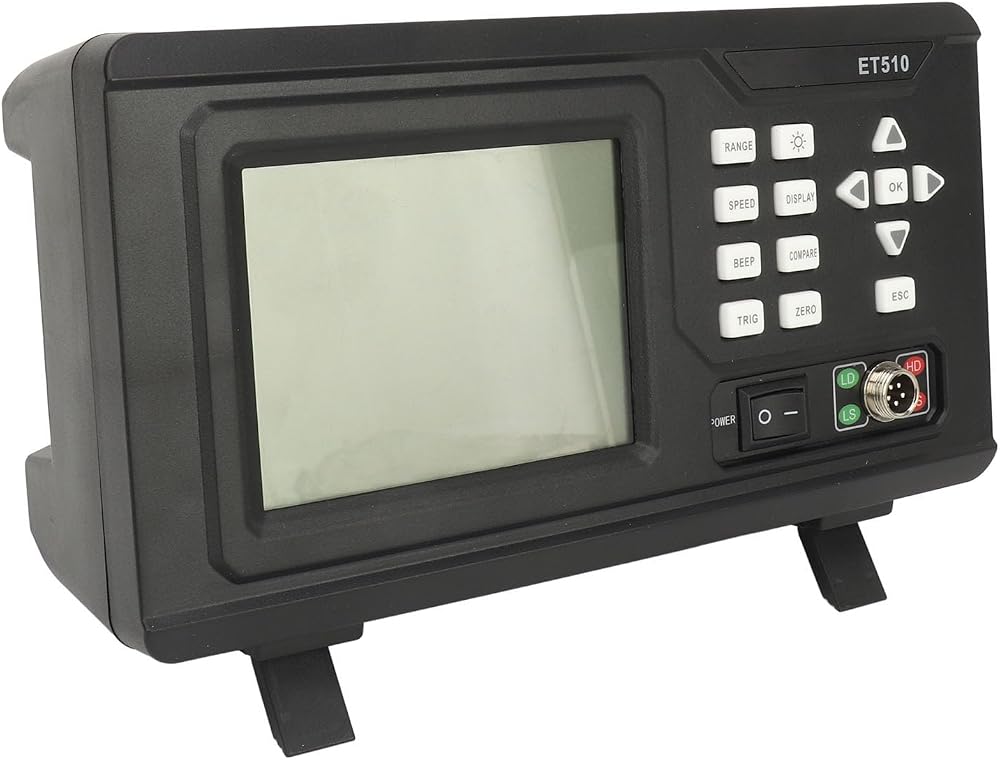

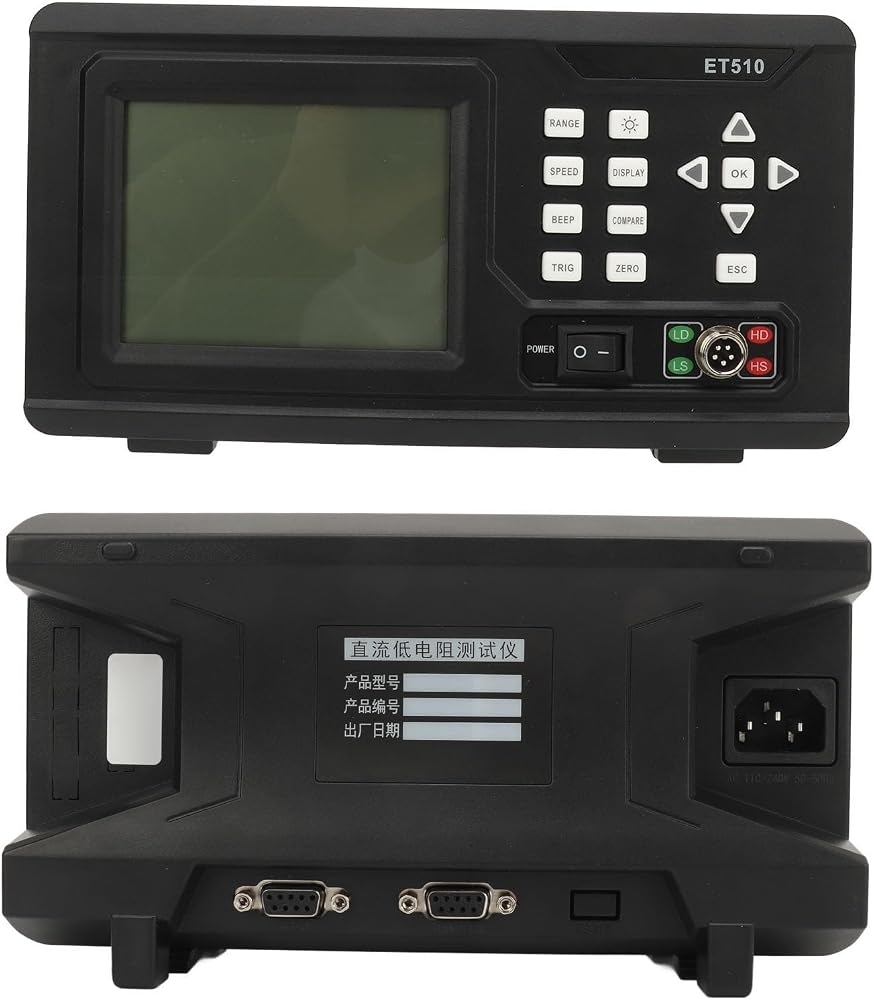

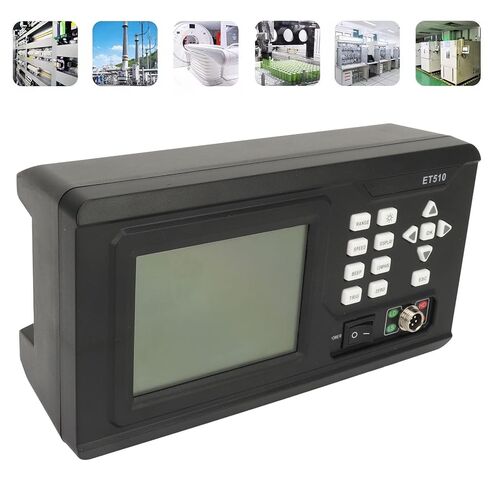

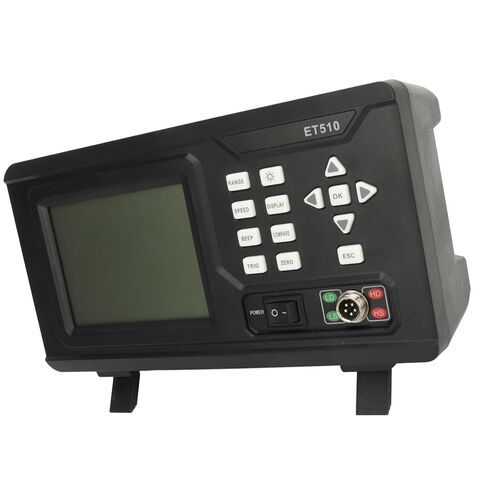

Item Type: Low Resistance Tester
Model: ET512
Measuring Range: 10uΩ~200kΩ
Basic Accuracy: 0.1% Reading and 3 words(minimum resolution 10uΩ)
Maximum Test Current: 100mA
Display Mode: Direct read or percentage
Test Speed: Slow: 8 times/s, Fast: 15 times/s
Sorting Function: Standard
Test Mode: Four wire
Actuator Mode: Internal, manual, external
Range Mode: Auto or lock

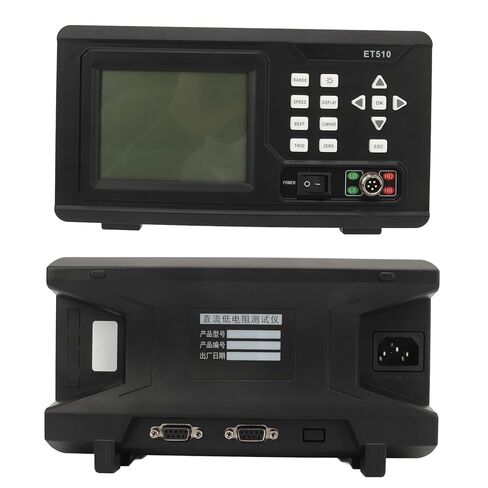

External Interface: Standard: RS232 interface, for HANDLER interface
Working Environment: Temperature: 5℃~40℃, Humidity: Power Consumption: 15VA

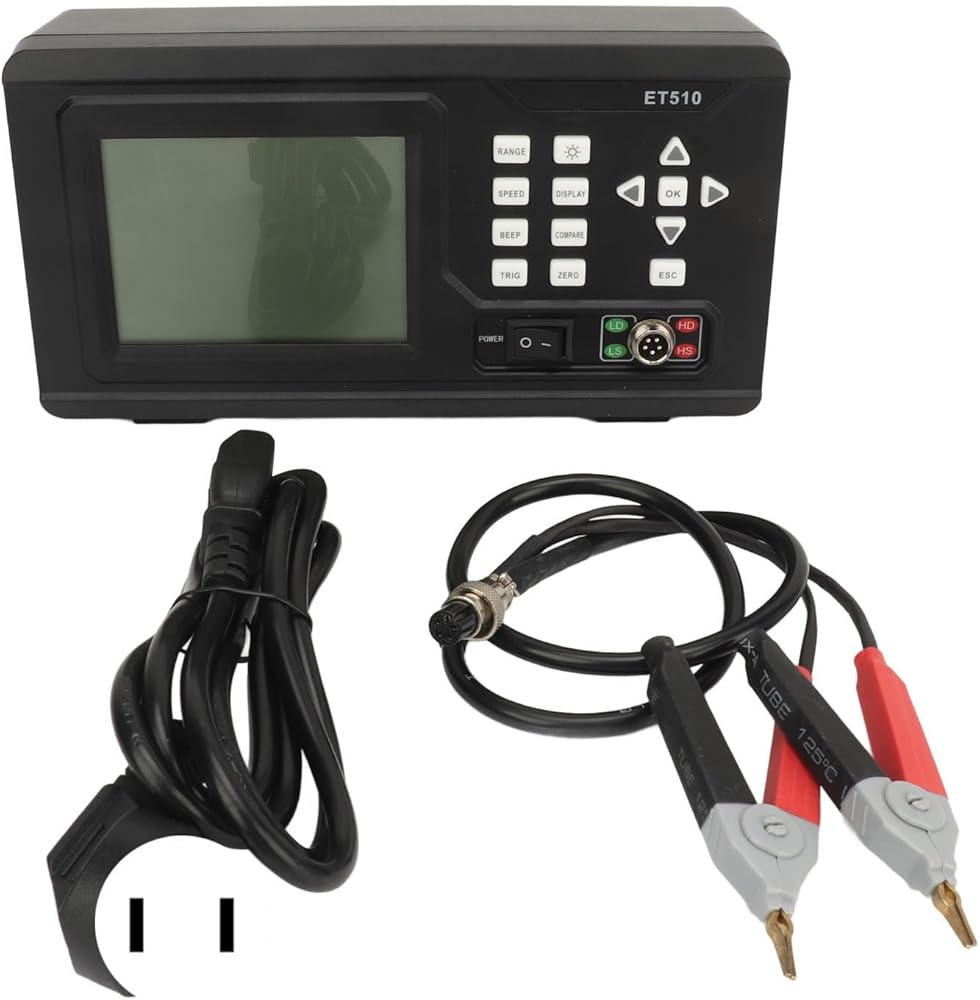

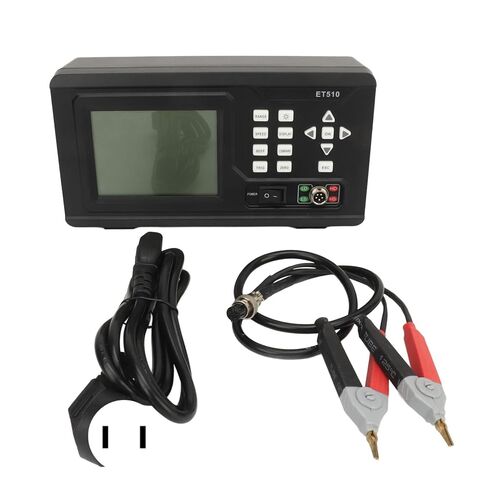

Package List:
1 x DC Low Resistance Tester
1 x Test Cable
1 x Plug
1 x User Manual
