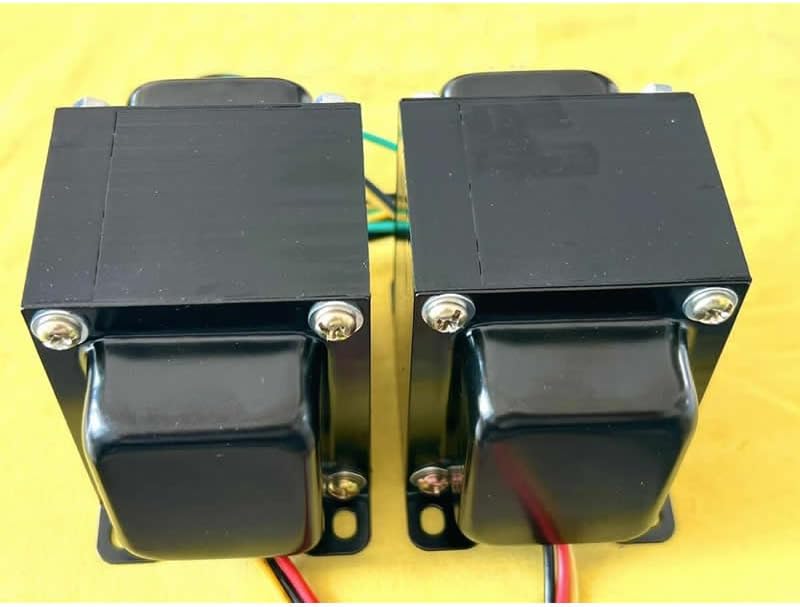

Transformer 10W Output Transformer
6P6P.EL34.FU50.FU7 Hi-Fi single-ended output transformer
Skeleton 22X45
Iron core 66 (tongue width 22, stack thickness 45)
Primary 3.5K (with super linear B-G-P)
Secondary 0-4-8
Primary DC resistance; 348 ohms
Primary inductance; 22H
Iron core material; sheet
Length; 56mm
Width; 85mm
High; 68mm
Mounting hole; 60*45mm
