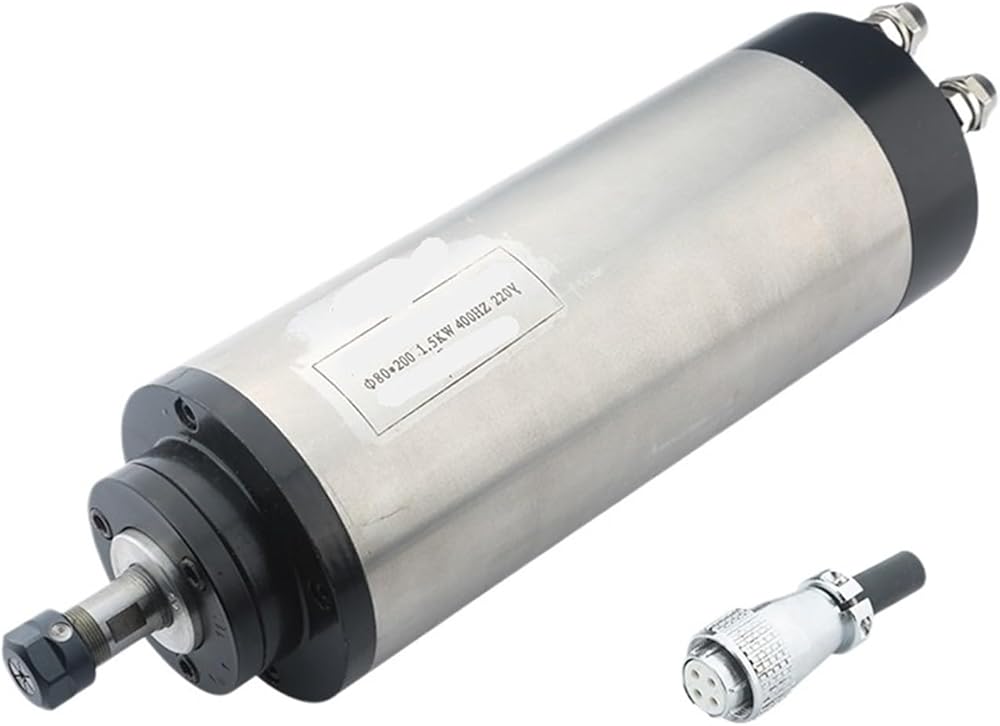

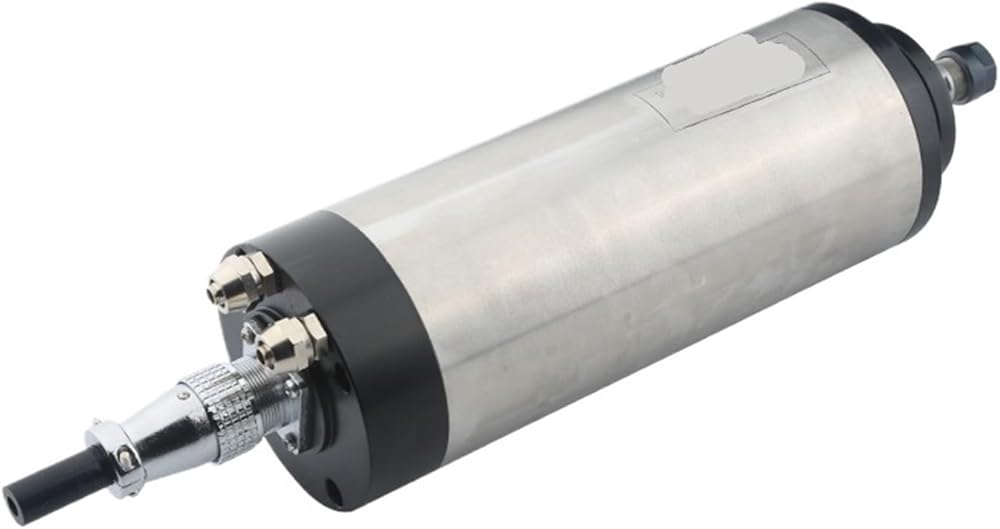

Slotting Cutter Arbors

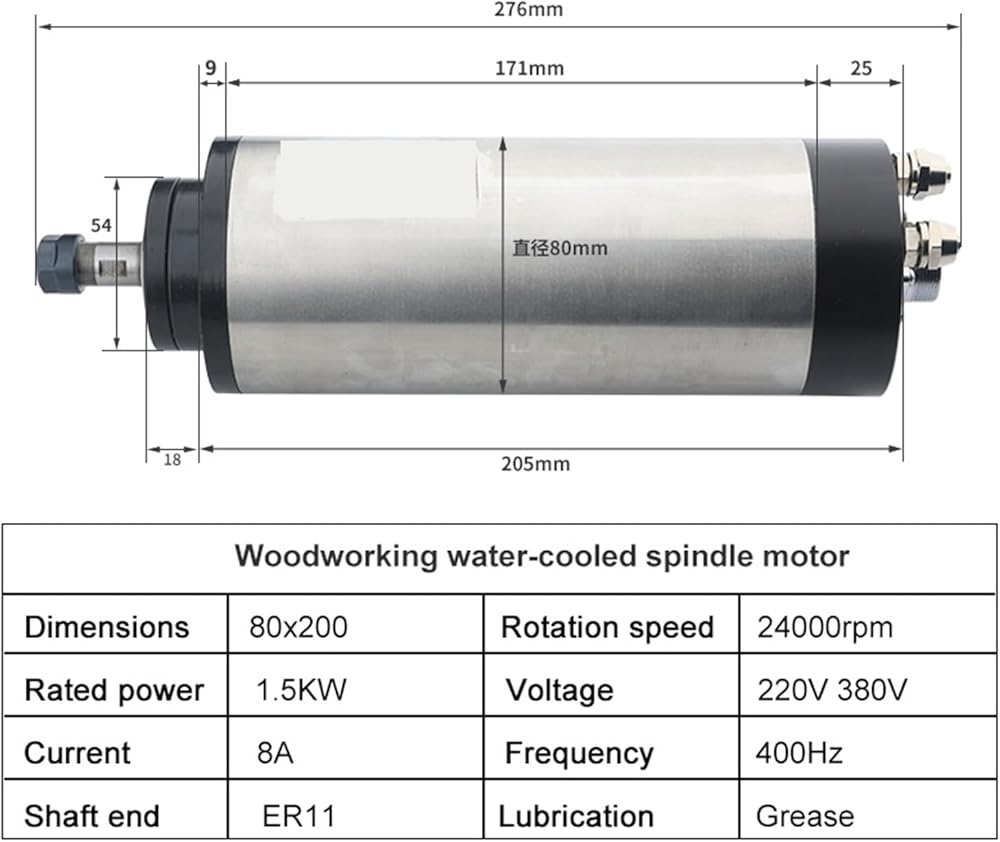

Size: 80x200mm
Speed regulation mode: ER11 spindle 1.5KW adopts three-phase output inverter, and the speed can be changed by adjusting the inverter frequency.
Cooling method: water cooling

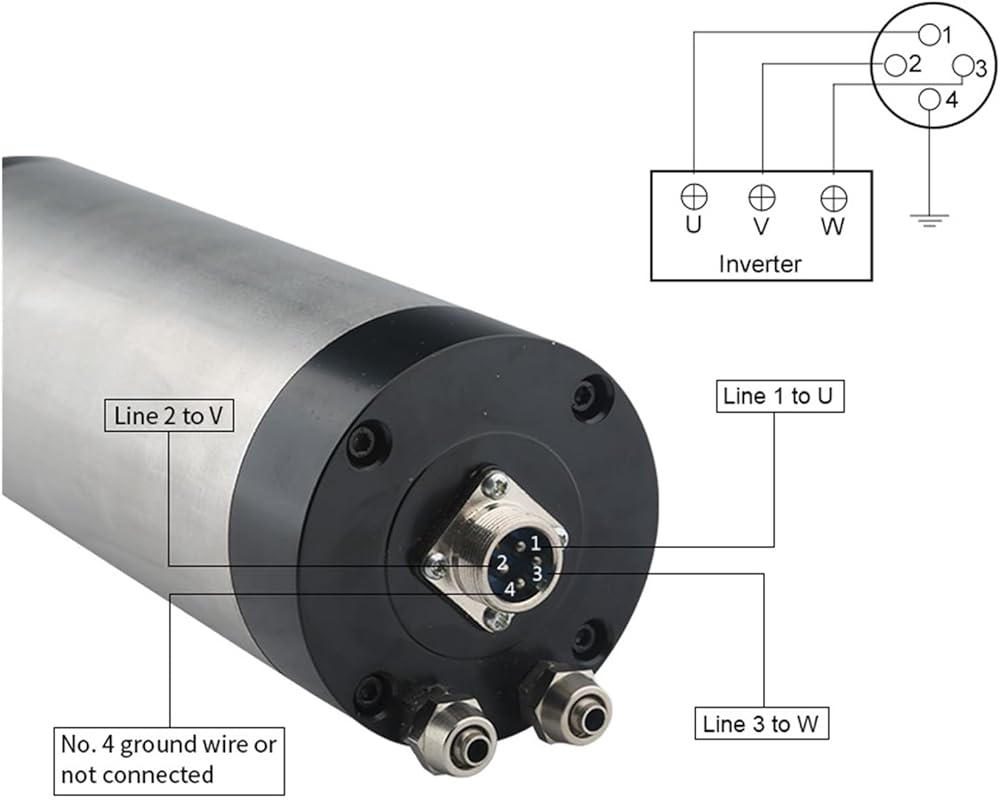

Power interface: An optional H20-4-pin waterproof aviation is available. Connect the aviation plugs marked "1," "2," "3," and "4." Connect "1," "2," and "3" to the inverter (U, V, W), and connect "4" to the inverter ground.
Power: 1.5kw
Voltage: 220V 380V
Current: 8A
Frequency: 0-400Hz
Speed: 0-24000rpm
Runout: less than 0.01mm
Diameter (mm): 80
4 fully sealed angular contact bearings
Chuck: ER11
Grease lubrication
