Solenoid Valves

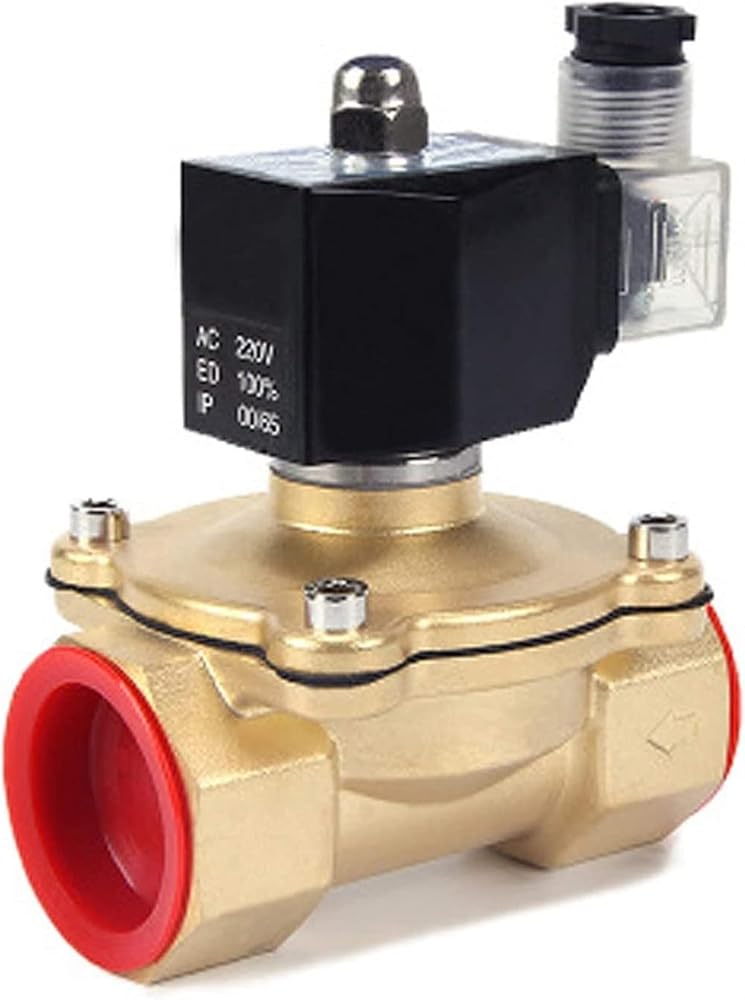

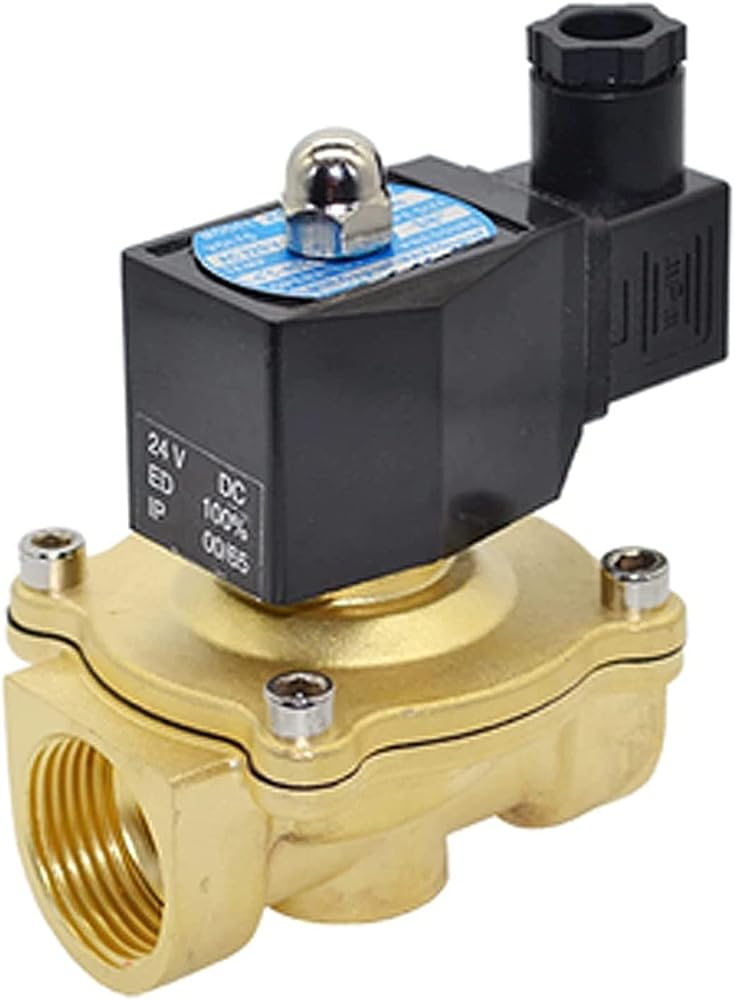

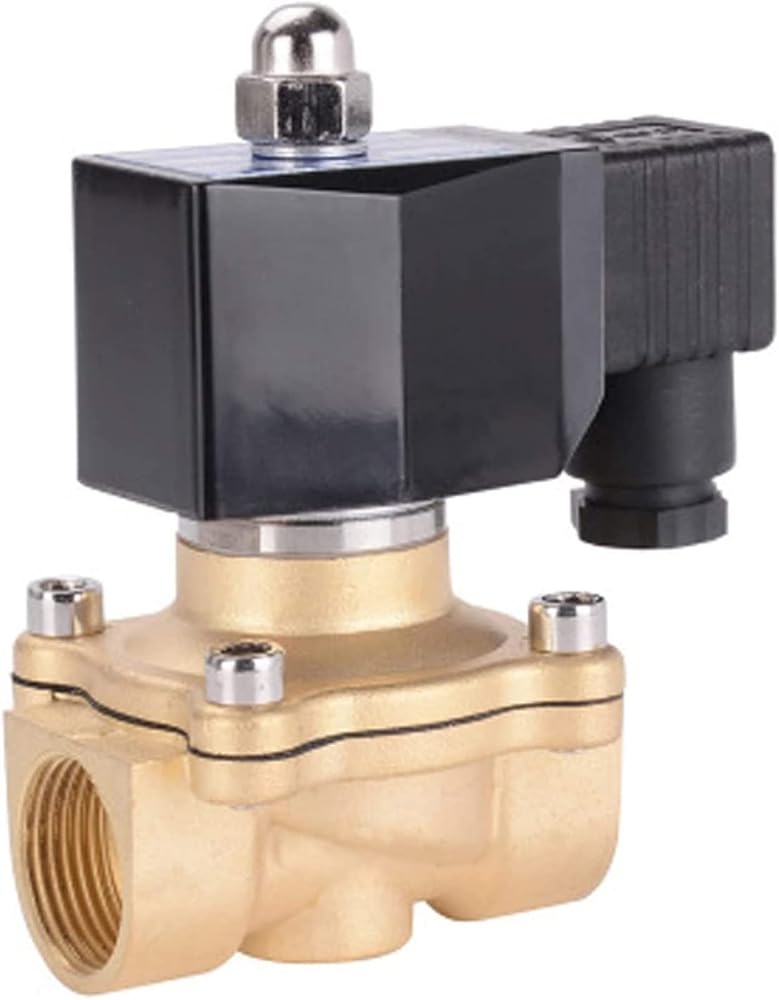

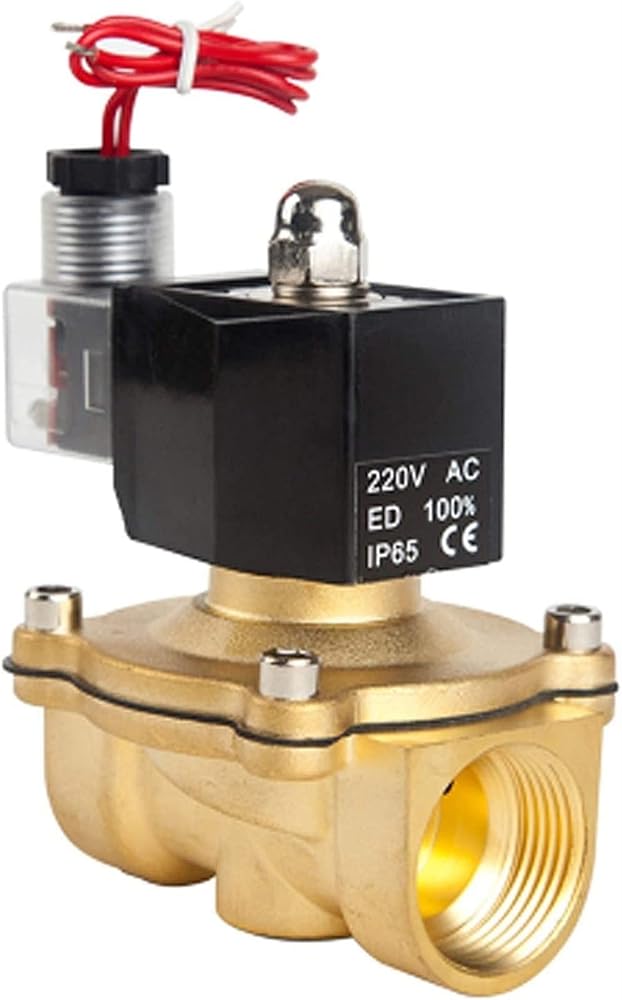

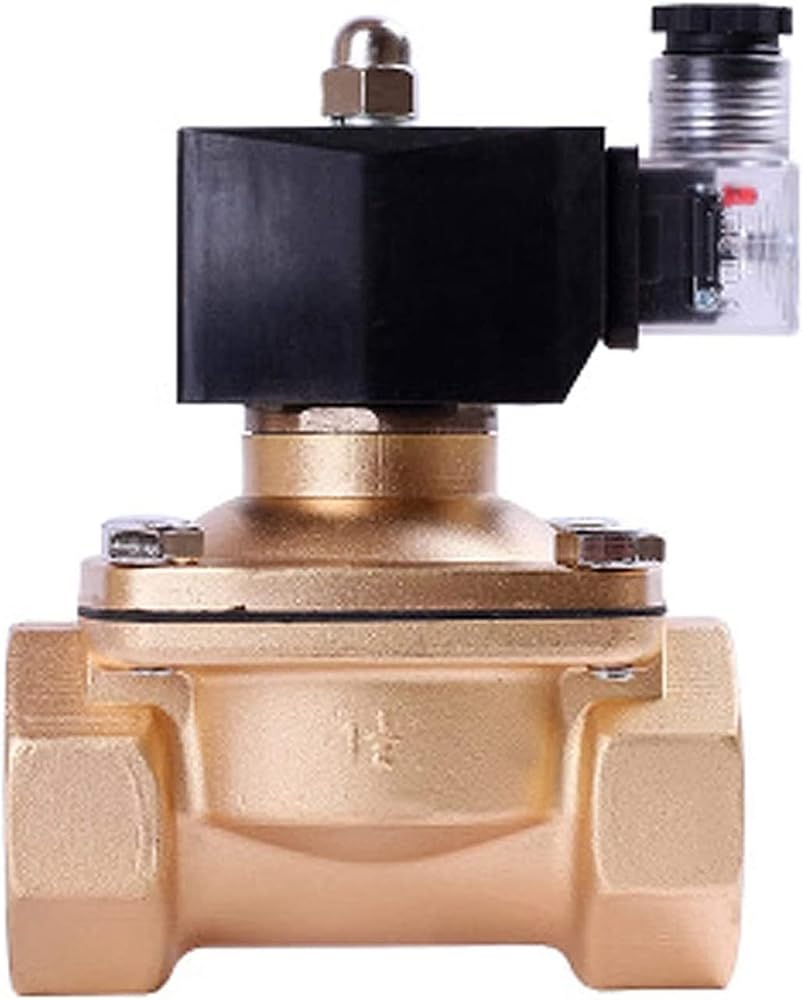

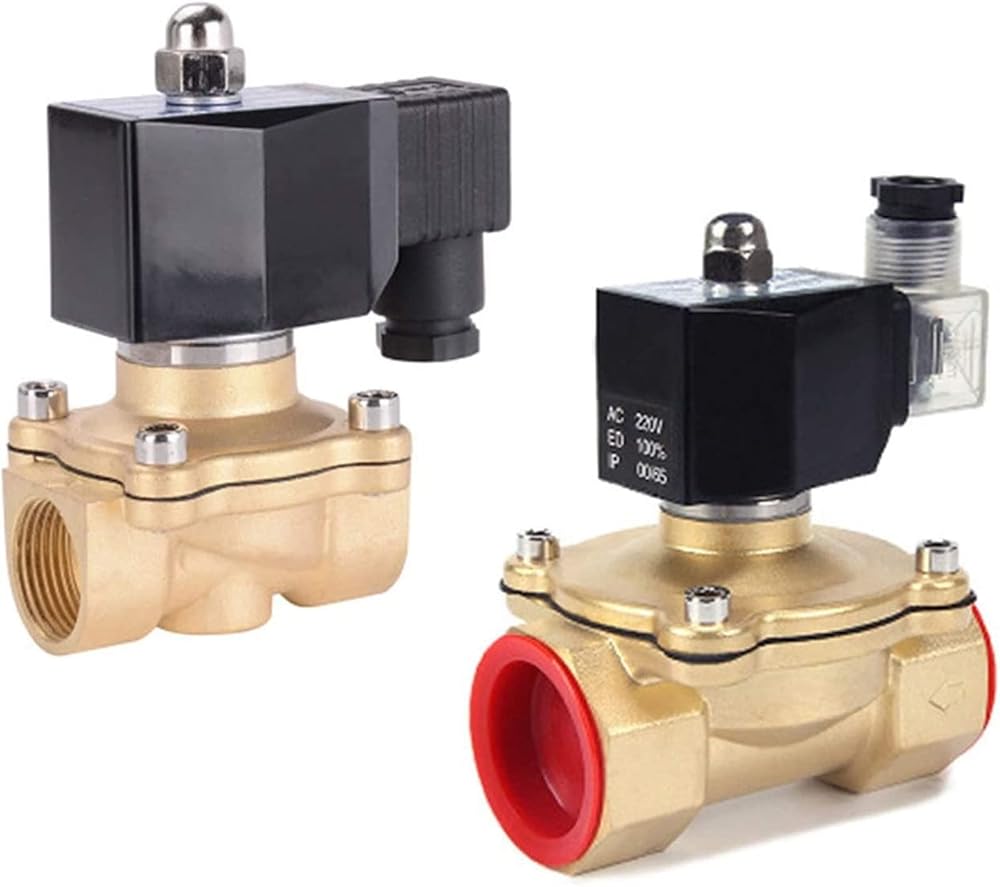

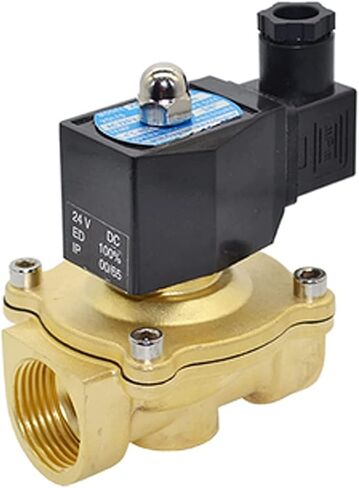

Name: Electric Solenoid Valve
Model: 2W025-08 2W040-10 2W160-15 2W200-20 2W250-25
Body Material: Brass
Seal Material: NBR or VITON
Voltage: AC220V AC110V DC24V DC 12V
Type: Normally Closed type(N/C)
Acting Motion: Direct action
Connecting Format: Inside thread
Pipe Diameter: DN08(1/4" ) DN15(1/2" ) DN20 (3/4") DN25(1") DN32(1-1/4") DN40(1-1/2") DN50(2").
Orifice Size: DN08(2.5mm) DN15(16mm) DN20(20mm) DN25(25mm) DN32(32mm) DN50(50mm).
Fluid Temperature: -5~+80℃(NBR Seal) -5~+150℃(VITON Seal)
Work Pressure: 0-10Kg/cm⊃2;
Protect Class: IP65
IP65 Coil: Waterproof( suitable for outdoor)
Ports: 1/4" 1/2" 3/4" 1" 1-1/4" 1-1/2" 2" Inlet and Outlet Ports.
Working Medium: Air Water Oil
Features:
Two-position one-way normal close switch magnetic solenoid water valve.
High-quality aluminum alloy gravity casting hard and durable non-corrosive the product has the direction of water inlet and outlet.
Can be installed at any angle but it is a good choice when the horizontal tube keep upward.
Easily replaces broken valves for use with pipelines in water air and diesel-gas applications.
If you have any questions or problems after purchase please feel free to contact us thank you!
