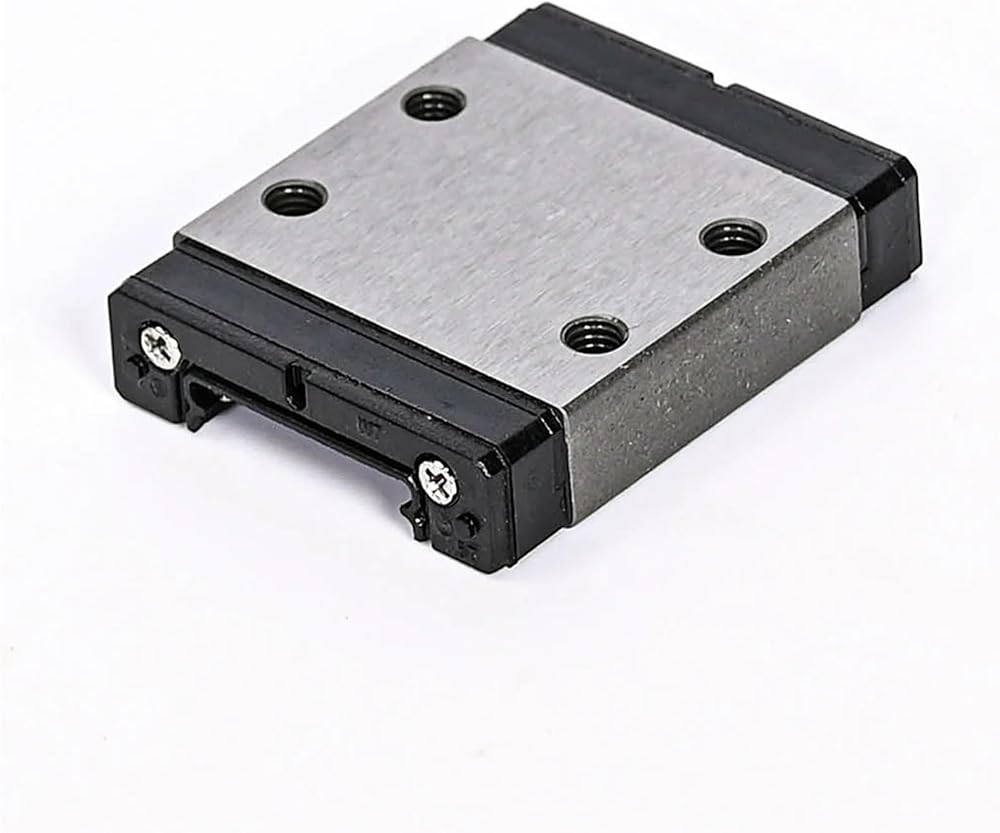

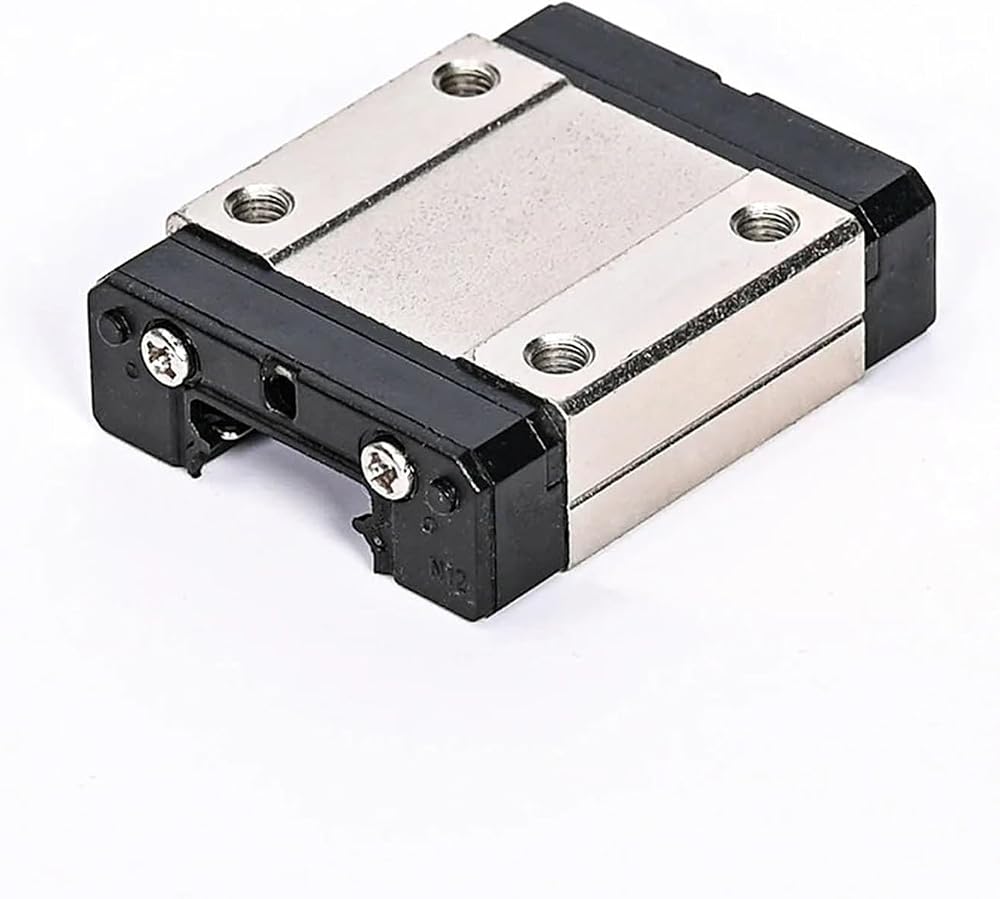

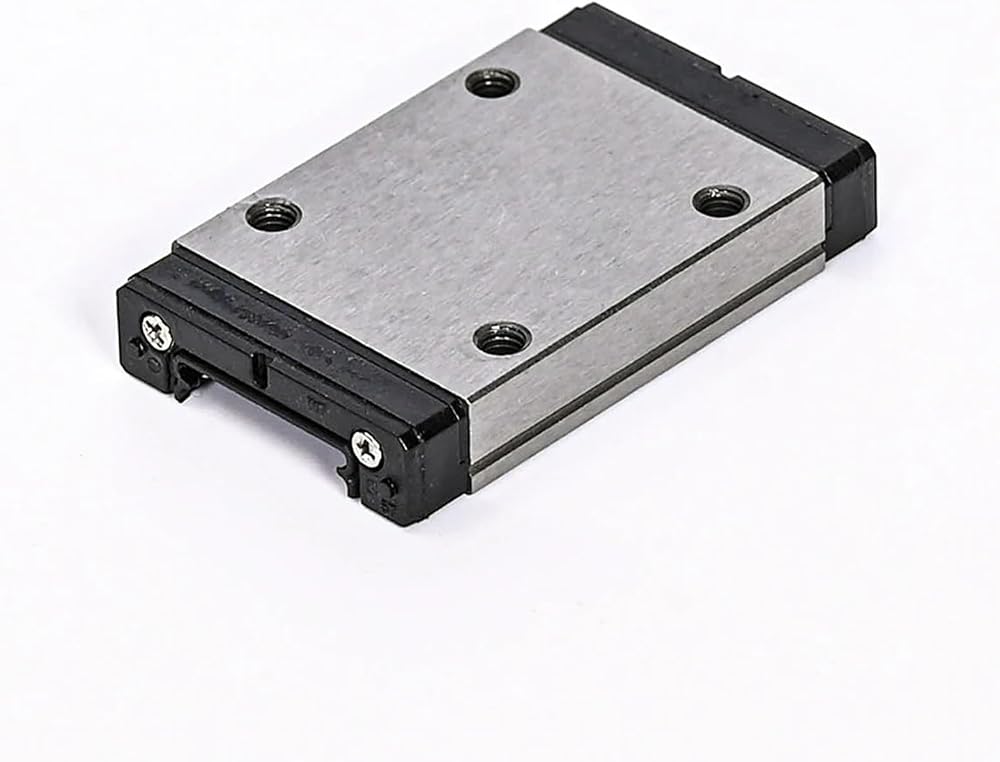

Basic structure and composition: Sliding body: A component that moves along the guide rail and contains rolling elements (such as balls, rollers or wheels).
Working principle: Rolling friction replaces sliding friction, and the rolling body performs cyclic motion between the guide rail and the slider to achieve precise linear motion. Differences between types: Ball type: point contact, low friction, high speed, suitable for light load precision (such as 3D printers). Roller type: linear contact, large load capacity, high rigidity.
Main performance characteristics: Good rigidity: Due to the preload design (such as increasing the ball diameter), it can resist vibration and impact. Low friction: The friction coefficient is only 1/50 of that of the sliding guide, saving energy and cooling. Long service life: Steel guides and seals can achieve thousands of kilometers of travel.
Typical application areas: CNC machine tools: tool feeding, spindle drive. Automation equipment: articulation, transportation and positioning of robot arms on assembly lines. Precision instruments: semiconductor lithography machines, measuring equipment. Civilian applications: movement of 3D printer nozzles, adjustment of electric lifting platforms.
Selection and maintenance points, load capacity: calculate the axial force and torque, and select the corresponding rated load (dynamic C value should leave a margin). Speed and acceleration: pay attention to the lubrication method (grease or oil circulation) at high speed. Environmental applicability: IP54 or higher protection level is required in dusty environments, and stainless steel is required in humid environments. Installation accuracy: the parallelism of the guide rail needs to be
Description
Widely used in industrial control, instrumentation, plasma cutting machine, robot, furniture, DIY woodworking and other industries.

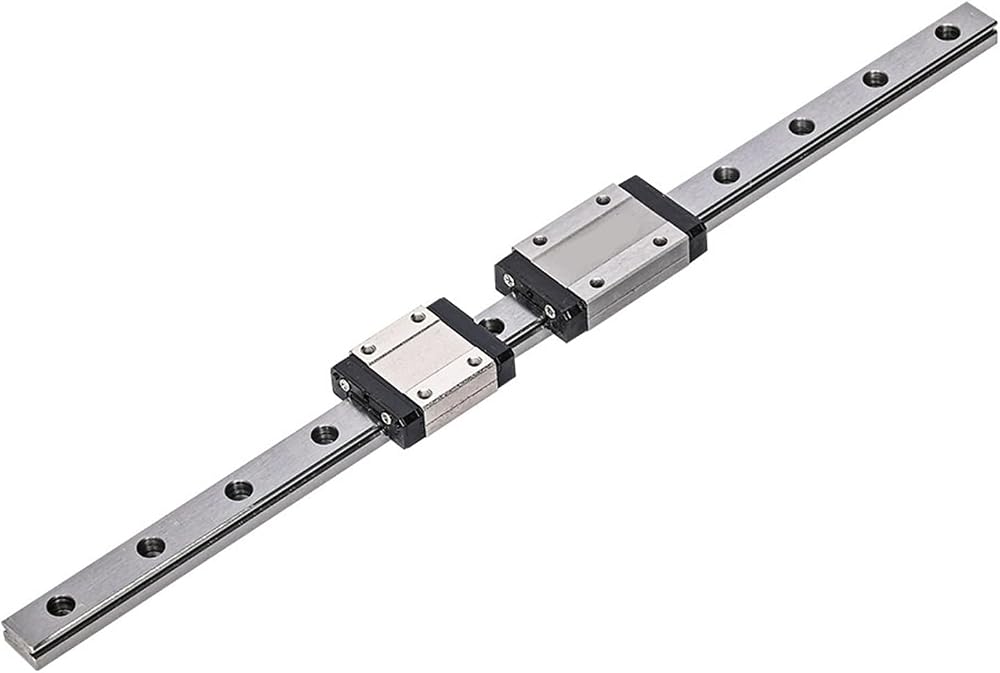

Product name: Linear rail slide / linear guide rail slide
Material: S55C steel
