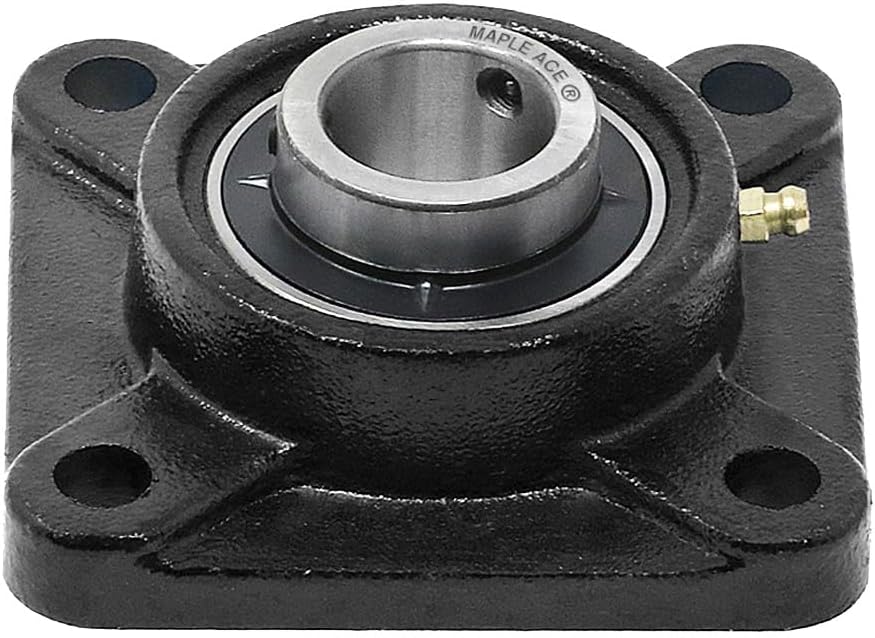

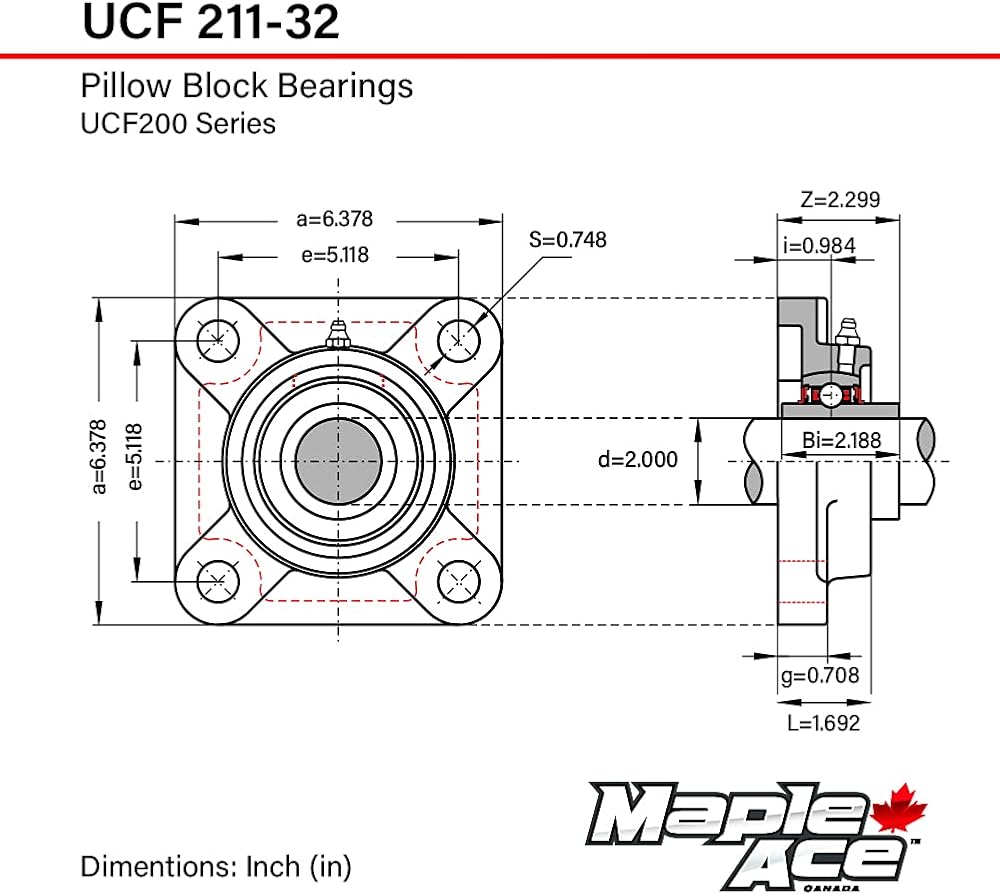

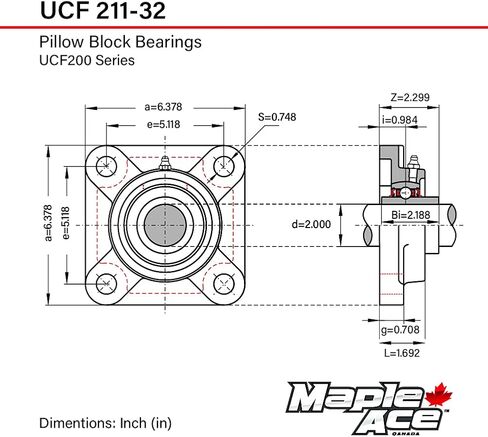

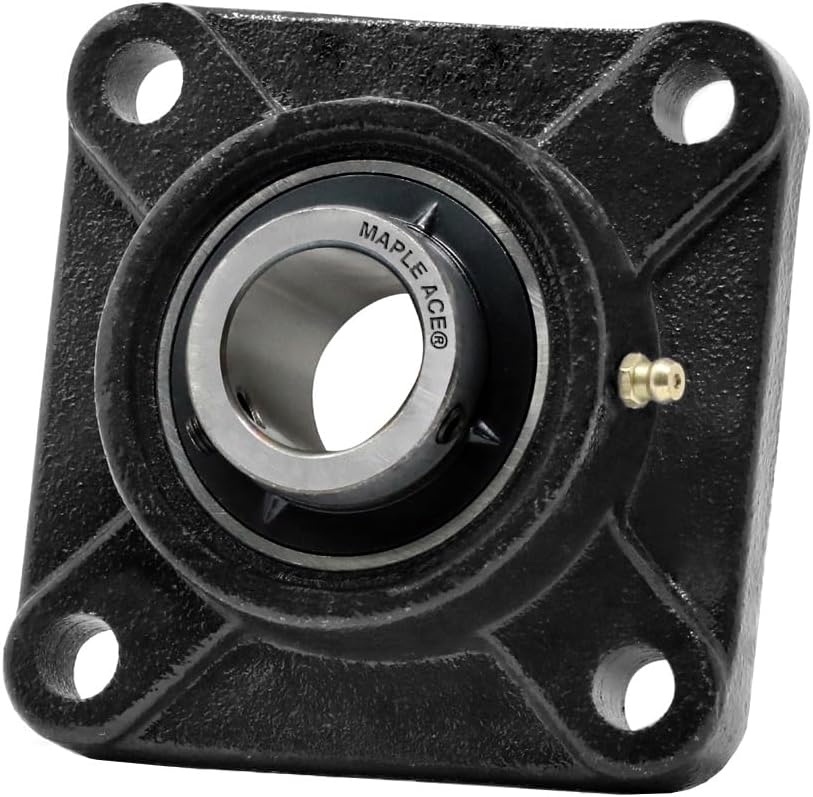

This UCF SQUARE FLANGE-MOUNT BEARING consists of an INSERT BEARING and a CAST IRON housing. The SQUARE FLANGE-MOUNT BEARING can be mounted on levelled surfaces using the Four Bolt Holes. Grease Fitting Offset on top to Relubricate the bearing. The INSERT BEARING has Two Metal Shields to Protect the Bearing from Dust or any Possible Contamination. Has a Set Screw Lock on its surface, for securing the shaft. - Specification: Item UCF211-32, Series UCF200, Bearing Number UC211-32, Housing Number F211, Number of Bolts 4, Bolt Size (S) 5/8 in, Bearing Bore Diameter (d) Metric 50.8 mm, Bearing Bore Diameter (d) Inch 2 in, Bearing Width Inner Ring (Bi) Matric 55.6 mm, Bearing Width Inner Ring (Bi) Inch 2.188 in, Bolt Hole Center to Center (e) Matric 130 mm, Bolt Hole Center to Center (e) Inch 5.118 in, Flange width (a) Matric 162 mm, Flange width (a) Inch 6.378 in, Overall Height (Z) Matric 58.4 mm, Overall Height (Z) Inch 2.299 in, Dynamic Load Rating Cr 43600 N, Static Load Rating Cor 29000 N, Limiting Speed 3600 r/min, Clearance Normal, Bearing Sealing type Contact standard, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Rolling Element Indicator Ball, Bearing Material Gcr15, Housing Material H200 Cast Iron, Locking Type Set Screws, Weight 2.930 KG.
