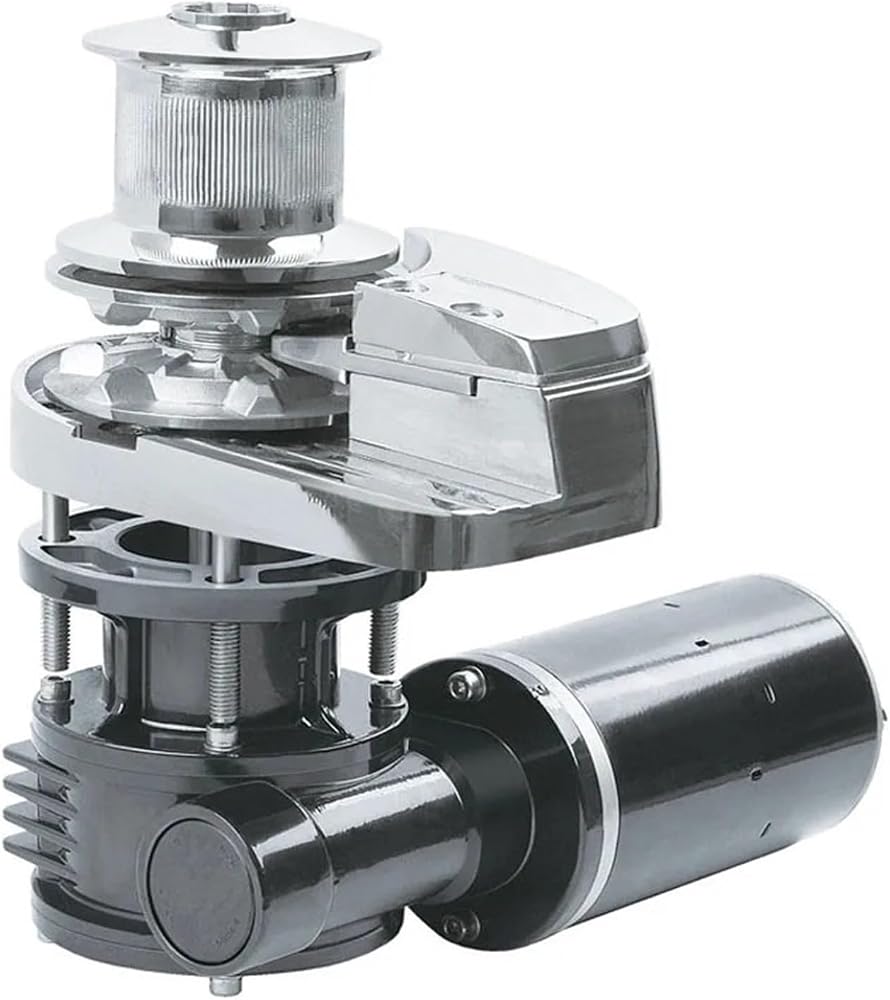

12V 600W Heavy Dutys Highspeed Marine Boat Anchor Winch Windlass With Capstan For Boats From 20ft to 35ft C612C
Features:
The C-series heavy dutys style windlass.
Suitable for boats from 20ft to 35ft
With parts above the deck made of high polished stainless steel 316.
Powerfull and compact windlass made specially for the rigid conditions of the sea.
Suitable for the boat with adequate space underneath deck and with deck thickness less than 50mm(2 inch).
With motor/gear underneath deck offes this model a very smooth and silent operation.
Easy to vertically install, adjustable clutch, work with chain only or rope/chain combinations.
Motor gear case can be mounted all 4 directions.
Specifications:
Model Number: C612C
With Capstan
Motor(W): 600W
Voltage(V): 12V
Current Draw(A): 33A
Max. Working Load: 150KG/330LBS
Max. Power Pull: 450KG/990LBS
Drop Speed Chain: 26 meters/minute, 85 ft/minute
Gypsy Options:
Stanard: 6mm Chain DIN766
Optional: 7mm or 8mm Chain DIN766
Rope: 12mm, 1/2 inch
Weight: 10.1KG/22.3LBS

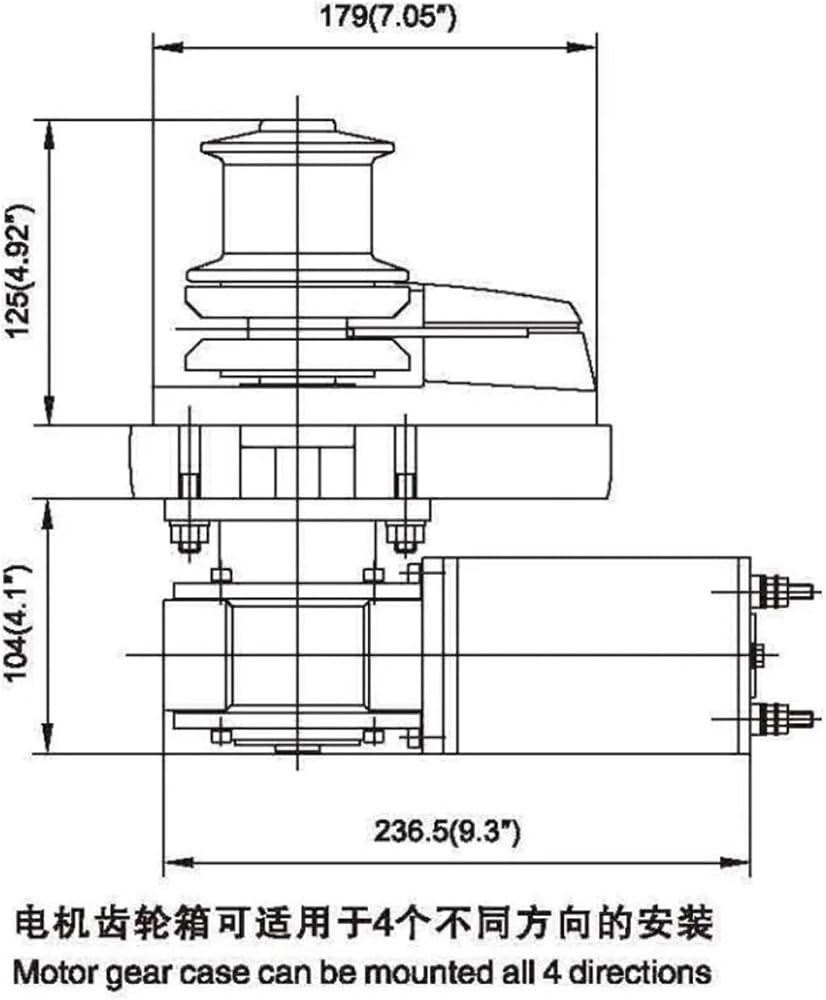

Please see the winch dimenion photos for size details

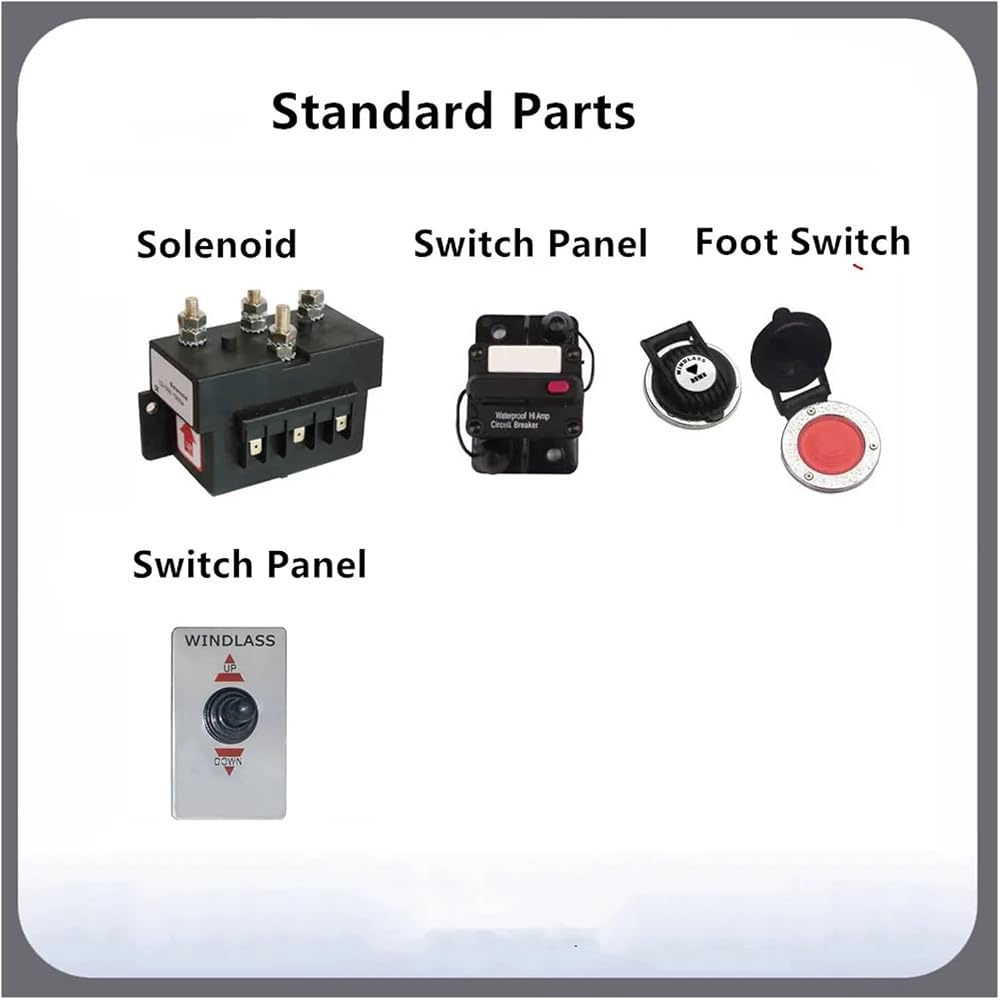

The package includes:
1* windlass
1* solenoid
1* circuit breaker
1* anodized alloy switch panel
1* foot switch (1 pair)
1* windlass handle
1* Installation Guide
==========
Hign-concerned Chemical : None
Origin : Mainland China
