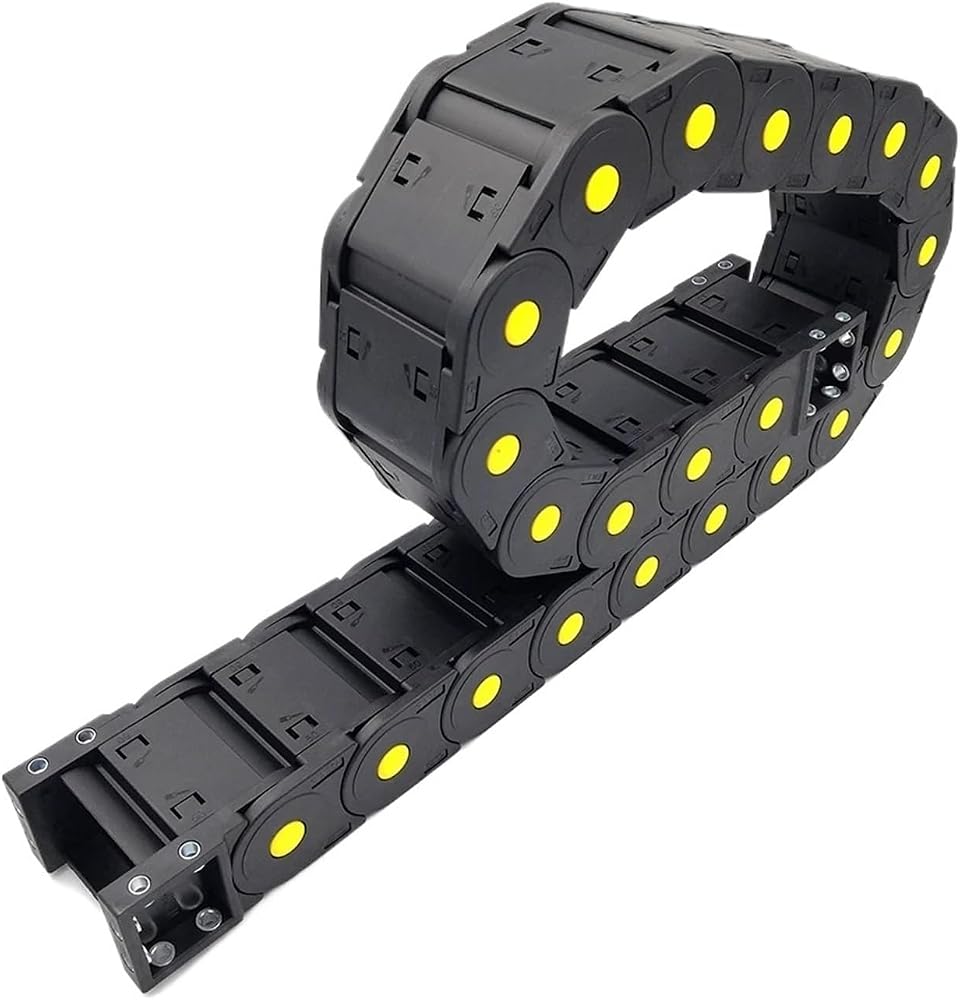

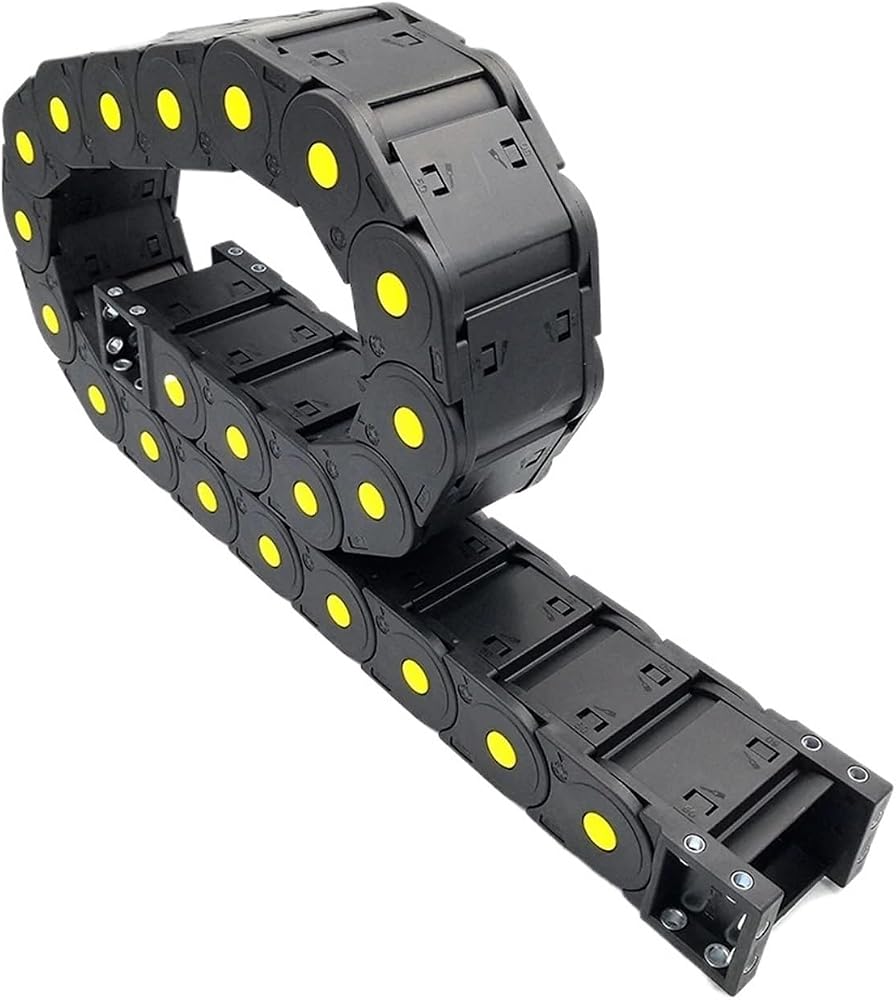

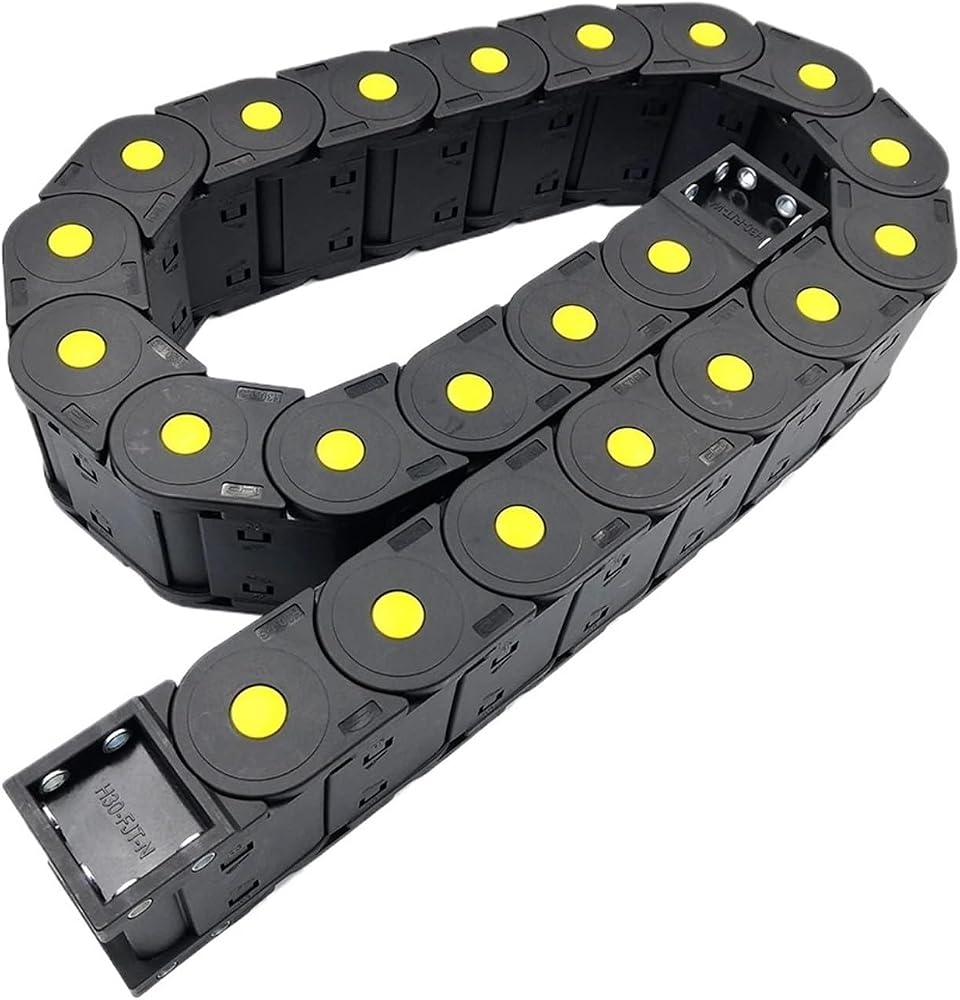

1Meter25 Series Towline EnclosedBilateral openingPlastic Cable Drag Chain Wire Carrier Tanks Chain For CNC Router Machine
Available specifications:25x38mm; 25x50mm; 25x60mm; 25x75mm;25x100mm
Uses and Features:
1) Suitable for use in a reciprocating motion of the occasion, can be built-in cable, tubing, pipe,plumbing, etc. play traction and protection.
2) Each section towline can open, easy installation and maintenance. Exercise low noise,wear-resistant, high-speed movement.
3) The towline has been widely used in CNC machine tools, electronic equipment, stone machinery,glass machinery, doors and windows machinery, injection molding machines, robots, overweighttransportation equipment, automated warehouses.
Plastic towline structure:
1) The towline shape like tanks chain, composed by a large number of unit links between therotating freely link.
2) Within the same series of towline high, outside the high, the same pitch, towline in width, bend radius R may have a different choice.

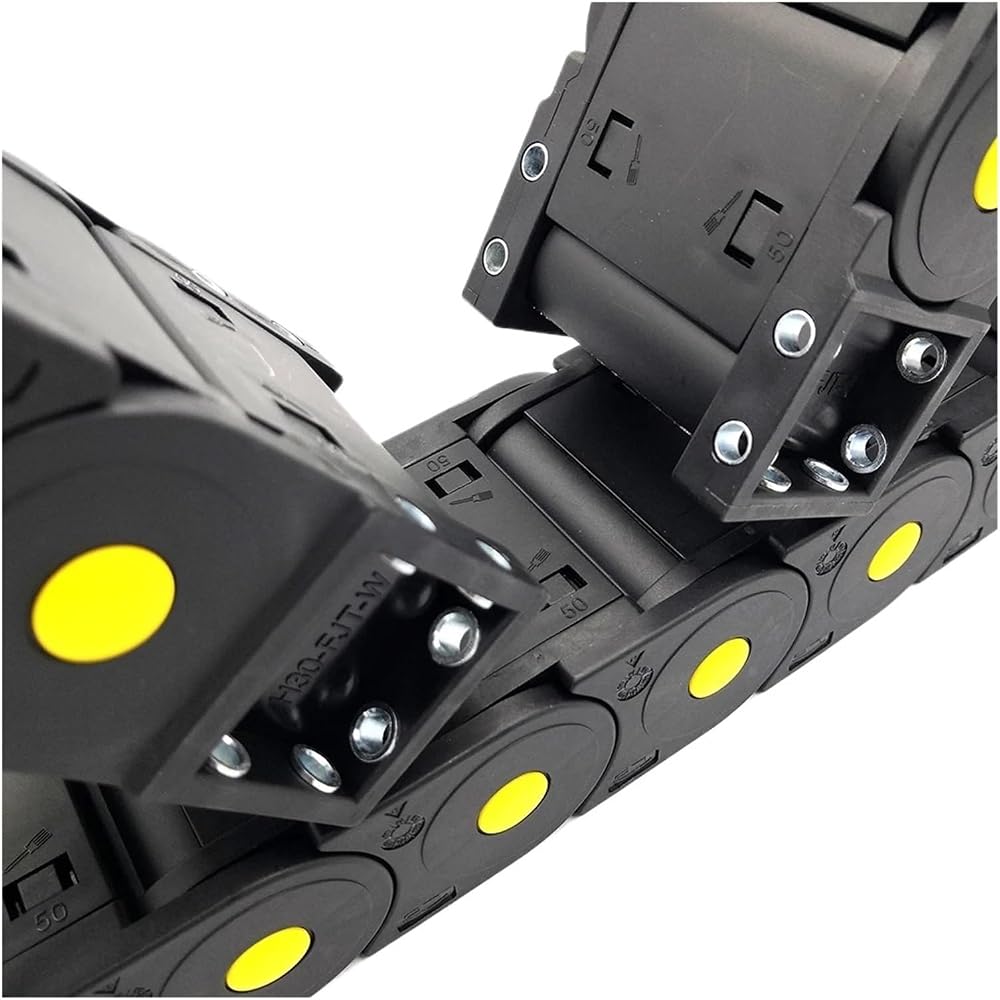

3) Unit chain around the chain plate and the upper and lower cover composition, towline can openeach section, easy assembly and disassembly without threading, to the cable, tubing, pipe, pipe,etc. into the towline after opening the cover.
4) Also available separators, the chain separated by space as needed.
Package includes:
1 Meter X Drag chain (Length includes both end Connectors)
==========
Model Number : 25 Series enhanced model
Item Type : Mechanical Kit/Hardware Parts
Material : Plastic
Standard or Nonstandard : Standard
Bending radius : R75/R100/R125/R150
Structure : Enclosed bilateral opening
Tanks chain : Protect the cable
Customized : Yes
With Connector : Yes
Products Status : Stock
