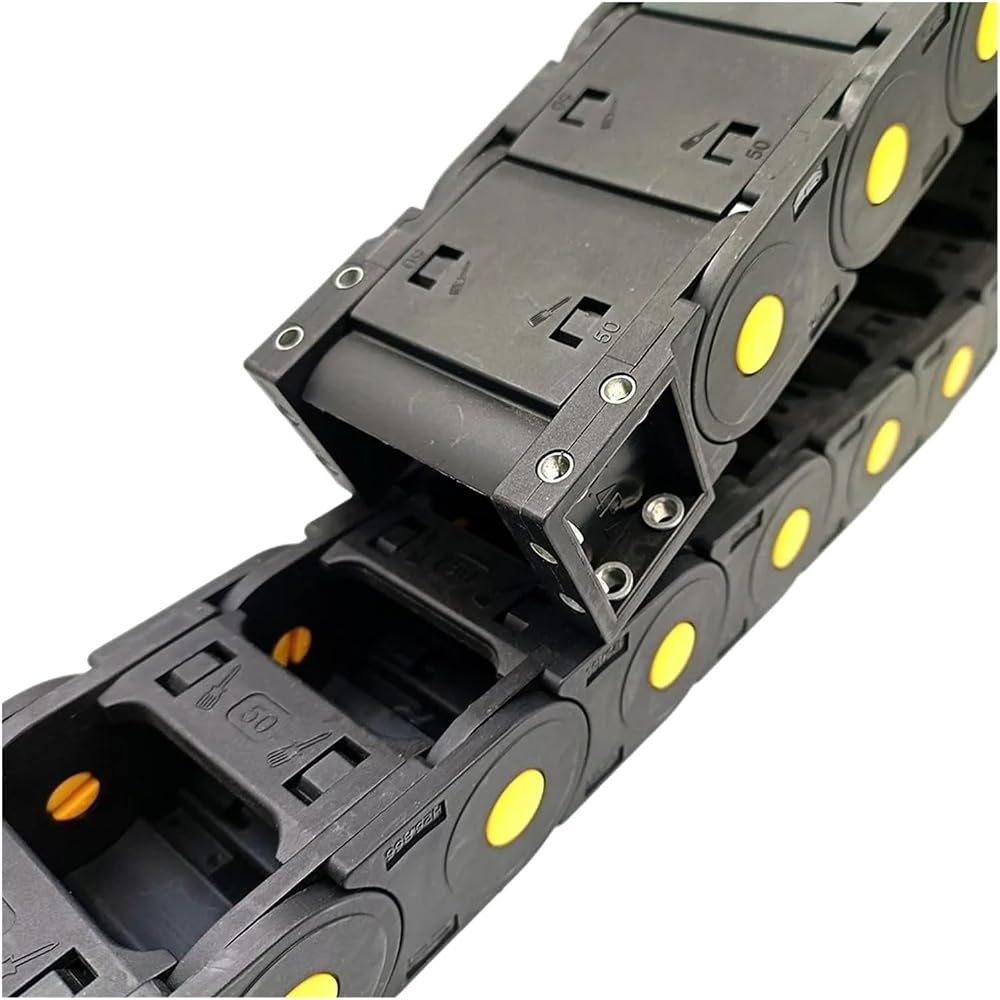

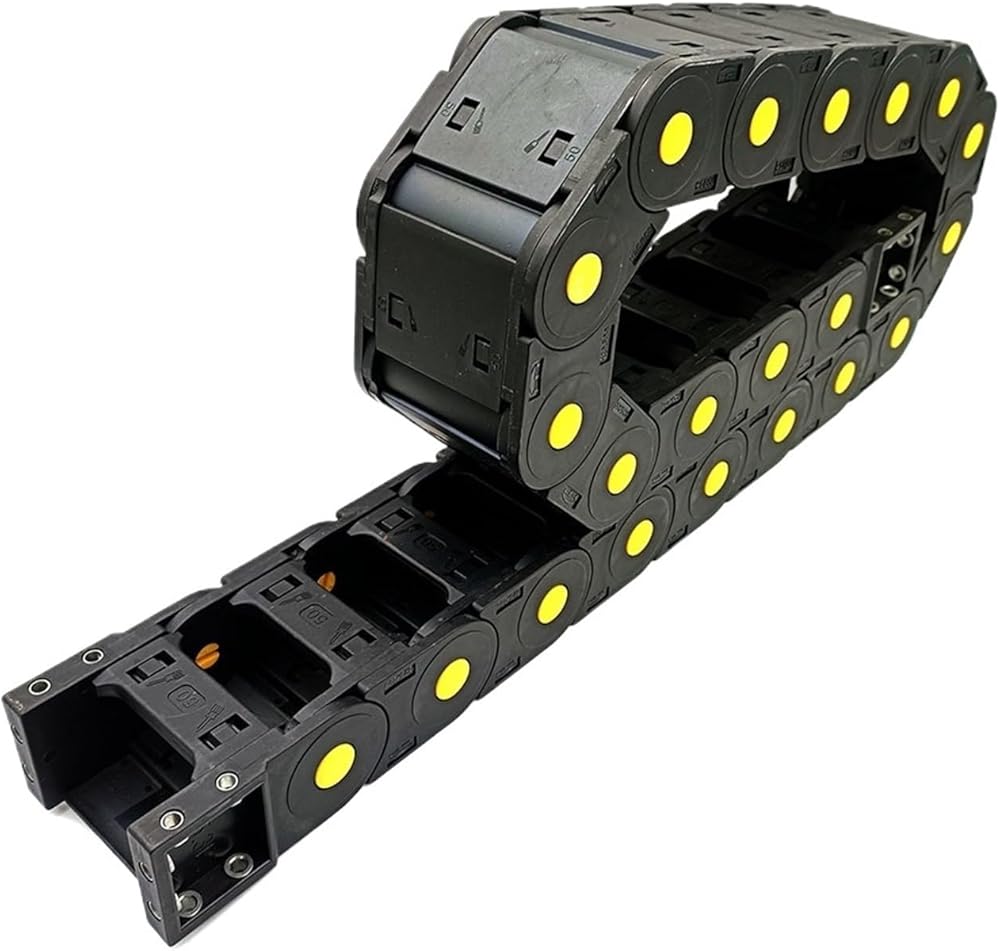

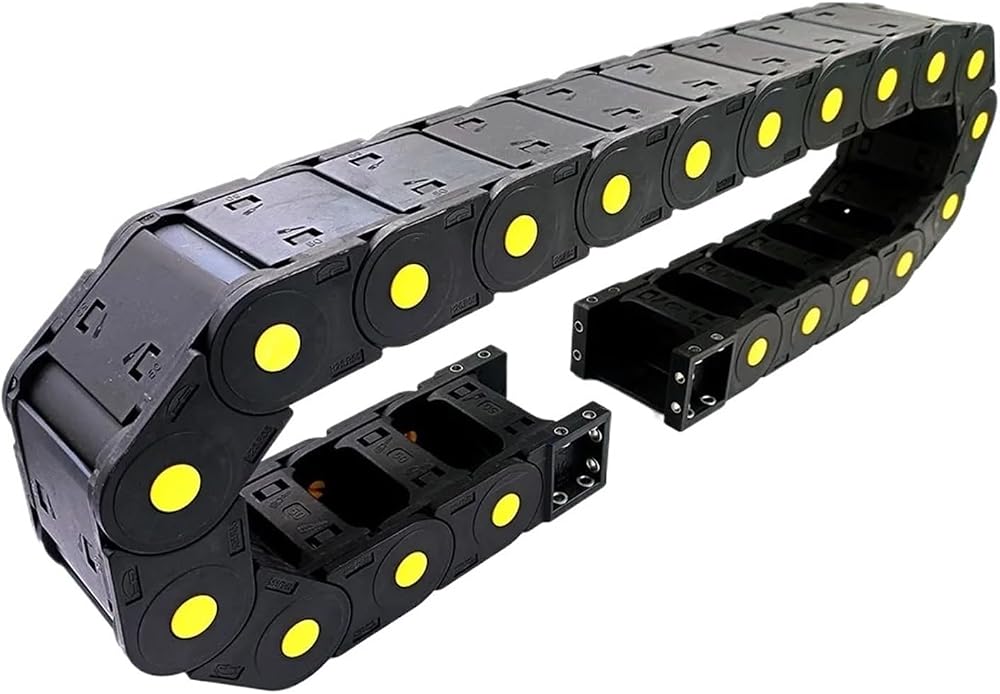

1 Meter 25x75mm Semi-Closed Type Drag Chain Wire Carrier Cable Enhanced Plastic Towline Transmission Cable
Package includes:
1 Meter X Drag chain (Length includes both end Connectors)
Uses and characteristics of drag chains:
(tow chains, tank chains, threaded drag chains, engineering drag chains, plastic drag chains):
Suitable for use in reciprocating motion occasions. It can traction and protect the built-in cables, oil pipes, air pipes, water pipes, etc.
Advantages of plastic drag chains:
Each section of the plastic drag chain can be easily opened, which is convenient for installation and maintenance, and can make your machinery and equipment more perfect.
The basic parameters of drag chains:
Material: Reinforced nylon, with high pressure and tensile load, good toughness, high elasticity, wear resistance and flame retardant. High and low temperature performance is stable, and it can be used outdoors.
Resistance: La oil, salt and certain acid and alkali resistance.
Operation speed and acceleration: the highest speed can reach 5 meters/second, and the highest acceleration can reach 5 meters/second (the specific speed and acceleration depend on the operating conditions).
Operating life: under normal overhead use, it can reach 5 million reciprocating times (the specific life depends on the operating idle condition).
How the drag chain works:
Calculation of drag chain length and installation height
Drag chain length L=S/2+pR+P(2-3)T
Drag chain installation height H=2R+Ha+0.1Ha
When the fixed point is in the middle of the running stroke (ie P=0)
==========
Hign-concerned Chemical : None
Item Type : Mechanical Kit/Hardware Parts
Inner height x inner width : 25X75mm
Outer height x outer width : 40x96mm
Bending radius : R55/R75/R100/R125/R150
Material : Plastic PA66
Standard or Nonstandard : Standard
Structure : Semi-closed type open of both side
Tanks chain : Protec
