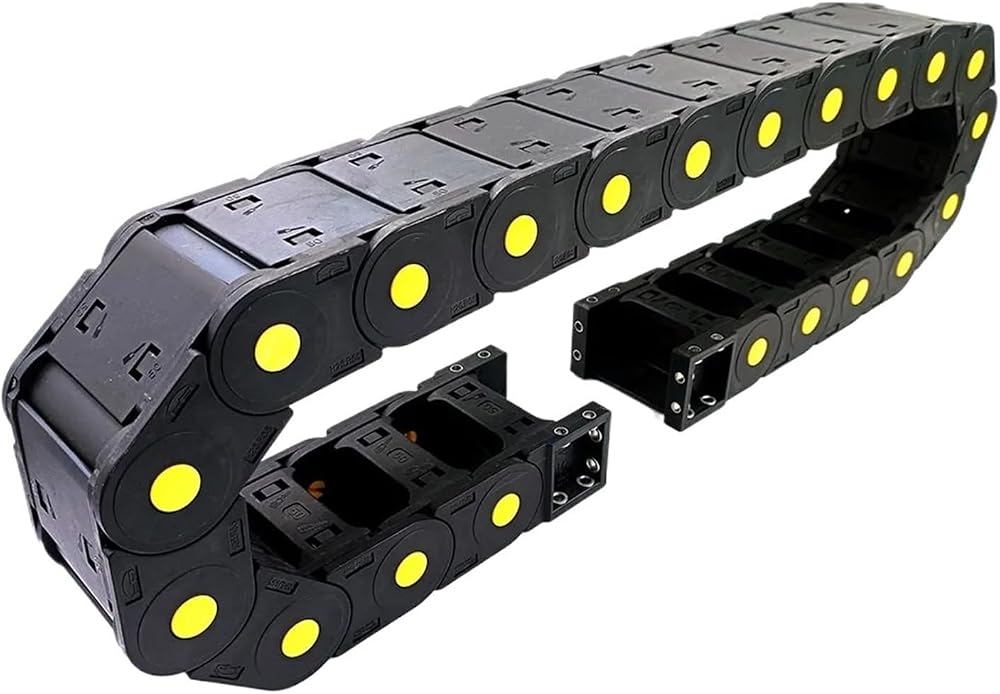

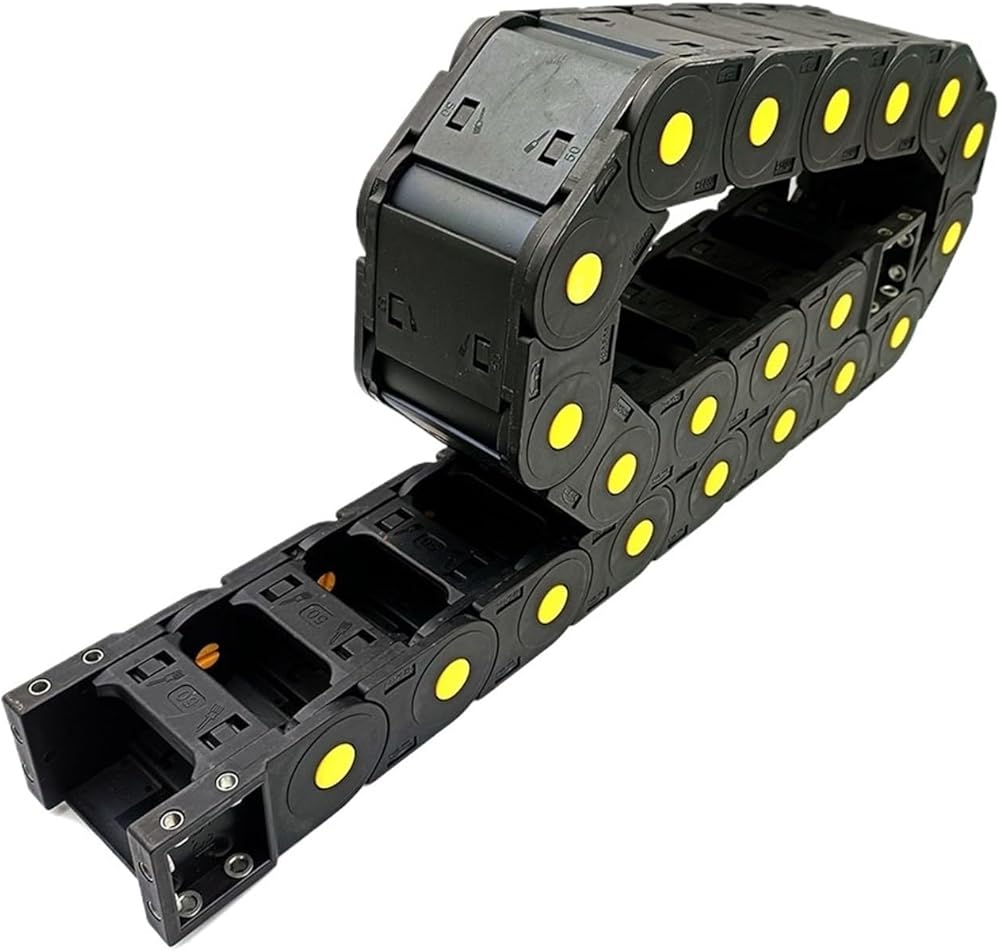

1 Meter 25x38mm Semi-Closed Type Drag Chain Wire Carrier Cable Enhanced Plastic Towline Transmission Cable
Package includes:
1 Meter X Drag chain (Length includes both end Connectors)
Uses and characteristics of drag chains:
(tow chains, tank chains, threaded drag chains, engineering drag chains, plastic drag chains):
Suitable for use in reciprocating motion occasions. It can traction and protect the built-in cables, oil pipes, air pipes, water pipes, etc.

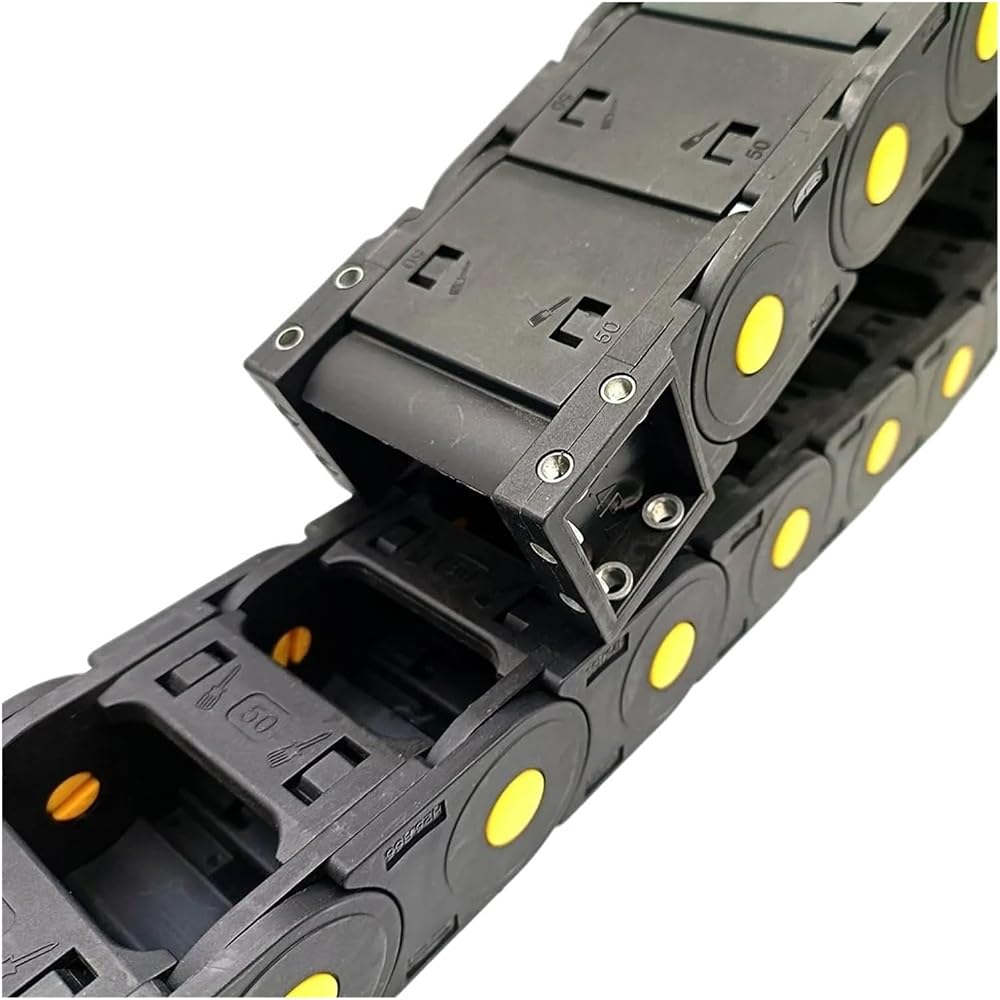

Each section of the drag chain can be opened for easy installation and maintenance. During exercise, it has low noise, wear resistance, and high-speed movement.
Advantages of plastic drag chains:
Each section of the plastic drag chain can be easily opened, which is convenient for installation and maintenance, and can make your machinery and equipment more perfect.
Complete specifications, easy to provide tailor-made for customers.
The basic parameters of drag chains:
Material: Reinforced nylon, with high pressure and tensile load, good toughness, high elasticity, wear resistance and flame retardant. High and low temperature performance is stable, and it can be used outdoors.
Resistance: La oil, salt and certain acid and alkali resistance.
Operation speed and acceleration: the highest speed can reach 5 meters/second, and the highest acceleration can reach 5 meters/second (the specific speed and acceleration depend on the operating conditions).
Operating life: under normal overhead use, it can reach 5 million reciprocating times (the specific life depends on the operating idle condition).
How the drag chain works:
Calculation of drag chain length and installation height
Drag chain length L=S/2+pR+P(2-3)T
Drag chain installation height H=2R+Ha+0.1Ha
When the fixed point is in the middle of the running stroke (ie P=0)
==========
Hign-concerned Chemical : None
Model Number : H25X38-BF
Item Type : Mechanical Kit/Hardware Parts
