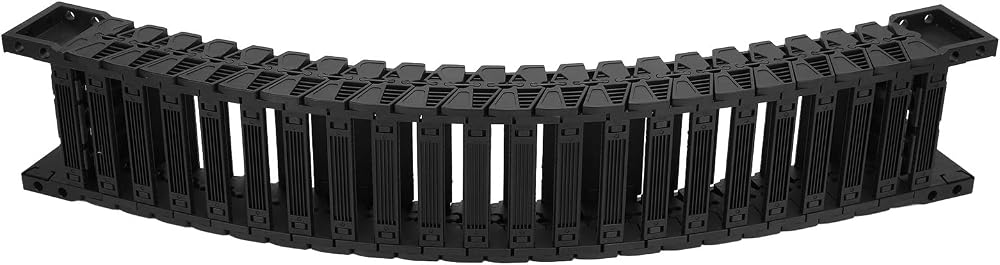

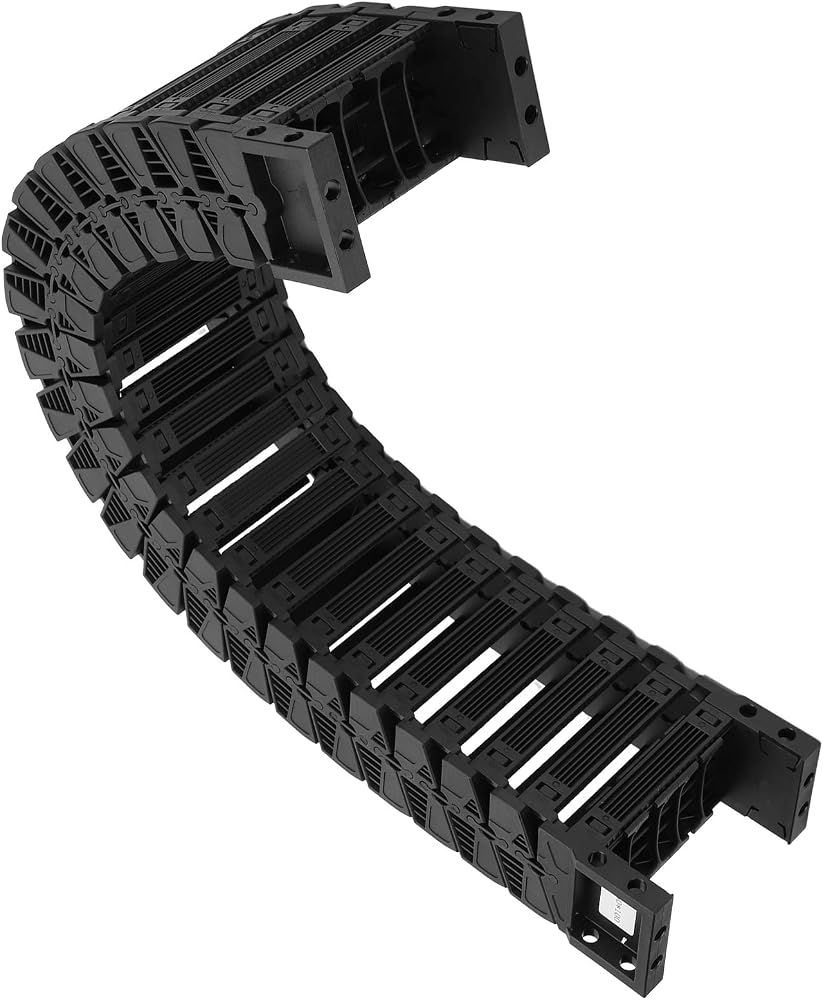

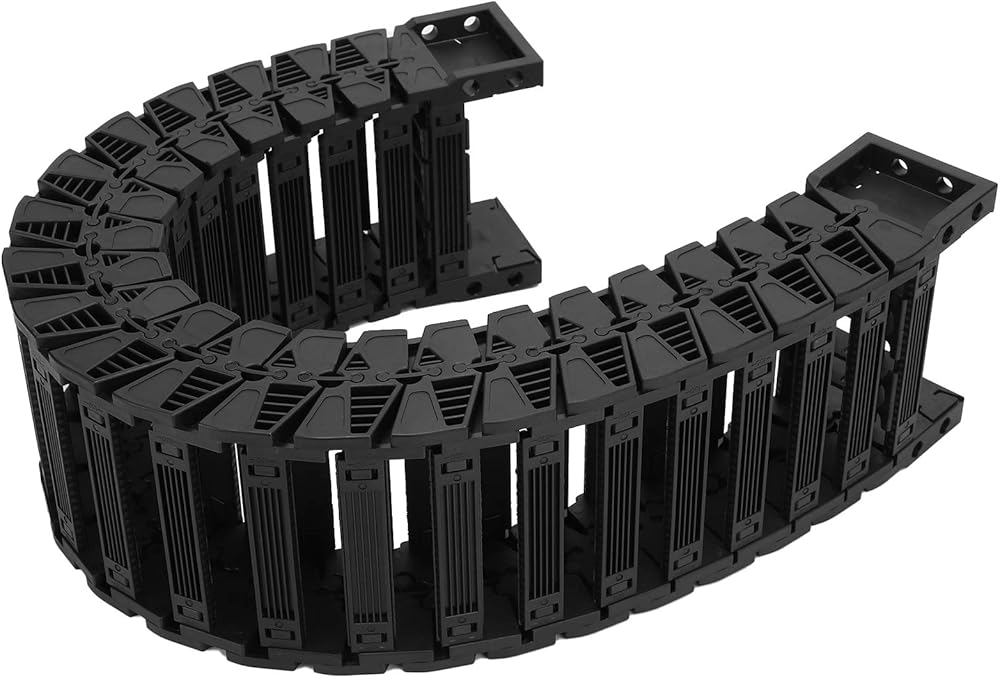

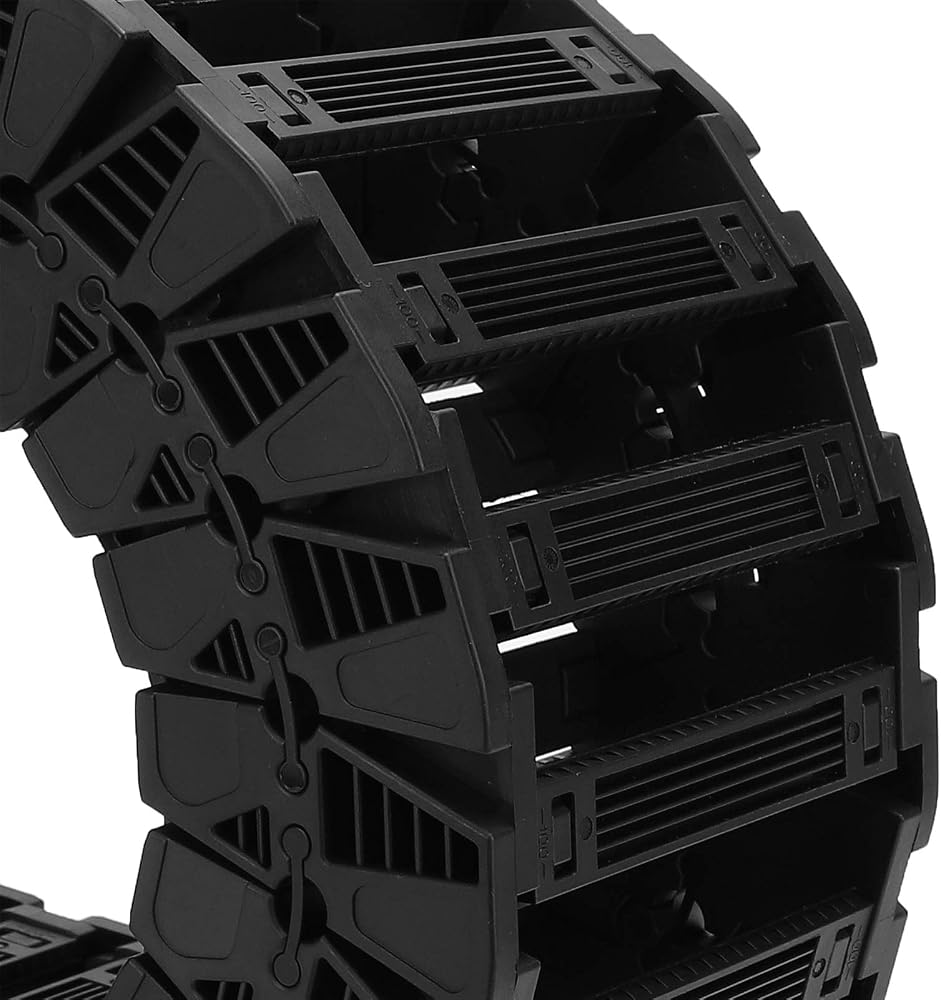

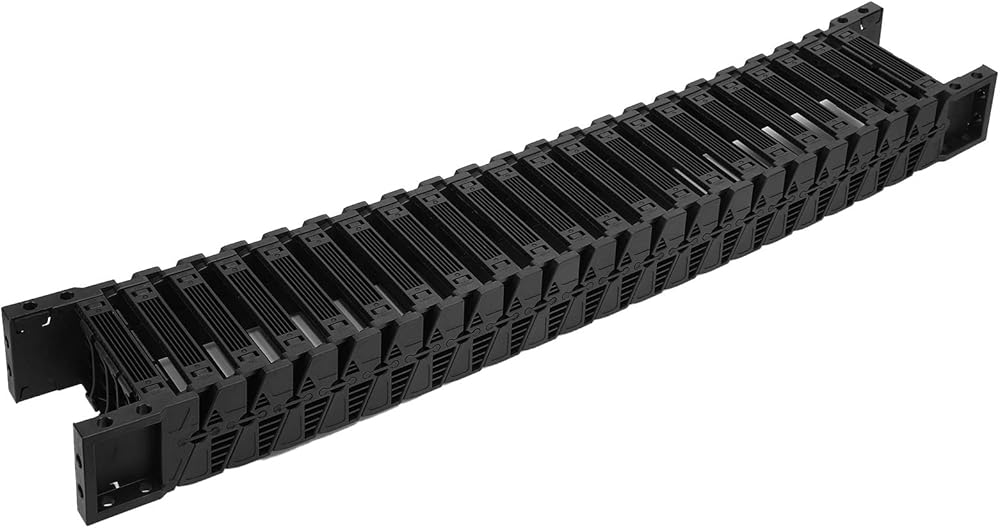

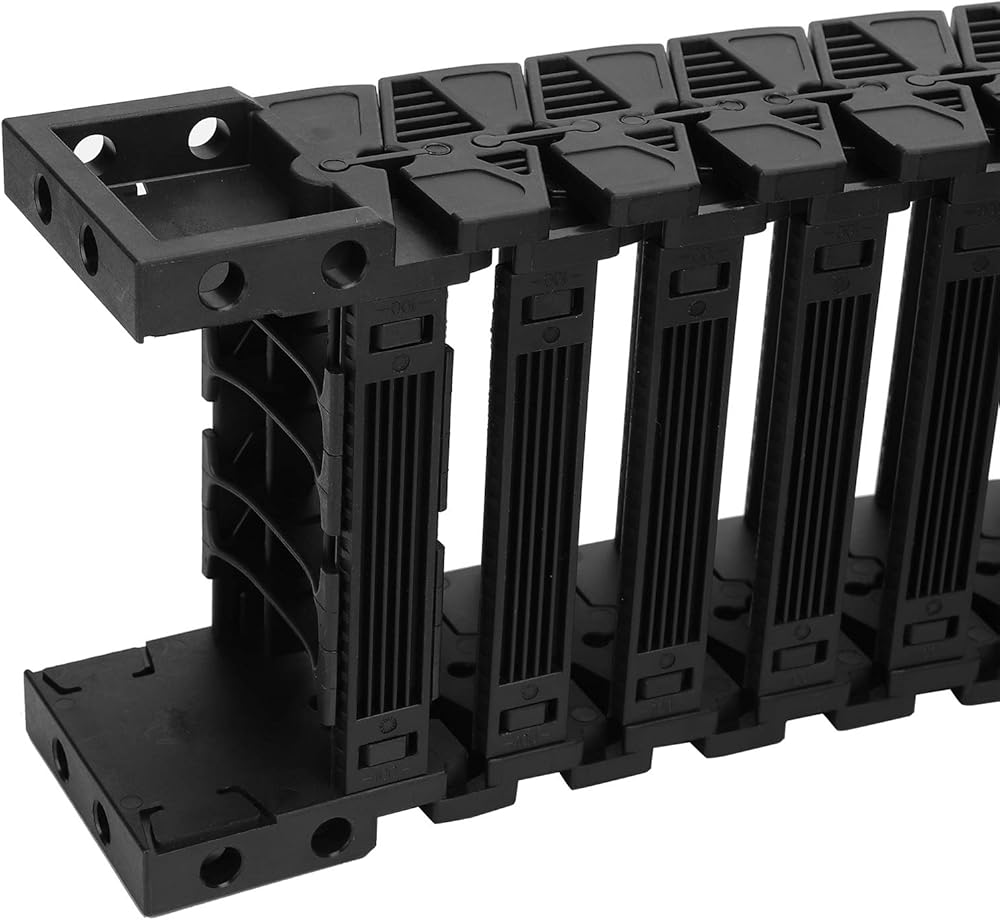

Item Type: Cable Drag Chain
Material: Nylon 66

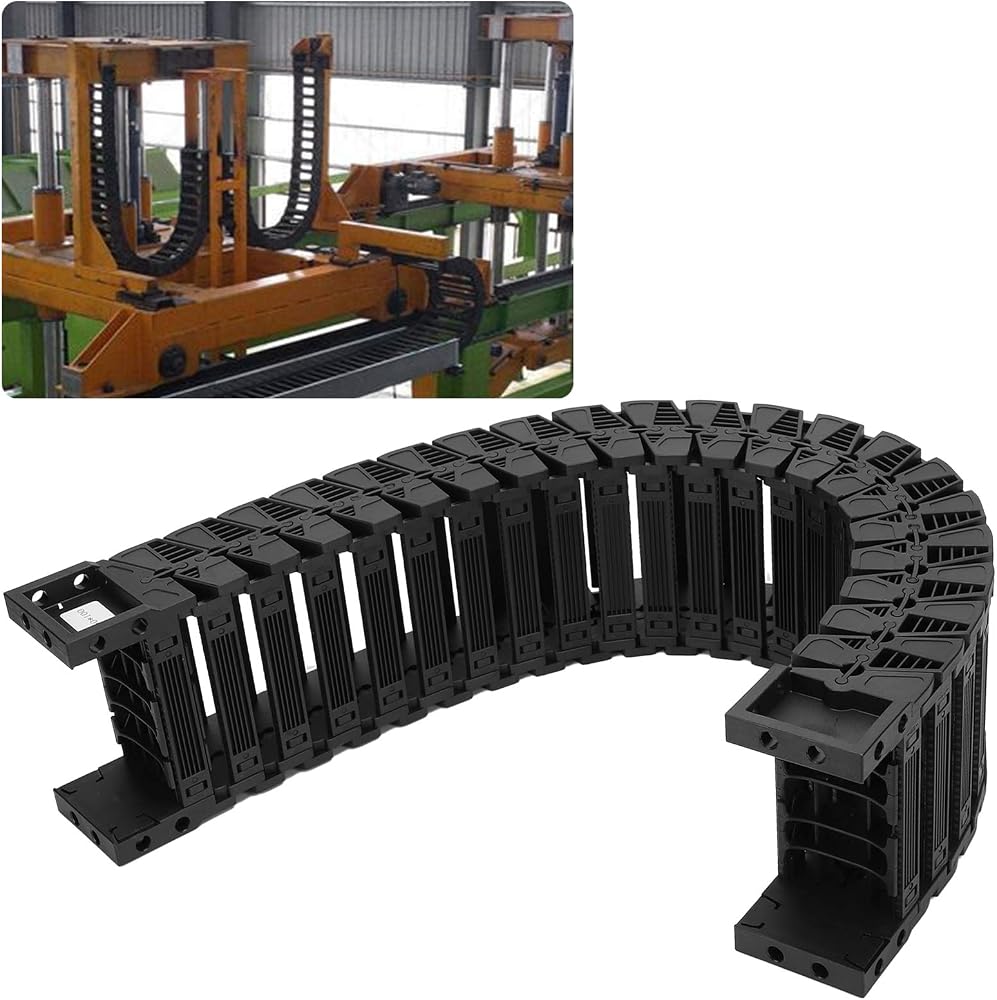

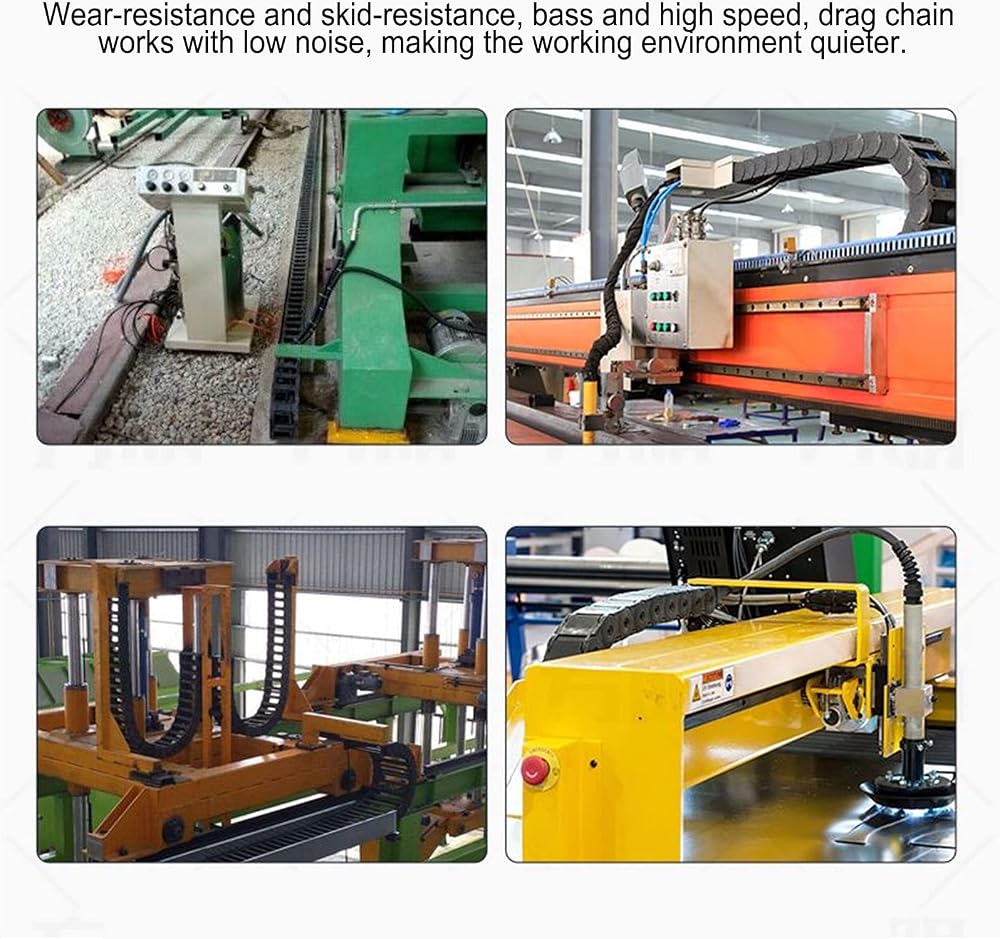

Purpose: Suitable for engraving machine CNC machine tool arm, professional cable protection accessories
Series: Silent series
Length: Approx. 0.7meter / 2.3ft/1m / 3.3ft (can be disassembled and assembled at any length)
Working Temperature: -25~100℃

Model Inner height x inner width/mm)(Approx.) Outer height x Outer width/mm(Approx.) Turning radius/R (mm)(Approx.) Connector length /mm(Approx.) Pitch/mm(Approx.)
S50 x 38 50 x 38mm / 2 x 1.5in 65 x 62mm / 2.6 x 2.4in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in
S50 x 50 50 x 50mm / 2 x 2in 65 x 74mm / 2.6 x 2.9in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in
S50 x 57 50 x 57mm / 2 x 2.2in 65 x 81mm / 2.6 x 3.2in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in
S50 x 60 50 x 60mm / 2 x 2.4in 65 x 84mm / 2.6 x 3.3in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in
S50 x 75 50 x 75mm / 2 x 3in 65 x 99mm / 2.6 x 3.9in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in
S50 x 77 50 x 77mm / 2 x 3in 65 x 101mm / 2.6 x 4in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in

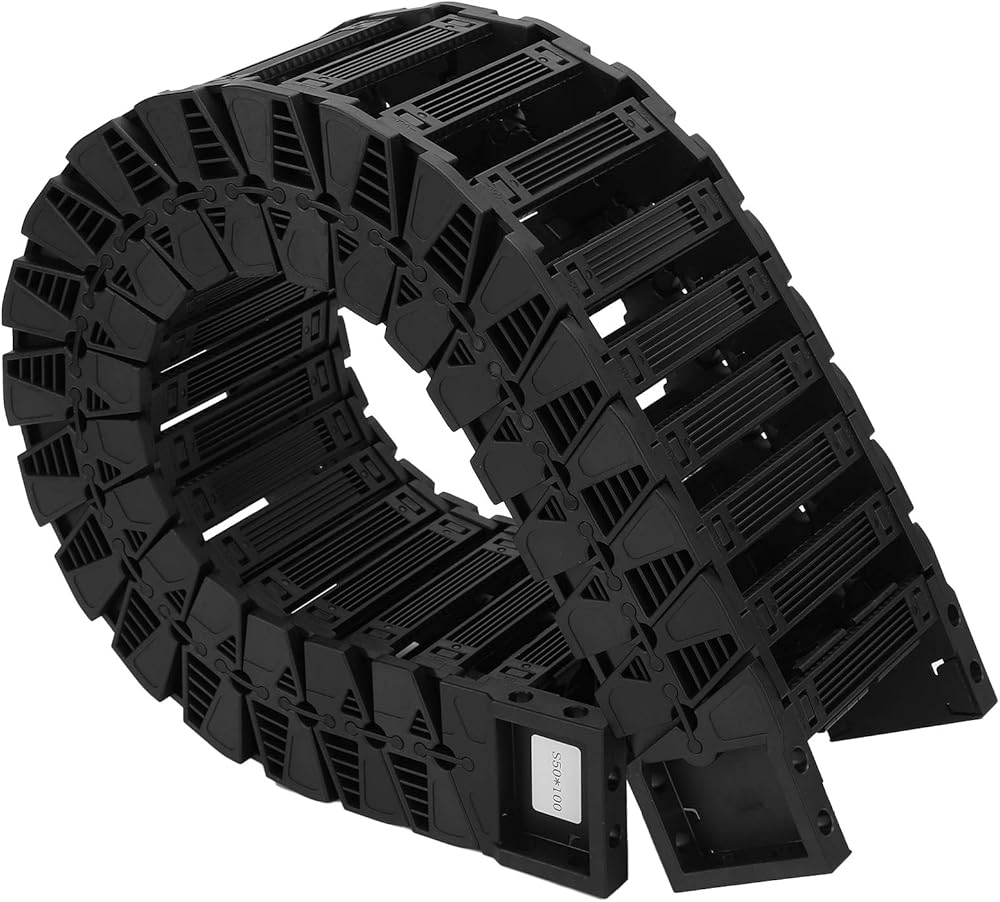

S50 x 100 50 x 100mm / 2 x 3.9in 65 x 124mm / 2.6 x 4.9in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in
S50 x 103 50 x 103mm / 2 x 4.1in 65 x 127mm / 2.6 x 5in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in
S50 x 125 50 x 125mm / 2 x 4.9in 65 x 149mm / 2.6 x 5.9in 75mm / 3in100mm / 3.9in125mm / 4.9in150mm / 5.9in 67.5mm / 2.7in 33mm / 1.3in

Package List：
1 x Cable Drag Chain
