Basic structure and composition: Sliding body: A component that moves along the guide rail and contains rolling elements (such as balls, rollers or wheels).
Working principle: Rolling friction replaces sliding friction, and the rolling body performs cyclic motion between the guide rail and the slider to achieve precise linear motion. Type difference: Ball type: point contact, low friction, high speed, suitable for light load precision (such as 3D printers). Roller type: linear contact, large load capacity, high rigidity.
Main performance characteristics: Good rigidity: due to the preload design (such as increasing the ball diameter), it can resist vibration and impact. Low friction: the friction coefficient is only 1/50 of that of the sliding guide, saving energy and cooling. Long service life: steel guides and seals can achieve thousands of kilometers of travel.
Typical application areas: CNC machine tools: tool feeding, spindle drive. Automation equipment: articulation, transportation and positioning of robot arms on assembly lines. Precision instruments: semiconductor lithography machines, measuring equipment. Civilian applications: movement of 3D printer nozzles, adjustment of electric lifting platforms.
Selection and maintenance points, load capacity: calculate the axial force and torque, and select the corresponding rated load (dynamic C value should leave a margin). Speed and acceleration: pay attention to the lubrication method (grease or oil circulation) at high speed. Environmental applicability: IP54 or higher protection level is required in dusty environments, and stainless steel is required in humid environments. Installation accuracy: The parallelism of the guide rail needs to be
2pcs SBR16LUU SBR20LUU SBR25LUU SBR30LUU SBR40L Aluminum Block Linear Motion Ball Bearing Slide Block Match Use SBR(2PCS,SBR13LUU)
SAR 173
1 Piece Full Range Slide for MGN9H MGN12H MGN15H MGN9C MGN12C MGN15C MGN7H MGN7C(MGN9C)
SAR 137
2 Pieces BK10 BF10 BK12 BF12 BK15 BF15 FK10 FF10 FK12 FF12 FK15 FF15 EK10 EF10 EK12 EF12 Ball Screw Support Unit(FF10)
SAR 88

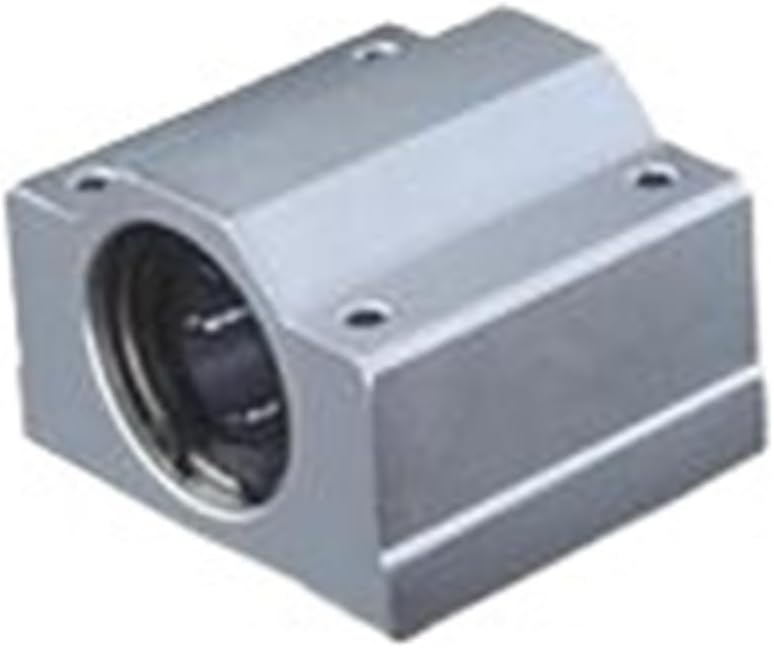

2pcs SC10UU SC12UU SC16UU SC20UU SC25UU SC30 Linear Motion Slides for Linear Axis CNC Parts 3D Printer Parts(1 pcs,SC16UU)
SAR 76
