Specifications:
Model:RE-52CS
Voltage: 220V / 50HZ
Speed: 0-150RPM/minute
Power: 1000W
Rotary bottle capacity: 250 ml
Collection bottle capacity: 500 ml
Total weight: 19KG
Size: 38 * 58 * 80cm
Condenser: Vertical condenser with valve feed tube.
Up/Down: Manually lift, straight up and down, 0-150mm.
Water bath pot: 22X11.2 cm
Product Description:

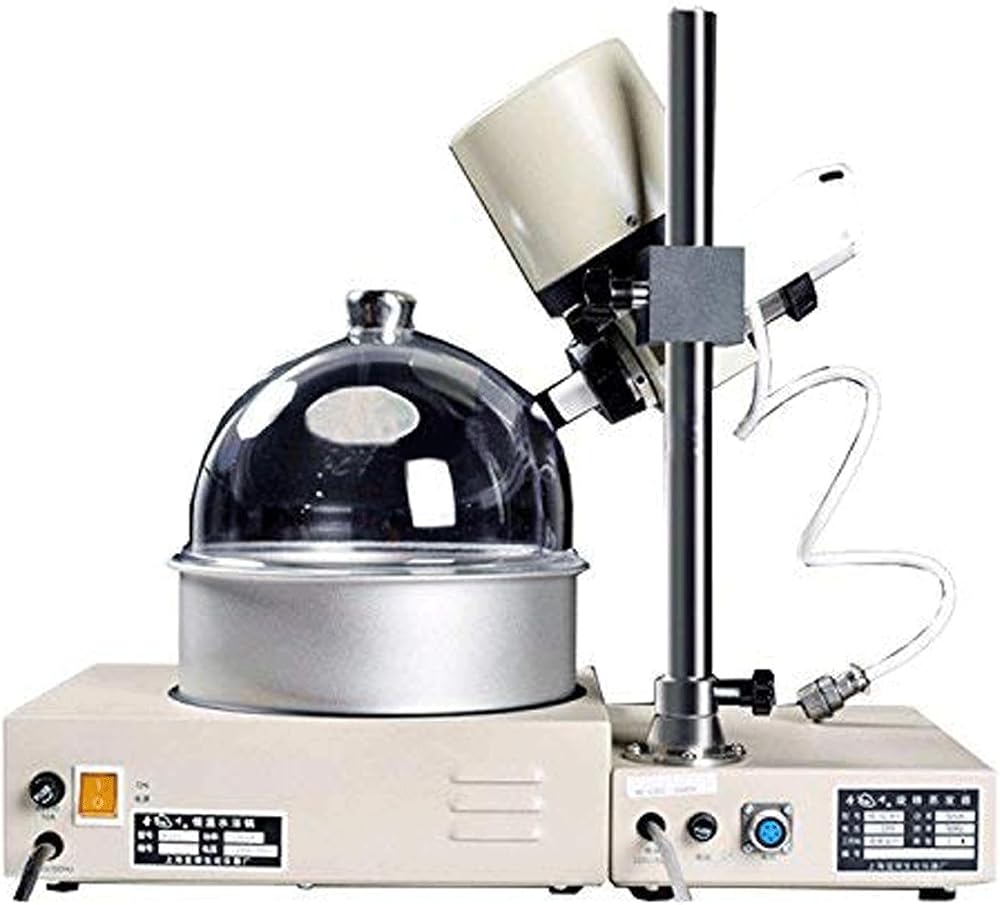

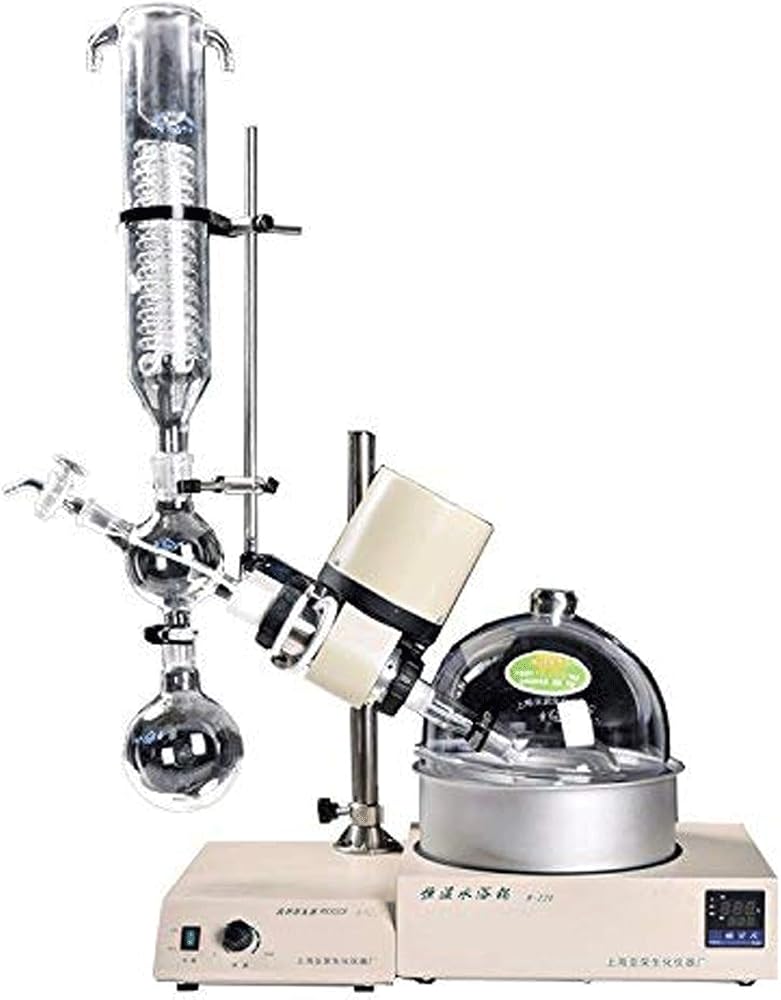

Rotary evaporator adopts the flask enlarge evaporation area under reduced pressure, to make the solution in bottle diffuse and evaporate, while the flask is rotating as it is heating in water bath.
It is basic necessary and perfect equipment for the chemical industry, pharmaceutical industry, institutions of higher learning and scientific research laboratories used in the manufacture and analysis of experiments which concentrated, drying, recycling.
Attention Tips:

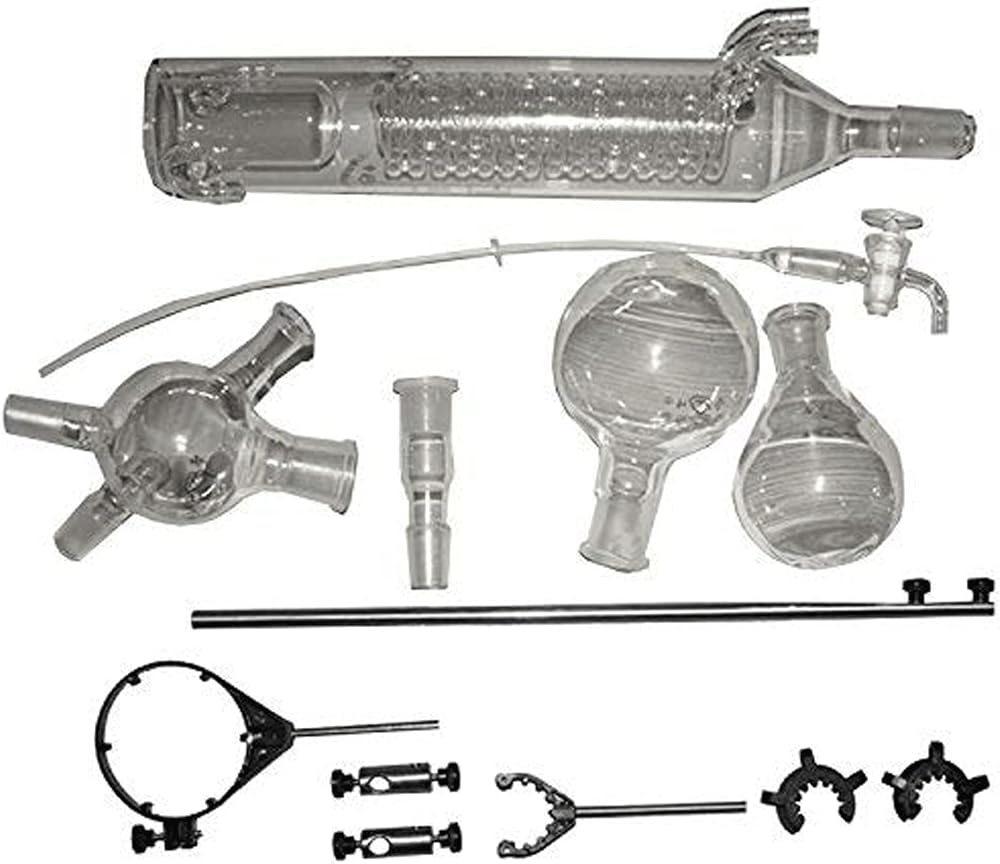

1.Please clean glassware kits before installation.
2.7.Please daub few vacuum silicon grease on standard mouth and sealing surface,which can improve air tightness.
3.Please lock hand-piece position tightly after installation.
4.The lower cooling water temperature is,the better cooling effect is.
5.Do not let vacuum degree less than 0.096MPa and bath temperature more than 80℃while water evaporation.
