1. High speed, not easy to heat up, The matching performance is more stable
2. High-carbon steel chrome-plated high-strength aluminum material, good processing accuracy
3. Screw fixation, strong stability, the optical axis and the aluminum bracket are fixed with screws, stable and tight
Package Includes:

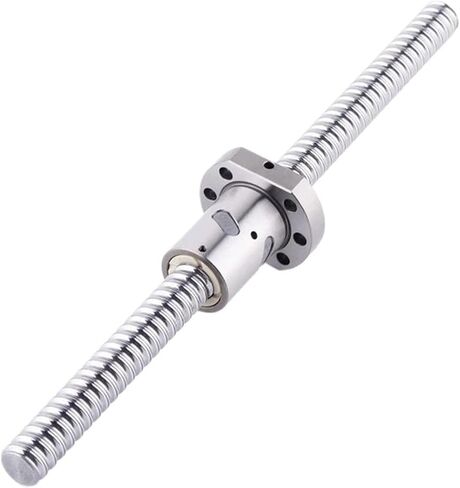

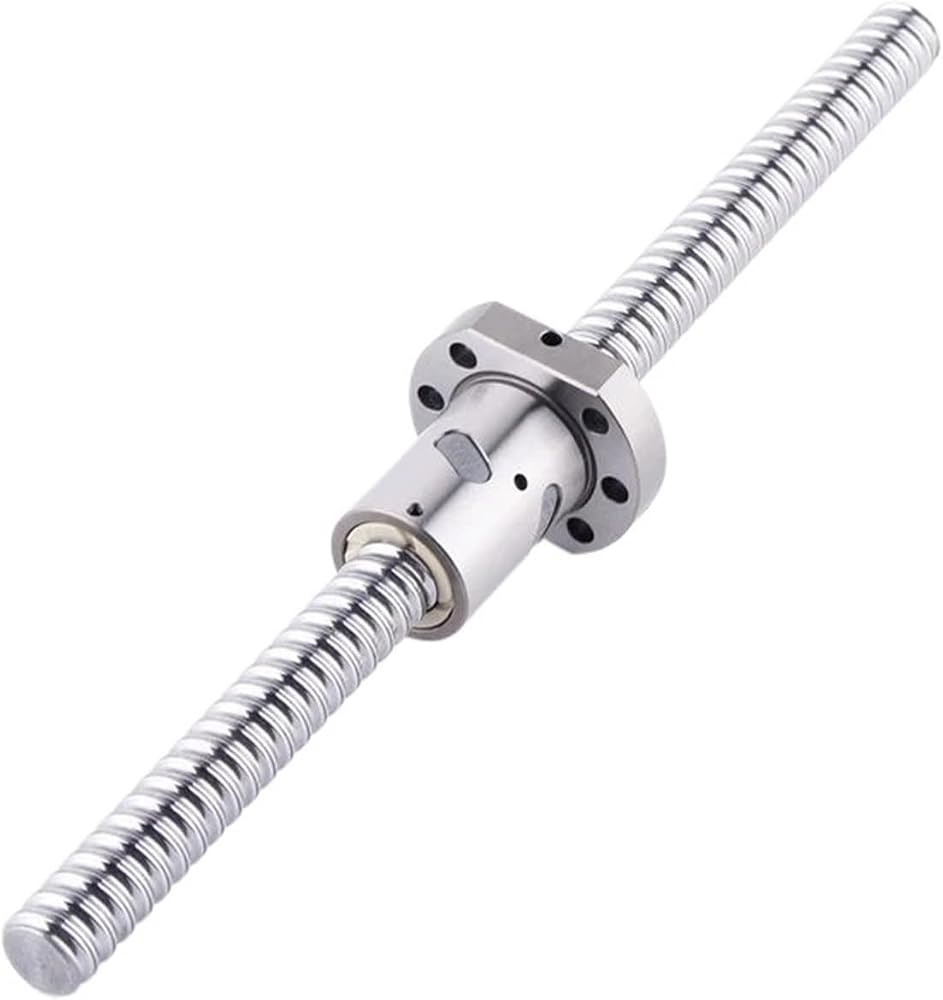

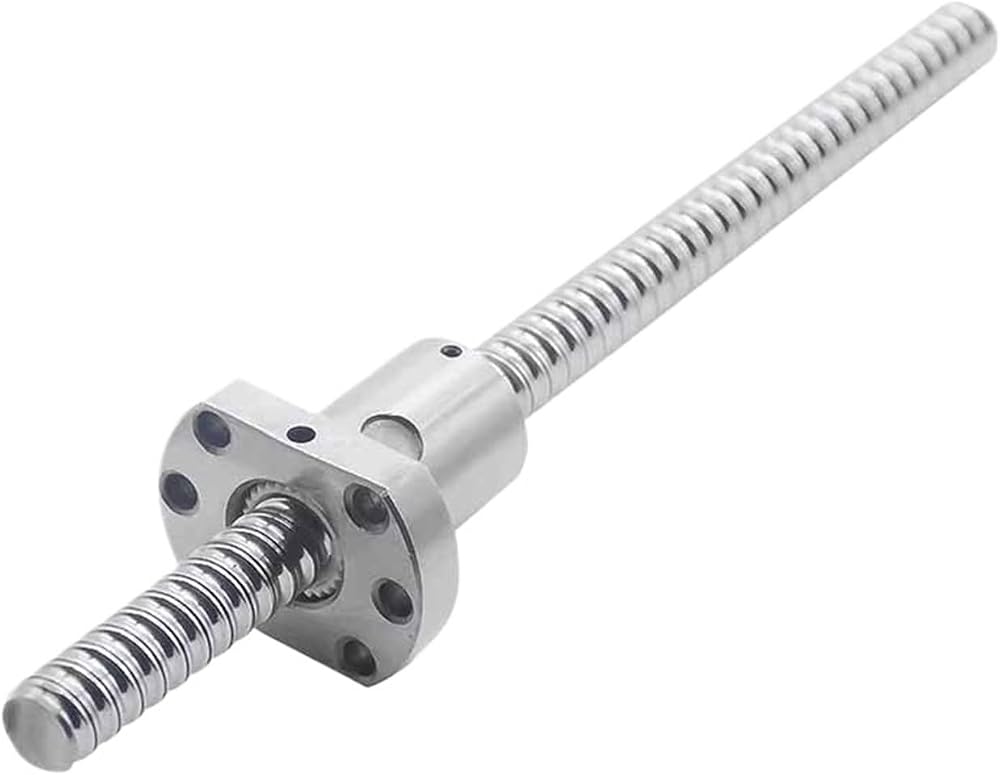

1PC SFU2510 Left Hand Screw + Left Hand Nut (Unmachined)
Length: 150-1000mm
Description:

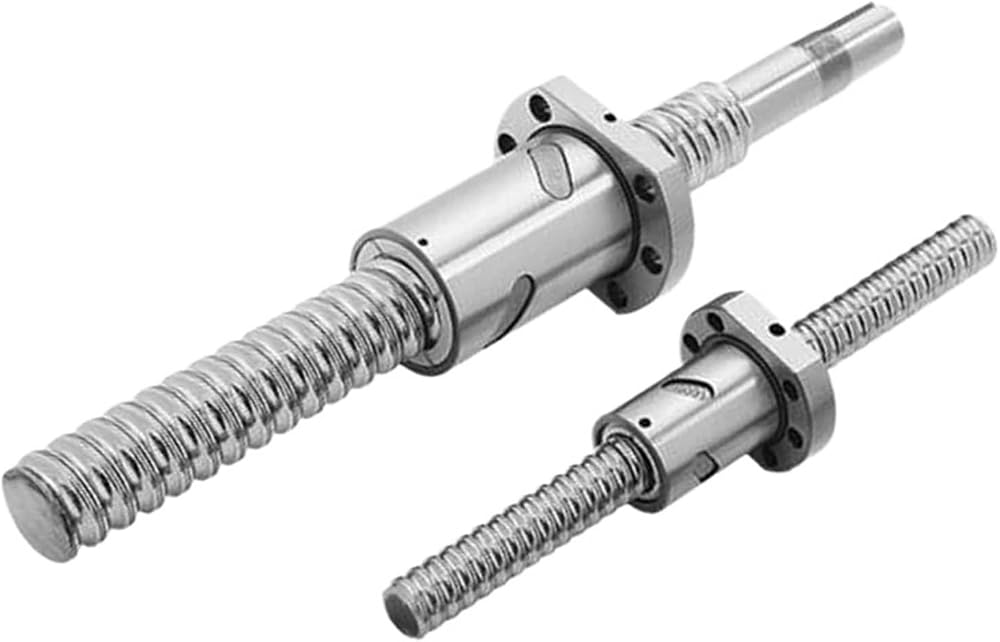

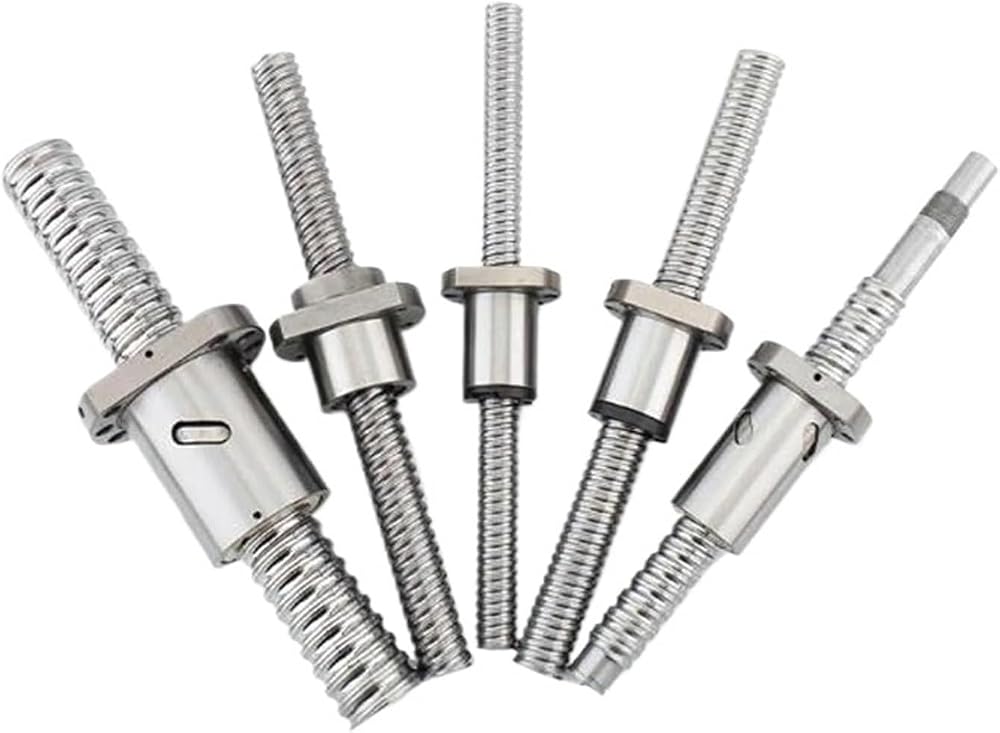

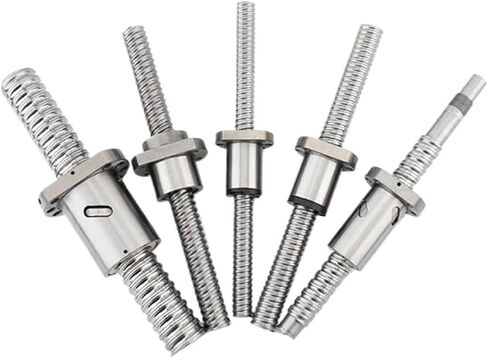

A. Ball Screw Assembly
The ball screw assembly consists of a screw and a nut, each of which has matching spiral grooves, between which the balls roll, providing the only contact between the nut and the screw. When the screw or nut rotates, the balls are deflected by the deflector into the ball return system of the nut, and they pass through the return system along a continuous path to the other end of the ball nut. The balls then exit from the ball return system and enter the ball screw and nut thread raceway, circulating continuously in a closed loop.
B. Ball Nut Assembly
The ball nut determines the load and life of the ball screw assembly. The ratio of the number of threads in the ball nut circuit to the number of threads on the ball screw determines the extent to which the ball nut will reach fatigue failure (wear) sooner than the ball screw.
