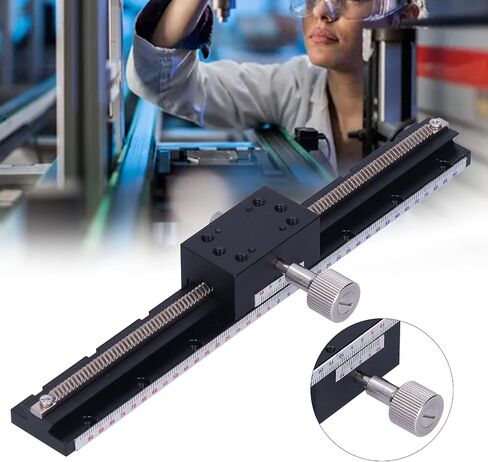

Precise & Best Movement: Features a high-accuracy dovetail guide and gear handle control, ensuring smooth, stable movement with an accuracy of ±50μm for both horizontal and vertical directions.
Compact & Sturdy Design: Built with lightweight yet robust aluminum alloy, providing long-lasting durability and to wear, while remaining easy to transport and store for convenient use.
Efficient Fine-Tuning: Equipped with a fine-tuning knob for precise adjustments, allowing users to control movements with up to 18mm per rotation for accurate positioning in various applications.
Wide Range of Applications: Ideal for optical devices, semiconductor equipment, and measuring instruments, making it a versatile tool for professionals in fields requiring Accuracy and reliability.
Heavy Duty Support: Supports up to 29.4N of horizontal load and 14.7N vertically, delivering consistent performance and stability under demanding conditions for heavy-duty tasks.
وصف

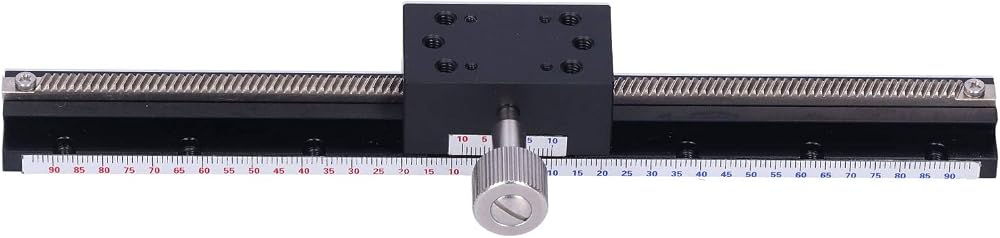

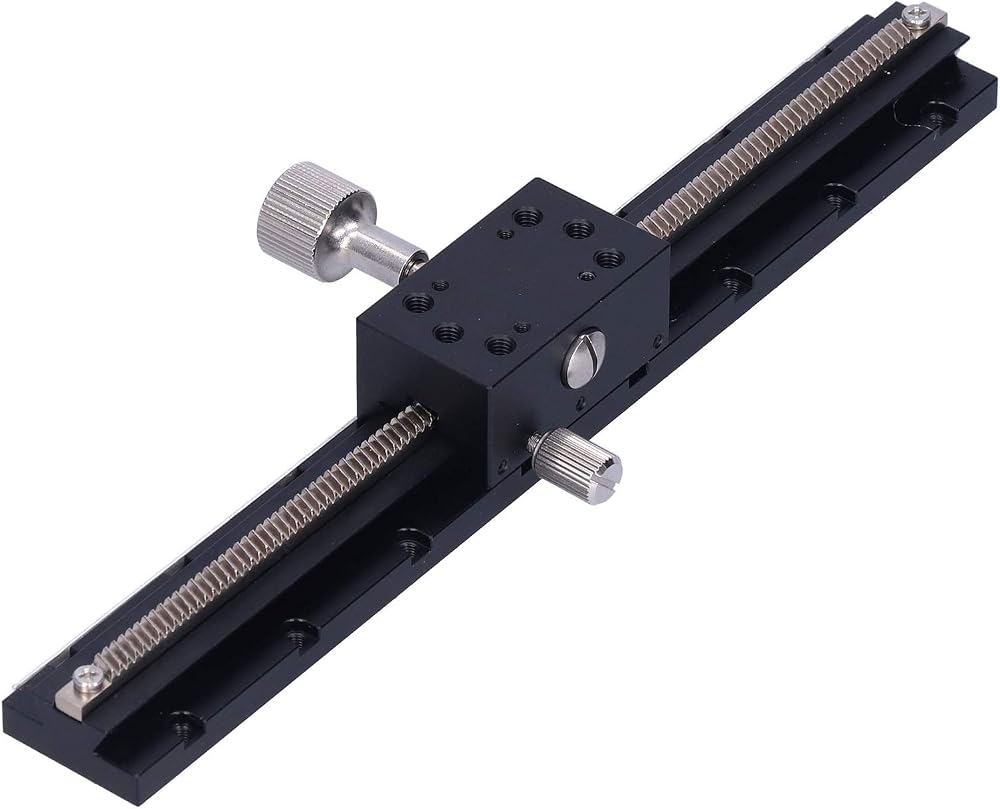

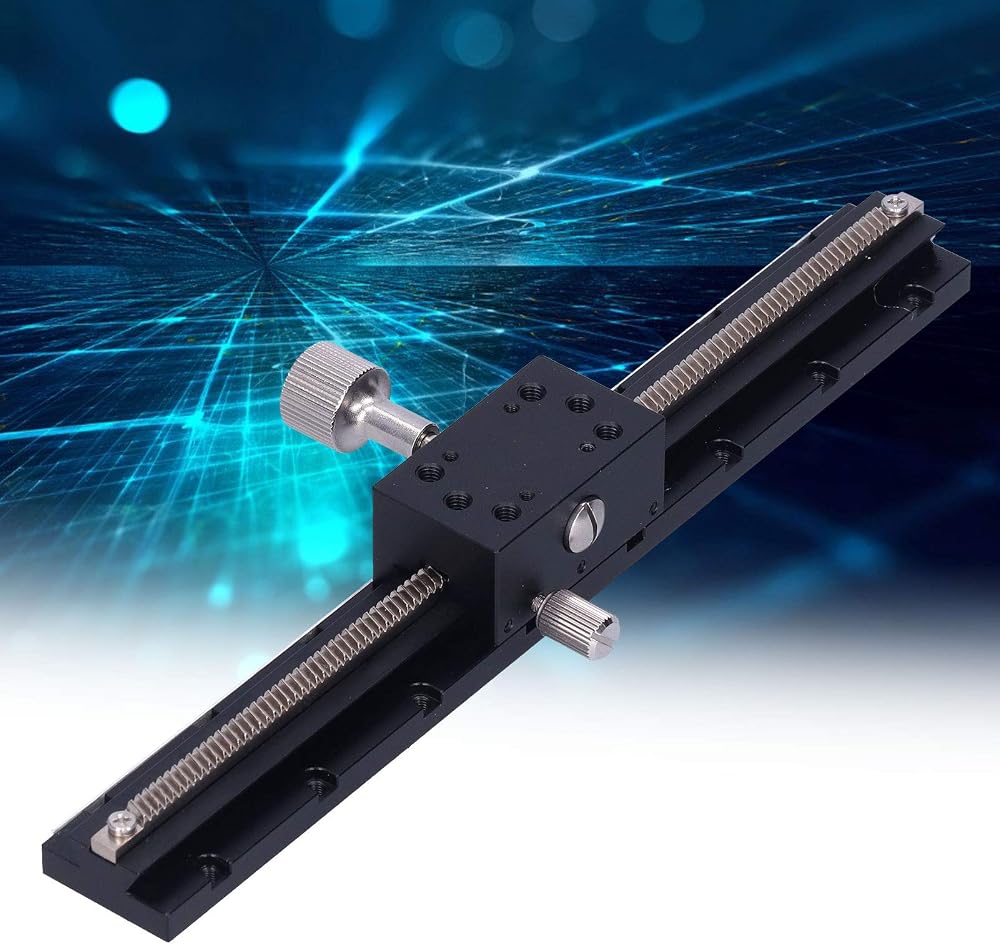

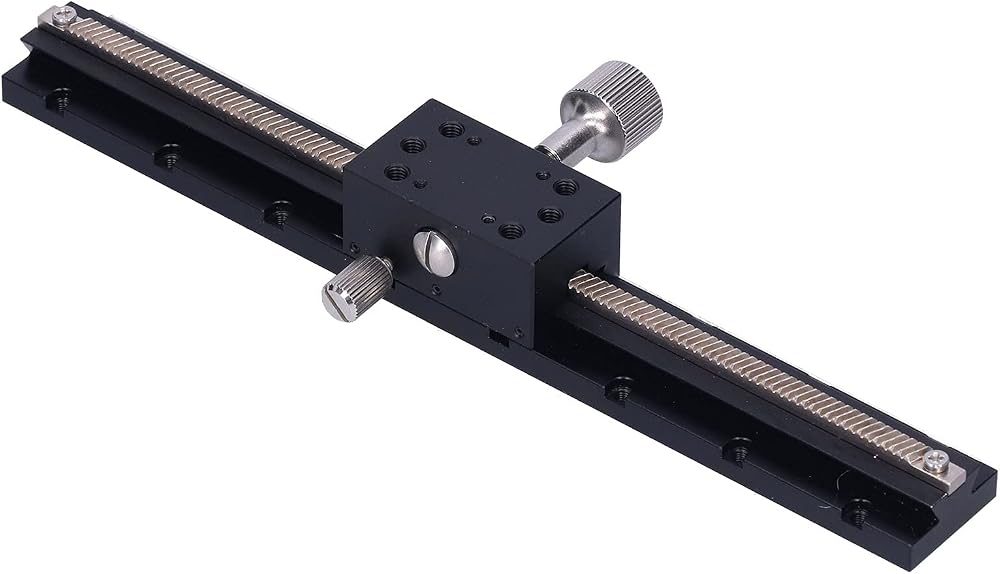

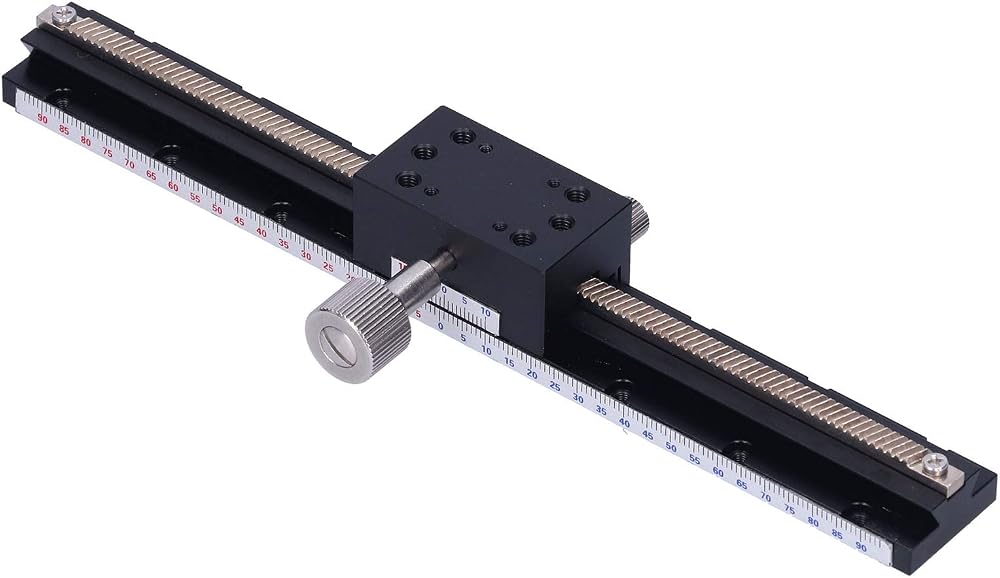

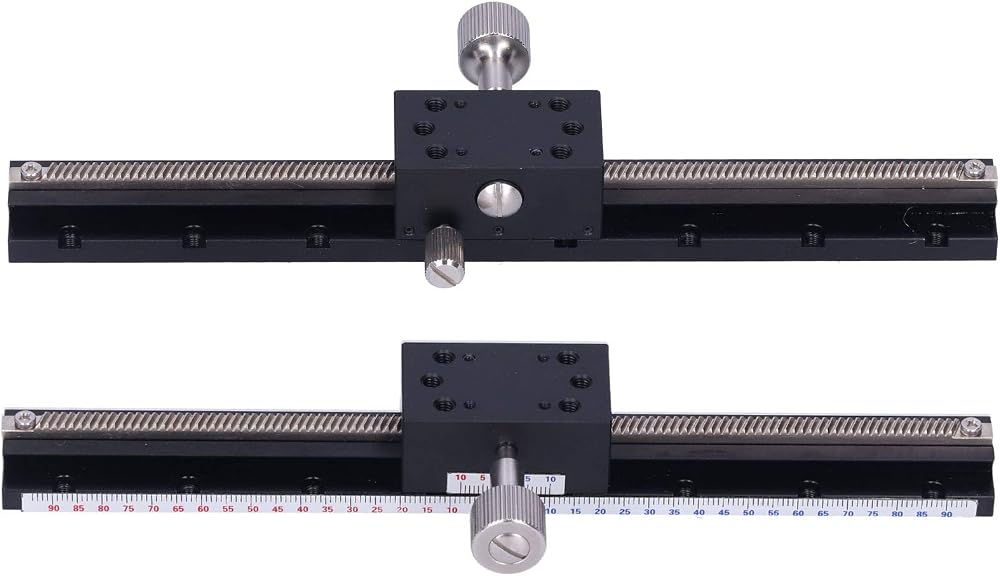

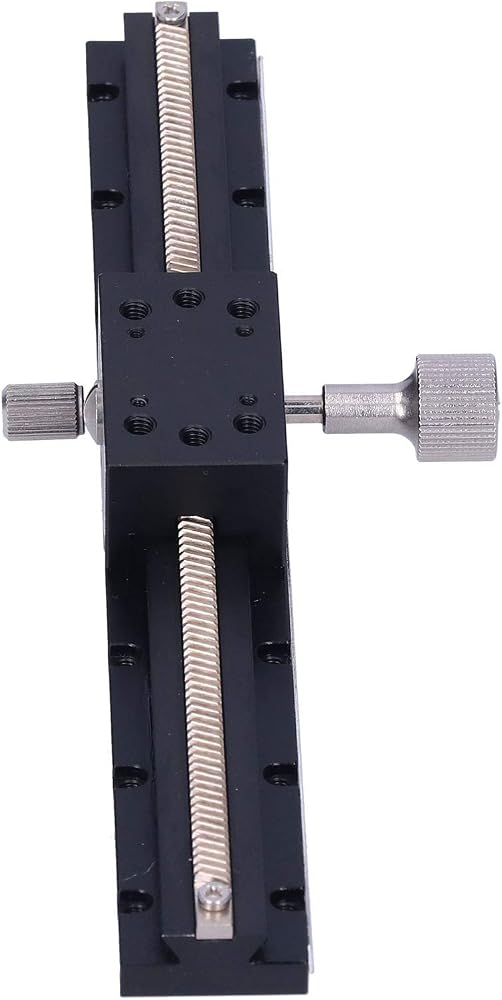

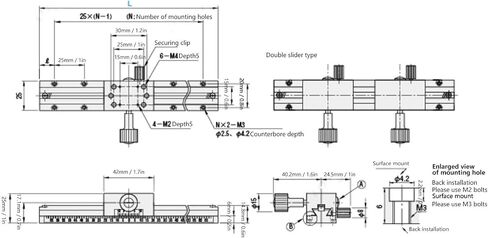

Item Type: Linear Translation Stage

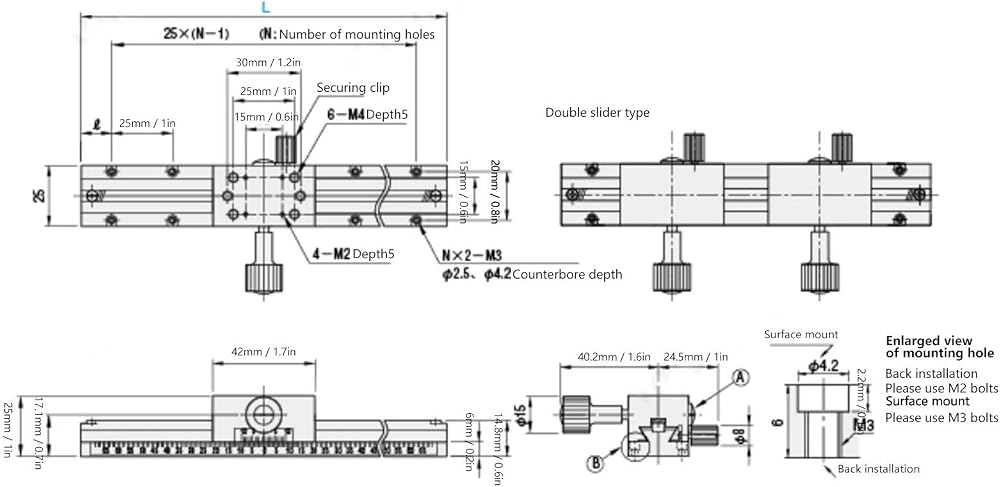

Platform Size: Approx. 40 x 25mm / 1.6 x 1in
Horizontal Bearing Load: 29.4N
Vertical Bearing Load: 14.7N
Moving Amount (X Distance): ±Approx 90mm / 3.5in
Sliding Table Material: Aluminum alloy
Feeding Method: Fine-tuning knob type
Moving Guide: Dovetail guide
Treatment: Anodic oxidation treatment
Amount of Movement in One Rotation: Approx. 18mm / 0.7in
Horizontal Movement Accuracy: 50μm
Vertical Movement Accuracy: 50μm
Corresponding for Misumi Model: XLWG200
