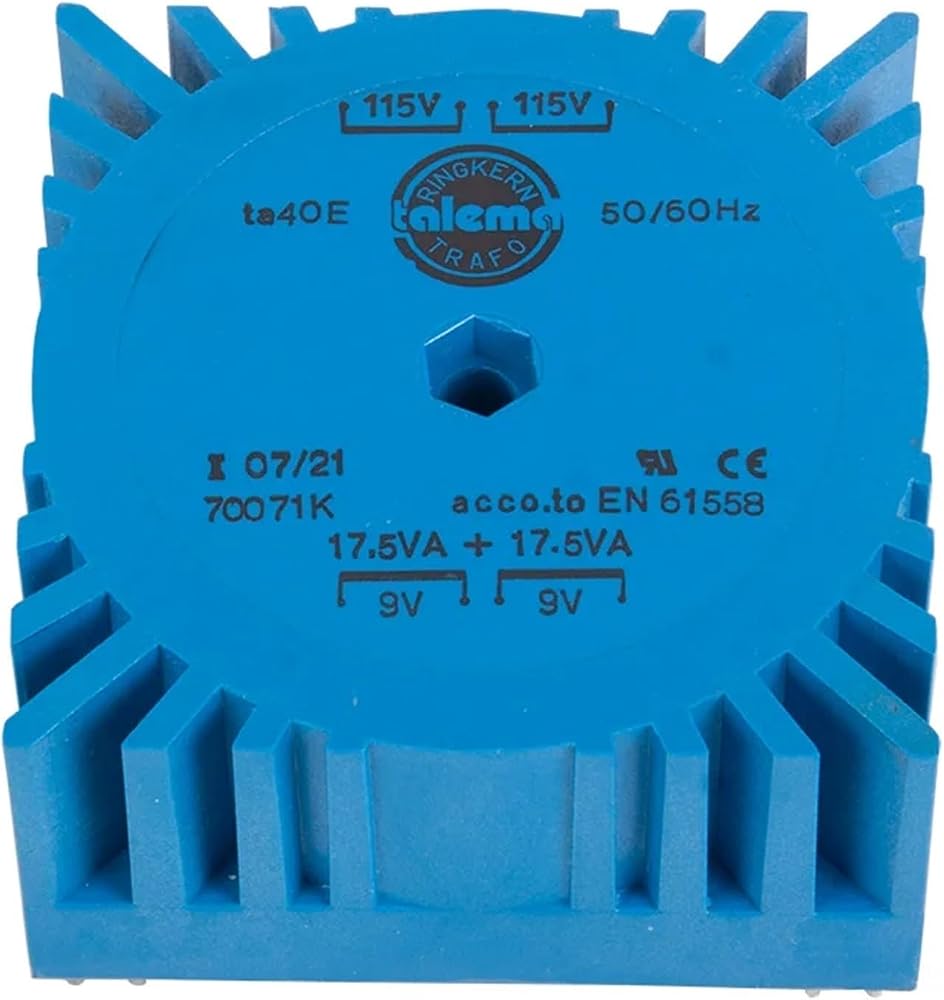

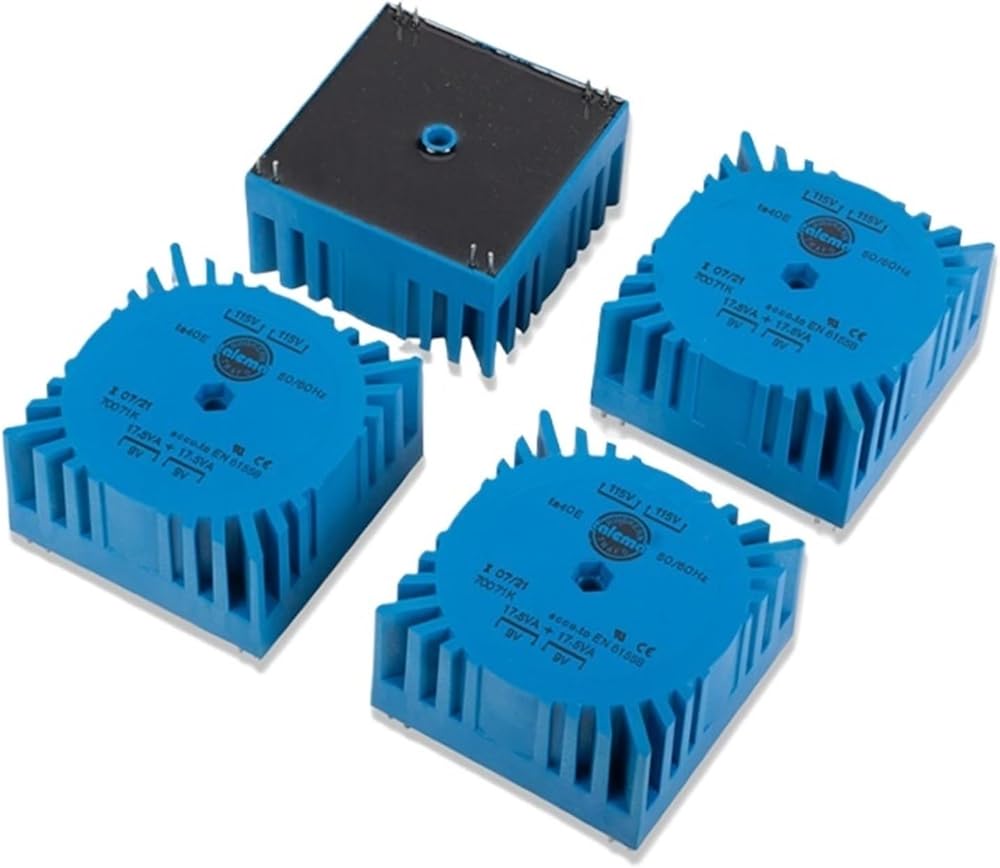

Transformers
Low profile and compact design
Enclosed is fully UL94-V0 compliant
Very low radiated magnetic field
Very low beep and noise
High efficiency and low temperature rise
easy to install
100% Electrical and Insulation Tested
Number of outputs: 2
Weight: 525g
Rated power: 35VA
Maximum operating frequency: 60Hz
Minimum operating frequency: 50Hz
Maximum temperature: +60°C
Primary rated voltage: 115V
Fixing hole diameter: M4
Construction: Sealed square ring cow
Approvals: Listed, VDE

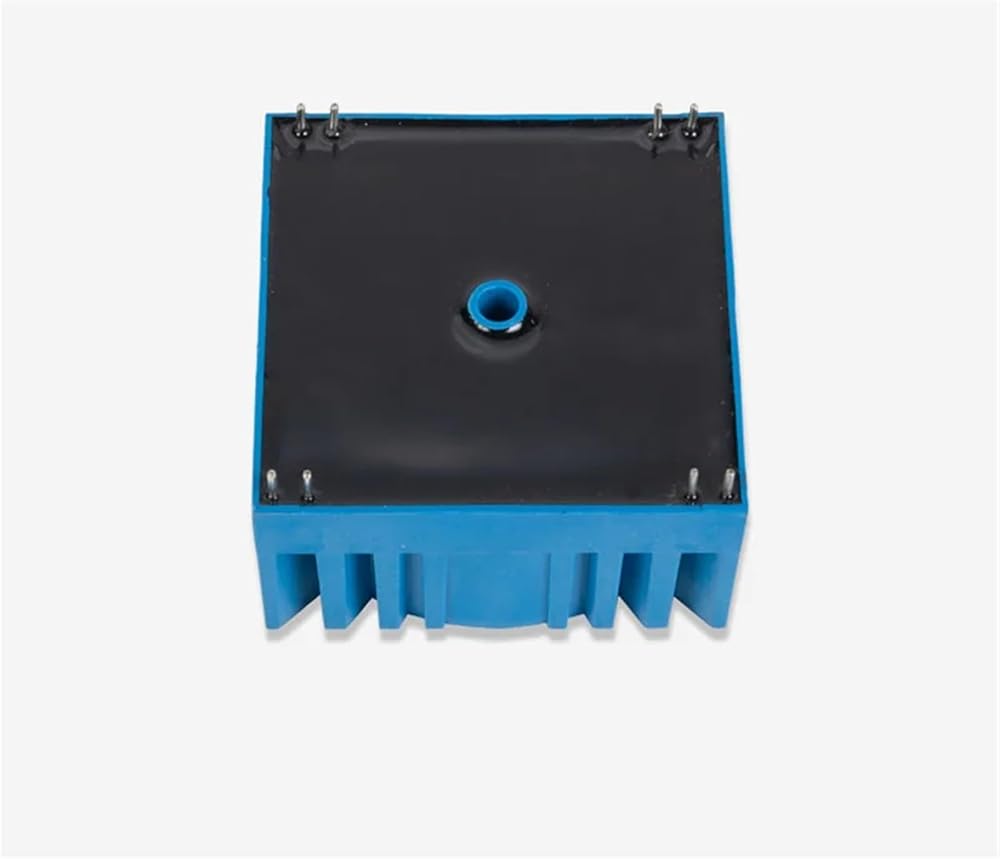

Mounting Type: Printed Circuit Board Mount
Dimensions: 72 x 72 x 37.5mm
Secondary rated voltage: 7V, 9V, 12V, 15V, 18V, 22V optional
Standards: EN60950, VDE0805, UL506, UL1950, UL6500
Condition: (RS source)
