Coil heaterdescription:
Coil heater's production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating . Spring heating ring external using Ni-Cr steel tube, the internal use of high purity magnesium oxide,high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically area, high thermal conduction, while internal heating material damage, external can reuse.
Specification:
Nameofproduct
Hot runner heater
InnerDiameterofcoiledheater
8-38mm(+0.05mm)
Coil style Length
40-200mm(+0.5mm)
staright style length
200-3000mm(+0.5mm)
Cross-section
Round Dia.3mm;3.3mm;3.5mm
Square:3x3mm;3.3x3.3mm,4x4mm,
Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm
Tube Material
SUS304/SUS/310S/Incoloy800
Tube color
sliver or annealed black
Insulation
High pure Mgo
Inner heating element
NiCr8020
Voltage
12v;24v;110v;220v;240v;380v
Wattage
200-3000w(6.5W/CM2 )+5% tolerance
Max. Temperature:
650°C
Built-in thermocouple

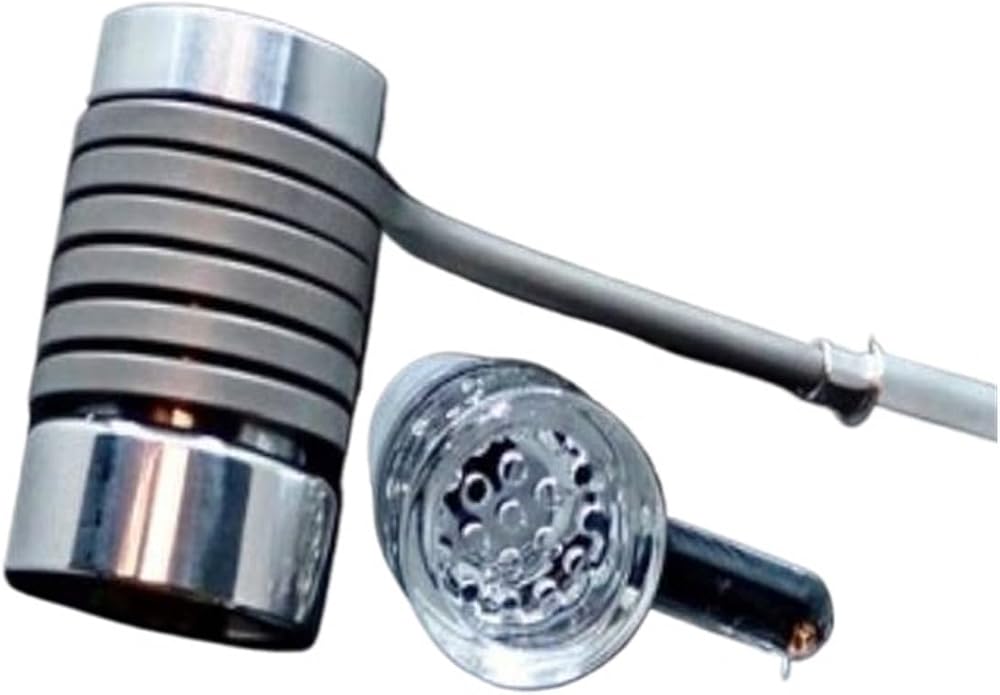

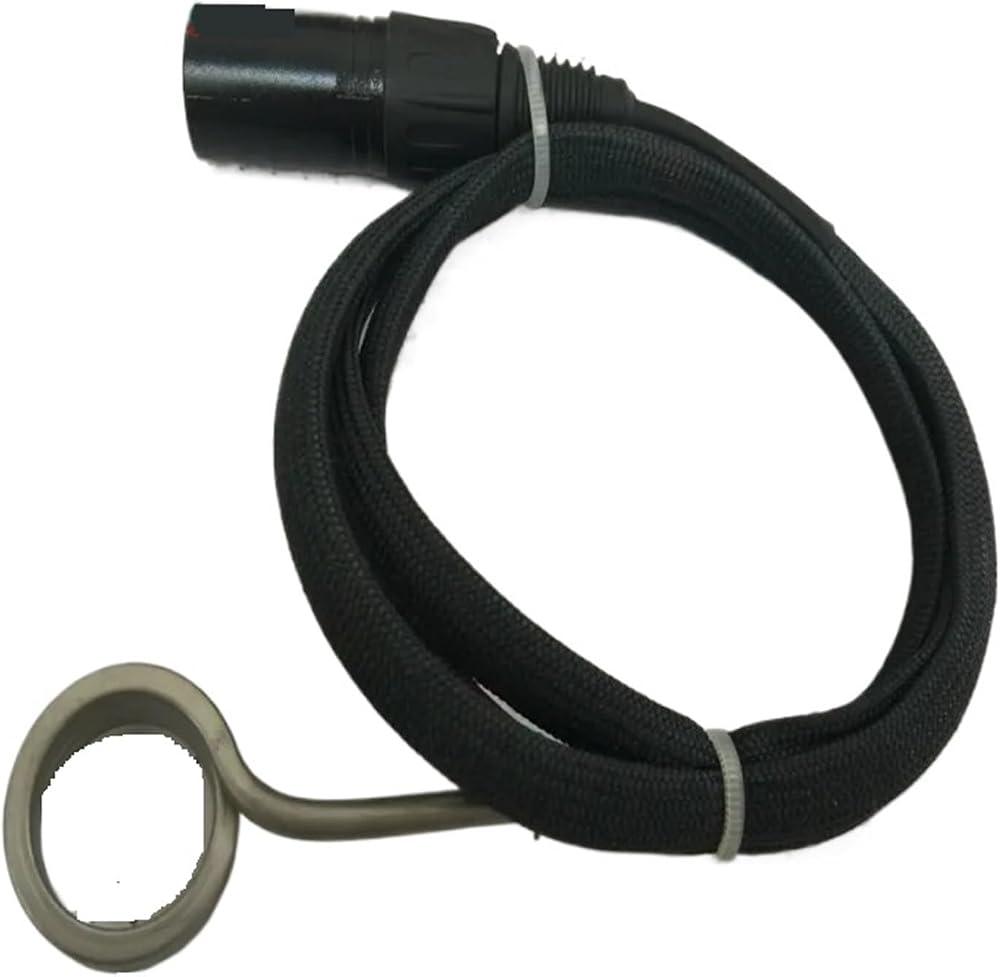

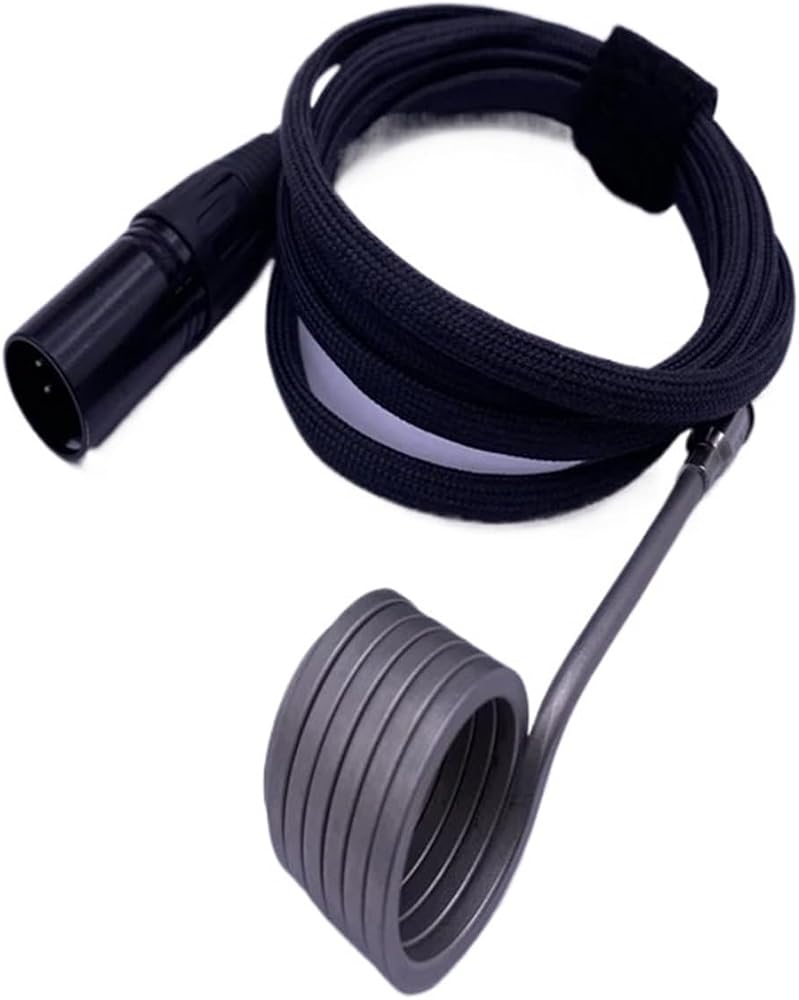

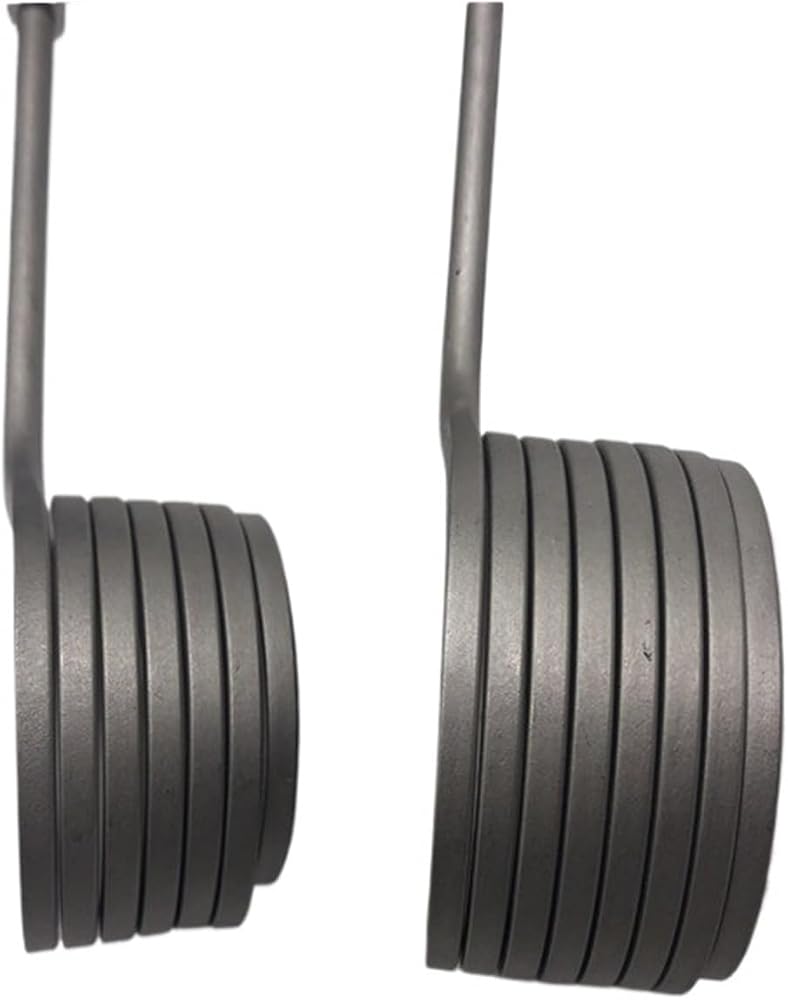

Coil Heater Photos:

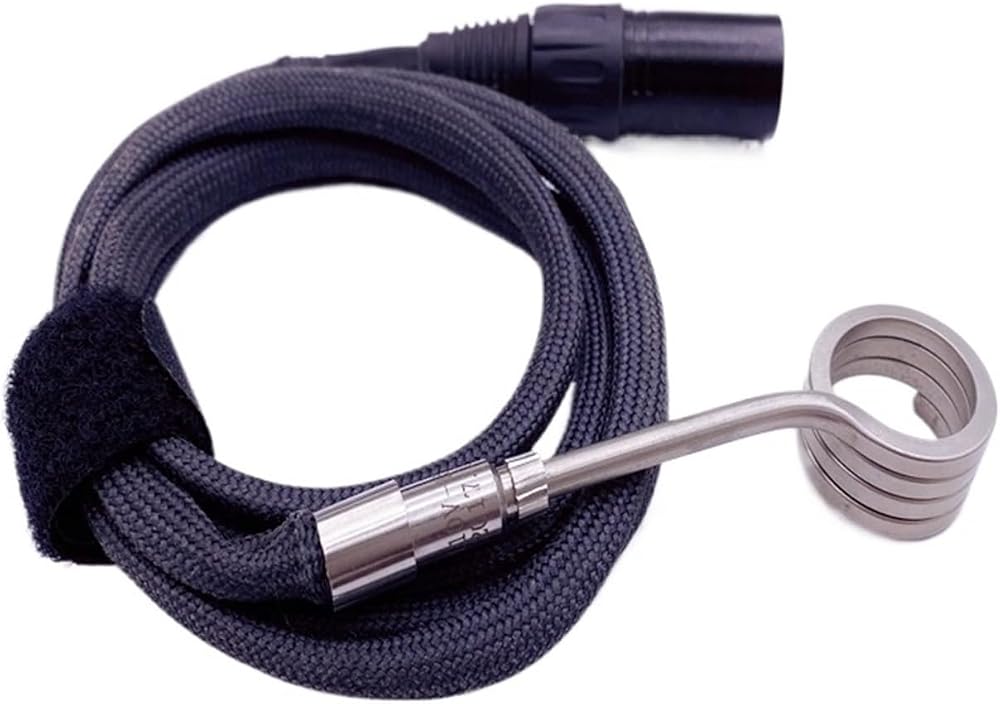

ID20mm, 6-7wraps
Heating section:3x3mm
110v/100w
With Thermocouple K
With wire length 1000mm
With xlr 5pins connector)
(1&2 power wire 34 TC wire 5 ground wire
