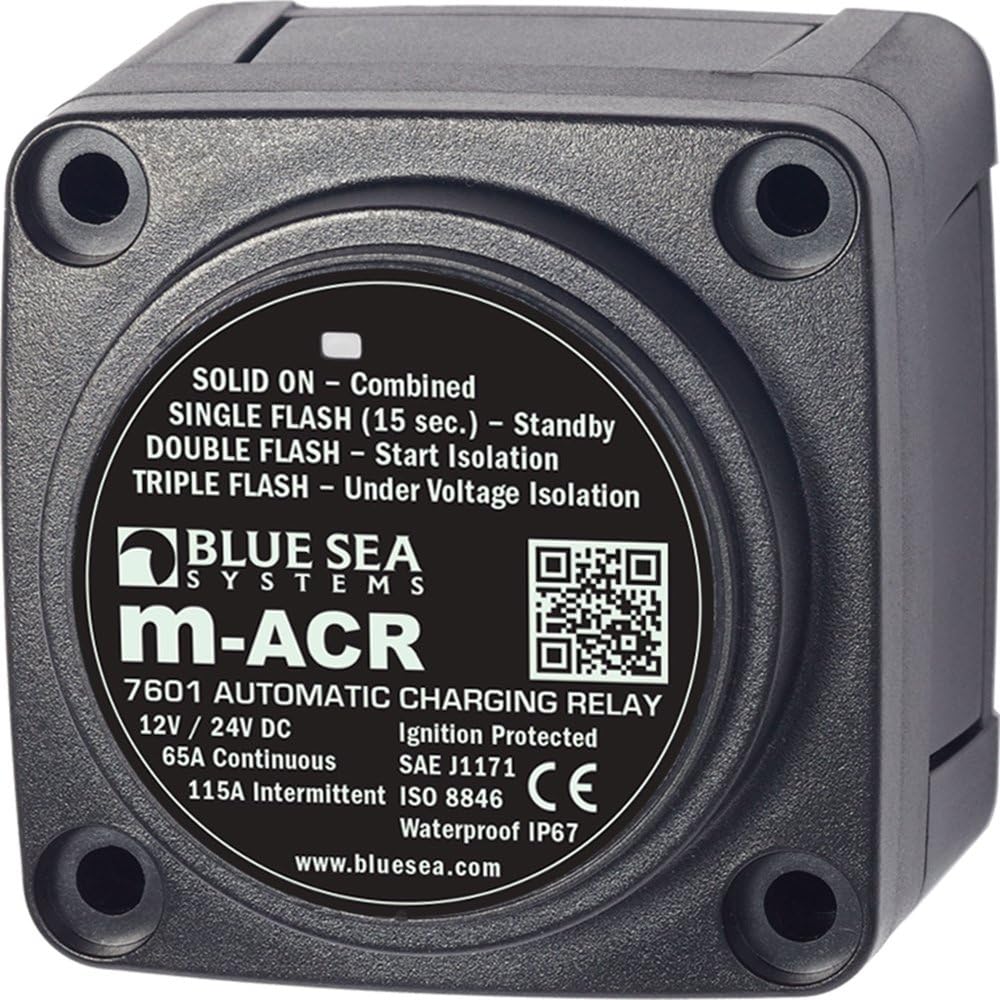

The Amazing Quality 7601 DC Mini ACR Automatic Charging Relay - 65 Amp

Features:

65 Amp continuous rating manages the charging current from alternators up to 65 Amps found on most outboards and many inboard engines

Compact case design allows surface and panel mounting

Senses charging on two battery banks

Snap-on cover insulates terminal connections

LED indicates ACR status

1/4" x .032" male quick connect terminal for ground

5/8" (16 mm) stud length to accept multiple cable terminals

12V DC voltage input

Specifications:
Intermittent Rating: 5 min.: 115A

Terminal Stud Size: 1/4"-20

Relay Contact Position: Open (30 sec.): 12.75V DC

Continuous Rating: 65A

Maximum Torque: 75 in-lb (8.5 Nm)

Relay Contact Position - Open High: 16.0V DC

Amperage Operating Current: 175mA (Combine)

Relay Contact Position: Combine (30 sec.): 13.0V DC

Under Voltage Lockout: 9.5V DC

Amperage Operating Current: 15mA (Open)

Relay Contact Position: Combine (2 min.): 13.6V DC

Maximum Cable Size: 1/0 AWG

Relay Contact Position: Open (10 sec.): 12.35V DC
