مميزات خاصة

Maximum repetitive peak reverse voltage (VRRM): 1000V
Maximum RMS bridge input voltage (VRMS): 700V
Maximum DC blocking voltage (VDC): 1000V
Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A
Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A

وصف

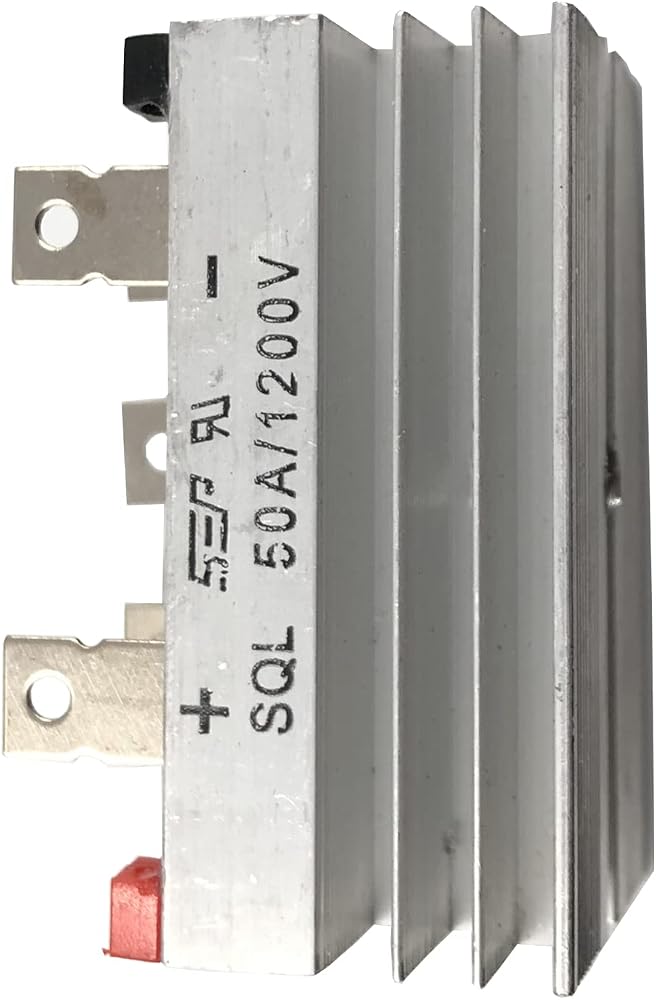

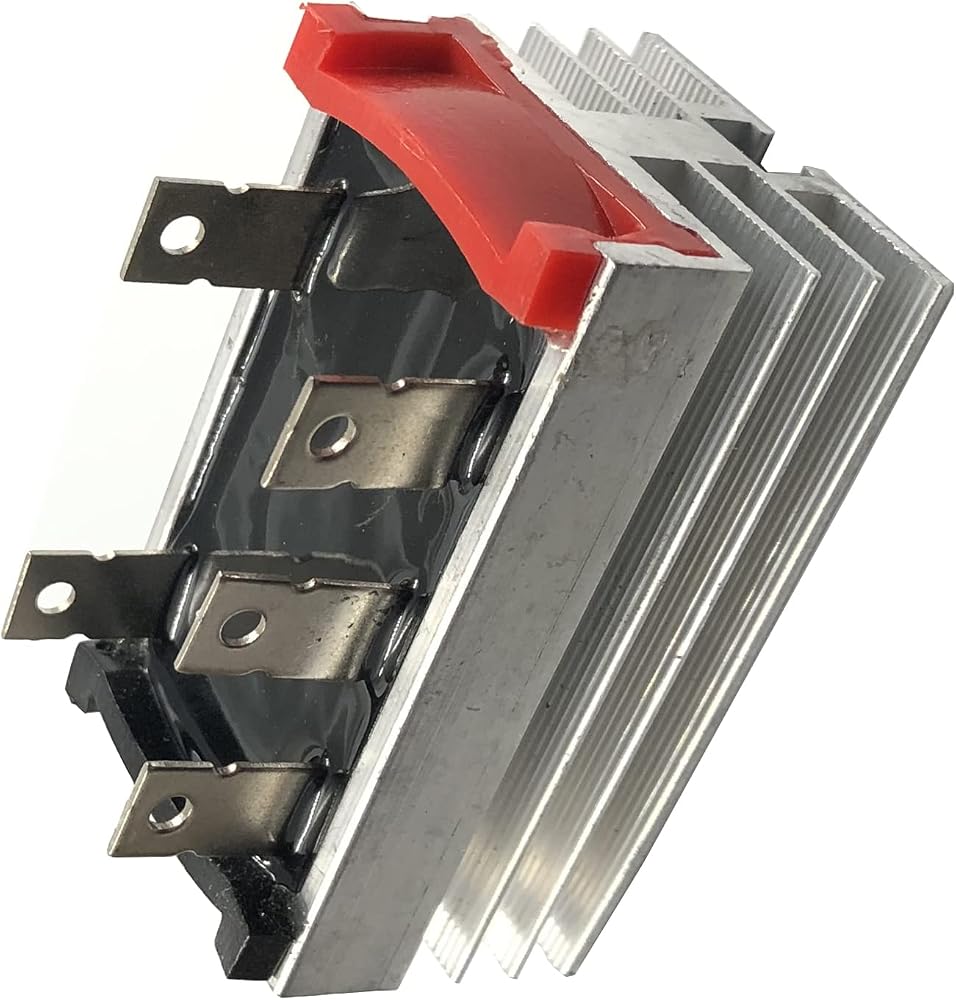

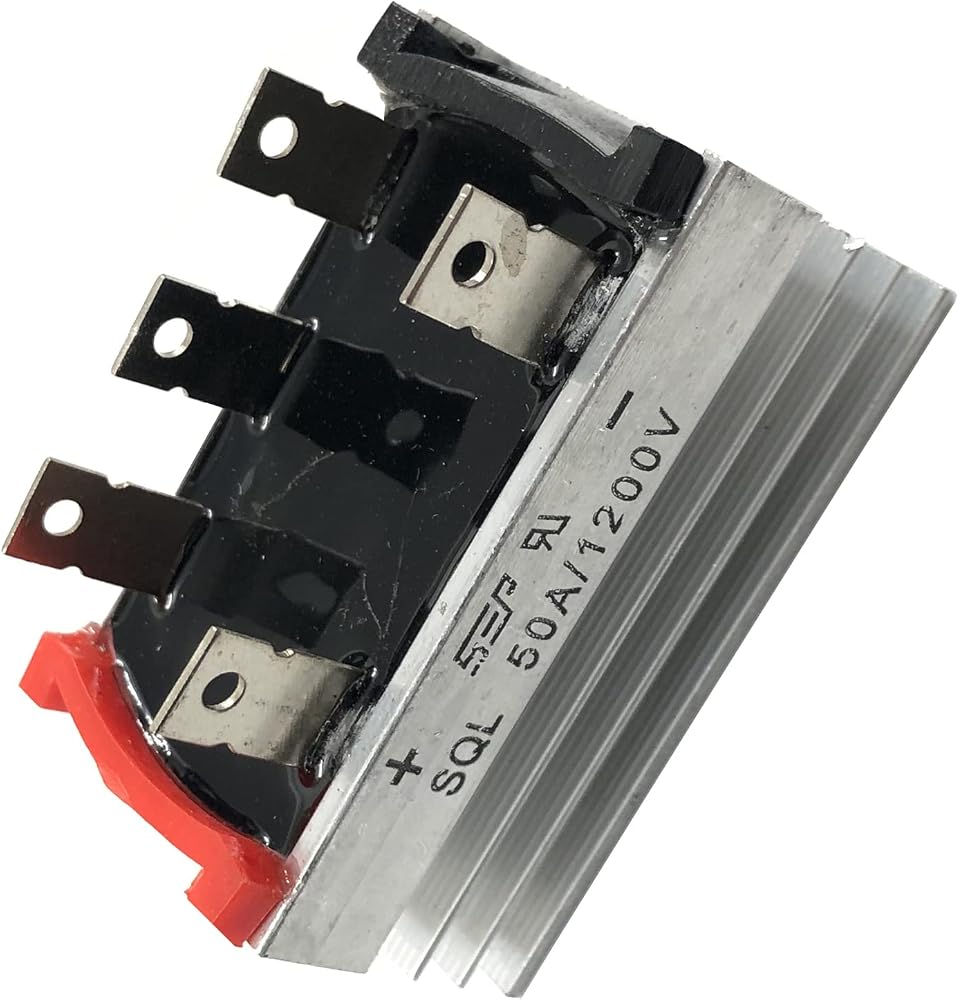

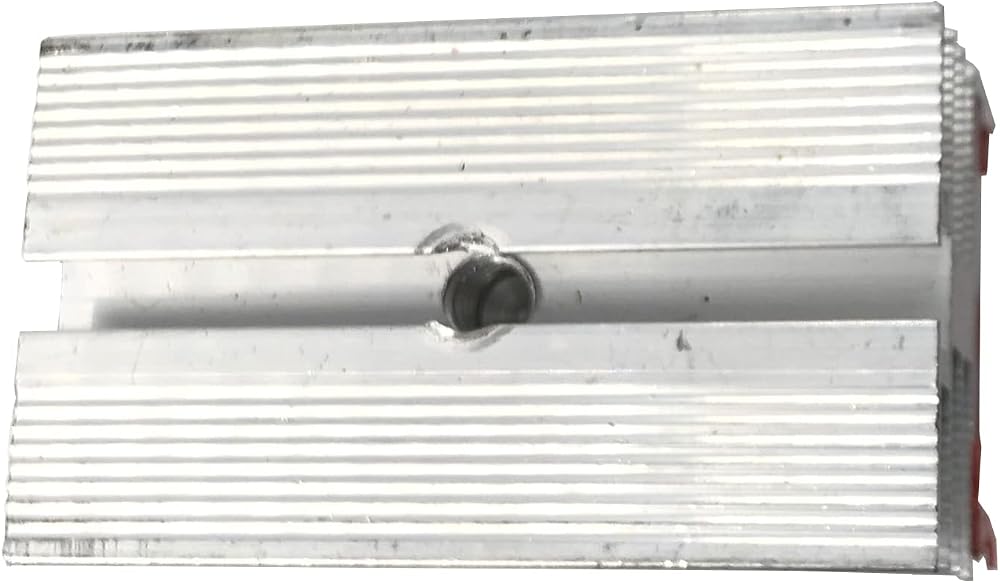

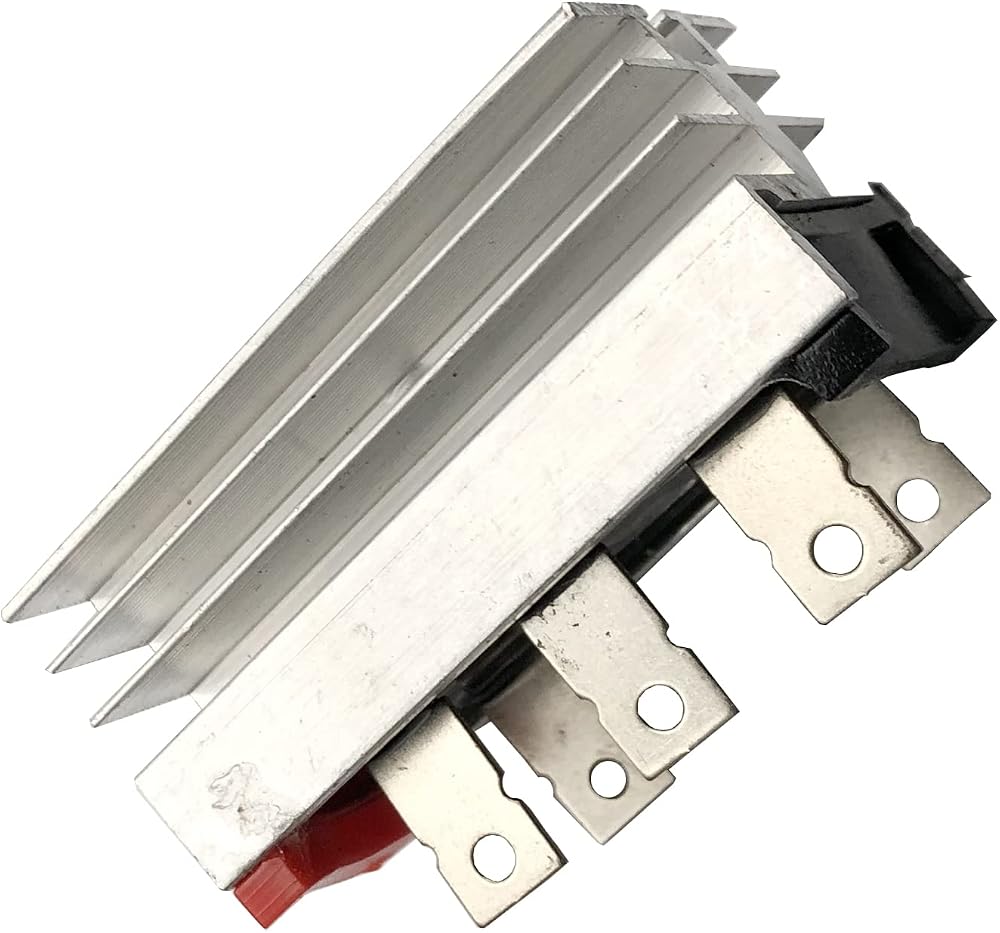

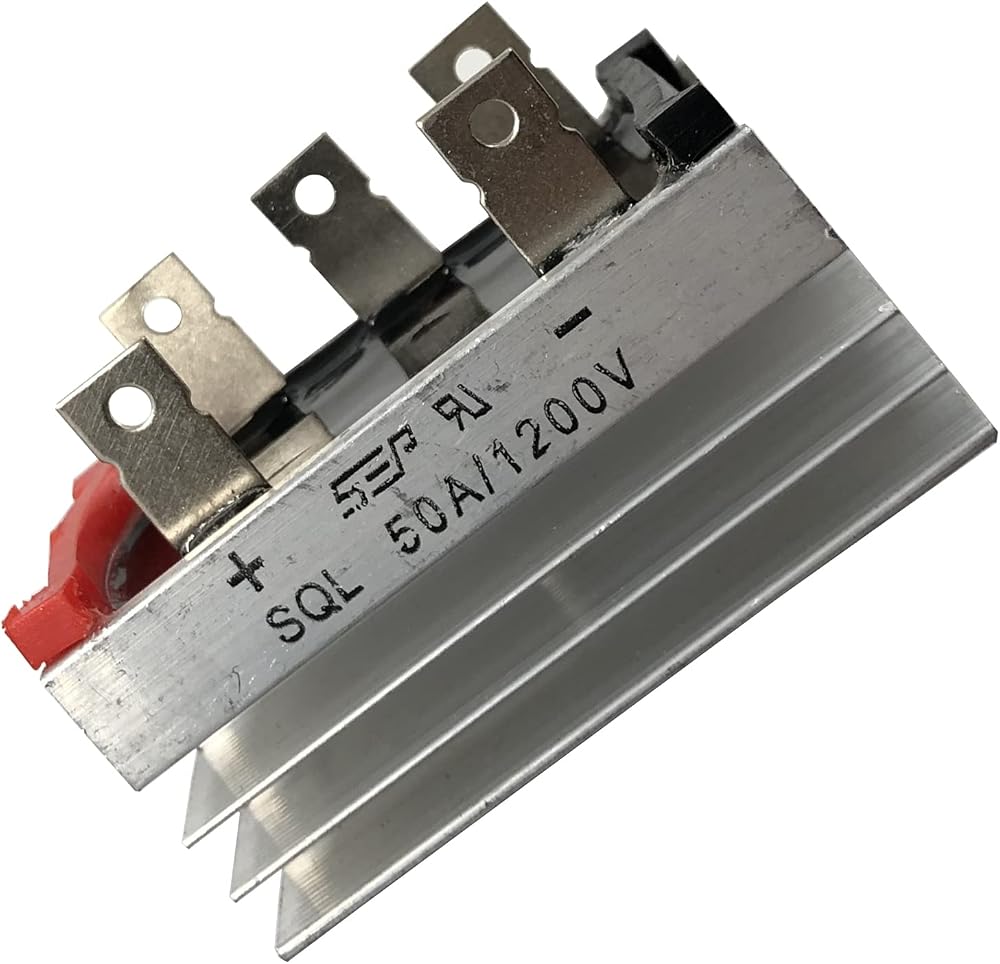

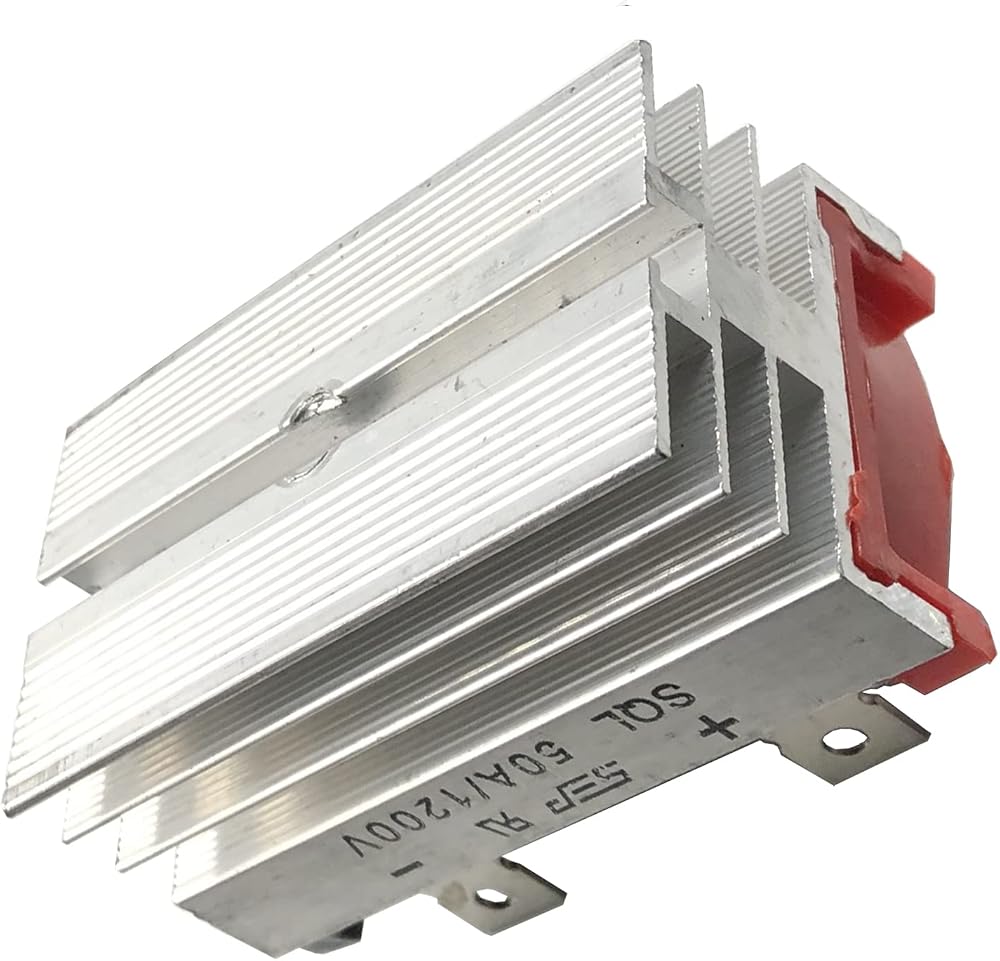

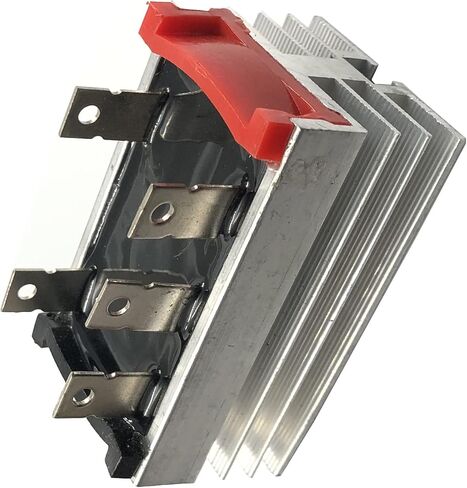

- This 50A 1200V silicon bridge rectifier features an electrically-isolated heatsink case for maximum heat dissipation,surge overload rating of 400A, and low voltage drop

- Maximum repetitive peak reverse voltage (VRRM): 1000V

- Maximum RMS bridge input voltage (VRMS): 700V

- Maximum DC blocking voltage (VDC): 1000V

- Maximum average forward rectified output current at TA=40 C (IF(AV)): 50A

- Peak forward surge current single sine-wave superimposed on rated load (JEDEC Method) (IFSM): 400A

- Typical thermal resistance per element (ReJA): 2.5 degrees C/W

- Operating junction and storage temperature range: -55 to +150 C

- Maximum instantaneous forward voltage drop per leg at 25A (VF): 1.0V

- Maximum DC reverse current at rated TA=25 C (IR): 10uA

- DC blocking voltage per element TA=125 C (IR): 500uA

منتجات شبيهه

{"error":"\u062e\u0637\u0623","cart_limit":"\u0644\u062f\u064a\u0643 \u0627\u0644\u0643\u062b\u064a\u0631 \u0645\u0646 \u0627\u0644\u0645\u0646\u062a\u062c\u0627\u062a \u0641\u064a \u0633\u0644\u0629 \u0627\u0644\u062a\u0633\u0648\u0642 \u0627\u0644\u062e\u0627\u0635\u0629 \u0628\u0643.","prod_limit":"\u0644\u0627 \u064a\u0645\u0643\u0646\u0643 \u0625\u0636\u0627\u0641\u0629 \u0627\u0644\u0645\u0632\u064a\u062f \u0645\u0646 \u0647\u0630\u0627 \u0627\u0644\u0645\u0646\u062a\u062c"}

مرحبًا،

بحث

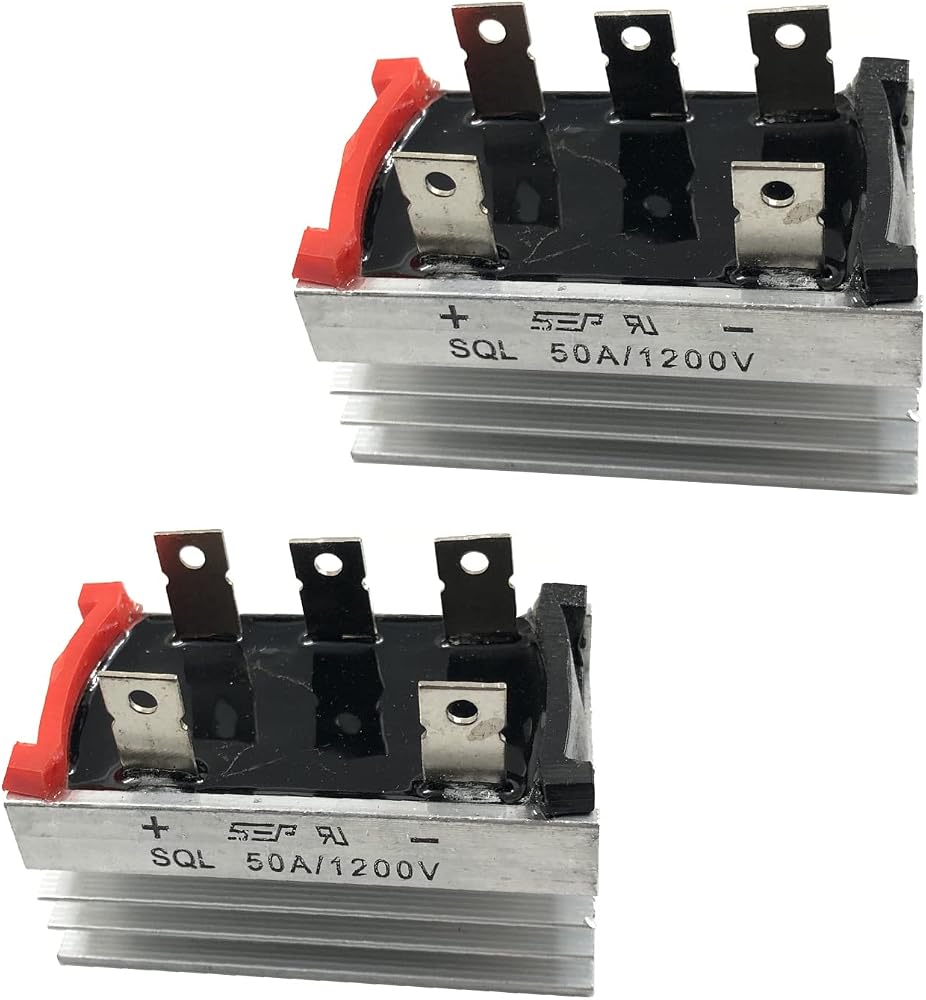

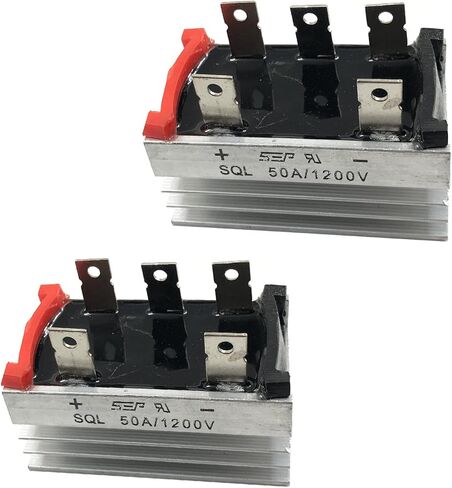

Fainwan 2PCS SQL50A Bridge Bridge Diode 3-Phase Diode 50a AMP 1200V to DC Power Accessories Aluminium
