Transformers

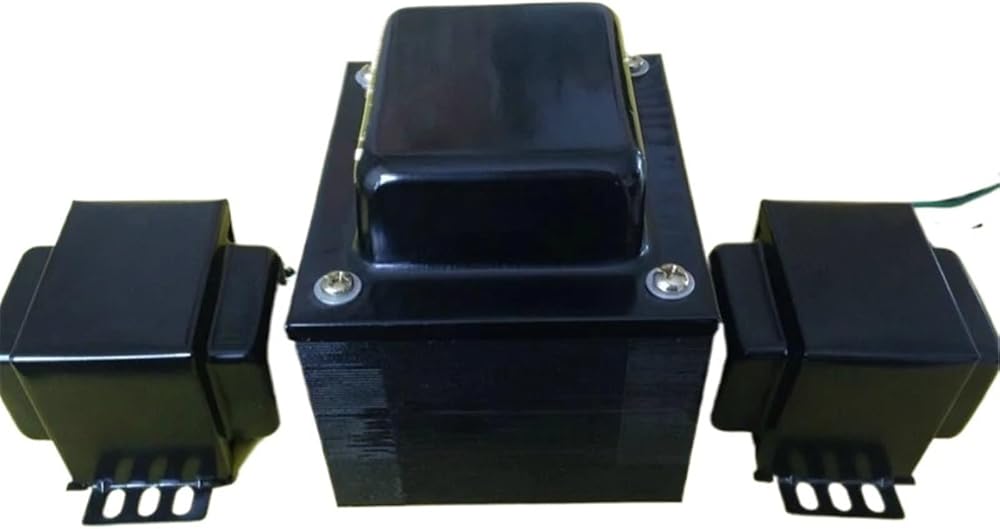

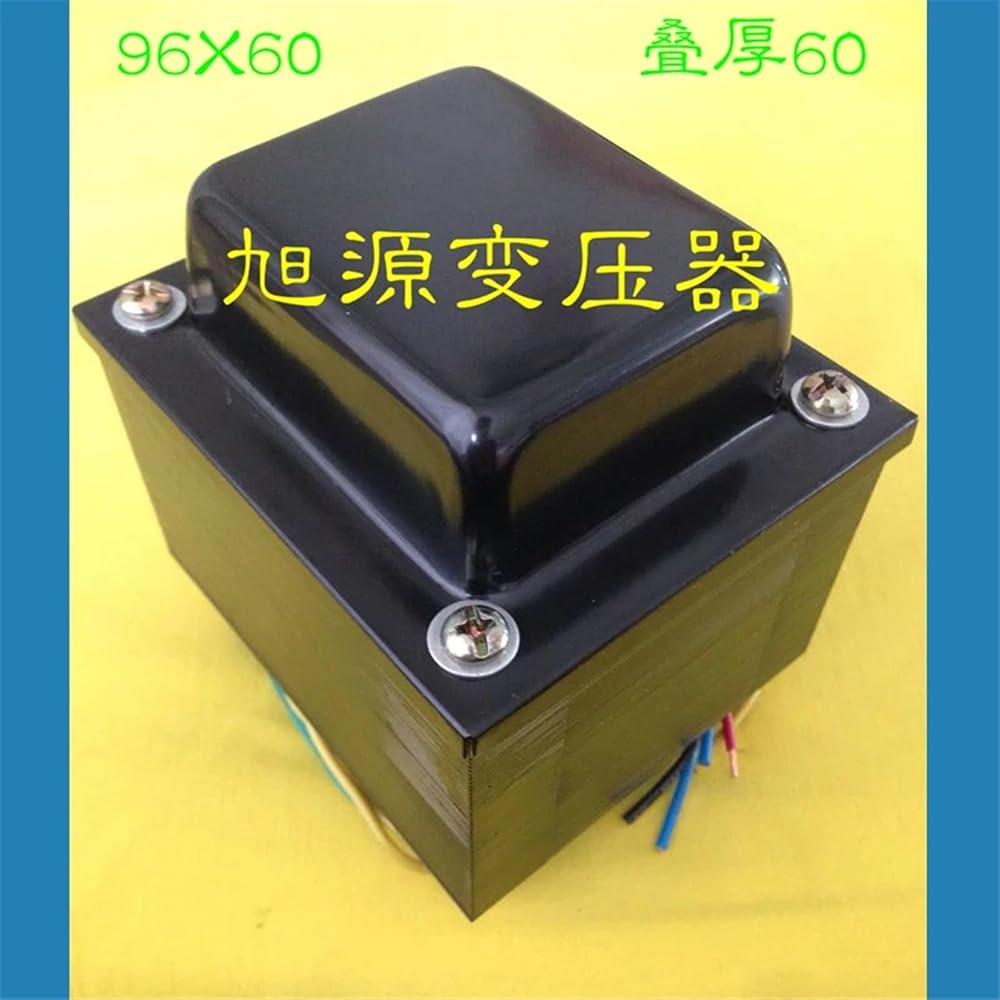

Transformer 185W universal power transformer for 6P3P EL34
Steel sheet 96 0.5
Skeleton 96X60 tongue width 32 stack thickness 60
Primary 0-220V-230V
Secondary 300V -- 0 -- 300V 220ma
5V 3A
3.15V -- 0 -- 3.15V 3A = (6.3V - 3A )
3.15V -- 0 -- 3.15V 3A = (6.3V - 3A )

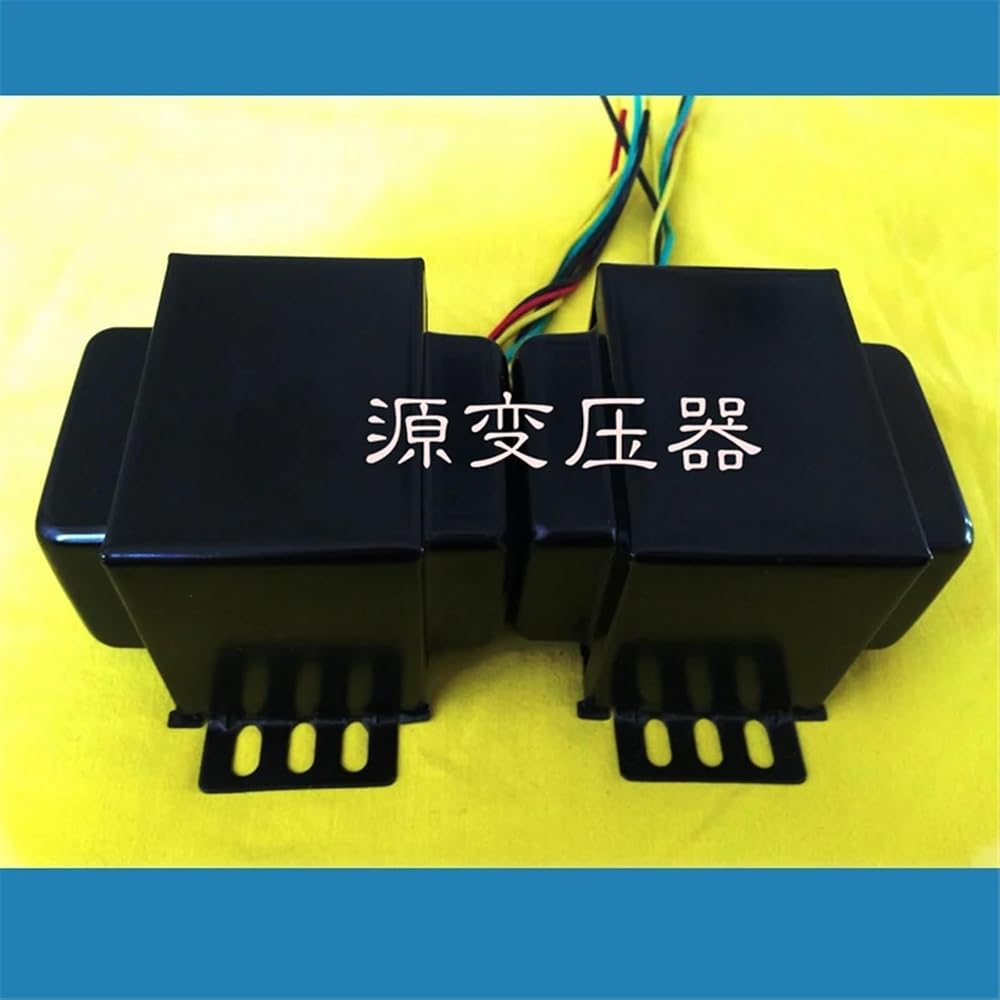

Amplifier output 10W transformer
Copper wire: pure oxygen-free copper wire
Impedance: 3.5K
B--G--P (G super linear)
Secondary: 0--4--8 ohms
Frequency response: 20hz-25khz
Inductance: 28H
Resistance: 340 ohms
Volume: length 68mm width 80mm height 58mm
Mounting hole distance 80mm
