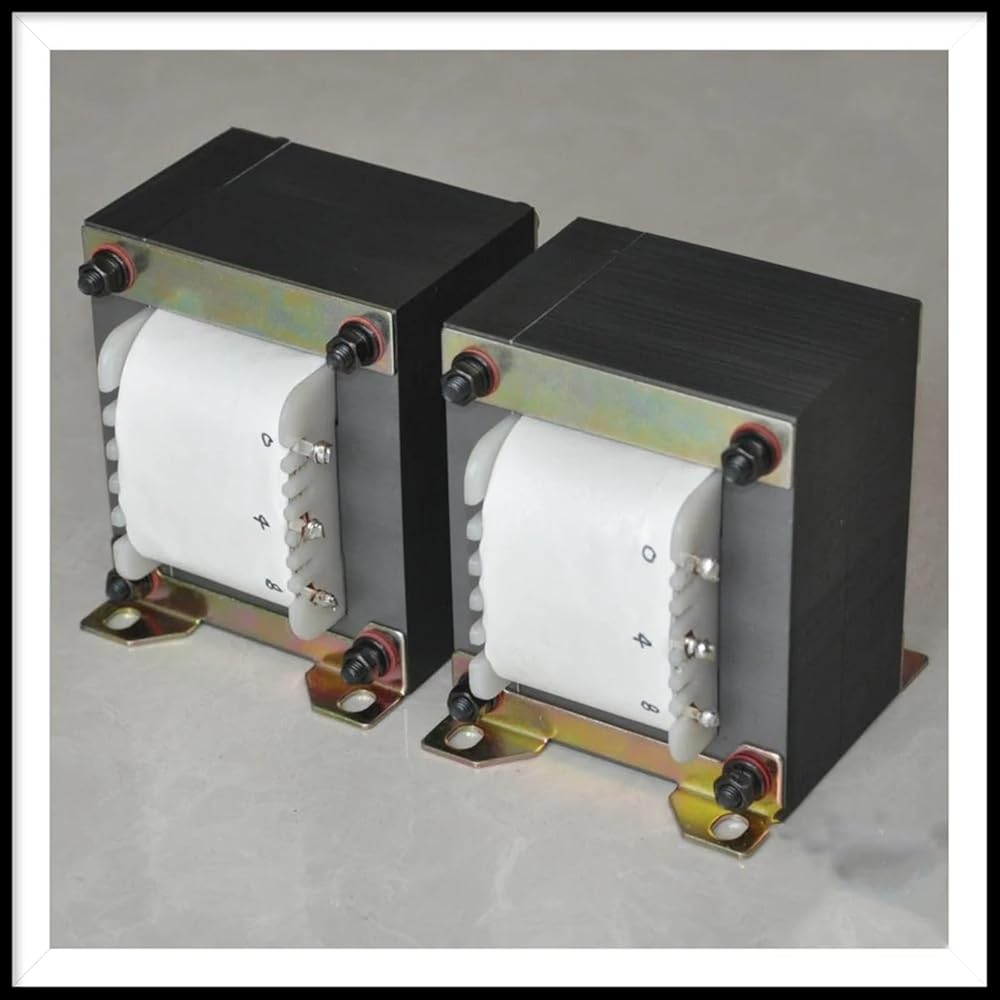

2PCS 8K/10k/12W Amplifier 6P1/EL84/6v6 Tube Amplifier Power Supply Output Z11 Silicon Steel
Steel sheet size: 66*30 mm (tongue width 22*30)
Iron core material: Z11 0. 35mm
Primary Impedance: P-P 8K/10K
Secondary Impedance: 0-4-8 ohms
Primary DC resistance: P-P 248m, two arms error less than 0.5%
Secondary DC resistance: 0-4: 0. 35 ohms 0-8: 0. 45 ohms
Primary Inductance: 40H
Primary overcurrent: not less than 100ma
Frequency Response: 8-50KHZ (-1db) 20-35KHZ (-0. 3db)
Withstand voltage: 2000Vdc
