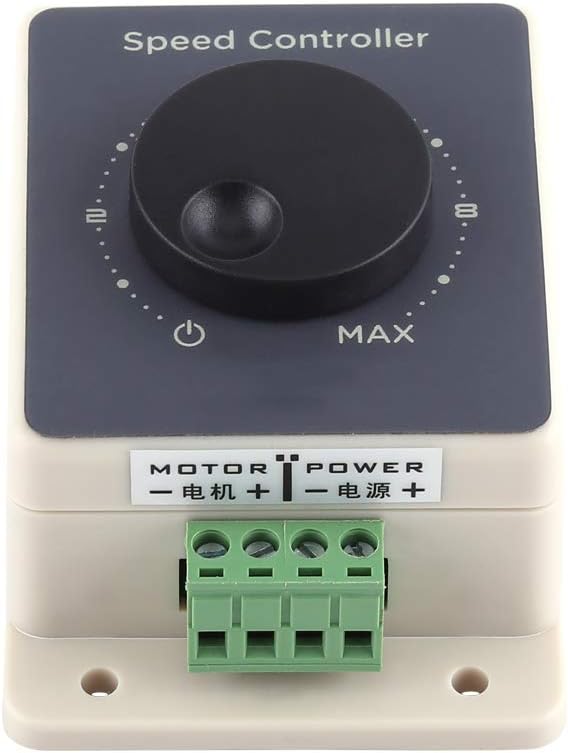

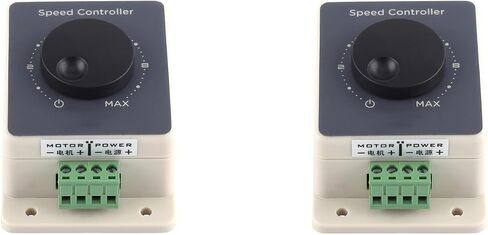

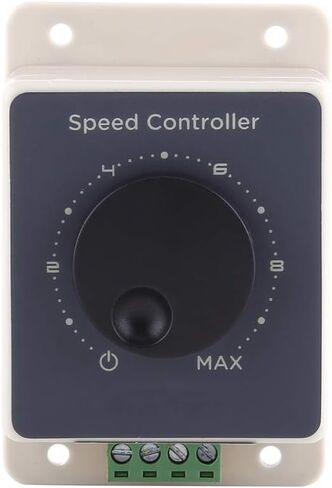

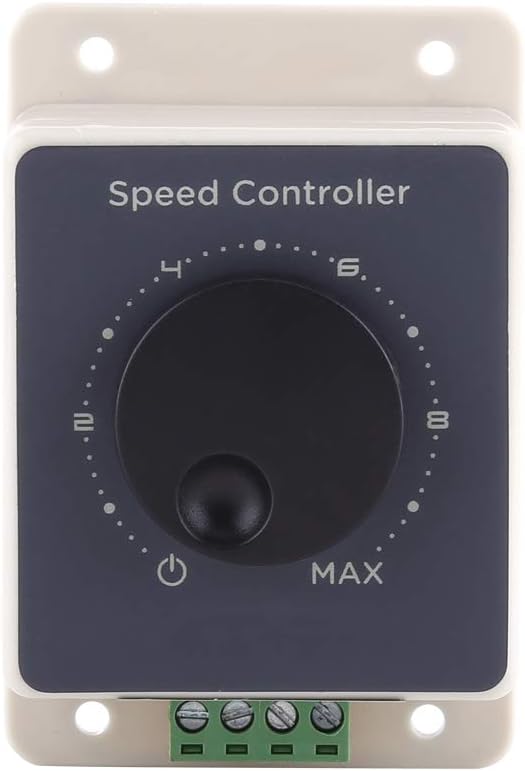

DC Motor Controller 2Pcs DC10-60V 20A Pulse Width Modulator, PWM Motor Speed Controller Sturdy Shell, Speed Regulator DC Motor Governor Stepless Variable Rotary Switch

SAR 84
Weight
216 g
– 1 +

Special Features

  • Effective Speed Controlling: The DC Motor Controller provides an efficiency-boosting solution for managing the speed of your motors. With a PWM (Pulse Width Modulator), the controller varies the pulse width sent to the motor to control its speed more effe
  • Powerful and Versatile: With a control power capability of between 12V*10A=120W for 12V motors and 24V*10A=240W for 24V motors, this controller is designed to power a wide variety of motors. The maximum current that it can handle is 20 amps (A), which is
  • and Durability is a key factor when selecting a motor controller. This device boasts a sturdy, shell that helps to ensure it can function optimally even in outdoor environments or under challenging conditions. It can withst
  • Efficient Assembly: This motor controller comes with a convenient wiring Usage due to the screw terminal and indication label for power and motor electrodes. Such an arrangement reduces the likelihood of an incorrect connection, thus preventing damage due
  • Compact Dimensions: The DC Motor Controller's compact size, measuring at 88 x 59 x 40mm (3.46 x 2.32 x 1.57 inches), allows for a straightforward setup without taking up significant space. Its tap hole size is 8mm (0.31”), offering a snug fit for installa

Description

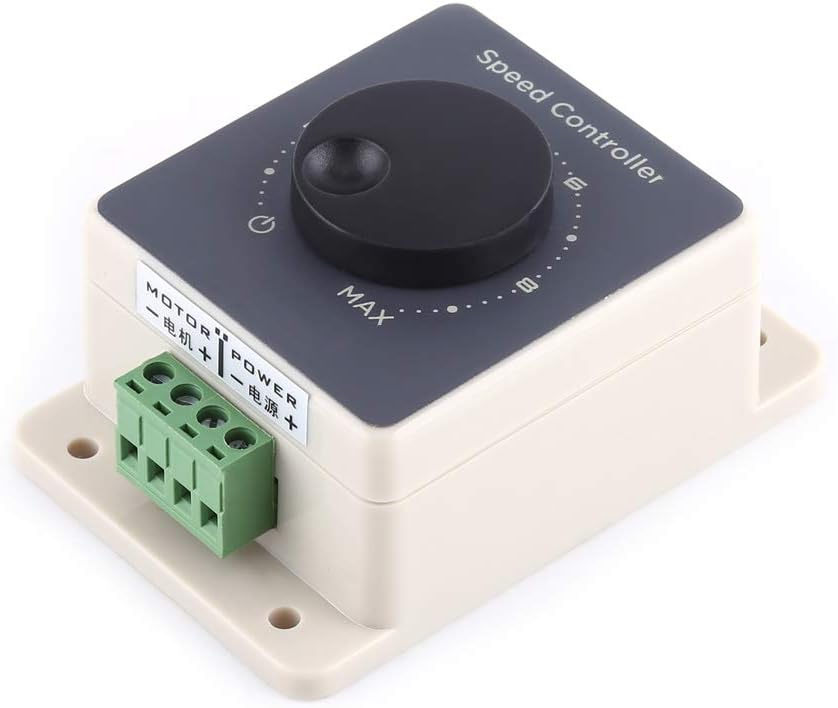

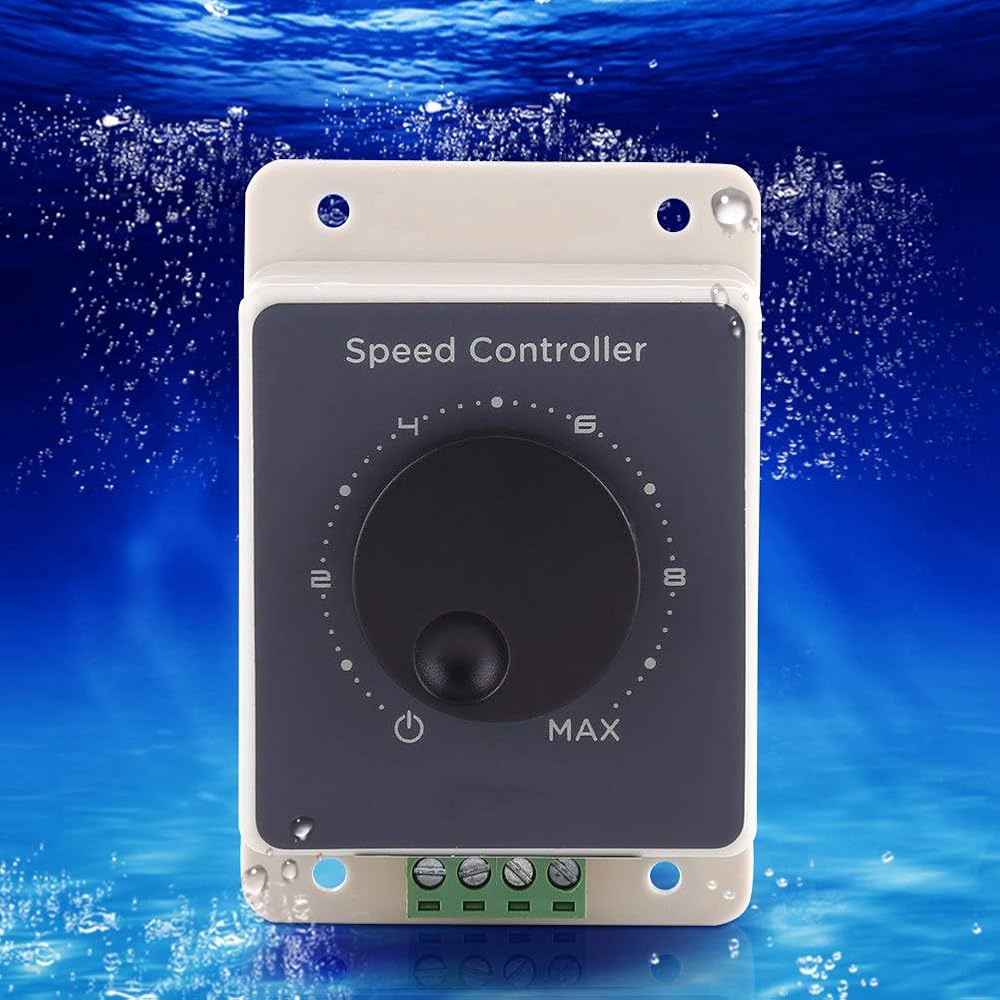

1. This speed controller has a delicate and practical housing which is so you can use it out of doors

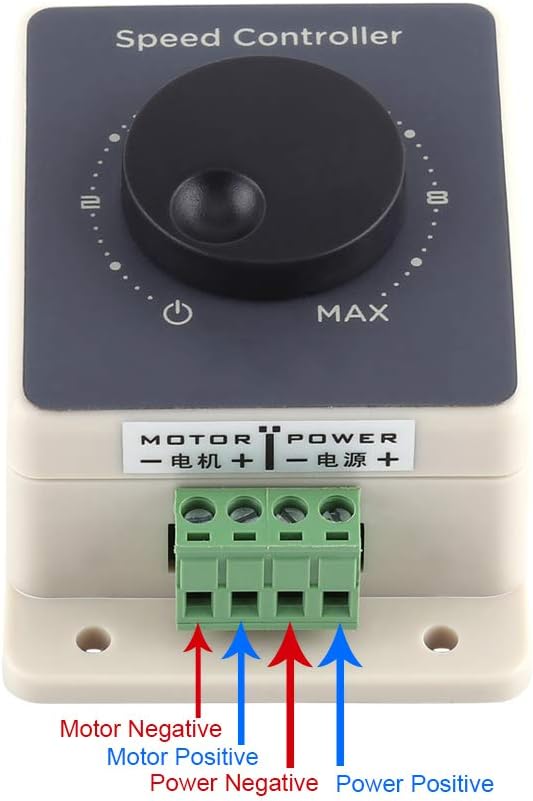

2. Comes with screw terminal and a indication label of power and motor electrodes for convenient wiring
3. DC motor controller input is connected to direct current, can not be connected to alternating current, or it will be burnt
4. Make sure the positive and negative polarity is connected correctly, otherwise the controller will be damaged
5. Suitable for 12V motors with power less than 120W, 24V motors with power less than 240W, etc

Specifications:
Potentiometer Resistance: B100K
Input Voltage Range: DC 10V-60V
Control Power: 12V*10A=120W,24V*10A=240W......
Rated Current: 10A
Max Current: 20A
Speed Range: 5%-100%
PWM Frequency: 25Khz

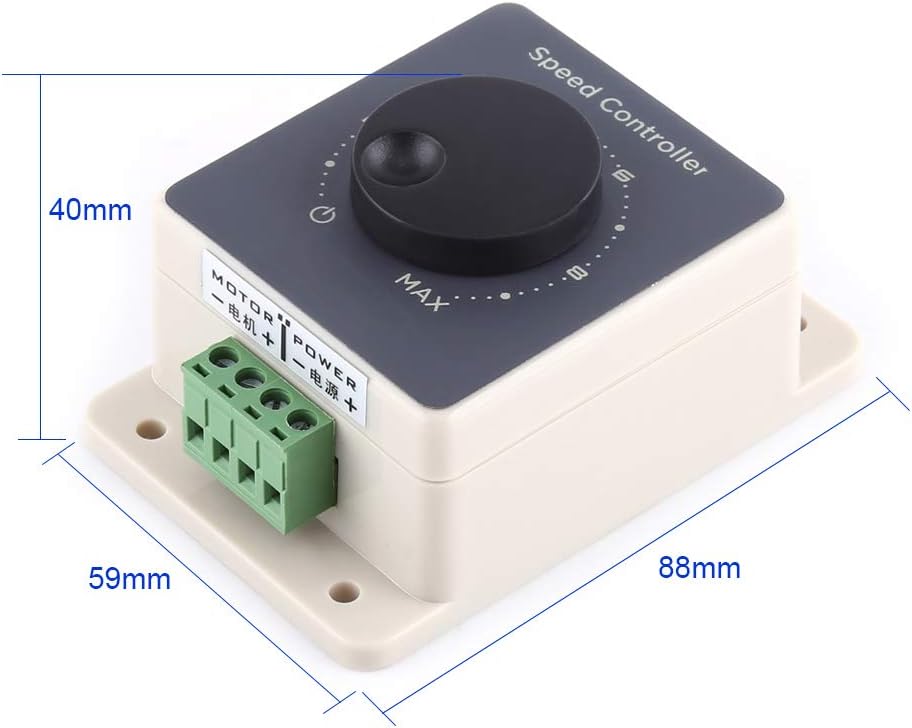

Size: 88 x 59 x 40mm / 3.46 x 2.32 x 1.57
Tap Hole Size: 8mm / 0.31

Package Includes:

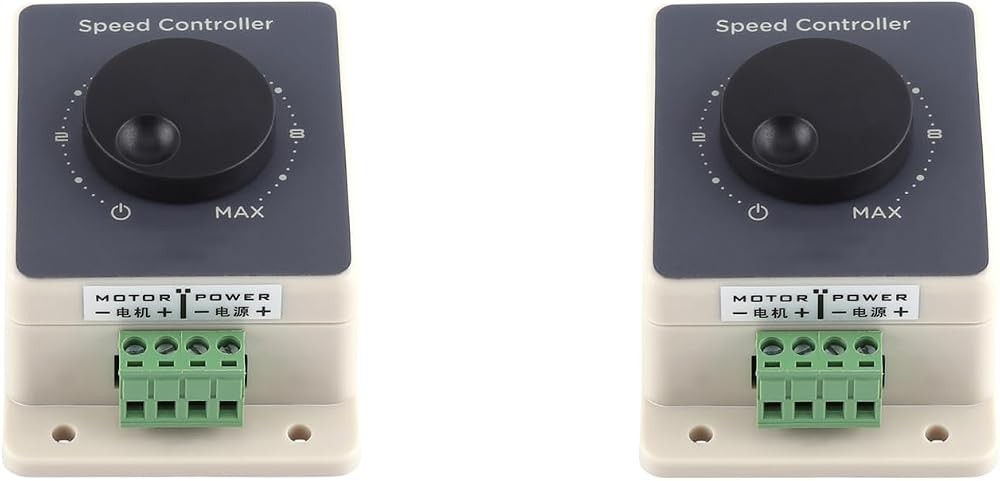

2 x Speed Controller
