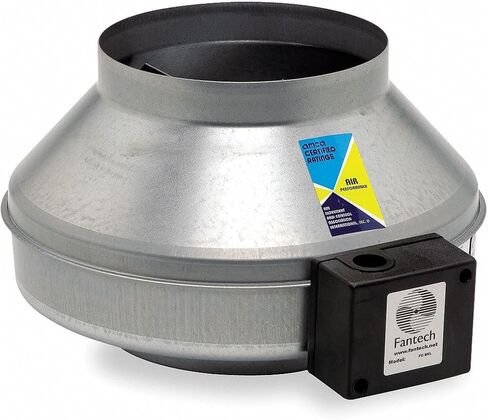

Prewired galvanized steel fan has lower sound levels than comparable surface-mounted fans. Totally enclosed motor has externally mounted wiring box, 3"L x 3
1/2
"W x 1
1/2
"D. Mounts horizontally or vertically and includes mounting bracket. Features airtight housing and backward curved impeller.

Item: Inline Centrifugal Duct Fan
Housing Material: Galvanized Steel
Fits Duct Dia.: 8"
Voltage: 120V
Max. Amps: 1.45
Max. Wattage: 142
Number of Speeds: 1
Housing Dia.: 13-3/8"
Length: 8"
CFM @ Duct: 502
CFM @ 0.000-In. SP: 502
CFM @ 0.125-In. SP: 482
CFM @ 0.200-In. SP: 470
CFM @ 0.250-In. SP: 460
CFM @ 0.375-In. SP: 438
CFM @ 0.400-In. SP: 428
CFM @ 0.500-In. SP: 408
CFM @ 0.600-In. SP: 388
CFM @ 0.750-In. SP: 360
CFM @ 0.800-In. SP: 351
CFM @ 1.000-In. SP: 313
CFM @ 1.200-In. SP: 266
CFM @ 1.500-In. SP: 218
Max. Inlet Temp.: 140 Degrees F
Inlet and Outlet Dia.: 7-7/8"
Hz: 60
Phase: 1
Motor HP: 1/8
Motor RPM: 2950
Motor Enclosure: Totally Enclosed
Bearing Type: Ball
Speed Control: Mfr. No. 48C172
Mounting Position: Horizontal or Vertical
Standards: C-UL-US, AMCA Certified
Includes: Mounting bracket
Green Environmental Attribute: Product Contributes To Reducing Energy Consumption
Green Certification or Other Recognition: ENERGY STAR
