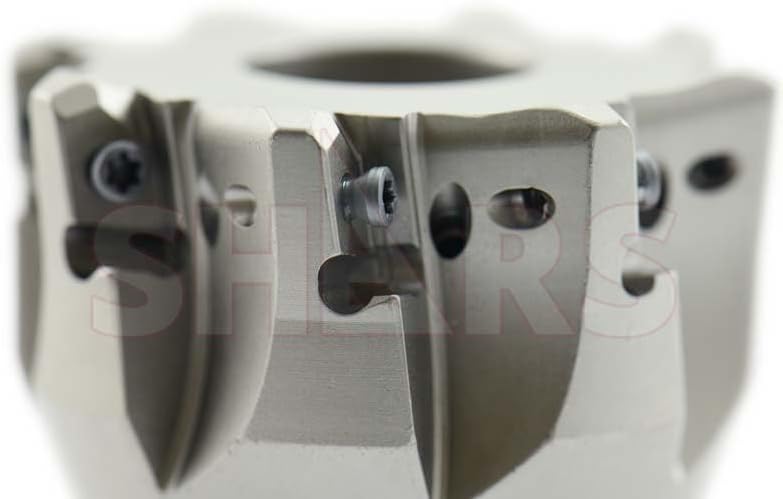

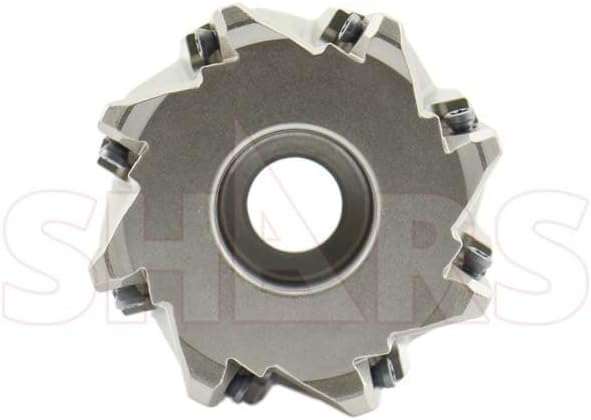

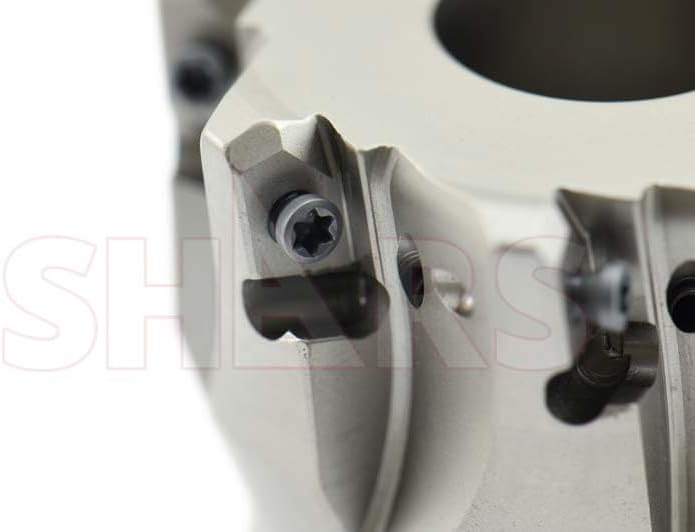

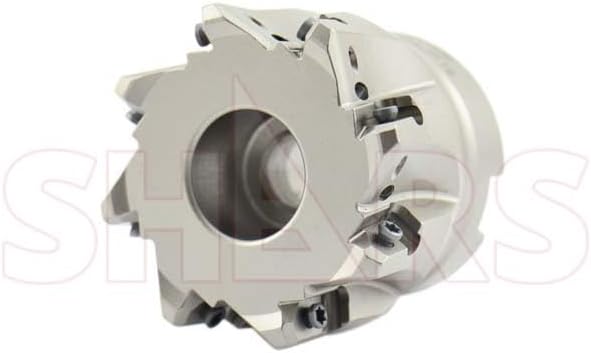

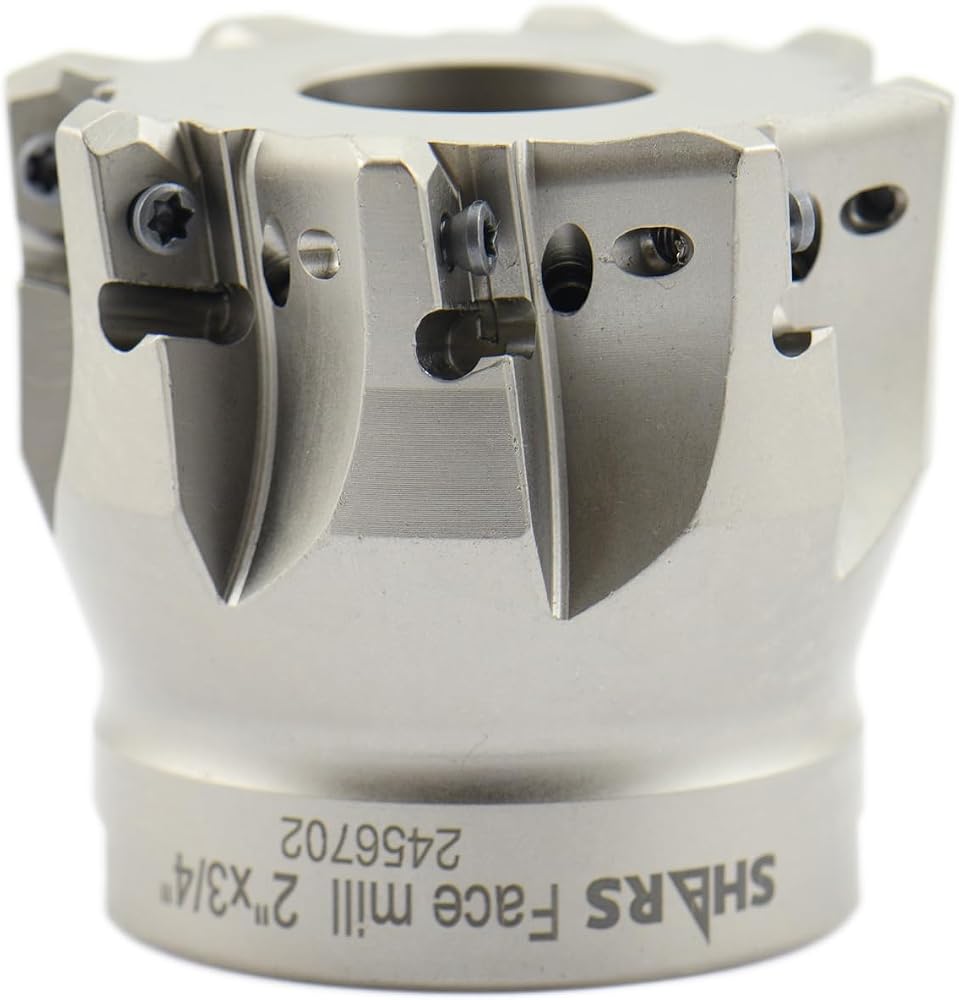

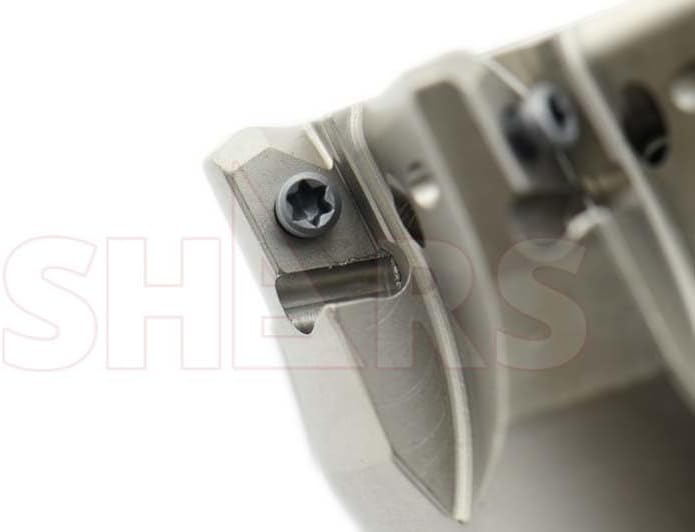

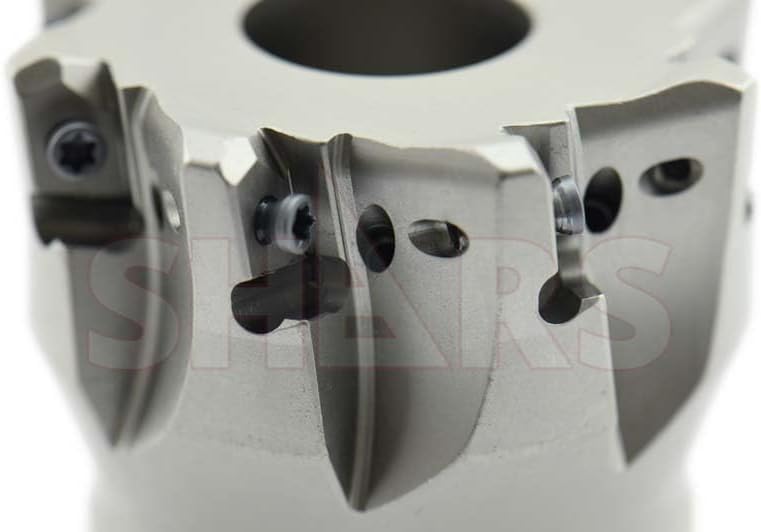

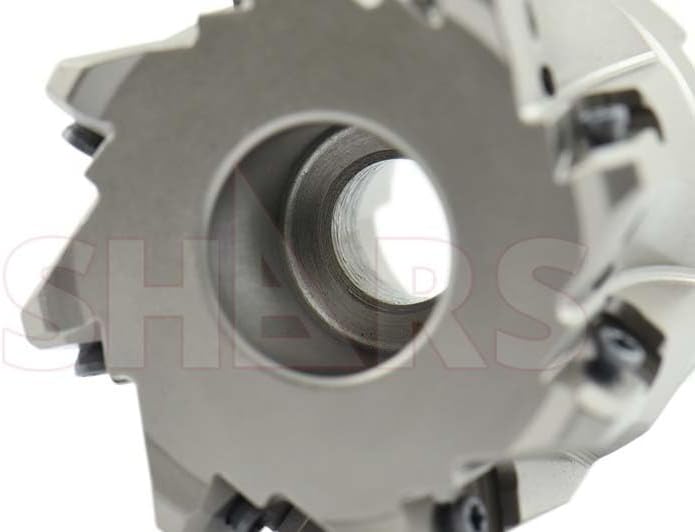

A single cutter body can be mounted with a variation of ENMX insert to perform high feed, square shoulder, slotting, plunge milling, ramping, helical milling, or profile milling
High performance cutter design for roughing with large feed rate
It's strongly recommended to use the cutter in a high rigidity working environment when roughing for optimal cutting efficiency. Start by reducing the cutting parameter then gradually step up the parameters to achieve the best outcome

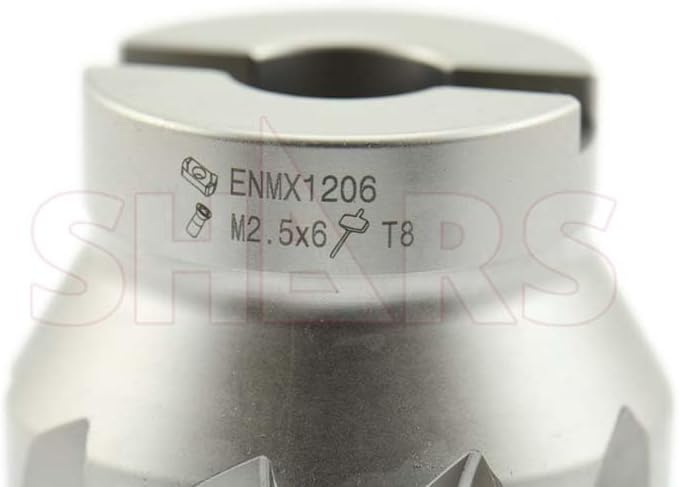

Use ENMX 1206 insert (sold separately)

Square Shoulder Milling
Square shoulder milling is achieved by employing ENMX120608-GM insert with a depth of cut Ap 0.118”

Slot Milling
Slot milling is recommended to employ ENMX1206XR-GM or ENMX120608-GM insert

Plunge Milling
Plunge milling is recommended to employ ENMX1206XR-GM inserts and the maximum cutting width Ae is 0.138” when plunging

Profile Milling
Profile milling is recommended to employ ENMX1206R30-GM insert for various types cavity face roughing

Ramp Milling
Ramp milling and helical milling generally chooses ENMX1206XR-GM inserts, and the maximum ramp angle θ is determined by the diameter of the cutter
