مميزات خاصة

[Mechanical automatic drain]: The compressed air condensate automatic drain is a mechanical automatic drain, with a cast aluminum alloy shell and an internal floating ball drainage system.

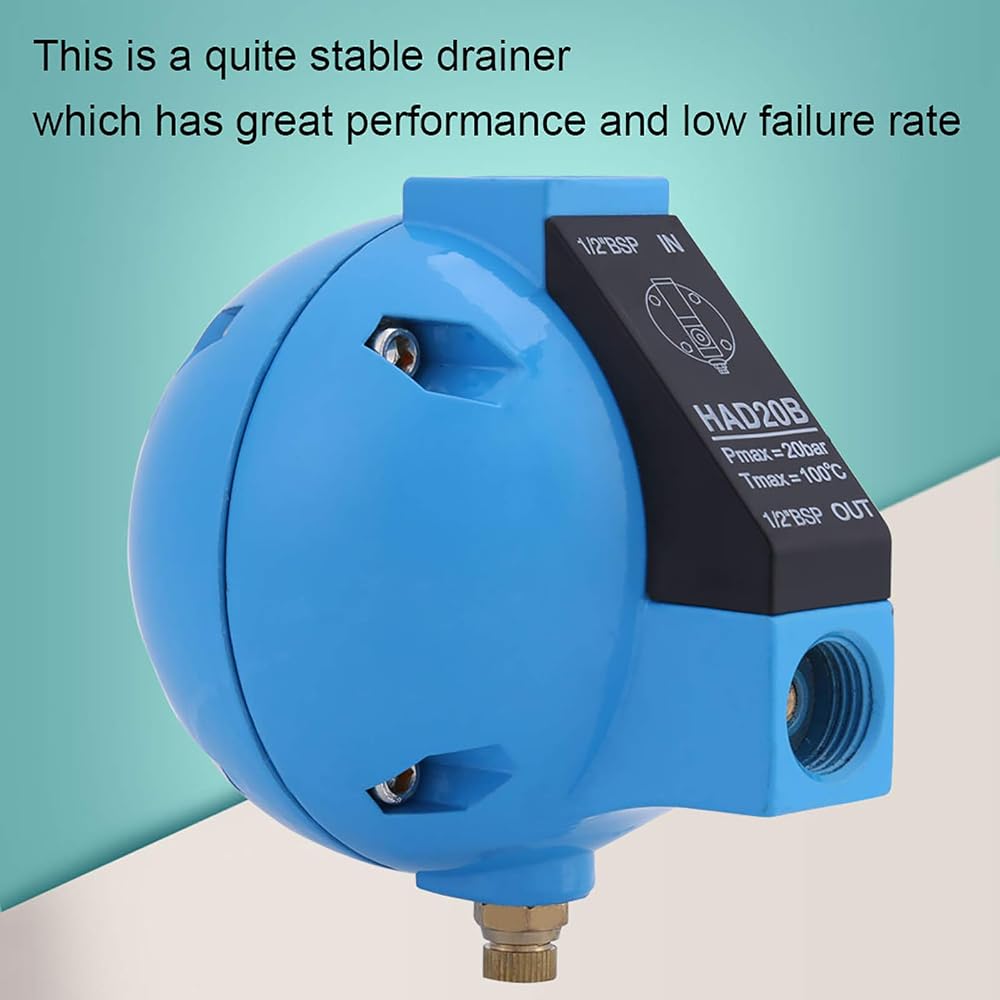

[Upgrade auto drain]: This type of compressed air condensate auto drain is obviously different from the traditional mechanical auto drain, which belongs to continuous droplet discharge. This is a fairly stable drain with excellent performance and a low failure rate.

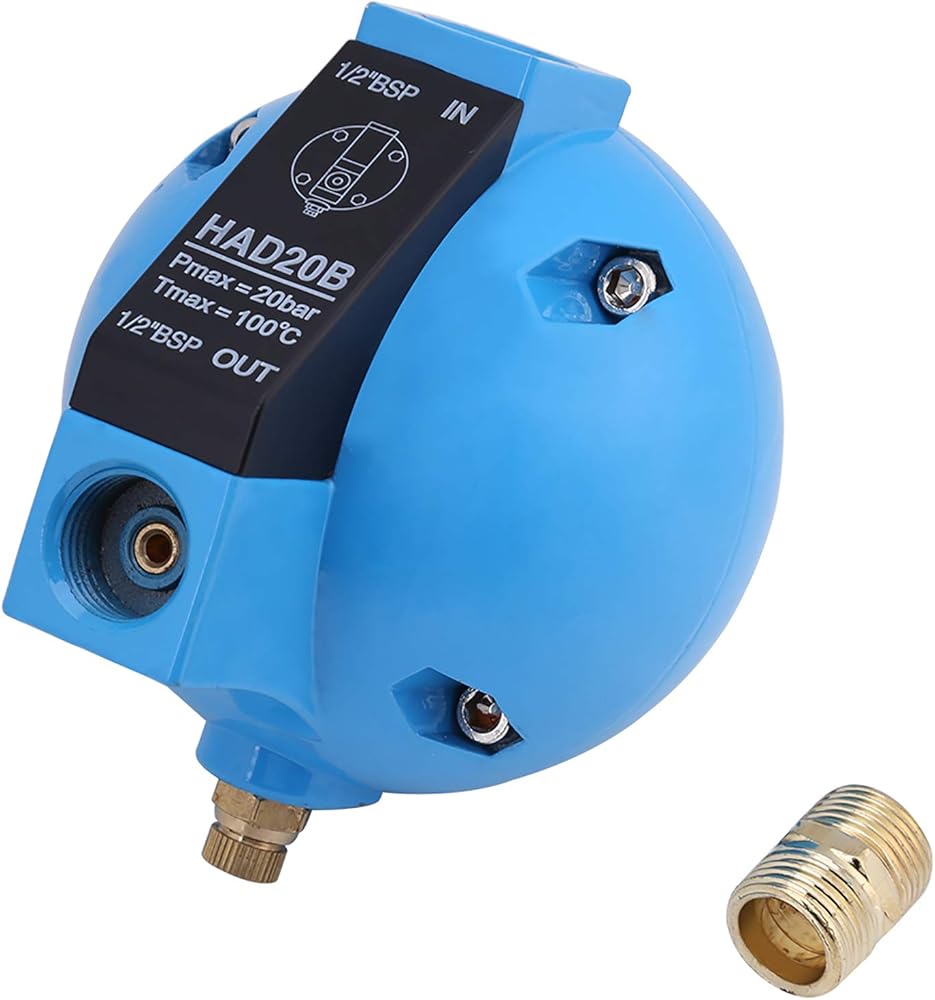

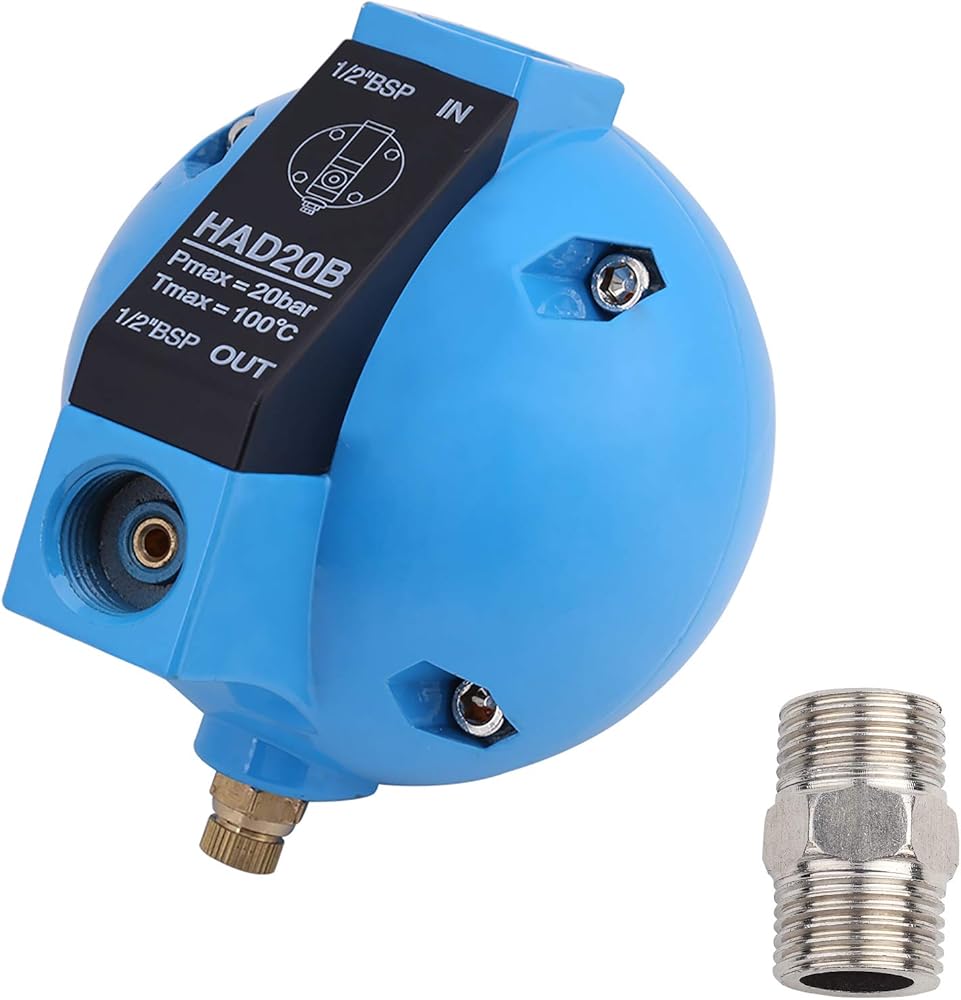

[Floating ball drain valve]: Model: HAD20B; Port size: inlet = outlet = 1/2BSP; maximum pressure: 20bar; maximum temperature: 100; maximum capacity: 400L/H; weight: about 602g
[Main function]: When the drainage buoyancy is less than the weight of the plus the compressed air pressure, the drain outlet is closed; when the buoyancy increases, it will open to discharge the condensate. This kind of compressed air condensate automatic drainer has a large drain and is not easy to be blocked.
[High performance]: The shell of the automatic drainer is made of cast aluminum alloy, and the is coated with plastic powder, which is The of the automatic drainer is extremely reliable, without electricity, noise, and compressed air loss.

وصف

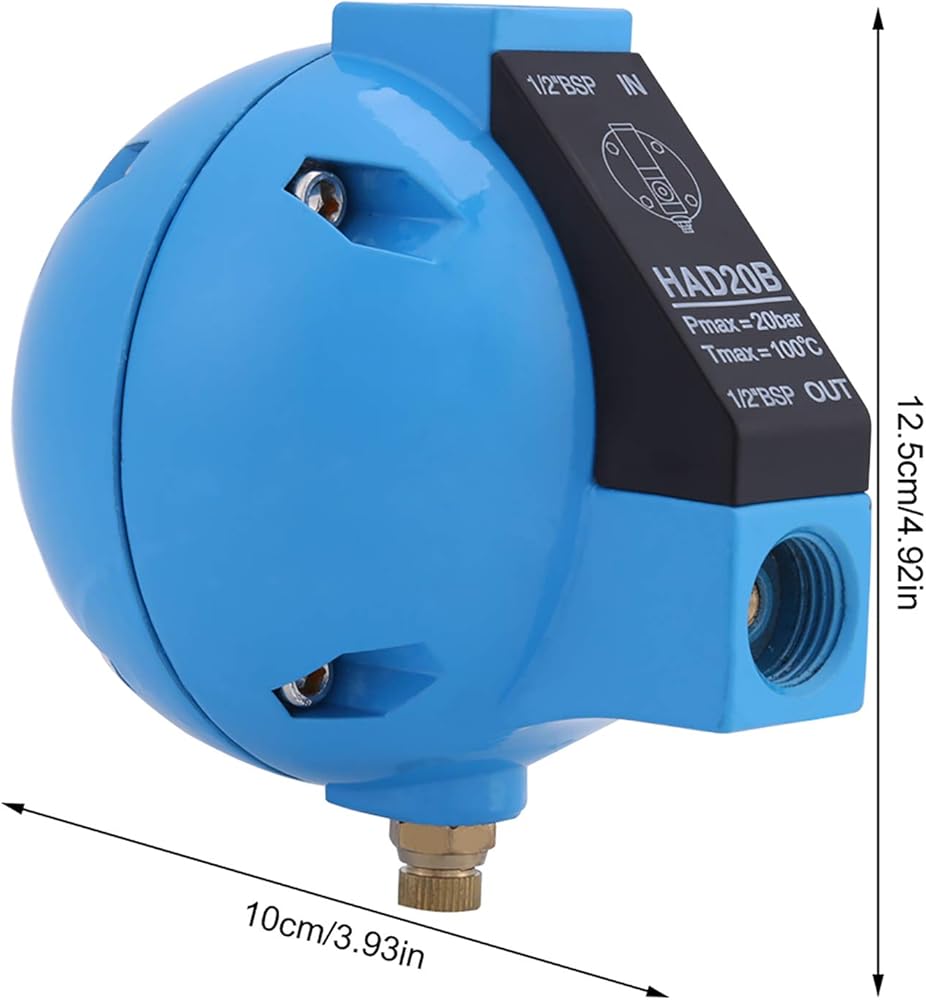

Specifications: Model: HAD20B
Port Size: Inlet=Outlet=1/2BSP
Maximum Pressure: 20bar
Maximum Temperature: 100
Maximum Capacity: 400L/H
Weight: 602g(approx.)

Instruction:
Before installing this drainer, please use compressed air to remove impurities in the piping till it is completely clean.
Install this automatic drainer beneath the drainage device of equipment, otherwise condensate will be filled and affect drainage.
Maintenance
Inspect the drainer once a week.

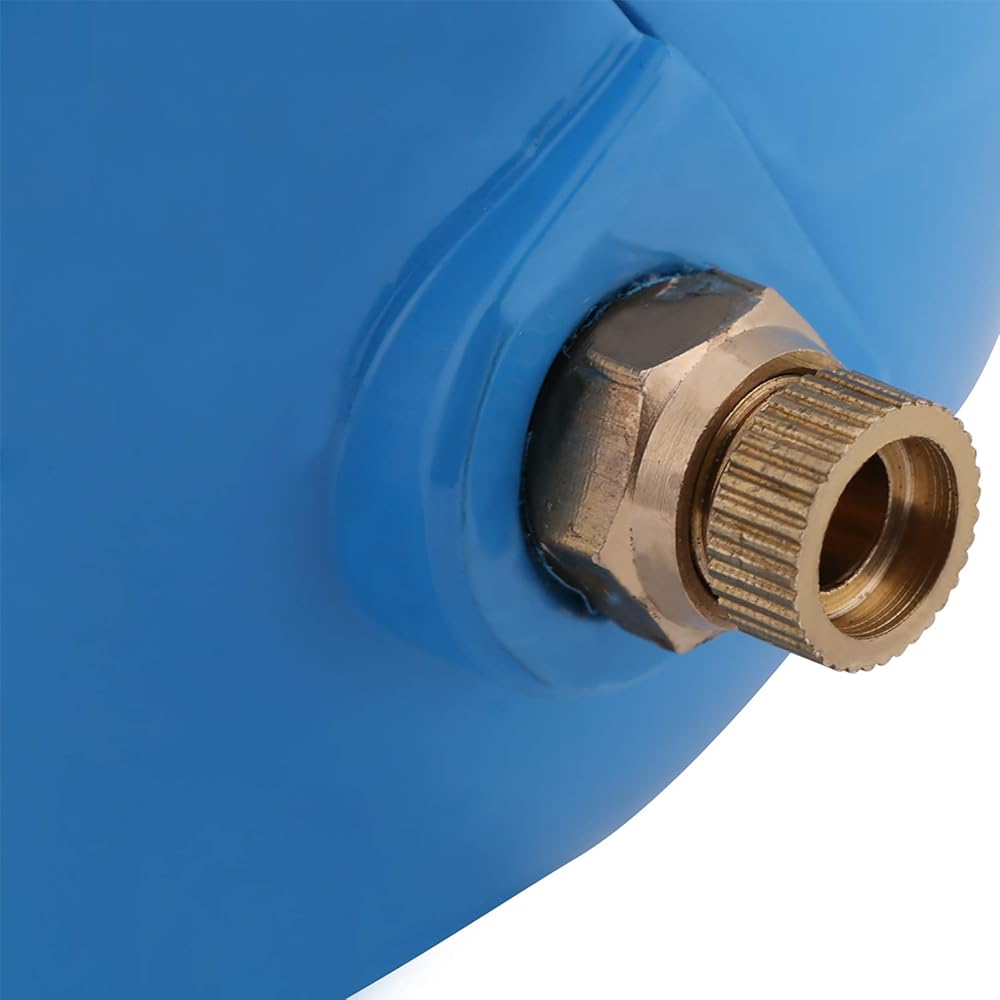

method: open manual drainer valve to drain water till compressed air in equipment enter the drainer, after a few seconds then closed valve.If drained water is more than 0.5 liters, there is a blockage and drainer need to be cleaned completely.
Internal parts should be taken out and cleaned each year.When cleaning, you can use soap water or dish-washing liquid to clean, do not use solvents, so as not to damage the rubber fittings.

Package Includes:

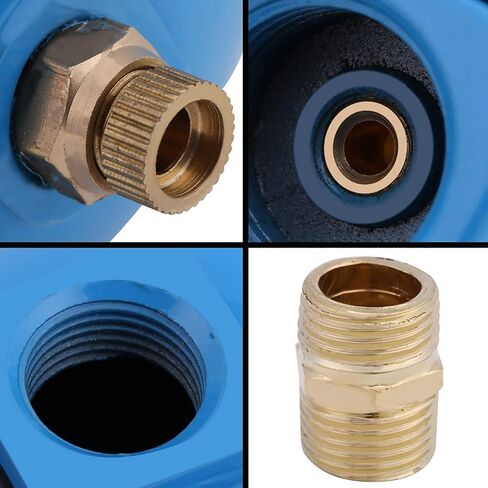

1 x Drain Valve

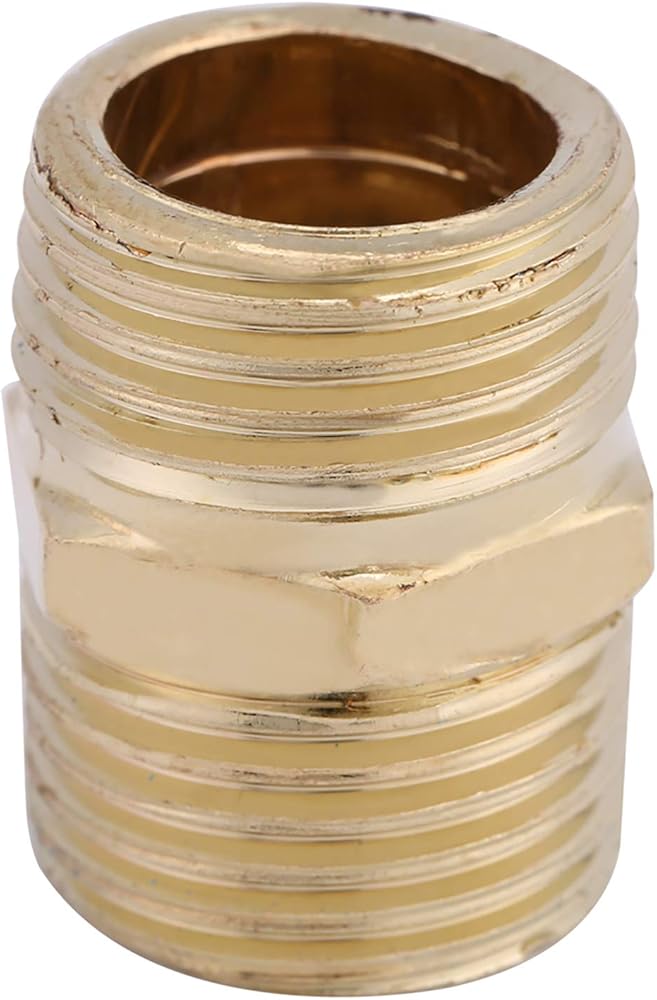

1 x Pipe Fitting

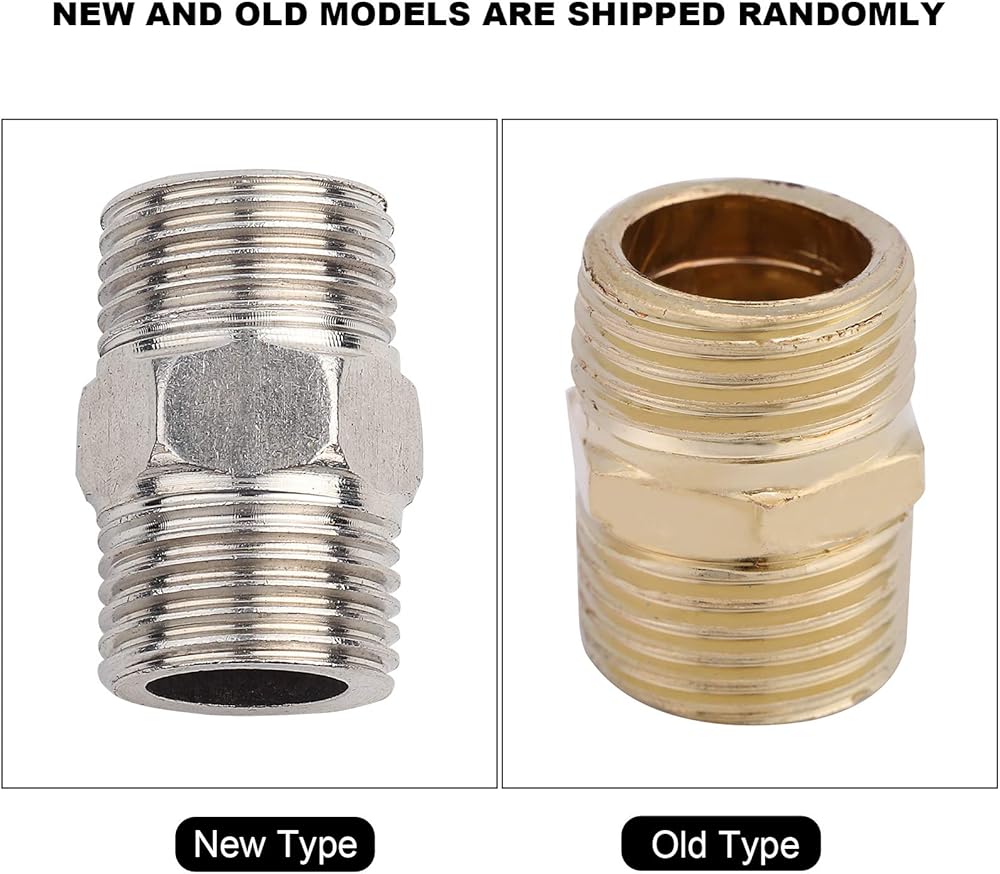

Note: Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
