Slotting Cutter Arbors

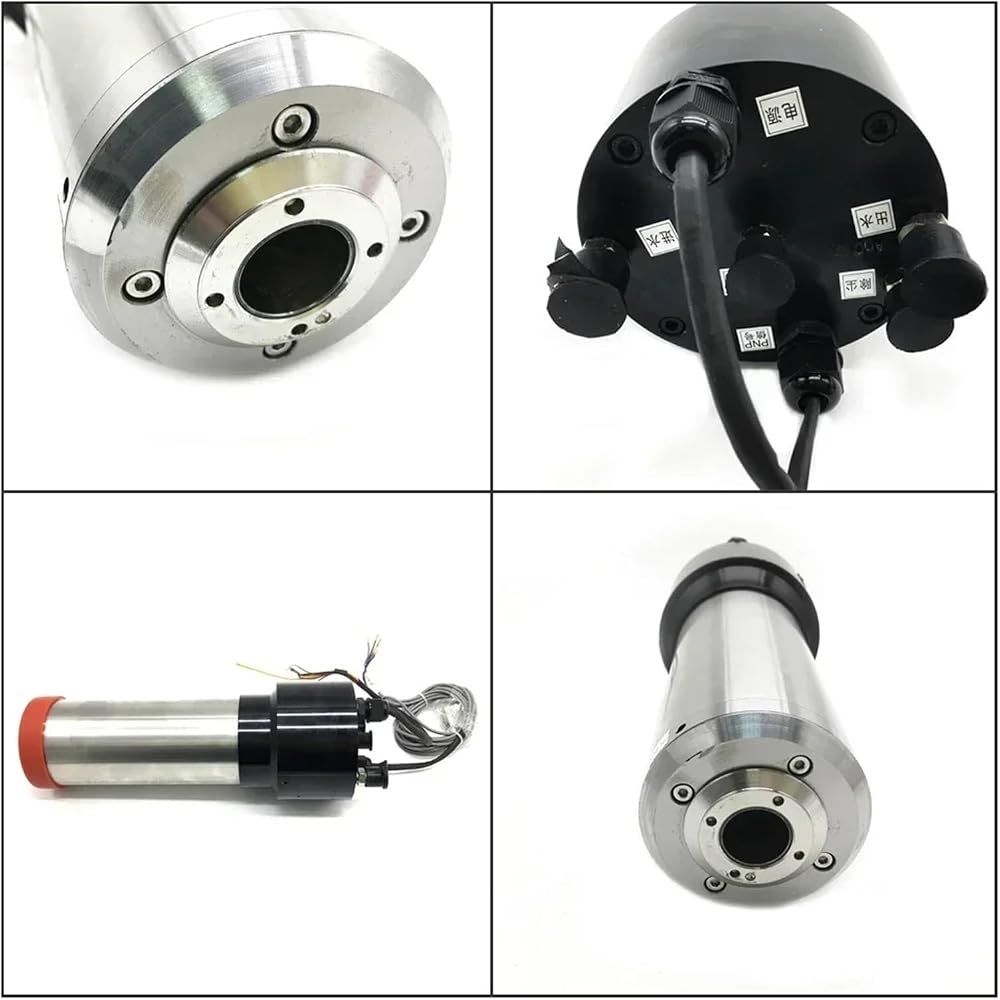

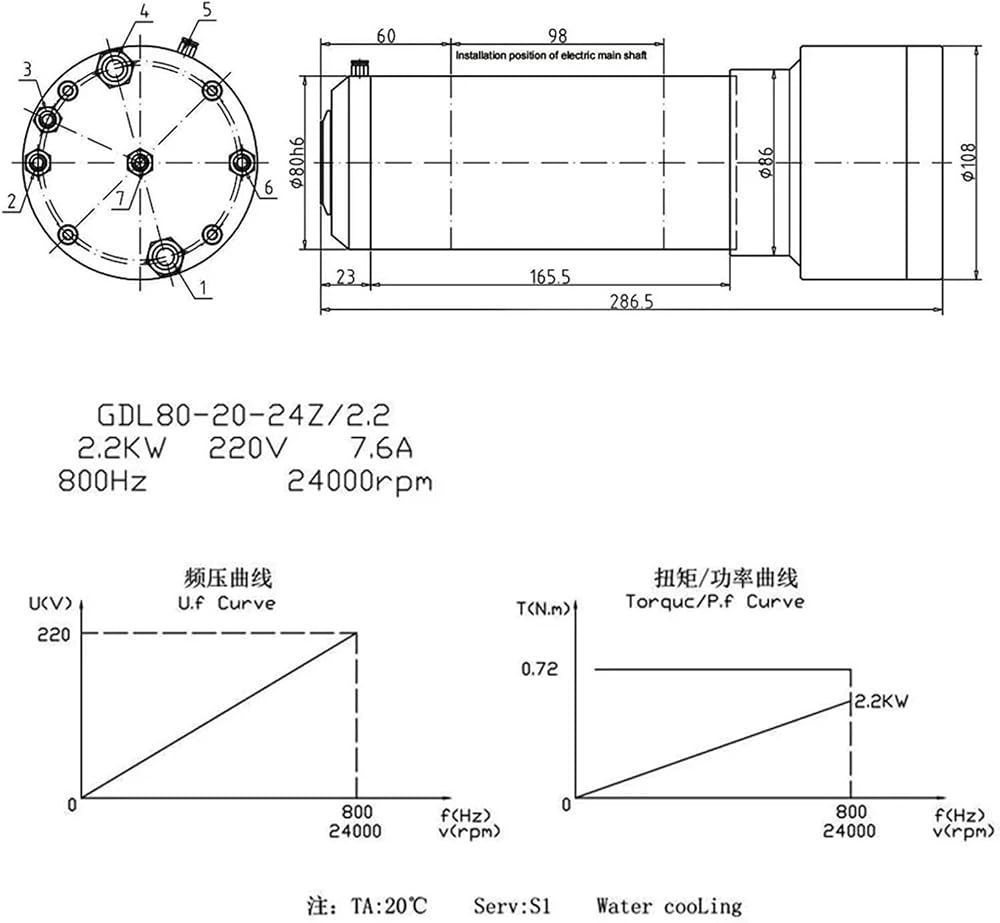

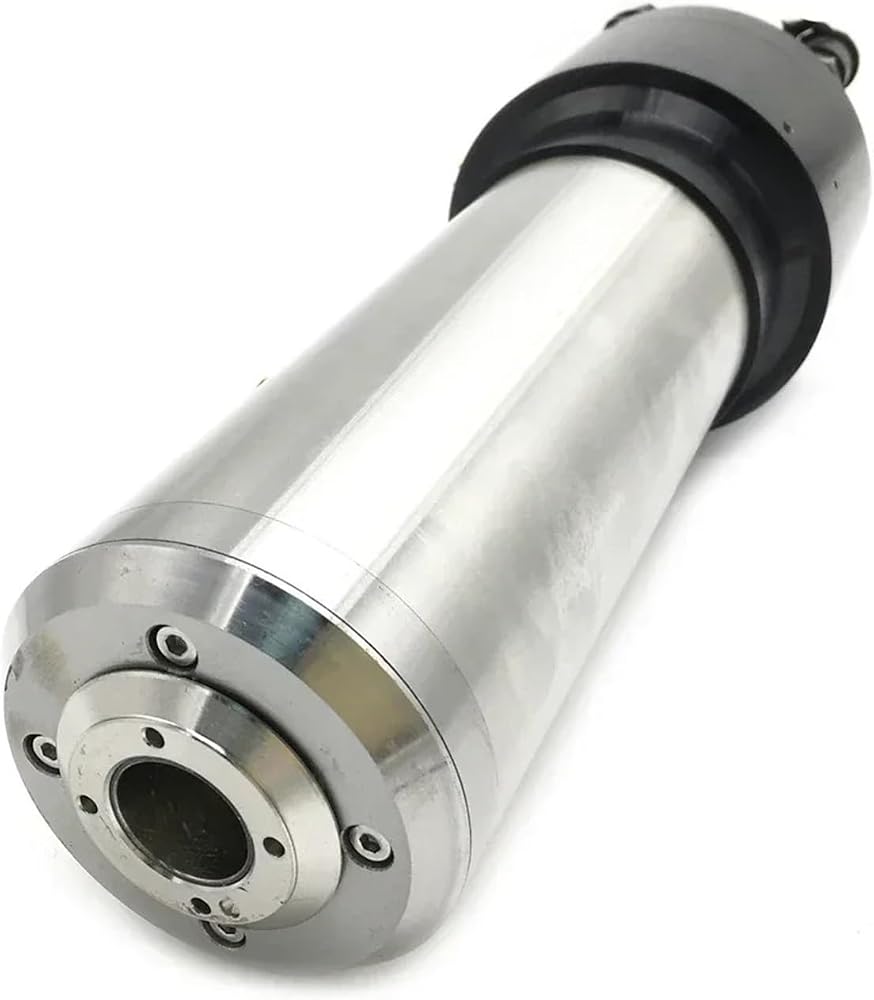

Spindle model: GDL80-20-24Z-2.2
Size: 80mm*286.5mm
Speed: 24000rpm
Rated power: 2.2kw
Voltage: 3-phase AC220V
Current: 7.6A
Frequency: 800HZ
Number of poles: 4P
Bearing: 2XHY6005C/P4, 1XSM6004C/P4
Chuck: ISO20
Cooling type: water cooling

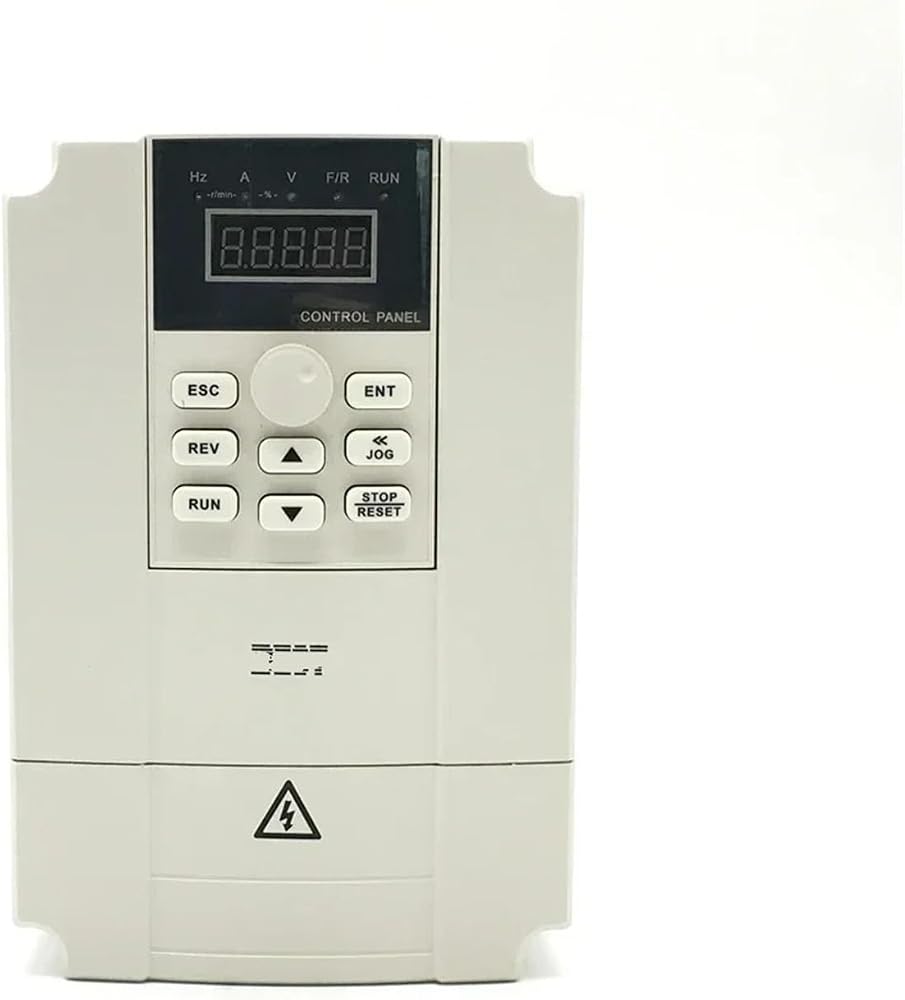

VFD parameters:
Model: FC300-2.2G-S2
Adaptive motor power: 2.2KW
Input voltage: single phase 180~260V
Output voltage: three-phase 0~220V
Current: 11A
Input frequency: 50/60Hz
Output frequency: 0～1000Hz
Control mode: VVV/F control, SVC (open loop vector) control
Protection level: IP20
Cooling type: air cooling
Output power: 2.2KW

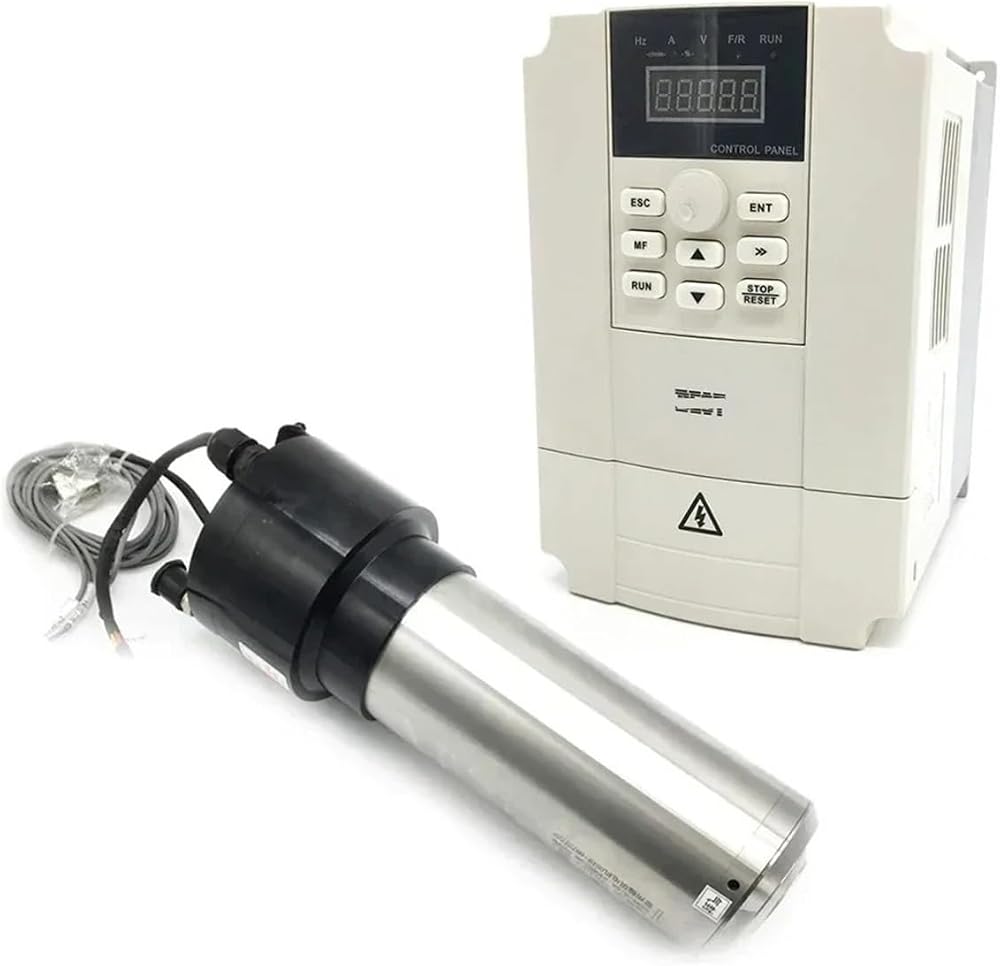

Model: GDL80-20-24Z-2.2-NPN+FC300-2.2G-S2
Protection function: drip-proof
Type: Servo Motor
Efficiency: IE 1
AC voltage: 208-230/240 V
Certification: ce
Origin: Mainland China
Certification: CE
Speed: 24000rpm
Chuck: ISO20
Spindle motor size: 80mm*286.5mm
Rated power: 2.2kw
Voltage: AC220V 3PH
Frequency: 800HZ
Number of poles: 4
Protection level: IP20
