Specification

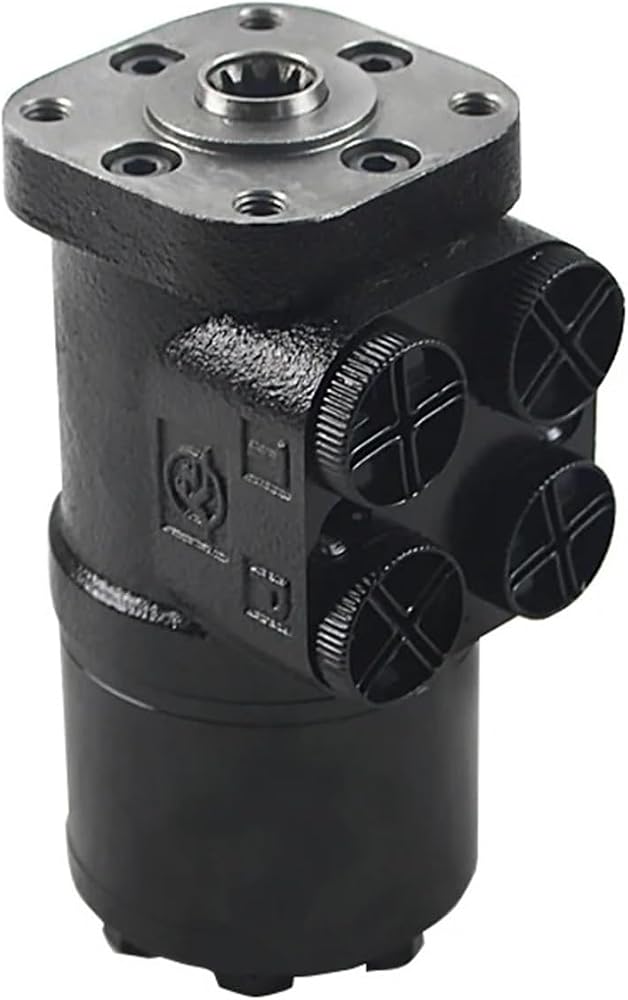

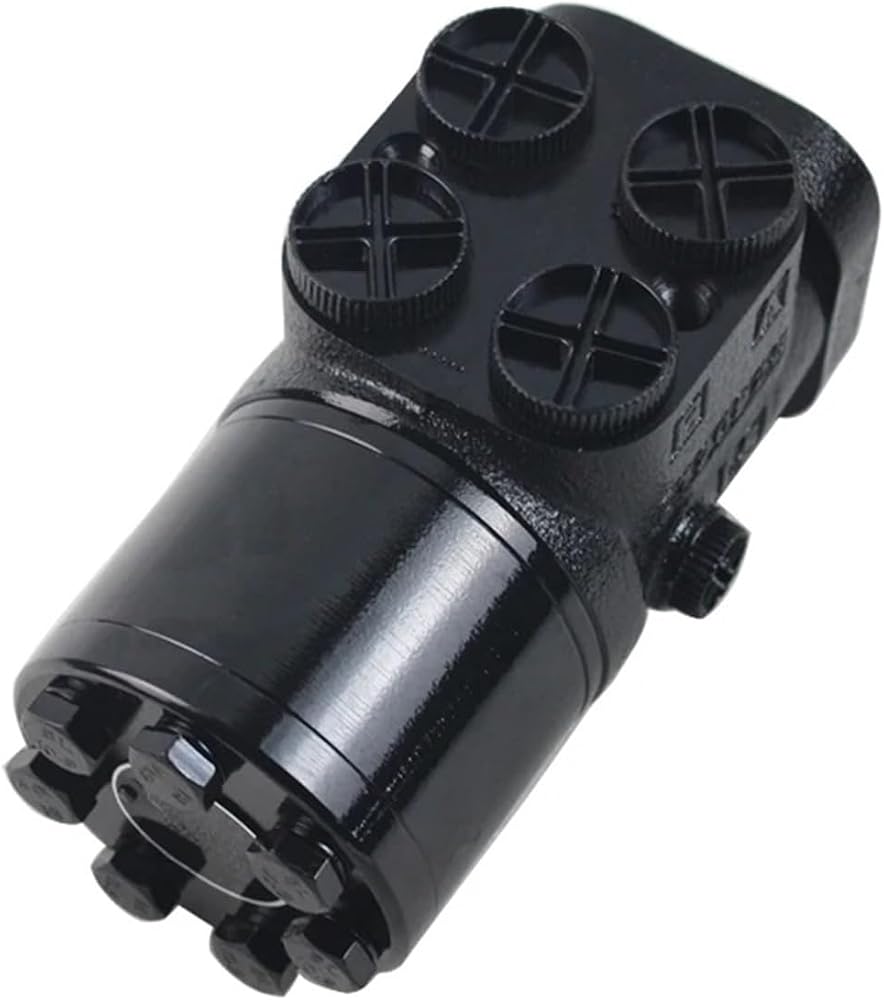

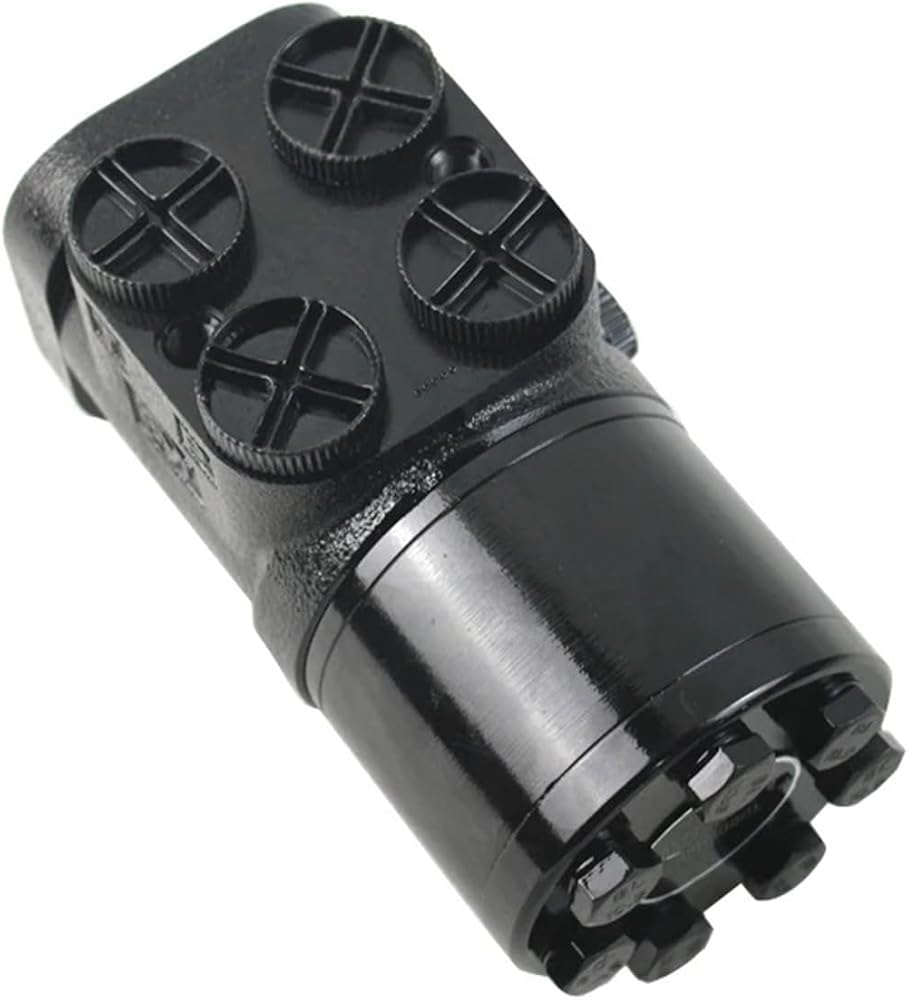

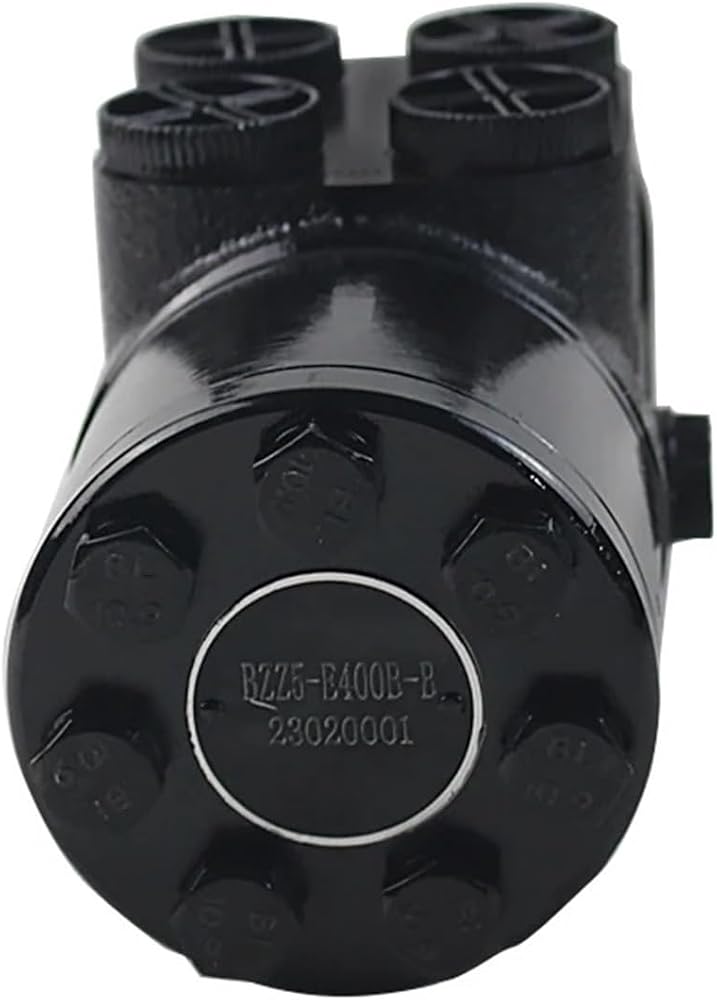

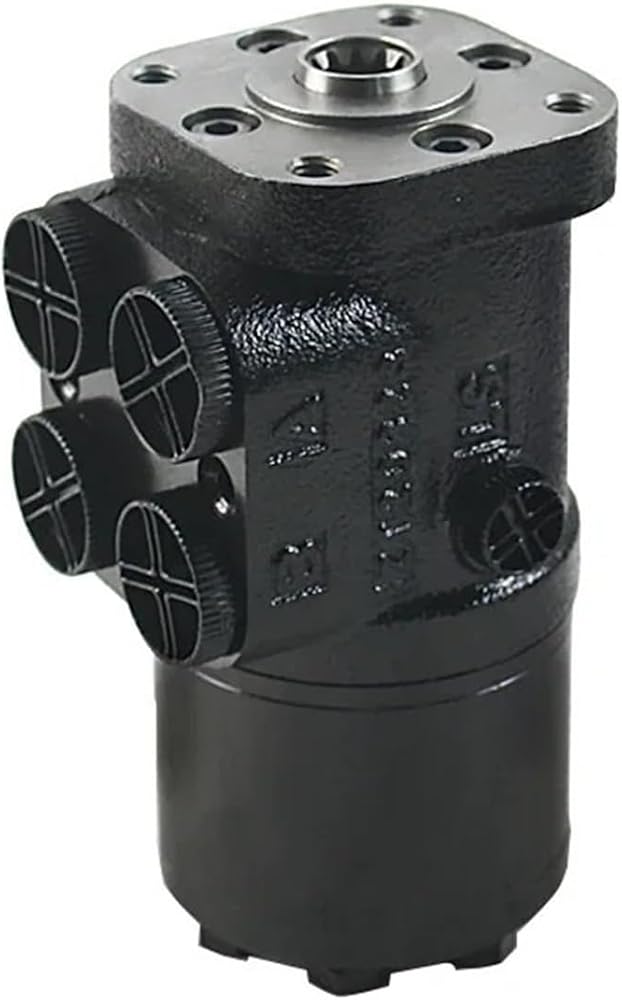

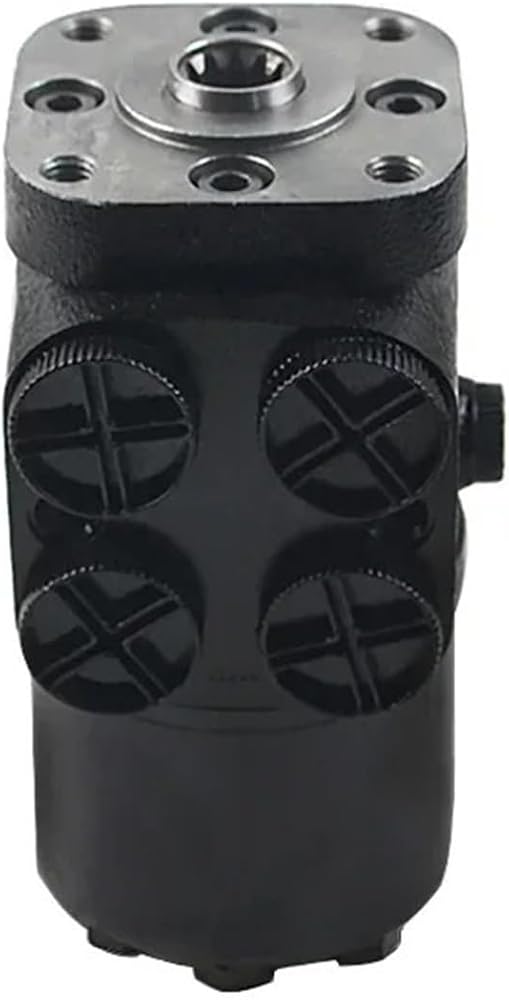

BZZ5 Hydraulic Steering Unit
The advantages of the hydraulic steering control units:
* 1.Low cost, reliable.
* 2.No load reaction on the steering wheel comfortable.
* 3.Manual operation available when the pump doesnt work.
* 4.Low control torque, continuous operation.
* 5.According to the systems, different function and pressure level valves available.
Type
Displacement
(mL/r)
Length
L(mm)
Max. input
speed (rpm)
Max. input
pressure (MPa)
Max. cont. back
pressure (MPa)
Max. power
steering torque (N.m)
BZZ-E50*
50
140
100
16
1.6
5
BZZ-E63*
63
141
4.85
BZZ-E80*
80
142.5
5.00
BZZ-E100*
100
145
5.27
BZZ-E125*
125
148
5.43
BZZ-E160*
160
153
5.75
BZZ-E200*
200
158
6.08
BZZ-E250*
250
164
6.48
BZZ-E280*
280
169
75
6.78
BZZ-E315*
315
174
7.13
BZZ-E400*
400
184
7.78
BZZ-E500*
500
197
60
8.67
BZZ-E630*
630
216
9.72
BZZ-E800*
800
236
11.18
BZZ-E1000*
1000
262
12.80
The installation and use of full hydraulic steering note
1 installation precautions:
* (1) When installation steering gear must ensure coaxiality with column, must have a gap of 1 mm in the axial direction.
* (2) The depth of screw connection to the steering column tightening steering column is 15mm.
* (3) After steering gear installed, must check steering wheel turns to ensure the flexibility of the return position.
* (4) Connection pipeline: P oil port connects to the oil supply pump, T oil port connects to the oil tank, and A and B oil portsrespectively connect the left and right oil chambers of the steering gear.
2 oil flow rate considerations:
* (1) The oil supply circuit connected to the P oil port, the oil flow rate in the pipe is
